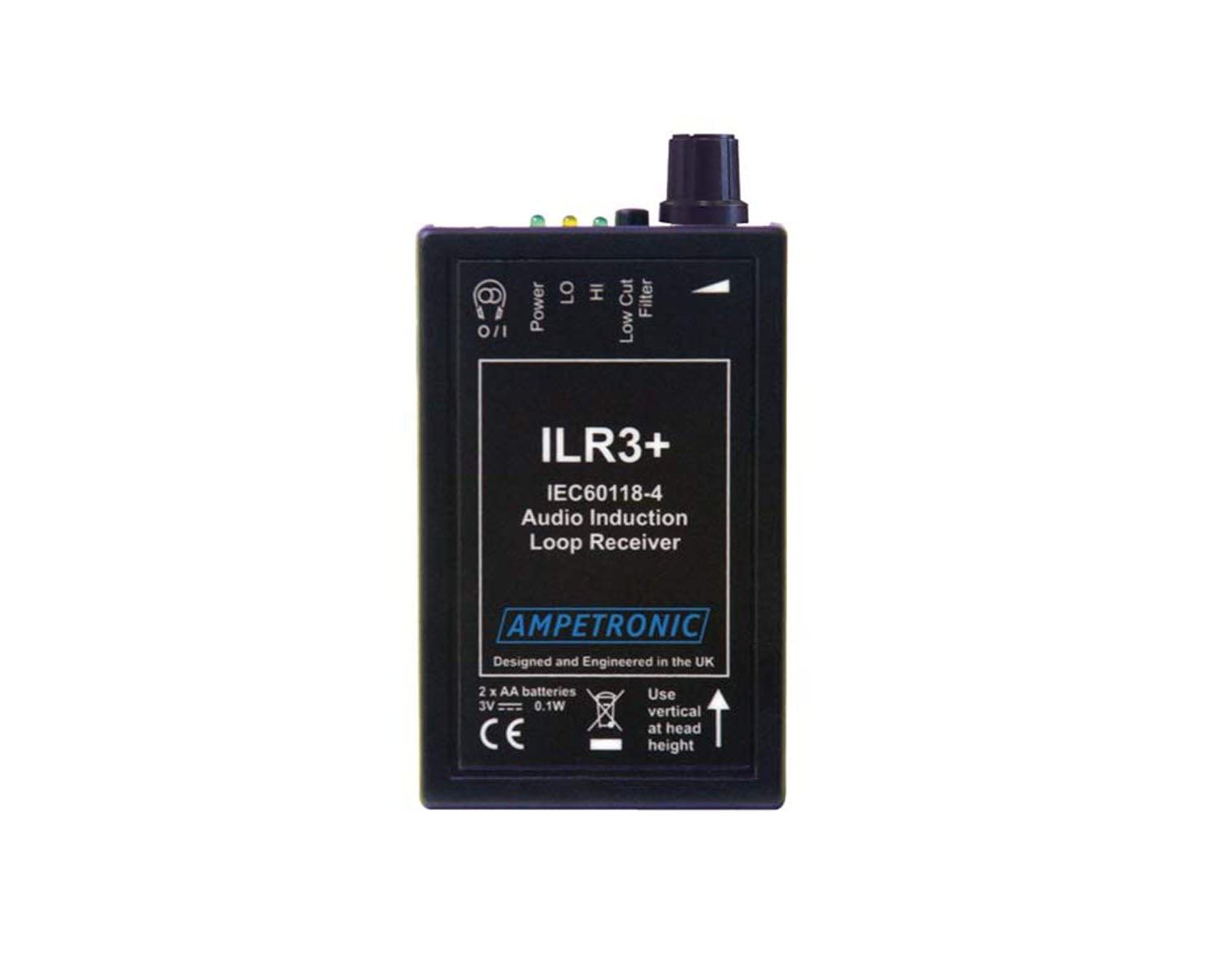

The Ampetronic ILR3+ is designed to perform the same induction receiver function as the ILR3 whilst also providing the added capability to check that the induction loop is functioning correctly.

When an induction loop is installed the venue manager or staff should always be supplied with at least one instrument that allows them to regularly monitor the system performance. The IR3+ performs this task without the added cost and complexity of a Field Strength Meter. It is simple and highly cost effective, and meets the requirements of the international loop performance Standard, IEC60118-4.

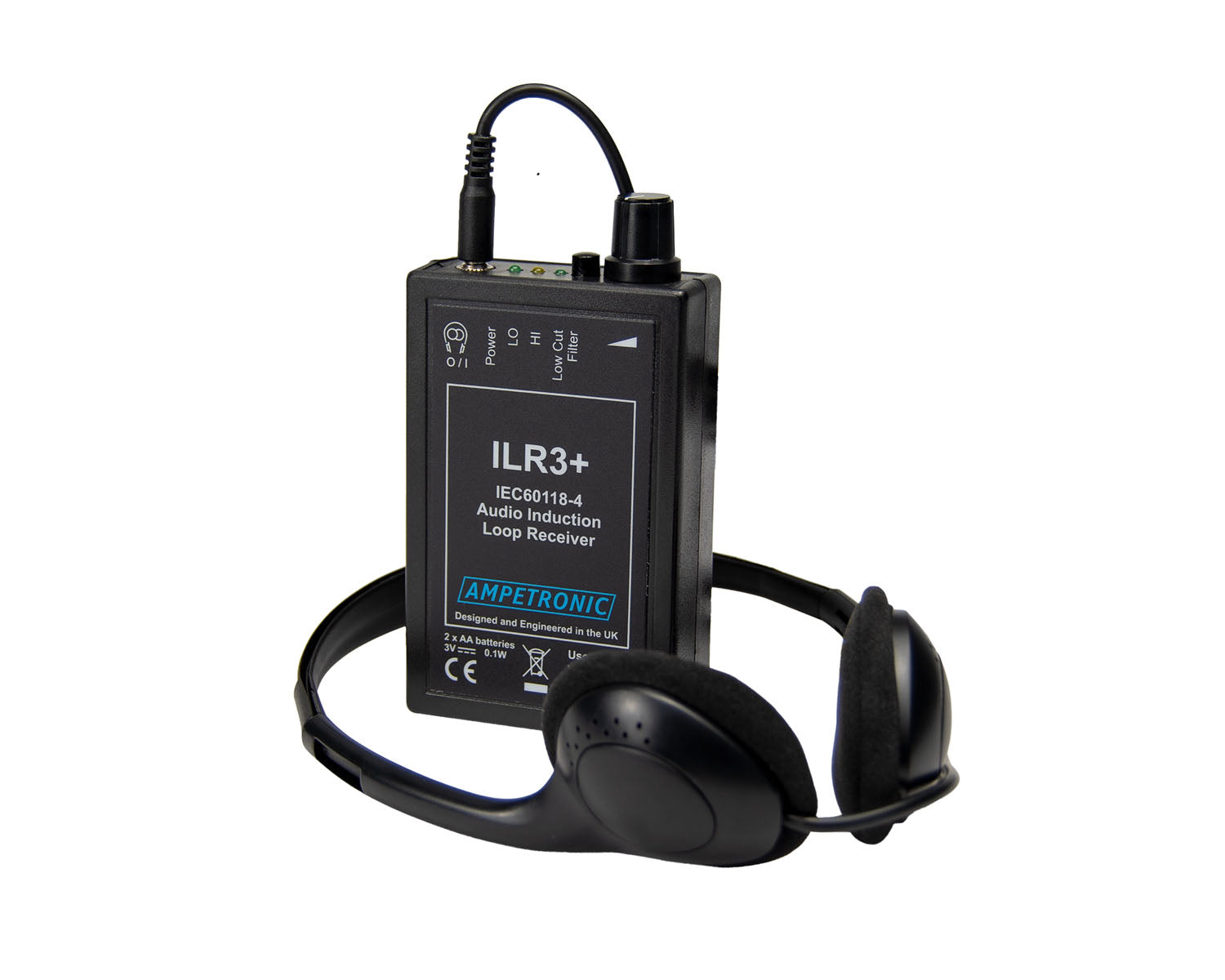

No technical skills are required to perform the basic checks, which allow an operator to listen to the system through headphones, and check that the sound level provided by the loop is sufficient.

The loop checking system comes with an easy to follow procedure for checking any loop system.

Product Features

• ILR3 with Field Strength Indicators
• Low distortion
• Flat frequency response to 6KHz
• Volume control
• Auto power off with headphone removal
• > 100 hours life with 2 AA batteries

Product Specifications

• Frequency response:
  • Standard: Flat 85Hz – 6kHz ± 0.5dB
  • Low Cut: 400Hz – 6kHz – 3dB (similar to hearing aid)
• Output power: >100mW into 16Ω load
• Battery powered: 2 x Alkaline AA (included)
• Battery life: >100 hours with Alkaline batteries

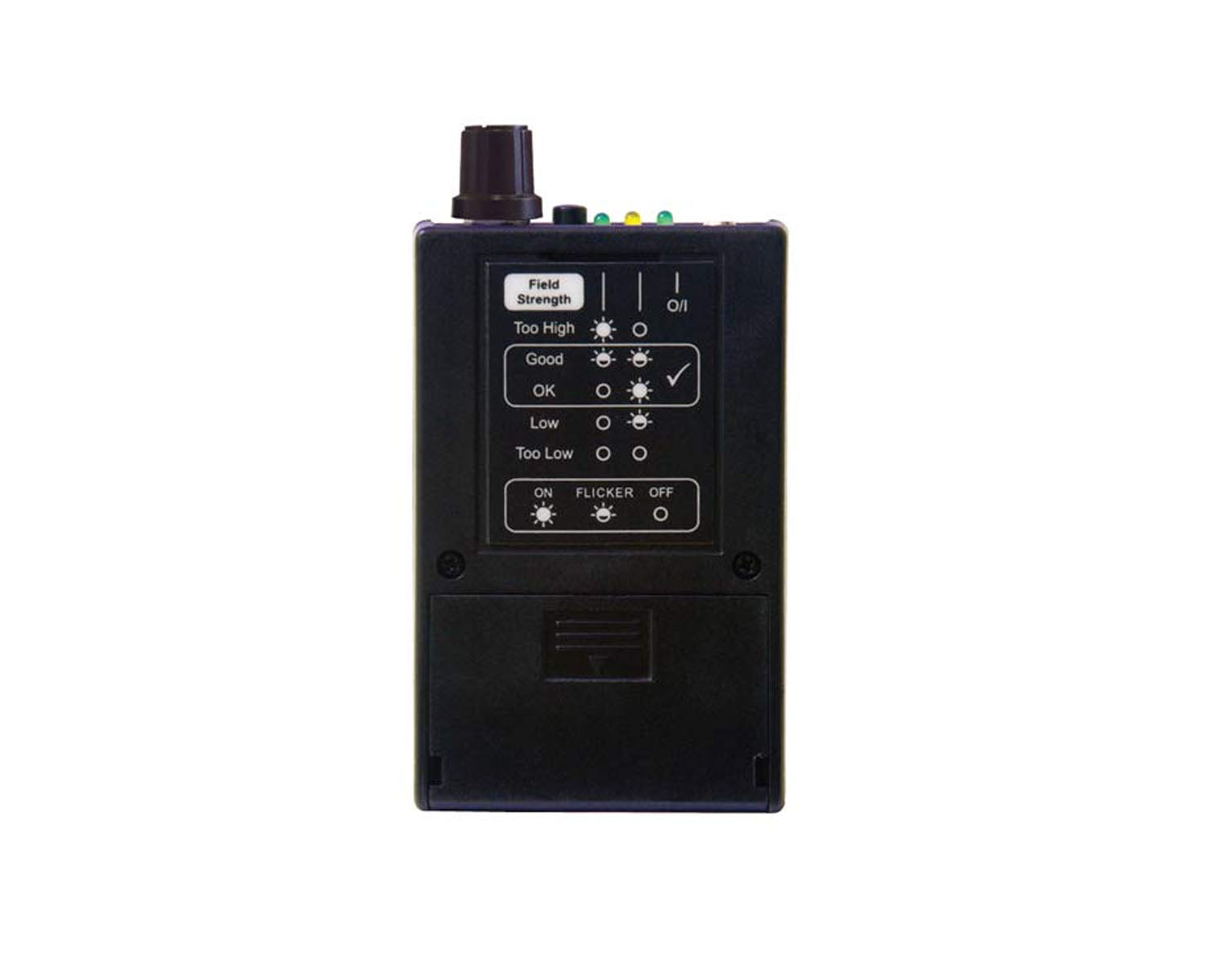

• Indication:
  • ‘Good’ 0dB Green LED 400mA/m rms with sine
  • ‘Okay’ -6dB Amber LED 400mA/m rms with sine

Physical

• Dimensions: width 62mm, depth 26mm, height 112mm
• Temperature range: IP20 : 20 to 90% relative humidity, -10 to 45ºC
