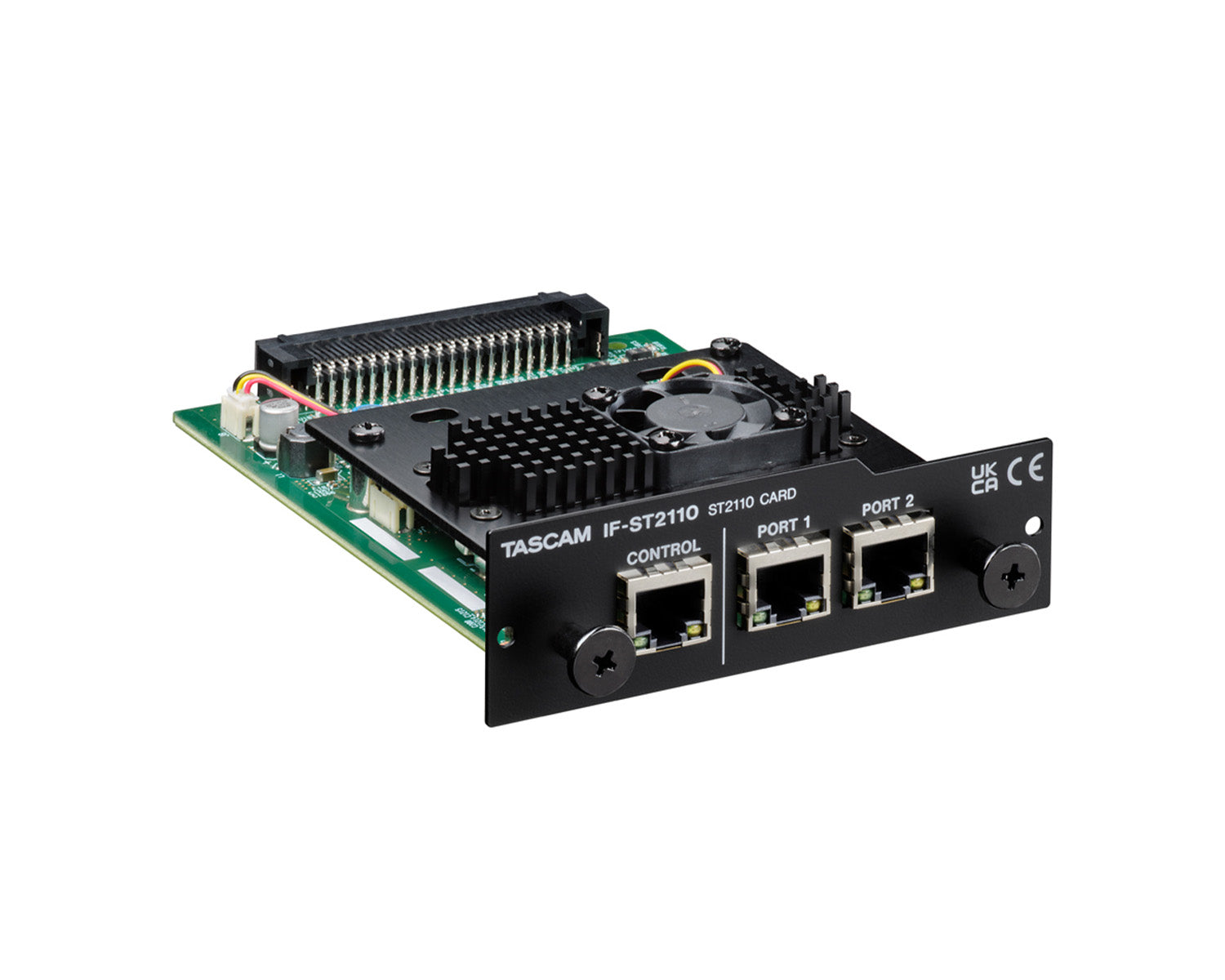

The IF-ST2110 is an expansion card for Tascam Sonicview mixing consoles which allows 64 audio channels to be transferred over an AV-over-IP network. It provides full support for the SMPTE ST 2110 AV networking standard with redundancy in accordance with SMPTE ST 2022-07 and supports SMPTE ST 2110-30/31, AES67, NMOS and SAP.

By installing the IF-ST2110 in a Tascam Sonicview 24 or Sonicview 16, these consoles can be easily integrated into professional AV environments that use the SMPTE ST 2110 protocol, such as in the broadcast sector.

Even with the IF-ST2110 installed, your Sonicview can still transfer audio via Dante thanks to the built-in Dante interface. This gives you the flexibility to choose between several audio-over-IP protocols as required, which is a significant advantage.

Product Features

• Expansion card for SonicView 16 or 24
• Allows 64 audio channels to be transferred over an AV-over-IP network
• Compliant with ST 2110-30/31 and AES67 standards
• Audio transmission via 64 inputs / 64 outputs at 48 kHz or 32 inputs / 32 outputs at 96 kHz
• Supports redundancy (ST 2022-7)

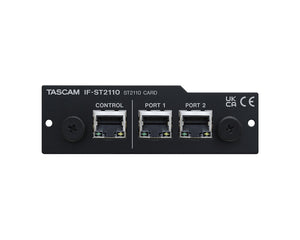

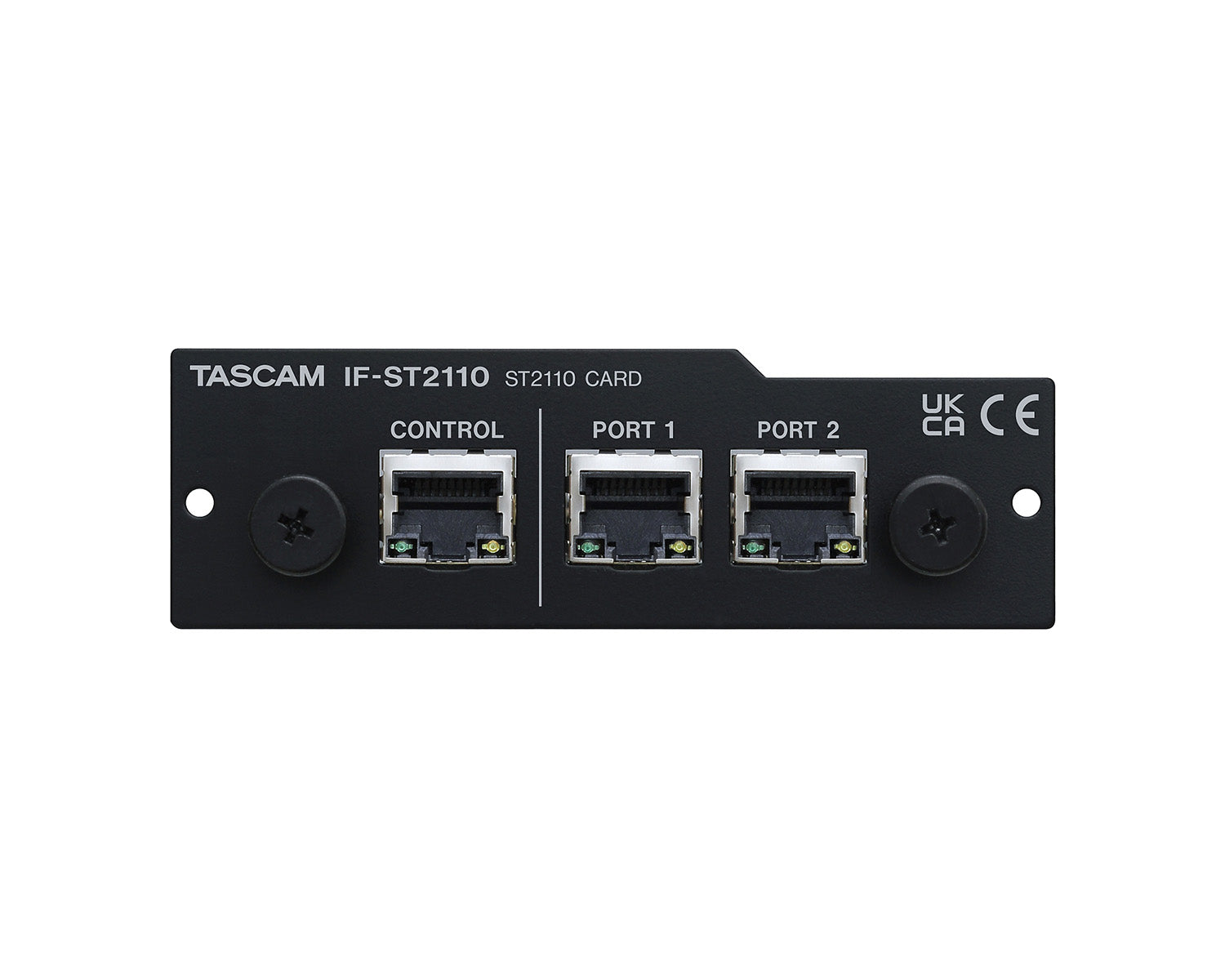

• Equipped with independent ports for media streams and control
• Two media ports (PORT 1 / PORT 2)
• One control port (CONTROL)
• Supports NMOS IS-04 (discovery and registration of media nodes), NMOS IS-05 (connection management of media nodes) and SAP (Session Announcement Protocol)
