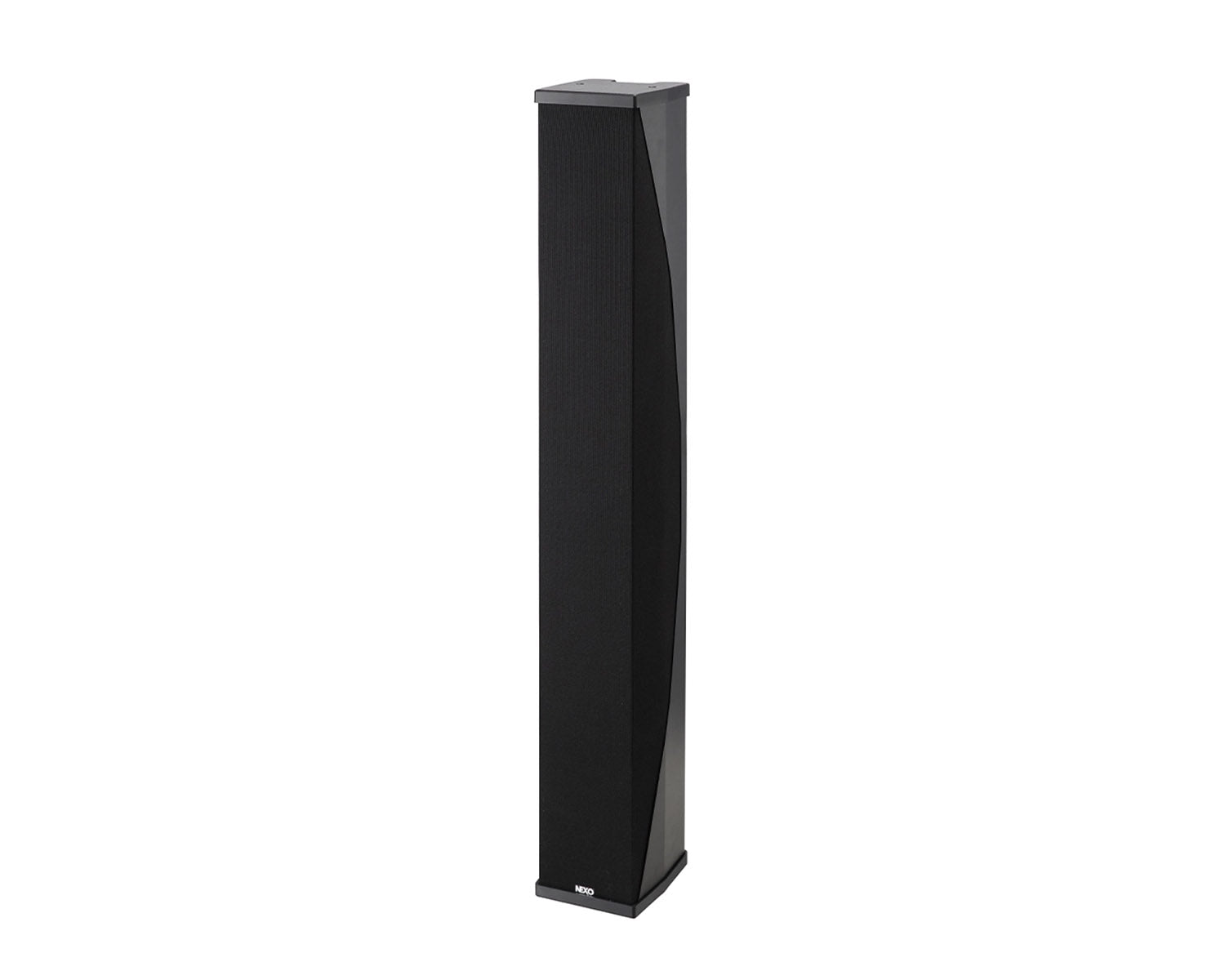

The ID84L shares the same aesthetic design and sonic signature as the other modules in the ID Series, while offering an elegant format and the well known NEXO size-to-power ratio.

High-density package

The ID84L is 990mm x 150mm x 163mm (39.0” x 5.9” x 6.4”) and weighs 14 kg (31-lbs). Using the latest-generation powerful Neodymium drivers used in the ID24.

Advanced NEXO technology included

The ID84L extends the applications of the ID84 main speaker. By increasing the line length the vertical directivity of the assembly naturally narrows down in frequency.

Adding ID84 & ID84L together

Two ID84 modules can be coupled upside down, increasing both the HF efficiency and the directivity in the LF by increasing the length of the source. Optionally ID84L can be added as well, increasing the column length from 2 meters (ID84 + ID84L) up to 4 meters (2x ID84 + 2x ID84L). All these combinations can be simulated through our acclaimed simulation software: NS-1.

Perfect phase alignment

The ID84L shares the same phase response as all NEXO speakers, making it extremely easy to mix with other NEXO systems, e.g for side fill or front fill, or when used with any NEXO subs, without risk of comb filtering or requiring complex electronic adjustment.

Touring, Installation and TIS versions

The ID84L is available with the same finish options as the main module ID84.

The Touring version uses a front Magnelis® grille. Its connection plate uses two NL4 connectors at the back and one connector hidden into the bottom cover for cableless connection to the dedicated IDS312 sub.

The Installation version keeps the same acoustic design but comes with a grille covered by an acoustic cloth. The connectivity is made through cable gland and captive two core cables, this version being IP54 rated.

The TIS version is actually a Touring version plus the acoustic cloth in front. All versions are available in black, white or custom RAL colour on request.

Product Features

• LF extension column speaker
• 8 x 4 inch LF drivers
• 132 dB peak SPL
• TIS version with cloth covered grille and Speakon connectivity
• Extremely easy to mix with other NEXO systems
• Black, white and custom RAL colours

Product Specifications

General

• Frequency Response @-6 dB: 90 Hz to 1.5 kHz
• Sensitivity: 102 dB SPL Nominal
• Peak SPL@1m: 132 dB
• Available Crossover Frequencies: 90 Hz, 120 Hz
• HF Dispersion: Vertical: Depends on ID84 Main module configuration and assembly | Horizontal: 100°
• Nominal Impedance: 4Ω
• Recommended Power: 650 to 1080 Watts / 4Ω

Specification Features

• Number of ways: 1 way
• Components: LF: 8 x 4" 8 Ohms long excursion Neodymium driver
• Connectors: 2x NL4 connectors (2+/2-) + 1x integrated connector in the base
• Rigging Points: 2 x pairs of M6 - 70 mm pitch rigging points + 2x extra M6
• Construction: Aluminum body and Magnelis® covers & grille
• Finish: Black powder coating (RAL9005), White powder coating (RAL9016) or Custom RAL
• Front Finish: UV & Fire resistant acoustic fabric
• Operating temperature range: 0°C - 40 °C (32° F - 104° F)
• Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
• Height x Width x Depth: 990mm x 150mm x 163 mm (39.0" x 5.9" x 6.4")
• Weight: Net: 14 kg (31 lbs) 31 kg (68 lbs)
• IP Rating: IP2X
• System Operation:
  • Recommended powering solution: NXAMP4x1mk2 Powered TDcontroller: Up to 2 x ID84L per channel
  • Electronic controllers:
    • DTDcontroller + DTDAMP4x0.7 : 1 x ID84L per channel
    • DTDcontroller + DTDAMP4x1.3 : 1 x ID84L per channel
    • NXAMP4x2mk2 Powered TDcontroller: Up to 2 x ID84L per channel
    • NXAMP4x4mk2 Powered TDcontroller: Up to 2 x ID84L per channel
