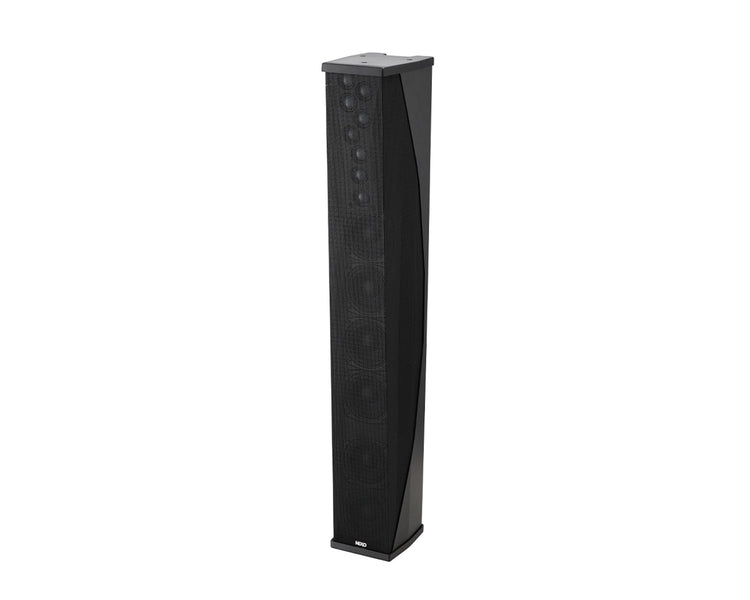

The ID84 shares the same aesthetic design and sonic signature as the other modules in the ID Series, while offering an elegant format and the well known NEXO size-to-power ratio.

High-density package

The ID84 is 990mm x 150mm x 215mm (39.0” x 5.9” x 8.5”) and weighs 15 kg (33-lbs). Using the latest-generation Neodymium drivers, including the powerful 4” LF driver used in the ID24.

Advanced NEXO technology included

From speakers to waveguide, ID84 is packed with important NEXO technical innovations. The HF uses a patent-pending arrangement to maximize the coverage of the HF. The enclosure itself is made of aluminium, while the side covers and the protective front grille are in Magnelis®.

Precise matching directivity

The ID84 vertical directivity can be selected between two dispersions through a switch at the back, offering either +0/-10° “Narrow” or +0/-25° “Wide” dispersion, for 100° horizontal. Together with dedicated presets for each vertical directivity choice, the ID84 can accommodate various audience situations while keeping a consistent sound throughout the audience area.

Long-throw applications

The design of the ID84 allows two modules to be coupled upside down for increased throw, each module with its own directivity option. A low frequency extension, called ID84L, can increase the line length for increased directivity up to full cardioid pattern. See ID84L datasheet.

Touring, Installation and TIS versions

The Touring version uses a front Magnelis® grille. Its connection plate uses two NL4 connectors at the back and one connector hidden into the bottom cover for cableless connection to the dedicated IDS312 sub.

The Installation version keeps the same acoustic design but comes with a grille covered by an acoustic cloth. The connectivity is made through cable gland and captive two core cables, this version being IP54 rated.

The TIS version is actually a Touring version plus the acoustic cloth in front. All versions are available in black, white or custom RAL colour on request.

Perfect phase alignment

The ID84 shares the same phase response as other NEXO speakers, making it extremely easy to mix with all NEXO systems, e.g for side fill or front fill, or when used with any NEXO subs, without risk of comb filtering or requiring complex electronic adjustment.

Product Features

• Compact, high-powered column speaker
• 8 x 4 inch LF drivers + 8 x dome HF drivers in a patent-pending arrangement
• 135 dB peak SPL
• Switchable +0°/-10° (Narrow Mode) or +0°/-25° (Wide Mode) vertical HF dispersion
• Touring version with Magnelis steel grille and Speakon connectivity
• Black, white and custom RAL colours

Product Specifications

General

• Frequency Response @-6 dB: 90 Hz to 20 kHz
• Sensitivity: 105 dB SPL Nominal
• Peak SPL@1m: 135 dB
• Available Crossover Frequencies: 90 Hz, 120 Hz
• HF Dispersion: Vertical: +0°/-10° (Narrow Mode) or +0°/-25° (Wide mode) | Horizontal: 100°
• Nominal Impedance: 4Ω
• Recommended Power: 650 to 1080 Watts / 4Ω

Specification Features

• Number of ways: 2 way passive
• Components: LF: 8 x 4" 8 Ohms long excursion Neodymium driver HF: 8 x 1" 8 Ohms HF driver on a patent-pending arrangement
• Narrow/Wide Mode Selection: Ruggedized, recessed, waterproof 2 position switch
• Connectors: 2x NL4 connectors (1+/1-)
• Rigging Points: 2 x pairs of M6 - 70 mm pitch rigging points + 2x extra M6
• Construction: Aluminum body and Magnelis® covers & grill
• Finish: Black powder coating (RAL9005), White powder coating (RAL9016) or Custom RAL
• Front Finish: Magnelis® Front grill
• Operating temperature range: 0°C - 40 °C (32° F - 104° F)
• Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
• Height x Width x Depth: 990mm x 150mm x 215 mm (39.0" x 5.9" x 8.5")
• Weight: Net: 15 kg (33 lbs)
• IP Rating: IP2X
• System Operation:
  • Recommended powering solution: NXAMP4x1mk2 Powered TDcontroller: Up to 2 x ID84 per channel
  • Electronic controllers:
    • DTDcontroller + DTDAMP4x0.7 : 1 x ID84 per channel
    • DTDcontroller + DTDAMP4x1.3 : 1 x ID84 per channel
    • NXAMP4x2mk2 Powered TDcontroller: Up to 2 x ID84 per channel
    • NXAMP4x4mk2 Powered TDcontroller: Up to 2 x ID84 per channel
