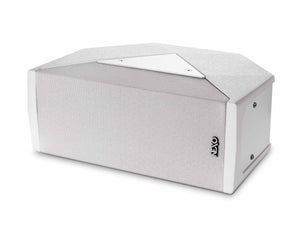

With a unique user-rotatable horn that lets users quickly select between 120° x 40° or 40° x 120° HF coverage, ID24 brings unparalleled flexibility to the world of compact speakers with a cabinet that delivers trademark NEXO sound and performance, whether mounted horizontally or vertically.

Measuring just 309mm wide, 132mm high and 233mm front to back, the ID24 uses twin 4 inch drivers in a V formation, and is ideal as part of a full range system, or as a dedicated ‘sound beaming’ unit in difficult spaces. Mounted horizontally or vertically, ID24 delivers superior performance in all scenarios.

ID24 is available in install (ID24i) and touring (ID24t) versions, plus an ‘A La Carte’ variant with enables specifiers to choose from a range of colour, mounting, connectivity and HF dispersion options to configure the perfect speaker for the given application.

Compatible with a huge range of NEXO and third party touring and installation hardware, the ID Series also encompasses two dedicated low-profile subs.

Product Features

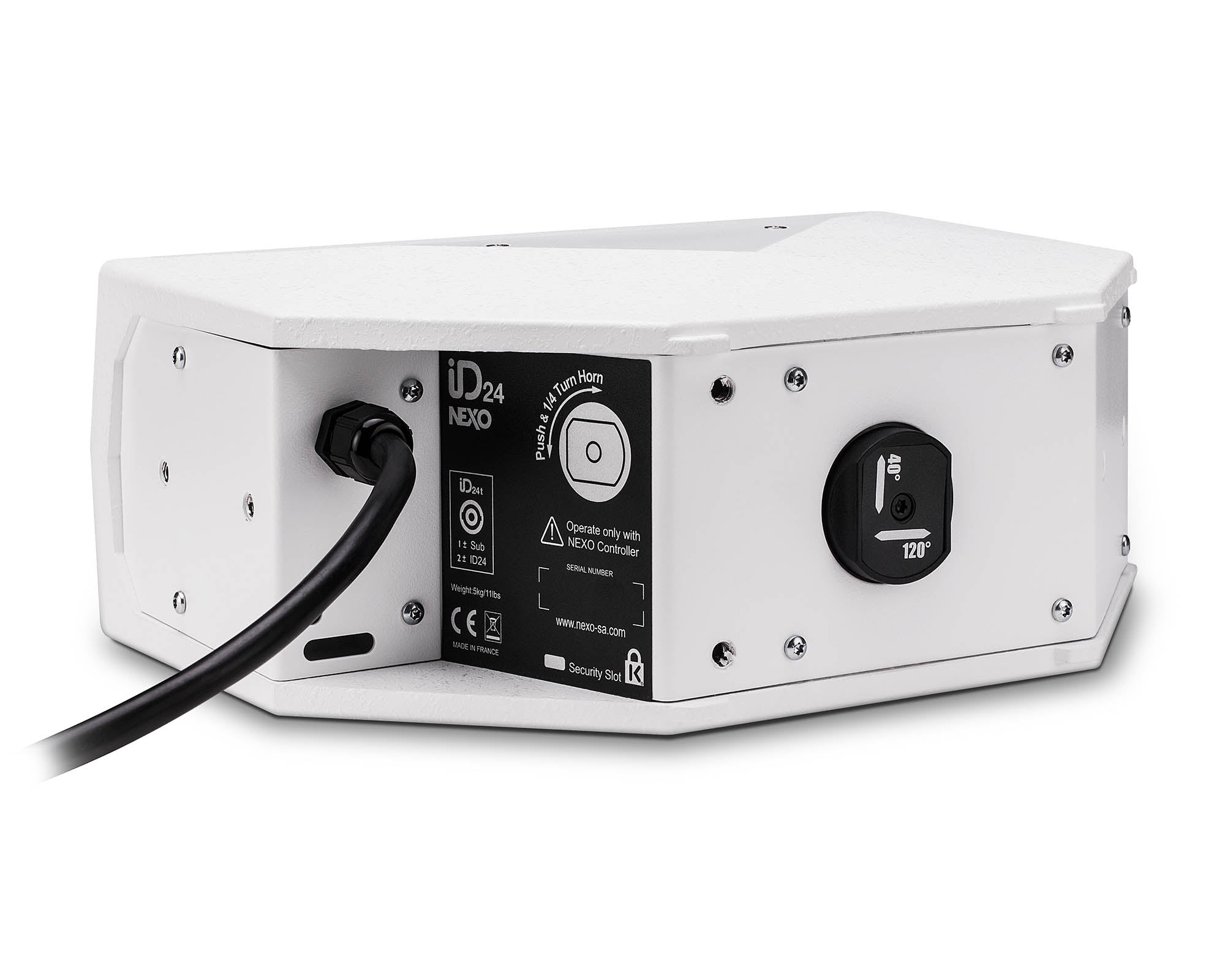

• Features a unique user-rotatable horn to enable quick and easy HF coverage
• Selectable between 120° x 40° or 40° x 120° HF coverage
• ID24 features 4 twin drivers in a V formation, ideal as a range or dedicated ound beaming\' unit in difficult spaces
• Brings an "unparalleled flexibility to the world of compact speakers"
• Despite being compact, the ID24 still delivers NEXO prestigious sound, reliability and performance

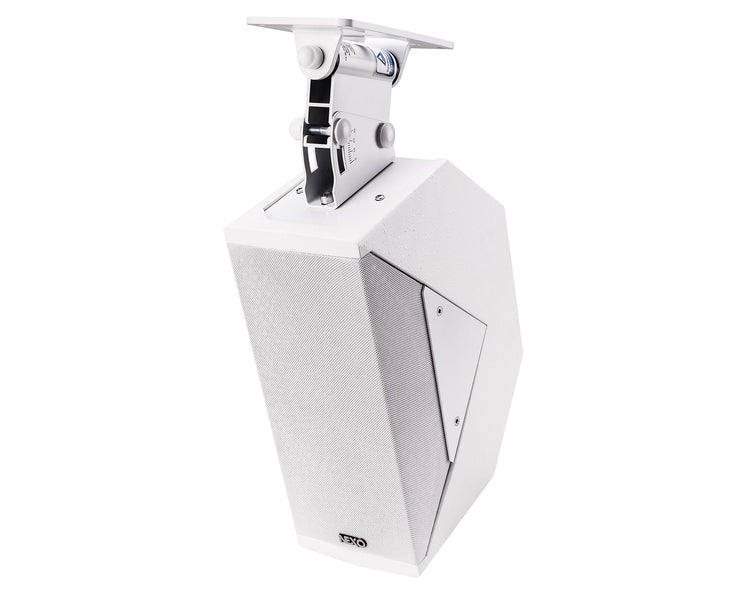

• ID24 can be mounted vertically or horizontally, perfect for a wide variety of applications
• Measures just 309mm wide, 132mm high and 233m front to back
• Specified for installation professionals for optimum productivity, efficiency and performance
• ID24i features threaded holes for a wide range of compatibility with NEXO & 3rd party mounting hardware (inc NEXO IDI-WB02 and IDI-WM01)
• Equipped with captive cable for fast, secure connectivity with existing wiring
• Available in black or white
• Features a clean and professional fabric grill to blend in with any décor
• IP Rating: IP54

System Applications

• Ceiling or wall mounted, horizontally or vertically

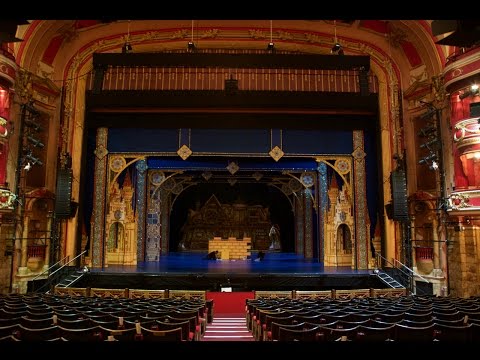

• Under balcony in theatres
• Stage front-fill
• Pole-mounted
• Flown in a touring system
• Wedge monitor

Product Specifications

General

• Frequency Range: 95Hz – 20kHz (+/- 6dB)
• Sensitivity: (1W / 1m) 100dB SPL Nominal
• Peak SPL Level: (1m) 126dB Peak
• HF Dispersion Selection of (according to horns): 60° x 60°, 90° x 40°, 120° x 40°, 120° x 60°
• Nominal Impedance: 16Ω
• Recommended amplification per box: 200 to 500W
• IP Rating: IP54

Components

• LF: 2x4" – Long excursion – Neodymium magnet
• HF: 1" voice coil ½" throat – Neodymium magnet

Physical & Dimensions

• Height x Width x Depth: 132 x 309 x 233mm (5.2" x 12.2" x 9.2")
• Weight: 6 Kg (13 lbs)
• Material: Water-resistant Polyurethane
• Finish (white): Structural paint
• Finish (black): Raw sandblasted polyurethane
• Grille: Stainless steel, acoustic fabric, black or white
• Rigging: 6 x 6mm threaded inserts

System Operation - Electric Controllers

• NXAMP4x1 and 4x4 Powered Controller
• DTD - Controller + DTDAmp 4x0.7
• DTD - Controller + DTDAmp 4x1.3
• Note: The NEXO controller presets are precisely matched to the ID Series cabinets and include sophisticated protection. Using ID Series cabinets without properly connected NEXO controllers will result in poor sound quality and can damage components.
• Sub Bass: ID S110 and ID S210 low profile subwoofers

ID Series Accessories

• IDISWM01 Sub Bass Wall Mount Bracket for IDS110/IDS210
• IDIWB02 Universal Speaker Wall Mount Bracket 15Kg BLACK
• IDIWB02PW Universal Speaker Wall Mount Bracket 15Kg WHITE
• IDIWM01 Speaker Wall Mount Bracket 30Deg 15Kg BLACK
• IDIWM01PW Speaker Wall Mount Bracket 30Deg 15Kg WHITE
• IDTGSTK Ground Stacking System for ID Series
• IDTTCBRK2538 Trust Clamp Adapter 25-38mm for ID Series
• IDTTCBRK3851 Trust Clamp Adapter 38-51mm for ID Series
• IDTTVP Bolt Adapter M10 to 35mm for ID Series
• DT-DAMP 4X1.3C 4Ch Power Amp 4x1250W @ 4ohms 1U
• DT-DAMP 4X0.7C 4Ch Power Amp 4x700W @ 4ohms 1U
