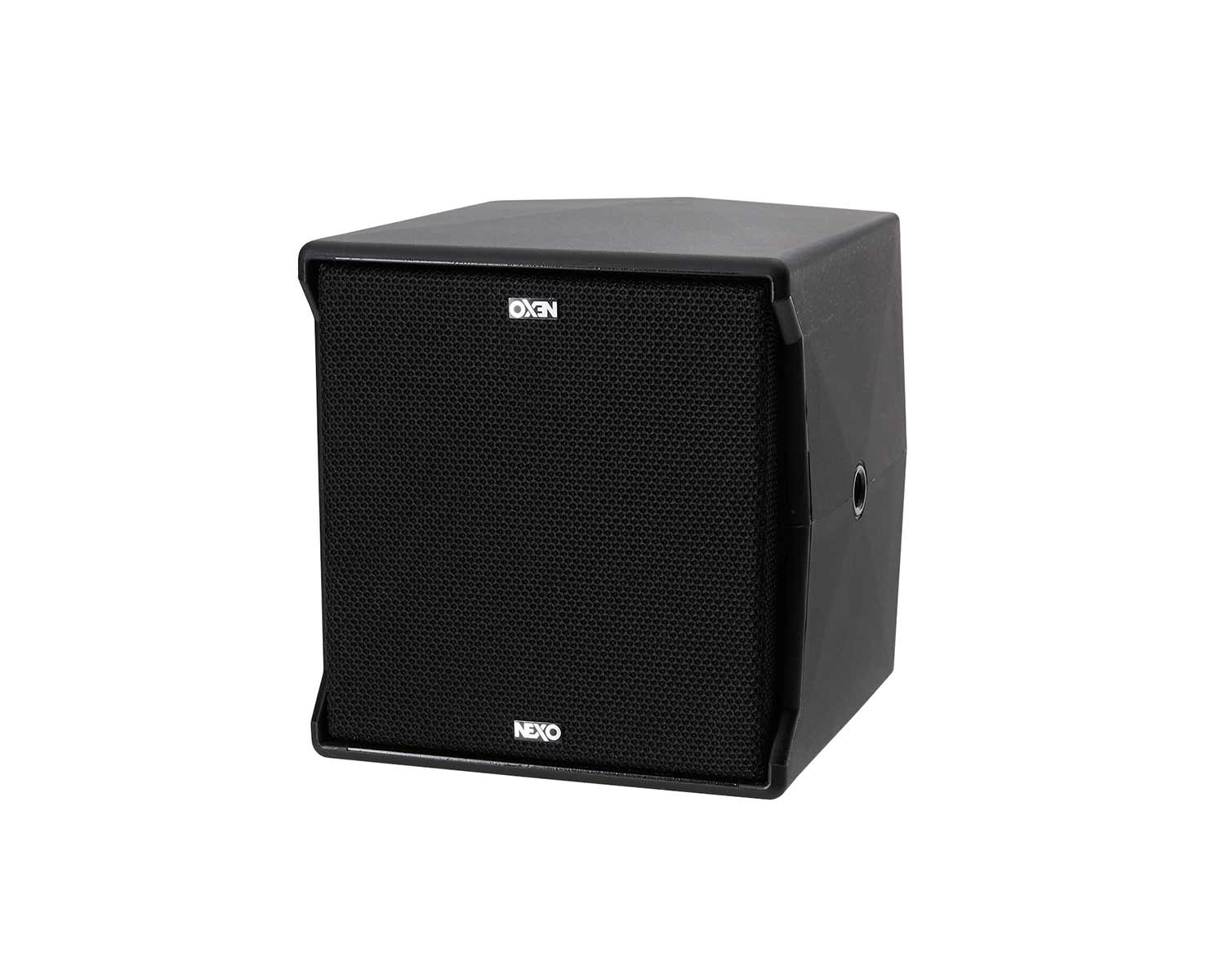

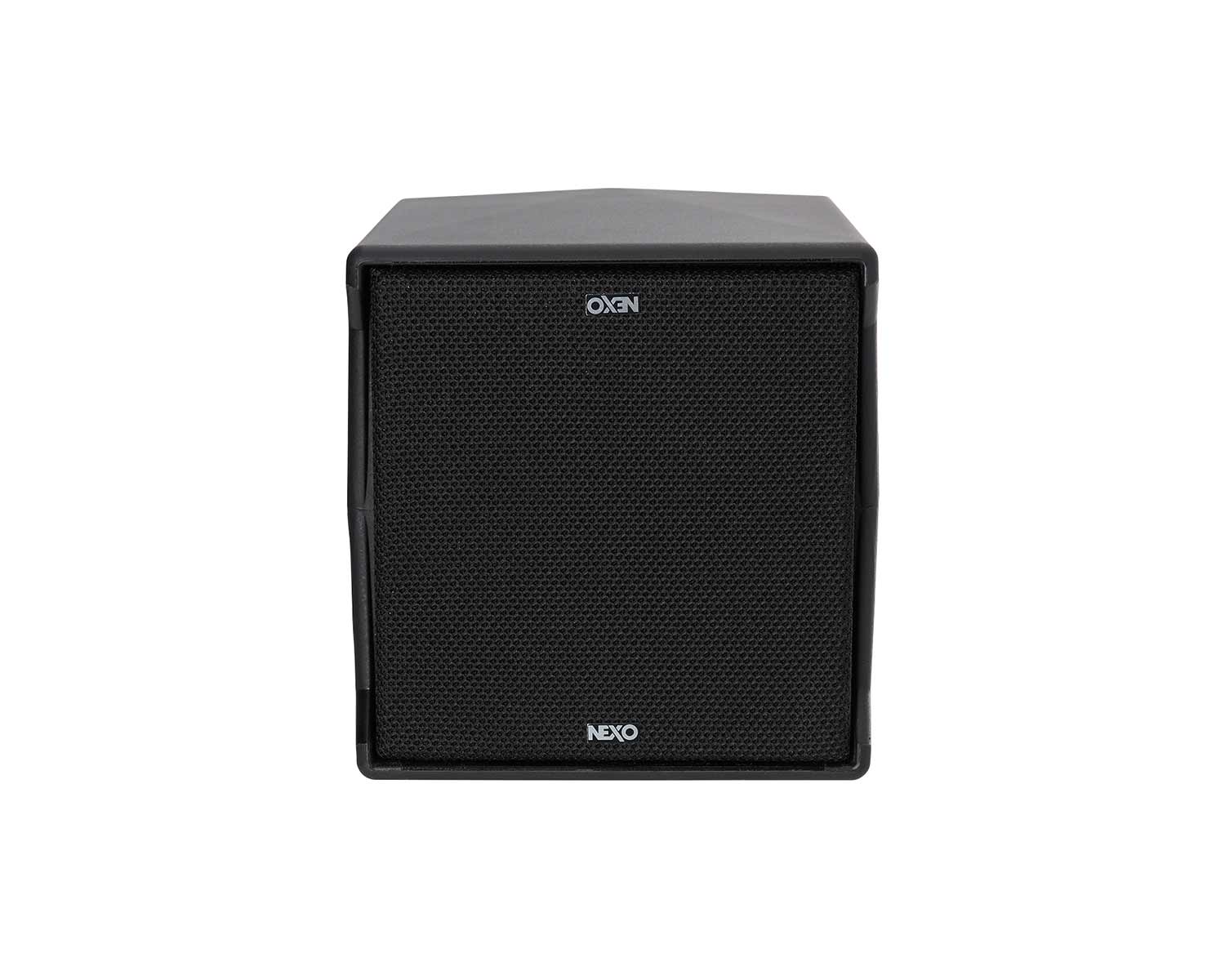

NEXO has always been well-known for its compact and very powerful versatile point source speakers, ideal in both FOH and wedge application. This expertise is now applied to the ID14, featuring a new extremely powerful coaxial 4” speaker and lots of innovation, making it unique in its category.

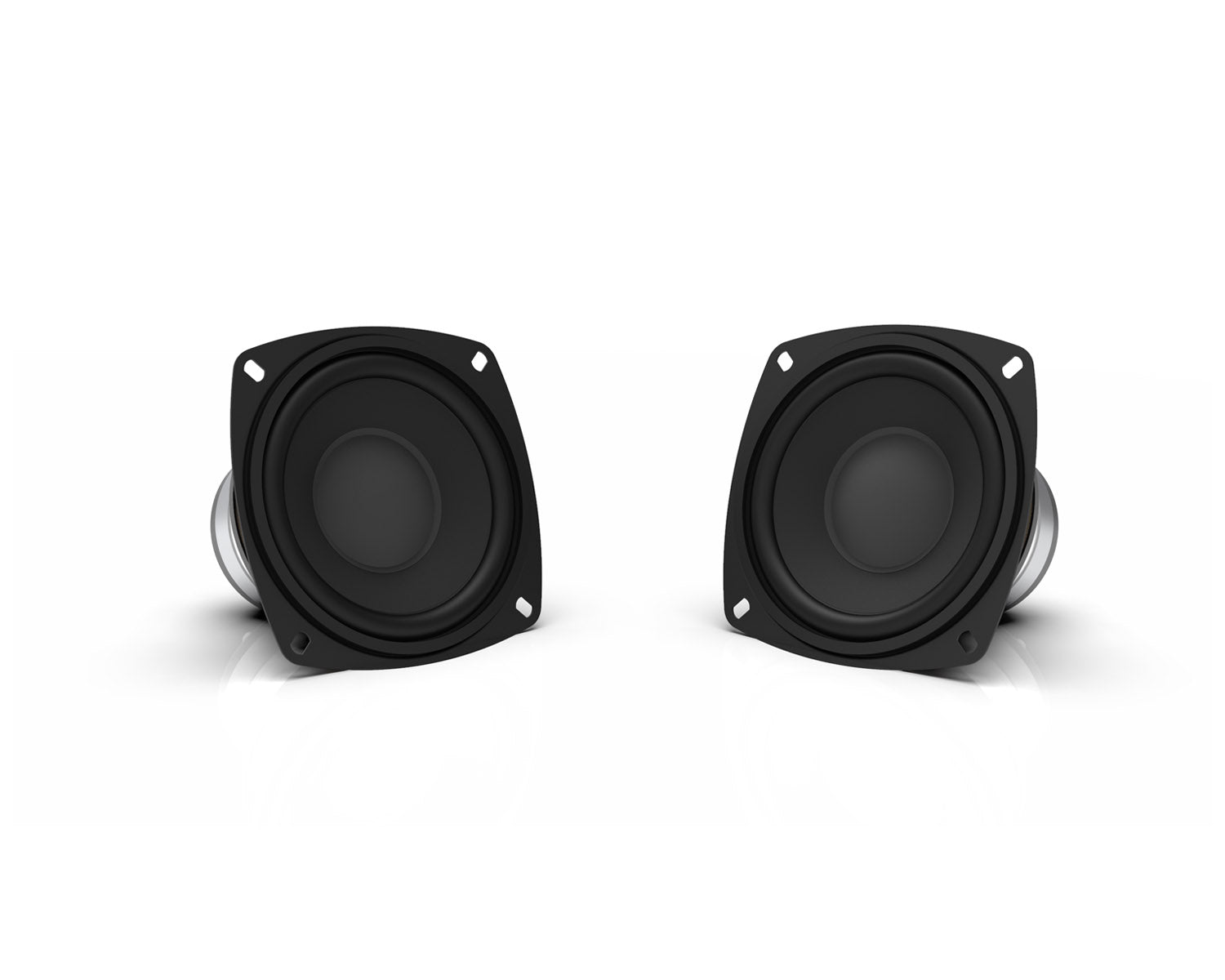

The ID14 enclosure uses a homemade Polyurethane shell, inherited from the ID24. The result is a robust enclosure with exceptionally good sound quality and truly outdoor resistant. The custom-designed coaxial driver with a 1.3” voice coil for the 4” LF driver and a 1.4” diaphragm for the HF motor is the heart of the ID14 and responsible both for its smooth, clean sound and impressive power.

A threaded M10 on each side is foreseen to be used with the dedicated U bracket, but can be used to install the ID14 on a microphone stand as well. At the back two M6 inserts with a 73 mm pitch are ready to receive the NEXO ID-WM01 or ID-WB02 accessory for wall mount applications.

Thanks to its fully symmetric design, there is no left or right version of the ID14 and all speakers in inventory can be the same. To match even more precisely every possible application the ID14 is available with 2x different directivity. As standard, the ID14 uses a 100°x100° horn, but an asymmetric dispersion can be ordered as well, offering 90°x140° dispersion. For each horn a dedicated setup is available on the NXAMP powered controller to ensure perfect coverage at any frequency. ID14 acoustic phase response is NEXO phase signature allowing inter-operability between all NEXO speakers at all crossover points, except for the monitor setups where latency is minimised.

Product Features

• Extremely powerful (116 dB peak) point source that can be used standalone, distributed or in front-fill, in-fill, delay of a main system.

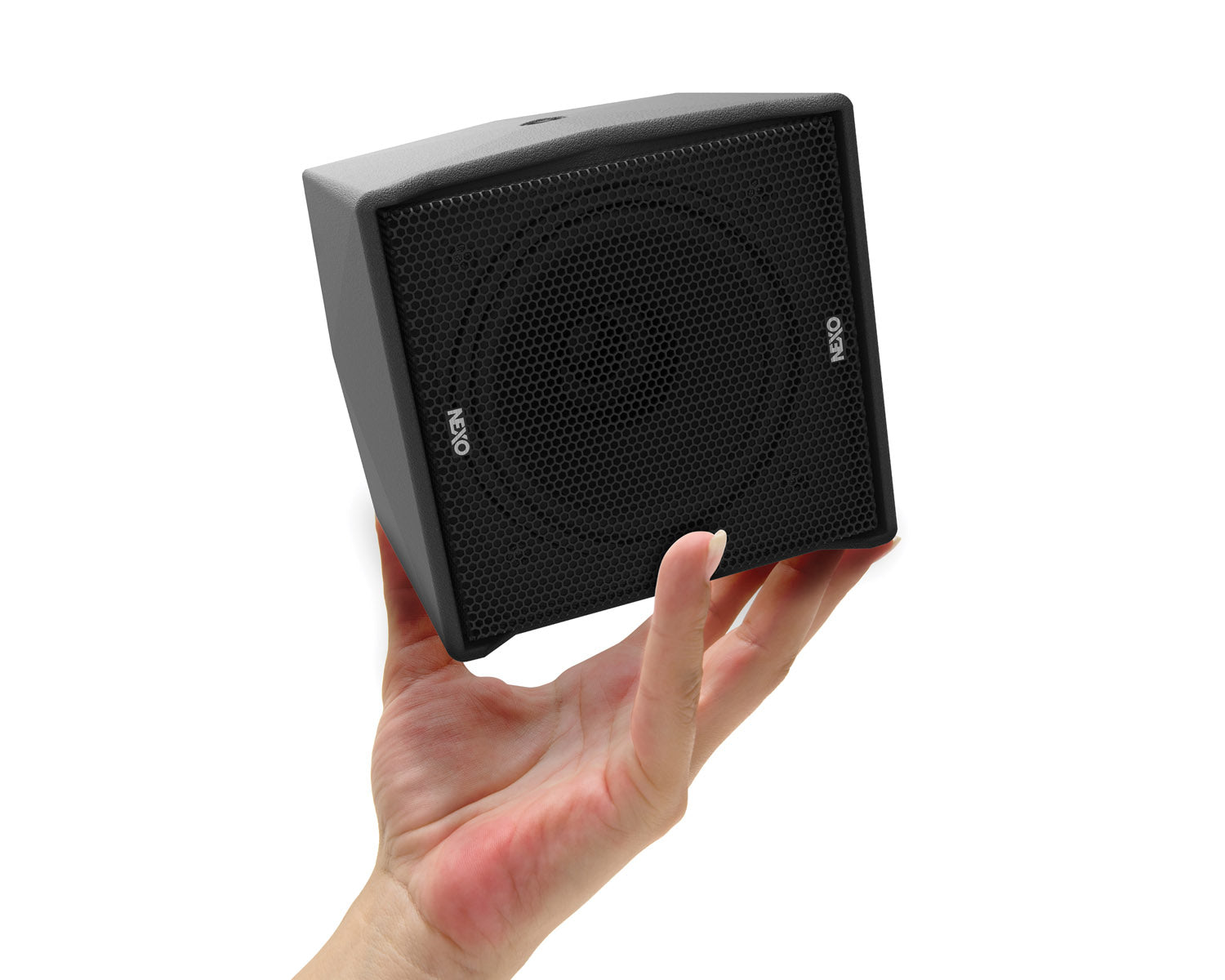

• Lightweight (1.7 kg / 3.7 lbs) design using a Polyurethane enclosure.
• Two directivities available: Either 100°x100° or 90° x 140°.
• Closed design ensuring IP55 certification on the Installation version.
• Comprehensive range of versatile, accessories for deploying the ID14 in a wide variety of applications for both touring and fixed installation.
• Finish: Black

Product Specifications

ID14 with NEXO Processing

• Frequency Response @-6 dB: 120 Hz to 20 kHz
• Sensitivity 1W@1m: 95 dB
• Peak SPL@1m: 116 dB
• Available Crossover Frequencies: 120, 150 Hz
• HF Dispersion (upon ordering) : 100° x 100° or 90° x 140°
• Nominal Impedance: 16 Ω
• Recommended Power: 110 to 180 Watts / 16 Ohms (requires a 220 to 360 Watts / 8 Ohms amplifier

General

• Number of ways: 2 ways passive
• Components: 1 x Coaxial Neodymium LF 4” long excursion & HF 1.4“ diaphragm
• Connectors (Install version) : 1 x Cable gland with 2 cores cable
• Rigging points: 1 x M10 on each side for dedicated U bracket + 2 x M6 / 73 mm pitch at the back
• IP Rating: IP55

Physical

• Construction: Polyurethane
• Finish: Black: Raw sandblasted polyurethane / White: Structural paint
• Front Finish (Install version) : UV Resistant acoustic fabric fitted Magnelis® front grill
• Operating temperature range: 0°C - 40 °C (32° F - 104° F)
• Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
• Height x Width x Depth: 130 mm x 130 mm x 120 mm (5.1” x 5.1” x 4.7”)
• Weight: Net: 1.7 kg (3.7 lbs)

System Operation

• Recommended powering solution: DTDcontroller + DTDAMP4x0.7 : up to 4 x ID14 per channel
• Optional powering solution:
  • DTDcontroller + DTDAMP4x1.3 : up to 4 x ID14 per channel
  • NXAMP4x1mk2 Powered TDcontroller: up to 8 x ID14 per channel
  • NXAMP4x2mk2 Powered TDcontroller: up to 8 x ID14 per channel
  • NXAMP4x4mk2 Powered TDcontroller: up to 8 x ID14 per channel
