I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated with larger systems using I SERIES Point Source (IP) or Subwoofer (IS) models. Optional stainless steel powder-coated U-Brackets provide an easy mounting solution. Multiple attachment points provide compatibility with a variety of Community and third party mounting brackets.

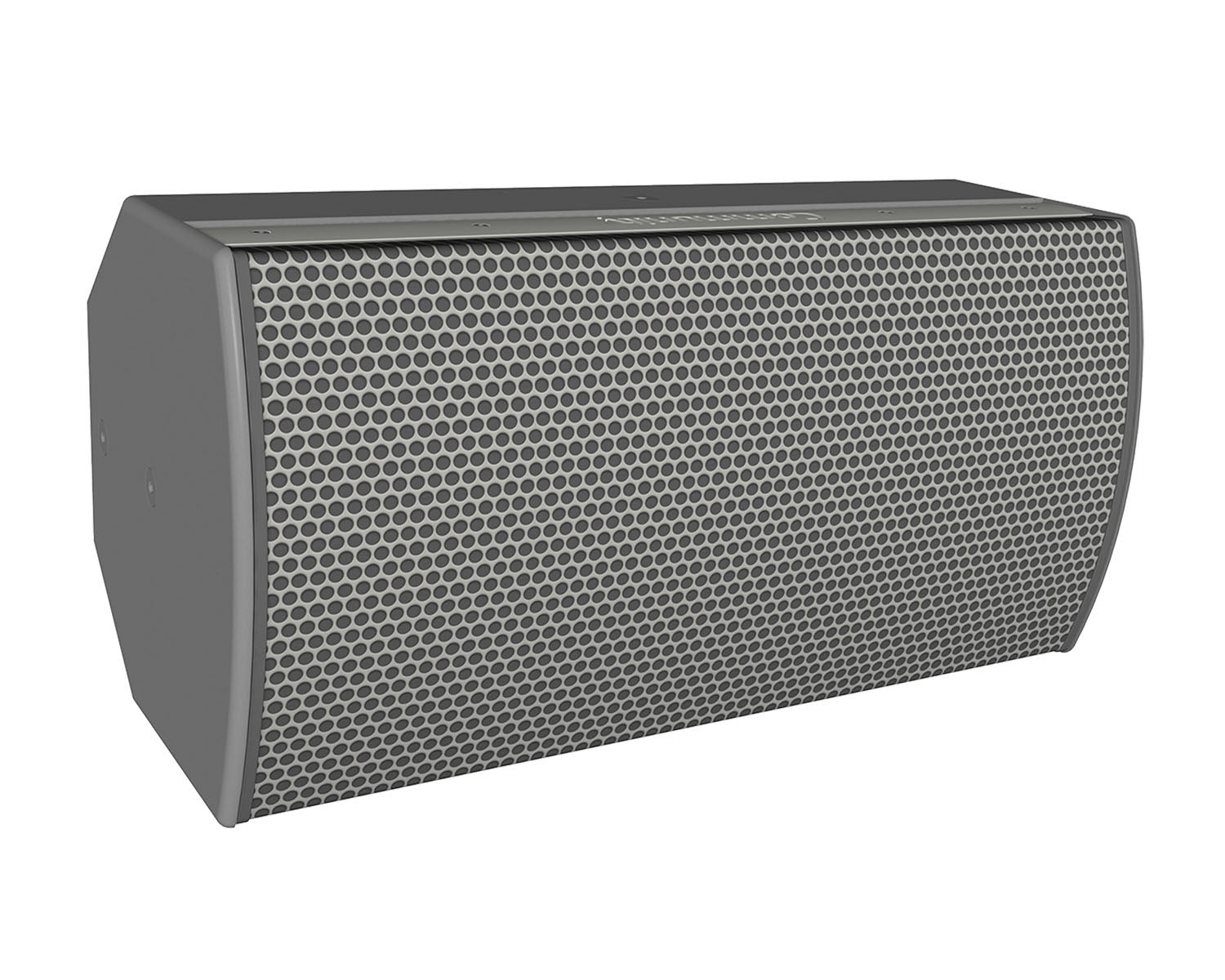

The IC6-2082 is designed for demanding extended high output, high performance applications without sacrificing fidelity or coverage consistency. Most symmetrical dual 8" 2-way loudspeakers suffer from serious coverage inconsistencies through the crossover region. The IC6-2082 solves this problem by using a very high quality, low distortion 1.7" diaphragm neodymium HF compression driver on a large horn that is crossed over to partially baffled 8" LF drivers at an unusually low crossover frequency. The combination of baffles and low crossover point allows the IC6-2082 to perform similarly to a coaxial loudspeaker, resulting in a consistent, symmetrical, and wide coverage pattern through its operating range. The long excursion LF drivers and low velocity port effortlessly extend LF performance at any output level. The IC6-1082WT models expand application flexibility by providing 70V/100V operation.

Product Features

• Engineered for demanding high output, high performance applications
• Exceptional fidelity with elegant I SERIES aesthetics
• Large, field-rotatable HF horn and LF pattern control technology for wide, consistent coverage
• Low impedance (16 ohm) or 70V/100V models available
• Finish: Grey
• IP Rating: IP55
• Coverage: 120°x 60°

Product Specifications

• Sensitivity (1W/1m): 100 dB
• Power Handling (Low Impedance model):300W @ 16 ohms
• Continuous Max Output: 125 dB (131 dB Peak)
• Nominal Beamwidth (H x V): /26 - 120° x 60°; /96 - 90° x 60°
• Enclosure: 15mm PolyGlas™, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminium grille with water-repellent synthetic fabric backing
• Dimensions (H x W x D): 11.30" x 22.46" x 10.62" (287 x 571 x 270 mm)
• Operating Range: 50 Hz to 19.5 kHz
• Transducers: LF 2 x 8" (203mm) ferrite driver, 1.5" (37mm) voice coil; HF 1 x 1" (25mm) exit, 1.7" (44mm) voice coil, ketone polymer diaphragm, neodymium compression driver

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
