I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated with larger systems using I SERIES Point Source (IP) or Subwoofer (IS) models. Optional stainless steel powder-coated U-Brackets provide an easy mounting solution. Multiple attachment points provide compatibility with a variety of Community and third party mounting brackets.

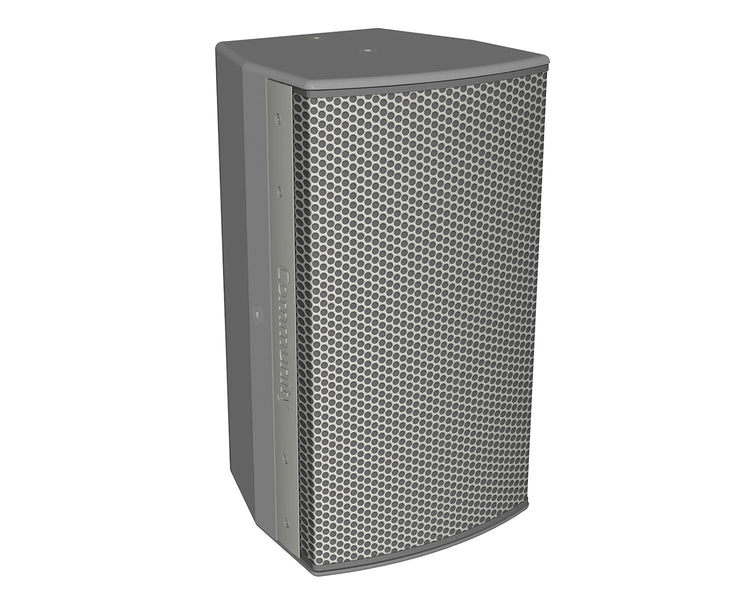

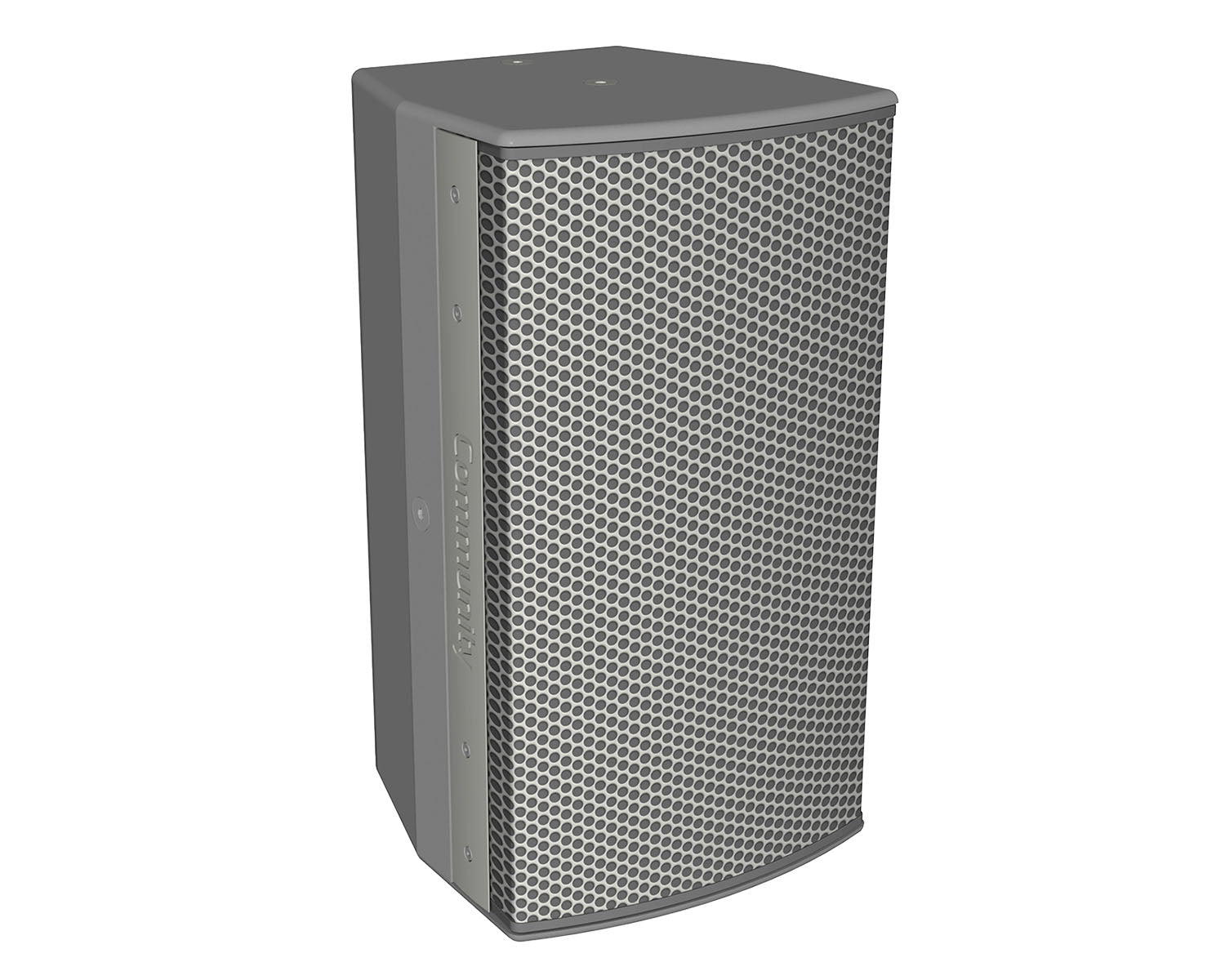

The IC6-1082 is designed for maximum performance in a minimal size enclosure. The large, user-rotatable horn coupled to a 1.75" (44mm) diaphragm HF driver provides consistent directivity and smooth response through the critical voice band, then seamlessly integrates with the high output 8" LF through the crossover region. The precisely engineered low velocity, flared port ensures low distortion, extended LF performance at any output level. The IC6-1082WT models expand application flexibility by providing 70V/100V operation.

Product Features

• Excellent LF extension and output in a very small enclosure
• Exceptional fidelity with elegant I SERIES aesthetics
• Large, field-rotatable HF horn for smooth, consistent coverage
• Low impedance (8 ohm) or 70V/100V models available
• Finish: Grey
• IP Rating: IP55
• Coverage: 90°x 60°

Product Specifications

• Transducers: LF 1 x 8" (203mm) ferrite driver, 1.8" (45mm) voice coil; HF 1 x 1" (25mm) exit, 1.75" (44mm) voice coil, advanced polymer diaphragm, ferrite compression driver
• Operating Range: 52 Hz to 19.5 kHz
• Sensitivity (1W/1m): 94 dB
• Continuous Max Output: 118 dB (125 dB Peak)
• Autoformer Taps (WT models): 70V: 200W, 100W, 50W, 25W; 100V: 200W, 100W, 50W
• Nominal Beamwidth (H x V): /26 - 120° x 60°; /96 - 90° x 60°
• Enclosure: 15mm PolyGlas™, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminium grille with water-repellent synthetic fabric backing
• Dimensions (H x W x D):18.75" x 10.40" x 10.63" (476 x 264 x 270 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
