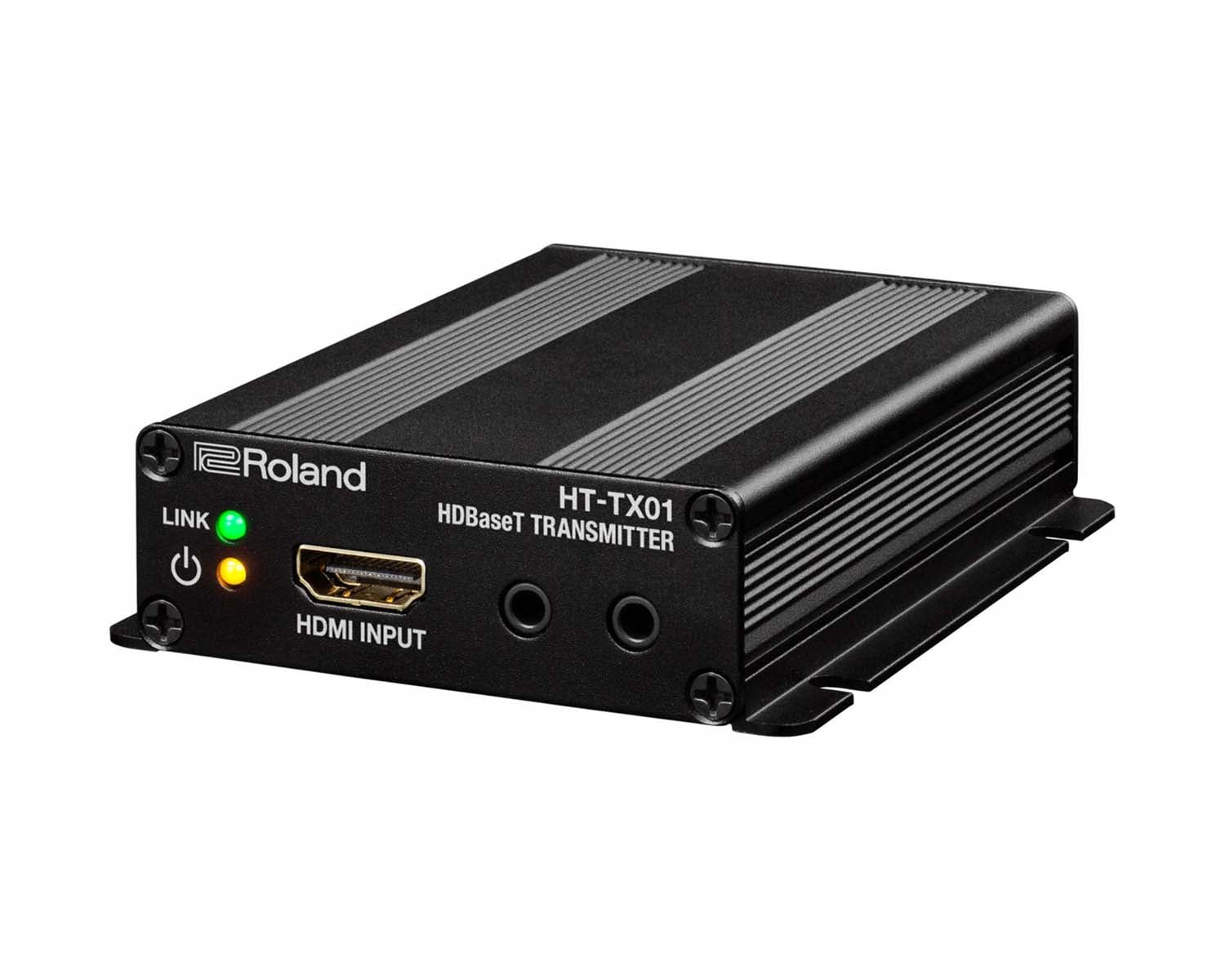

HDBaseT-compatible transmitter capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.

The HT-RX01 can be used as a receiver for the HDBaseT output from XS series multi-format matrix switchers. Using the RS-232C signal transmission function of the XS series lets you transmit RS-232C signals input to the XS series device along with video and audio signals. This can achieve audio/video transmission in school auditoriums, company conference halls, and other large spaces.

Connecting an Ethernet cable to the HT-TX01 or HT-RX01 enables transmission of HDMI signals over a distances of up to 100 meters. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. In addition to HDMI signals, RS-232C signals can also be transmitted, making it possible to send control signals along with video and audio reducing system wiring.

Product Features

• Capable of transmitting HDMI signals up to 100 meters over Ethernet cable
• Can be used with the XS series multi-format matrix switchers
• Ideal for auditoriums, company conference halls, and other large spaces
• Send control signals along with video and audio reducing system wiring
• Converts HDMI input to HDBaseT signals
• Maximum 1080/60p and WUXGA support for HDMI
• HDCP compliant
• Capable of RS-232C transmission

Product Specifications

General

• Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
• Audio Formats: The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio
• Input Connectors

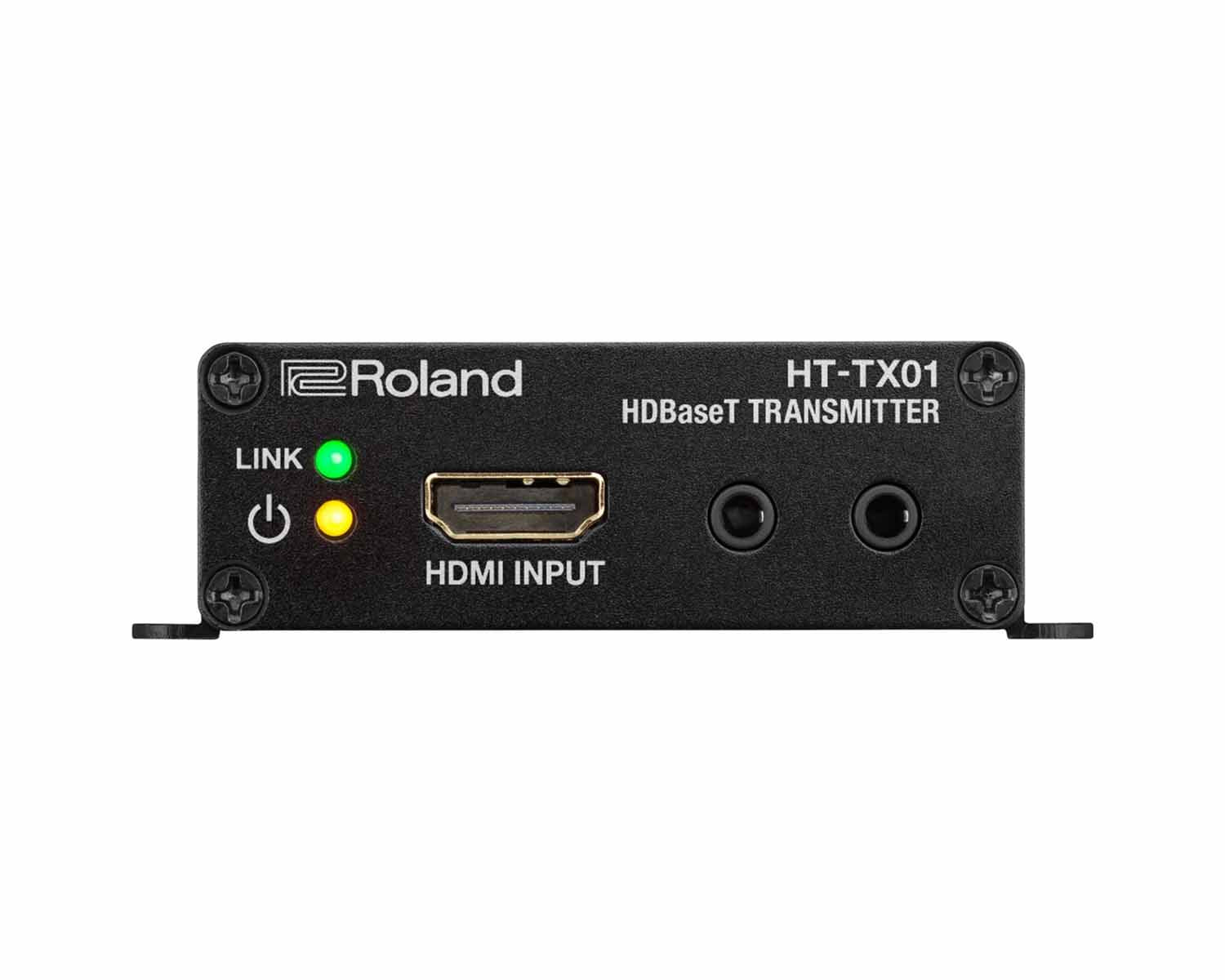

  • HT-TX01: HDMI x 1 : Type A 19 pins
  • HT-RX01: RJ45 x 1
• Output Connectors

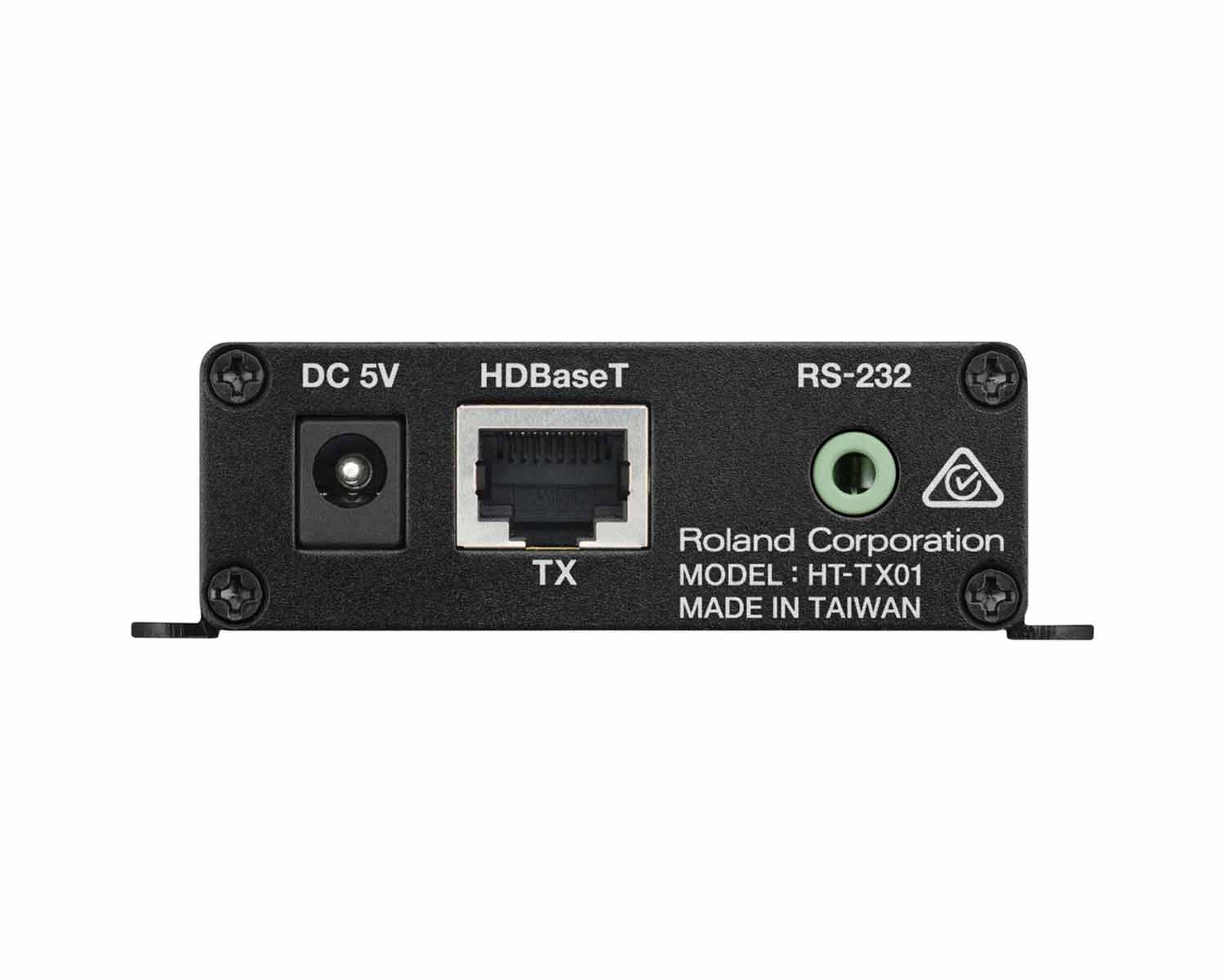

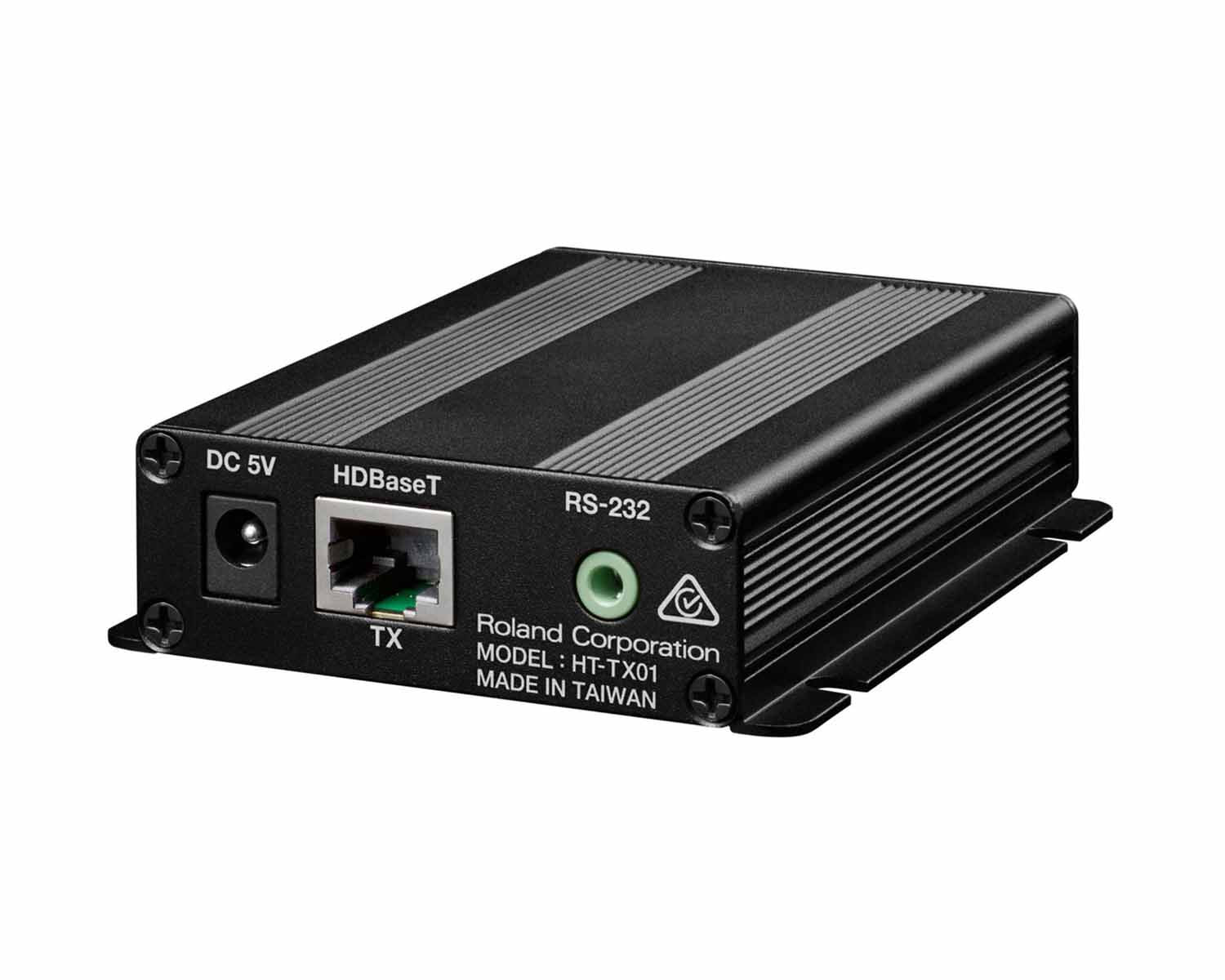

  • HT-TX01: RJ45 x 1
  • HT-RX01: HDMI x 1 : Type A 19 pins
• Other Connectors: RS-232 x 1 : 9 pins D-sub type
• Transmission distance: The maximum is 100m (328 ft)
• Operating temperature range: 0 to 40 degree C
• Operating temperature humidity: 10 to 85 % (no condensation)
• Storage temperature range: 20 to 60 degree C
• Storage temperature humidity: 10 to 85 % (no condensation)
• Current Draw: 2 A
• Power Supply: AC Adaptor

Physical & Dimensions

• Width: 81mm
• Depth: 93mm
• Height: 24mm
• Weight: 300g

What’s in the Box?

• HTTX01
• AC adaptor
• AC plugs (3 types)
• RS-232 conversion cable (2 m (6 ft 6 inches))
• ferrite core x 3
• Owner Manual
