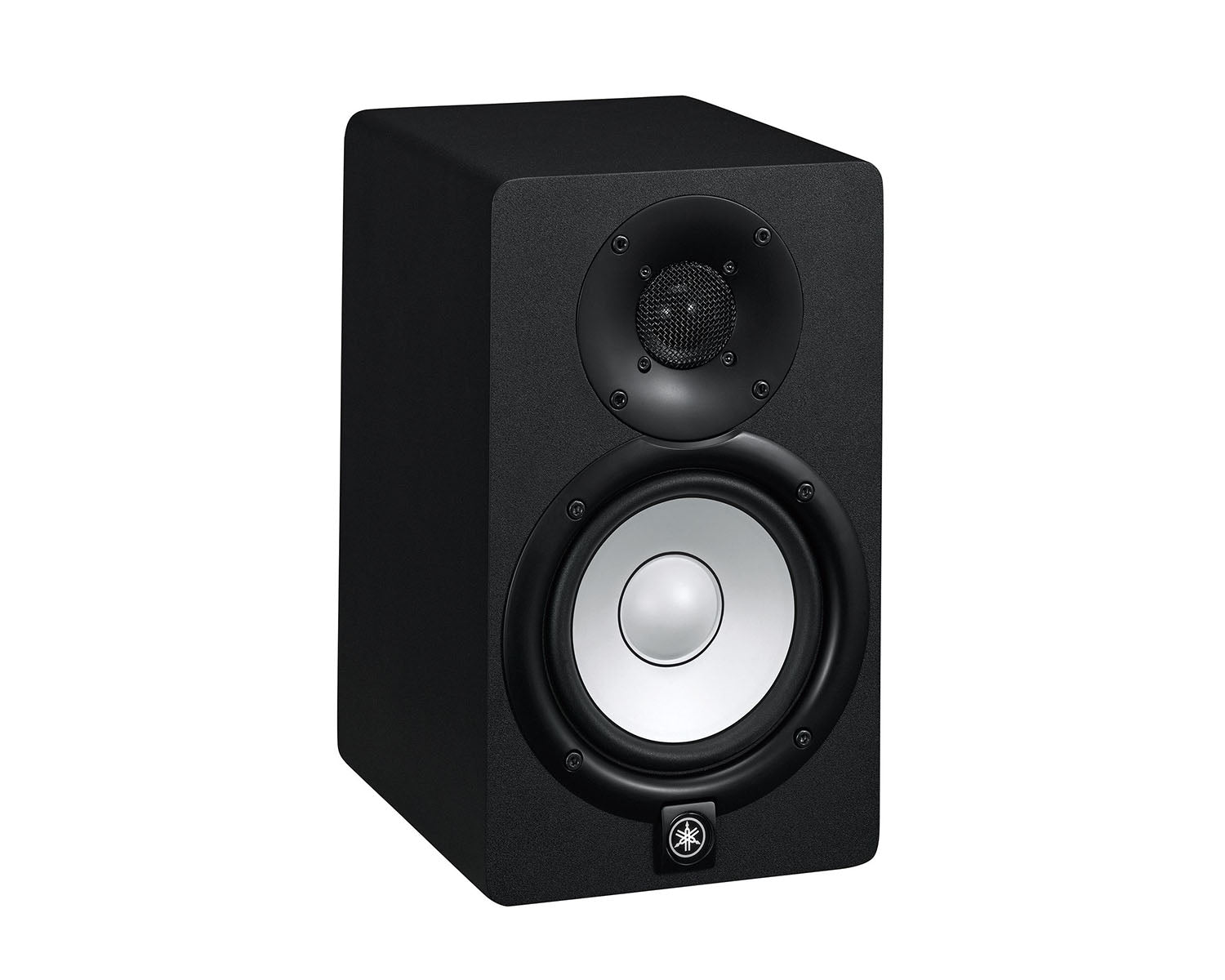

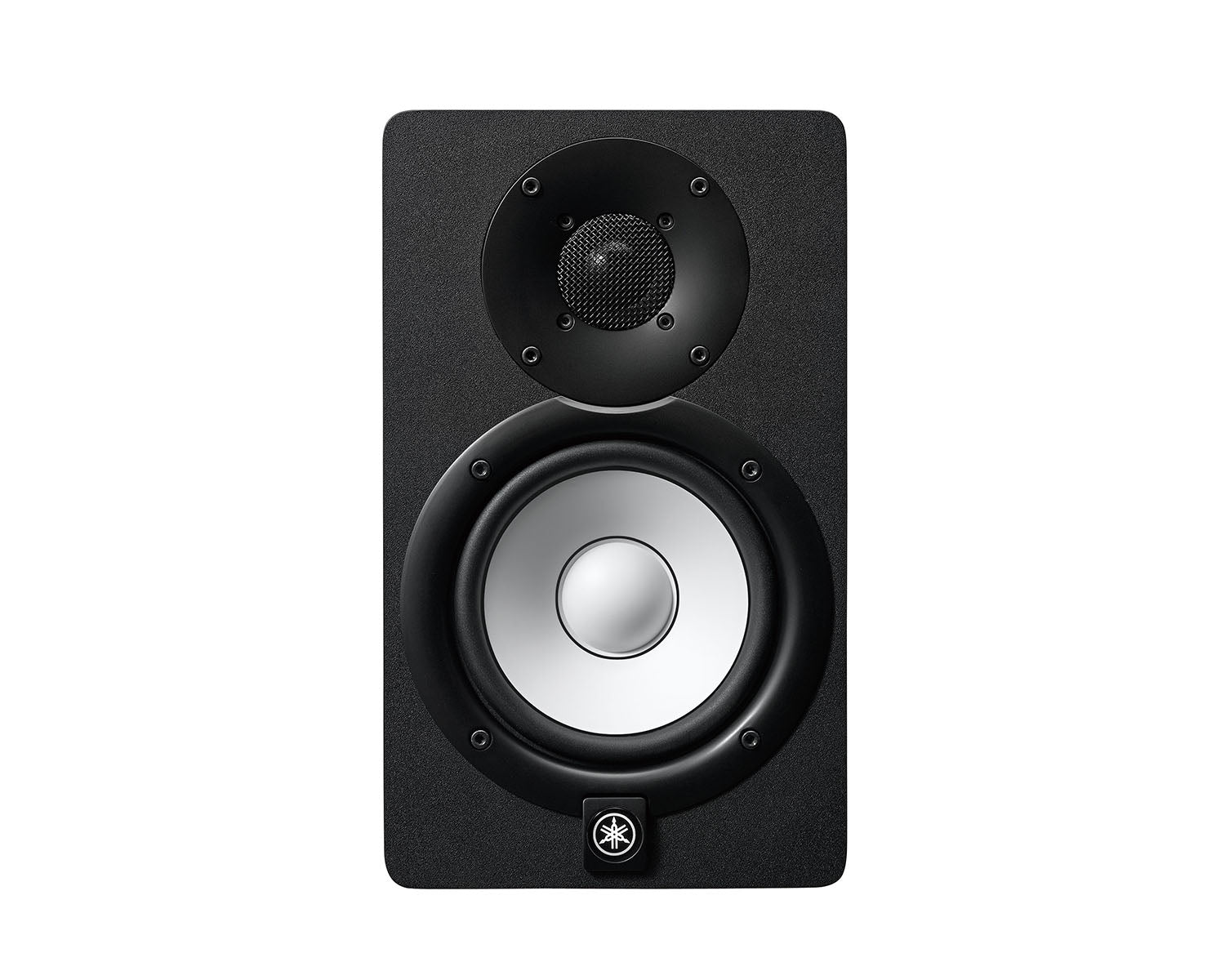

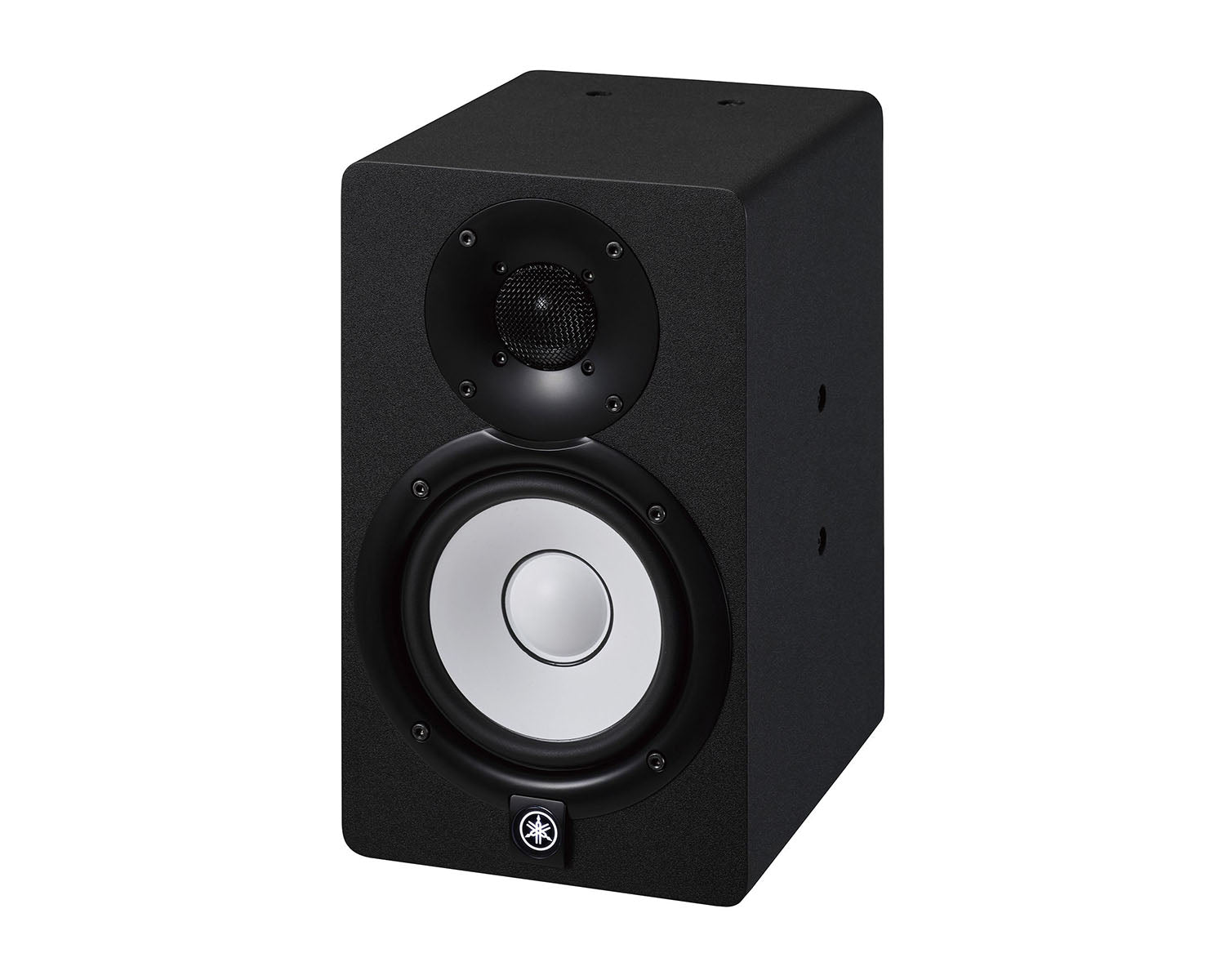

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter. Mounting points on 4 surfaces are available.

Ever since the 1970 the iconic white woofer and signature sound of Yamaha nearfield reference monitors have become a genuine industry standard for a reason - their accuracy. Unlike studio monitors with added bass or treble frequencies which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process. By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation HS Series also adds a new 6.5" model to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments.

Product Features

• 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
• 54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response
• 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals
• Mounting points on 4 surfaces

Product Specifications

General

• Speaker type: 2-way bi-amp powered studio monitor
• Frequency range (-10dB): 54Hz - 30kHz
• Frequency response (-3dB): 74Hz - 24kHz
• Components: LF: 5" cone HF: 1" dome
• Crossover: 2kHz
• Output power: 70W (LF:45W, HF:25W)
• Input sensitivity: -10 dBu/10k ohms
• I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
• Power consumption: 45W
• Shape: Bass-reflex type
• Cabinet material: MDF
• Flying and mounting hardware: Four surfaces x 2 x M5 (60 mm pitch)

Physical & Dimensions

• Height: 285mm
• Width: 170mm
• Depth: 222mm
• Weight: 5.5kg

What's in the Box?

• Owner Manual
• Power cord
• Screws for installing brackets x 2
