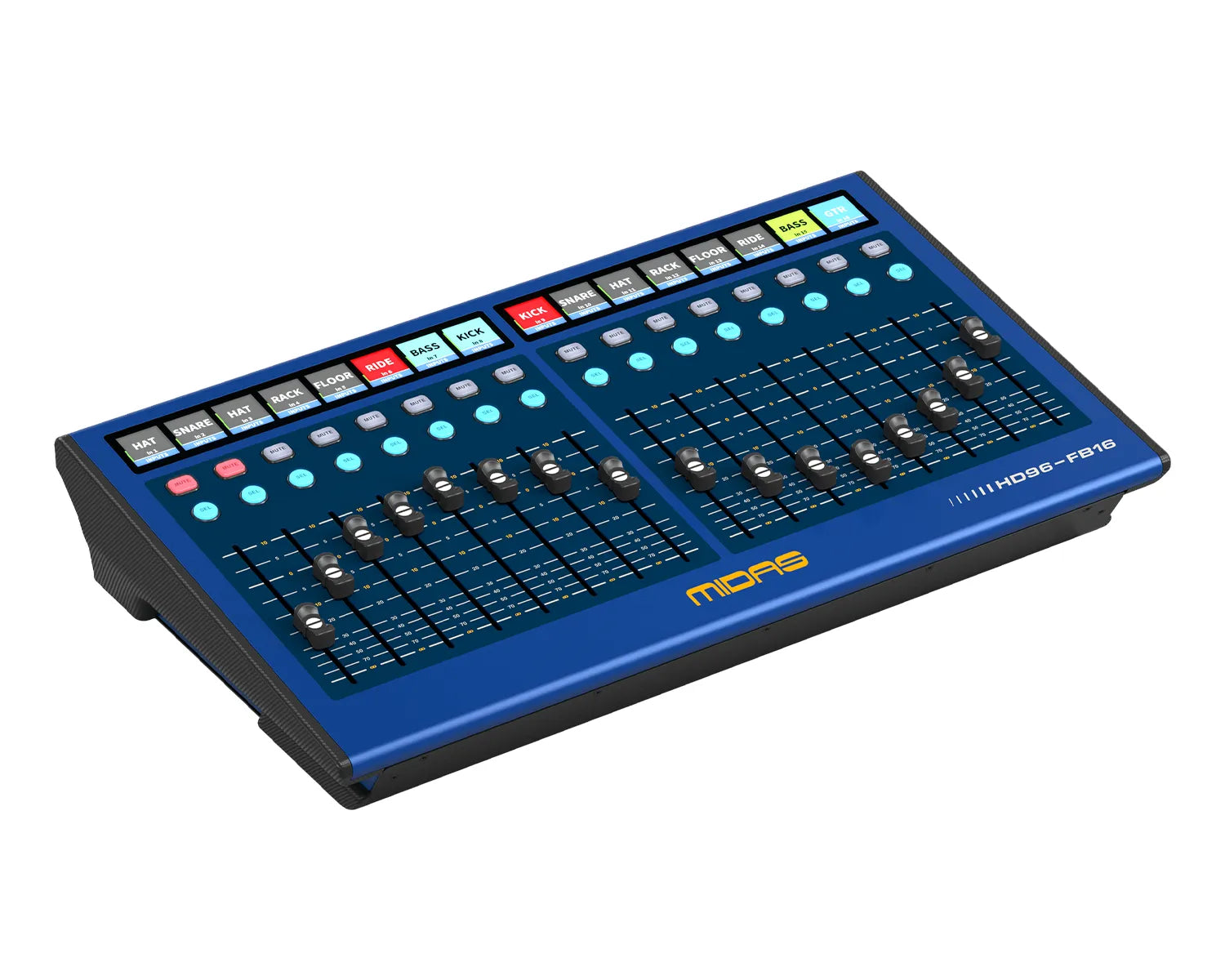

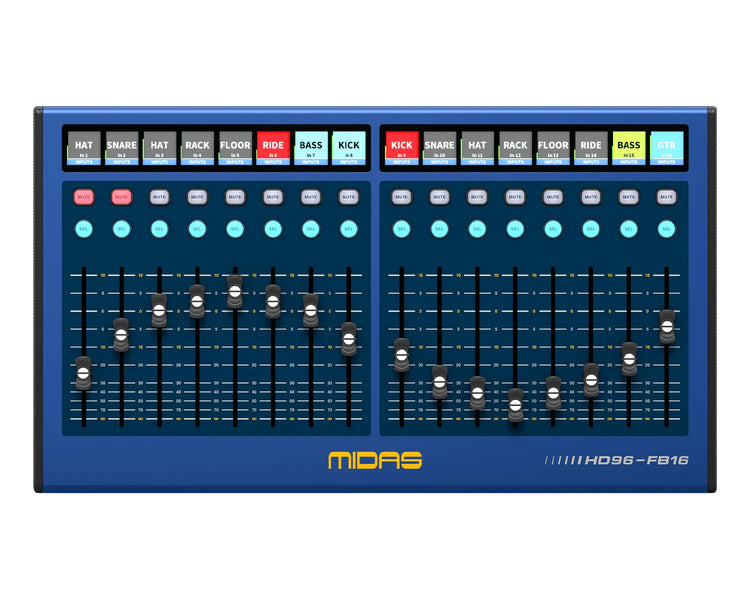

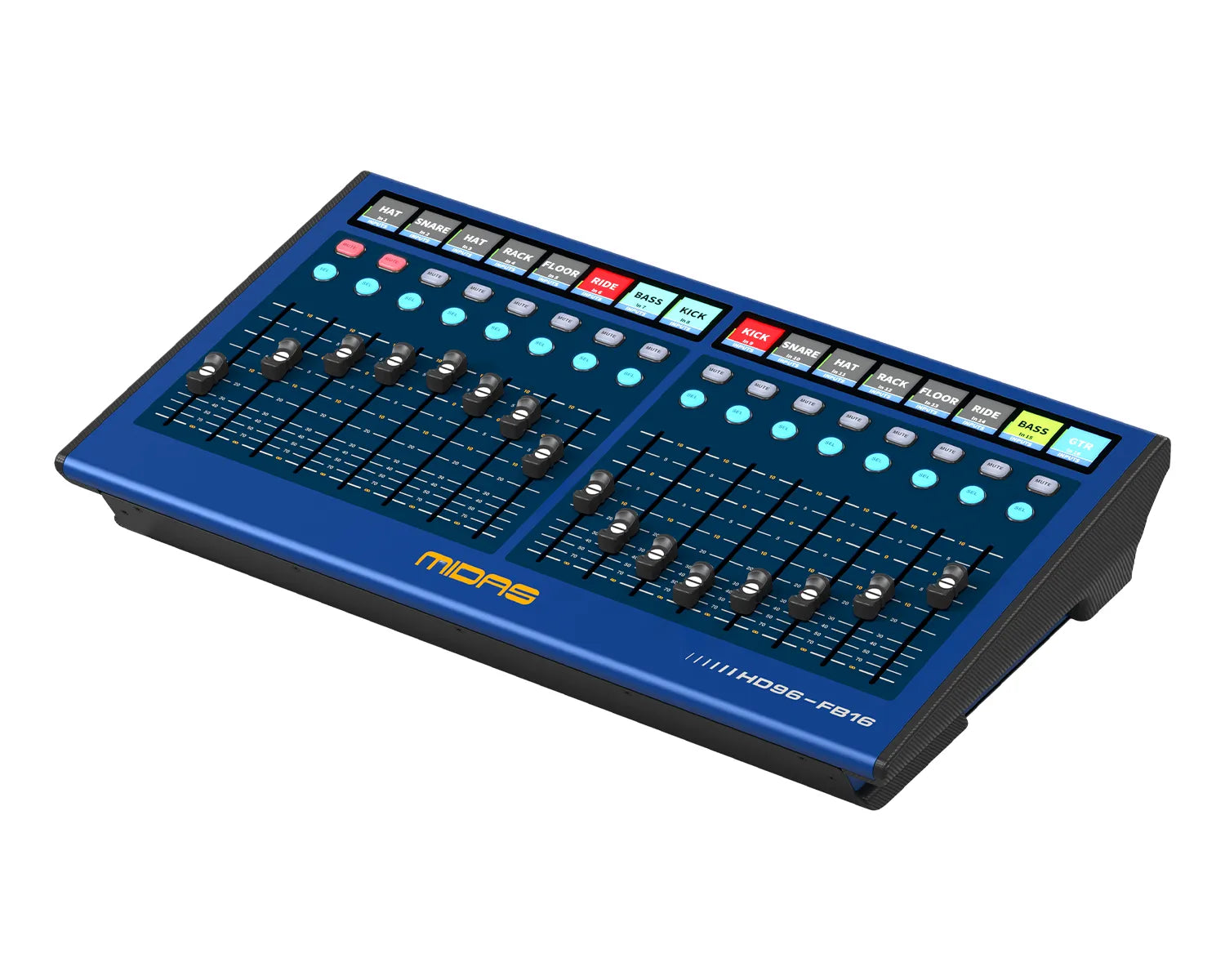

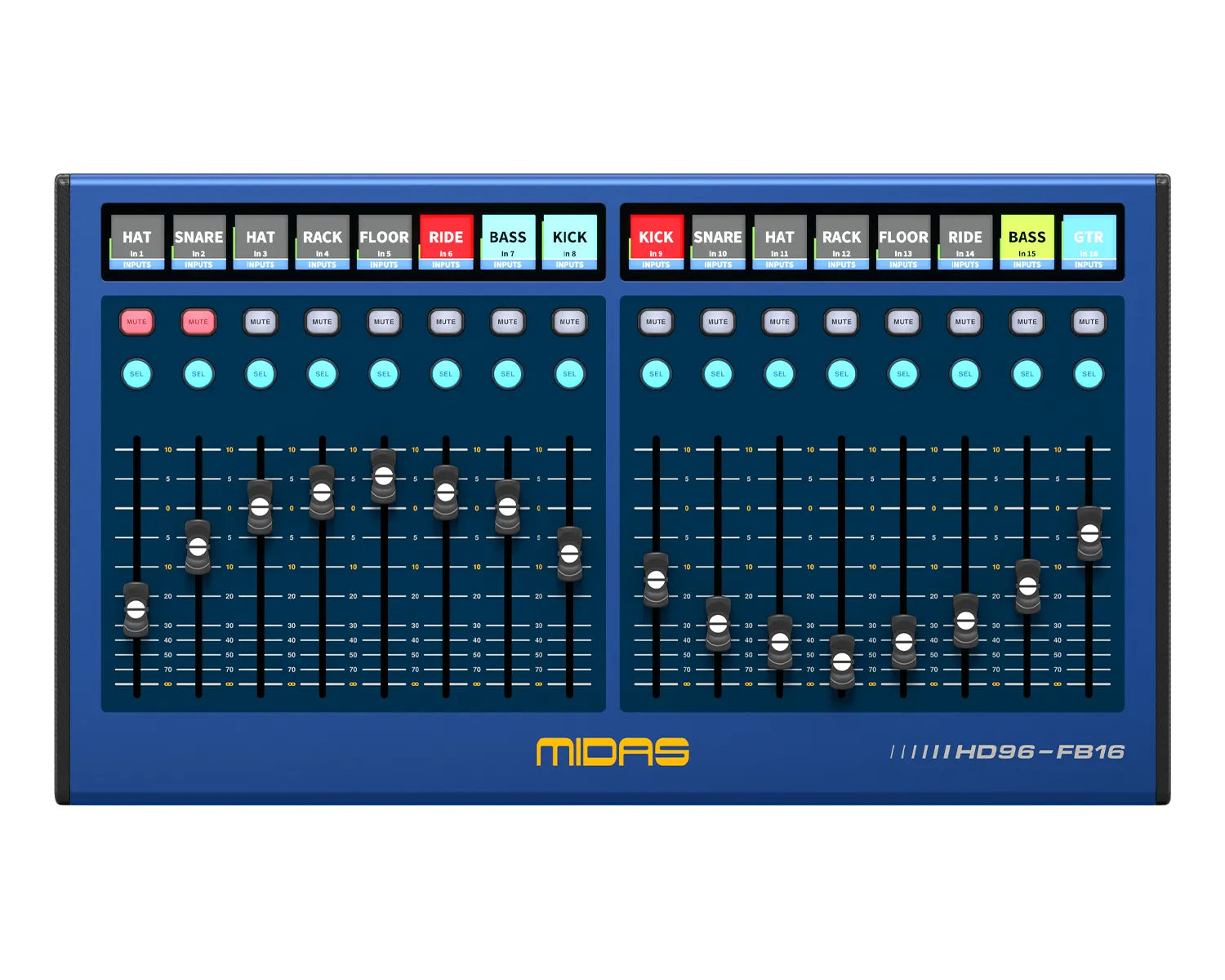

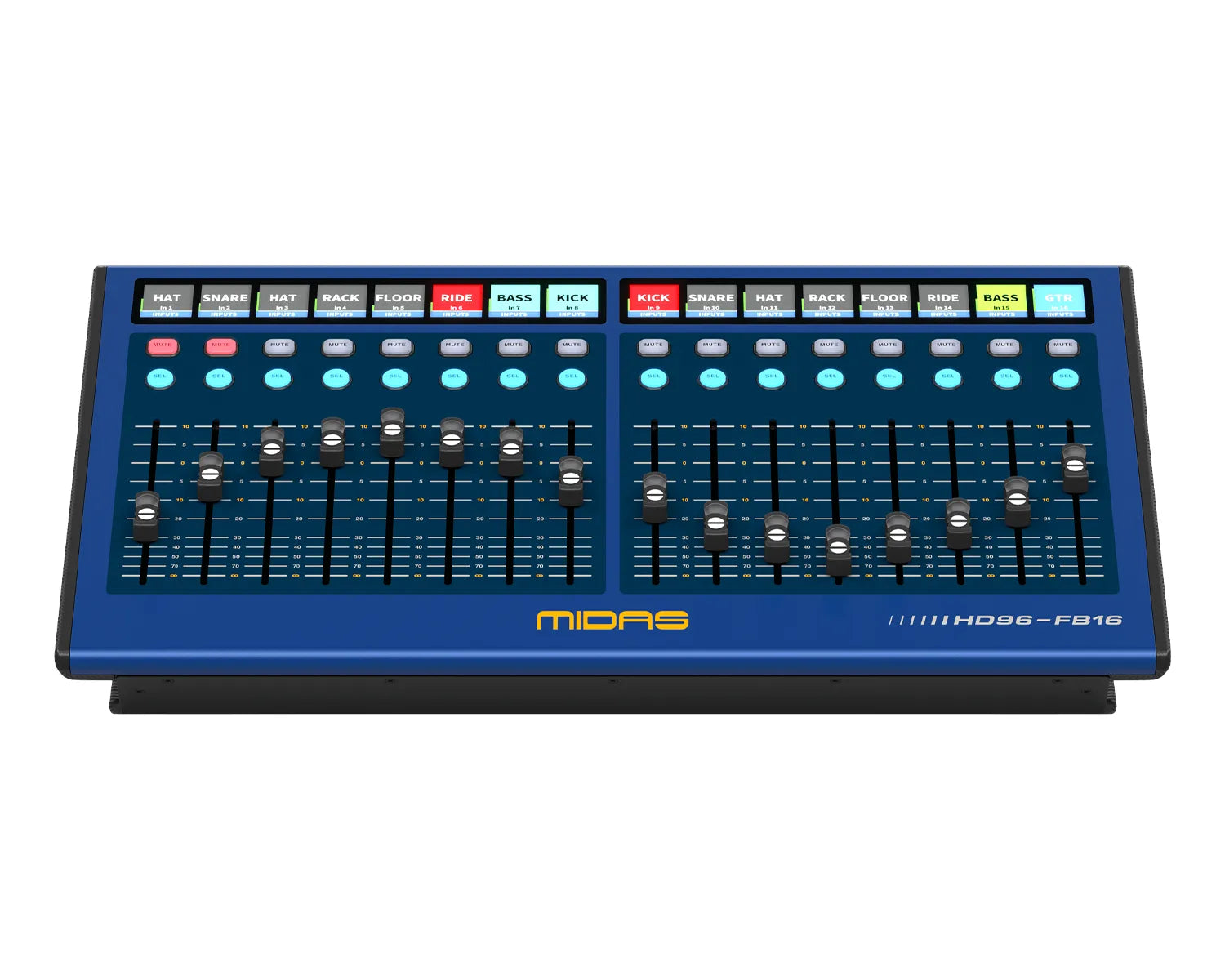

The HD96-FB16 expands your control and streamlines your workflow. This portable fader bay turns any HD Series console into a fully expanded mixing surface. With 16 motorised faders, dedicated channel displays, and tactile command of your core functions, the FB16 is built to keep you fast, focused, and flexible. The perfect partner to the HD96-AIR, it gives engineers the power and precision of a larger desk in a compact, road-ready form.

Built for speed and efficiency, the HD96-FB16 provides instant access to 16 channels of fader control via a single USB connection. Each strip features a motorised 100 mm fader, Mute and Select buttons, and an ultra-clear 24x240 LCD screen for quick channel identification and mix navigation. Whether you’re expanding a fly rig or creating a modular control setup, the FB16 ensures that your workflow is as fast as your mix.

Lightweight yet robust, the HD96-FB16 is engineered for life on the road. Its compact footprint makes it ideal for portable and space-limited setups, while the durable construction and internal power supply ensure consistent reliability night after night. From touring engineers to fixed installations, the FB16 delivers MIDAS-grade precision and performance, wherever your mix takes you.

Product Features

• 16 channel control surface with individual Fader, Mute, Select and Channel Information Display
• Lightweight and compact for portability
• 16 240 x 240 high resolution LCD Screens for easy channel identification
• 16 Midas PRO motorised faders for precision level control
• 16 Mute and Select buttons for quick access to key functions
• Switched mode power supply
• USB connection for simple integration with HD series consoles

Product Specifications

Controls

• Mute buttons:  16, LED backlit
• Select buttons:  16, LED backlit
• Faders:  16 motorised faders

Displays

• Channel:  16 displays
• Resolution:  240 x 240 pixels, colour

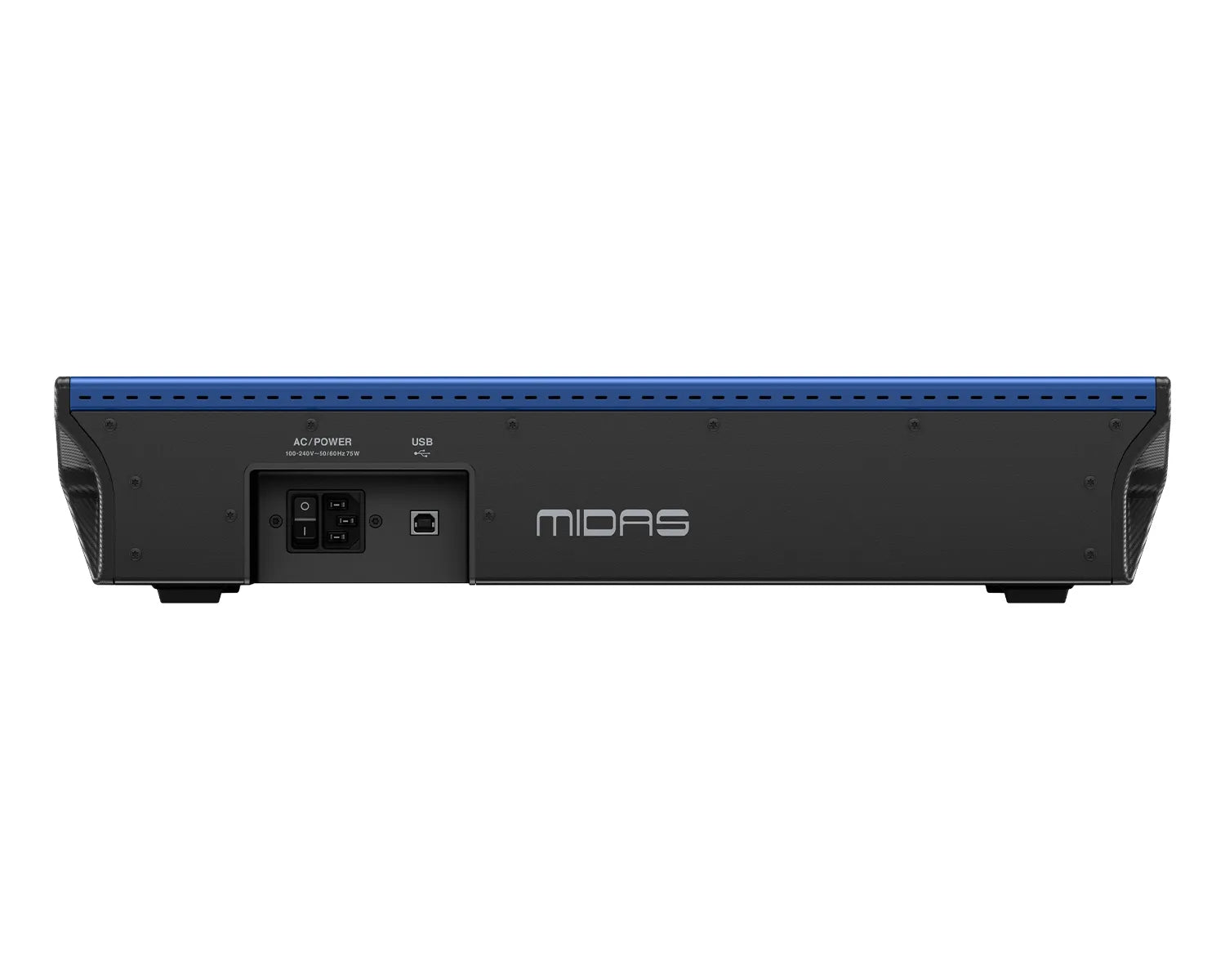

Console Connection

• USB:  USB 3.0, type B

Power Supply

• Type:  Internal switch mode power supply
• Voltage:  100-240 VAC, 50/60 Hz
• Power consumption:  75 W
• Mains connection:  Mains connection

Physical

• Standard operating temperature range:  5° C to 45° C (41° F to 113° F)
• Dimensions (H x W x D):  97 x 476 x 269 mm (3.84 x 18.75 x 10.6")
• Weight:  4.3 kg (9.4 lbs)
