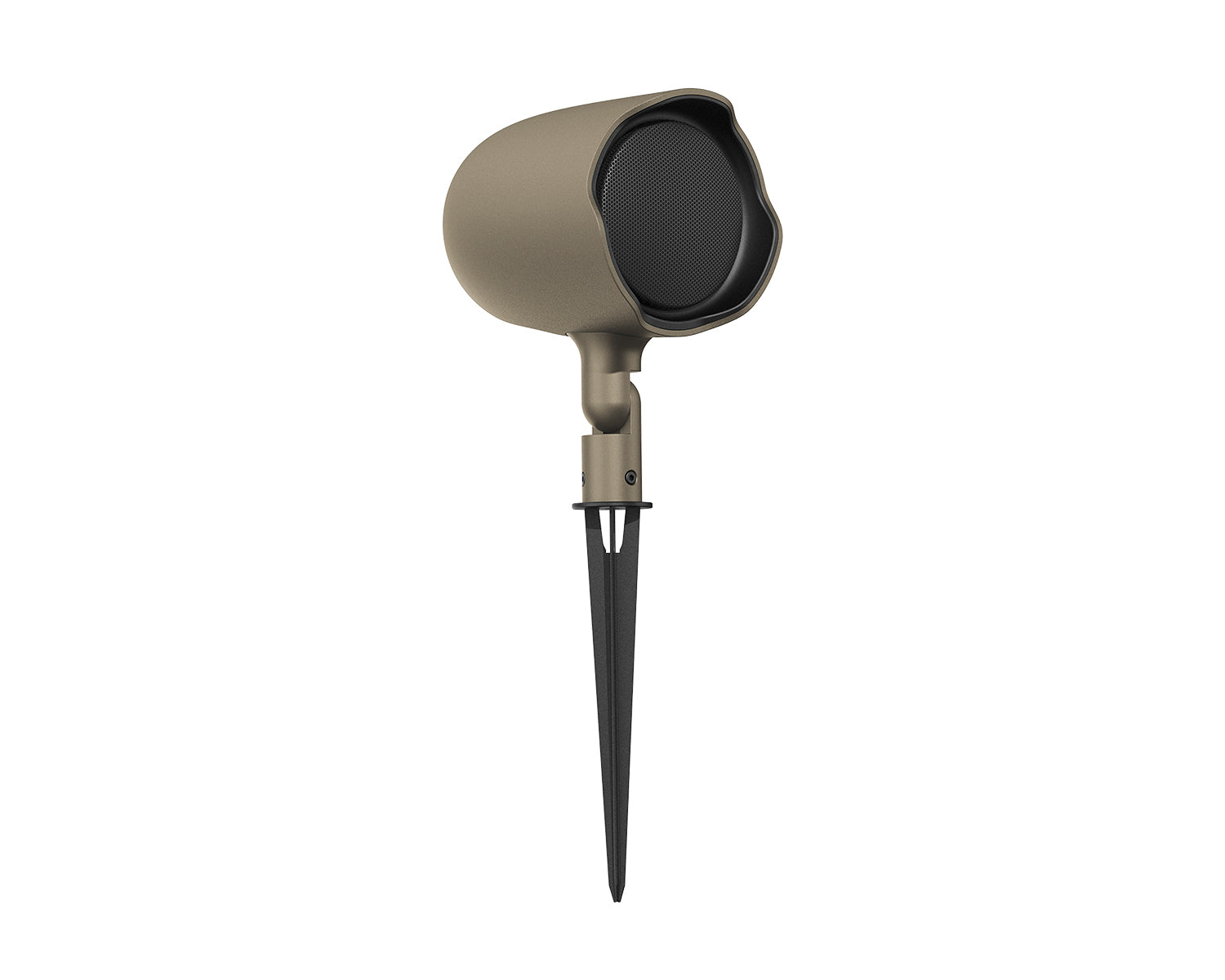

The compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

The elegant, discreet GSF3—winner of the prestigious RedDot international design award for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

Product Features

• Transducers: 76 mm (3”) woofer with polypropylene cone and 25 mm (1”) voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former.
• Frequency range: 90 Hz – 20 kHz
• Power handling (at 8Ω setting): 30W continuous pink noise, 60W continuous program
• IP66 rated against water and dust ingress
• Multi-tap 15W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
• Bottom drip hole provides drainage for drivers
• Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
• Aimable via adjustable hinge
• Includes ground stake and L-bracket for surface mounting
• Includes tap selector located on bottom of speaker, away from water incursion
• UL1480A listed
• Finish: tan

Product Specifications

• Frequency Range (-10dB): 90 Hz – 20 kHz
• Frequency Response (+/-3 dB): 130 Hz – 17 kHz
• Power Rating:
  • 60 W Continuous Program (2 hrs)
  • 30 W (120 W Peak), Continuous Pink Noise (2 hrs)
  • 20 W (80 W Peak), Continuous Pink Noise (100 hrs)
• Sensitivity: 80 dB (120 Hz – 20 kHz)
• Maximum SPL: 101 dB peak (95 dB continuous, 2 hr) @ 1m
• Nominal Coverage: 80° conical
• Nominal Impedance: 8 Ω (at 8Ω tap)
• Transformer Taps:
  • 70V: 15 W, 7.5 W, 3.75 W
  • 100V: 15 W, 7.5 W
• Drivers:
  • 76 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former
  • 20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
• Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
• Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
• Colour: Tan RAL7004
• Dimensions: Cabinet 167mm height/diameter x 131mm deep (6.6 x 5.2 in)
• Net Weight: 1.7 kg (3.8 lbs)
• Included Accessories: (1) Ground Stake Bracket; (1) L-Bracket

What's in the Box?

• Ground Stake Bracket x 1
• L-Bracket x 1
