Gio @5 brings the high-end control of the larger Eos Family consoles to venues with tighter spaces. This portable console packs all the control necessities into a compact footprint, so external monitors and accessories are optional. With an articulating, 18.5-inch, multi-touch LCD display, five definable and page-able motorized faders, built-in keyboard tray, and a main fader pair, Gio @5 is the perfect step up for Ion Xe users who want expanded hands-on access to playbacks, colour control, touchscreen Magic Sheets and more.

Product Features

One 18.5-inch multi-touch LCD touchscreen for display, direct selection and context-sensitive control
Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
Five 60mm faders, dedicated 4.3-inch color LCD display, 100 10-fader pages configurable as channels, submasters, palettes/presets, timing and effect rate/speed playback control
Main Playback with two 60mm motorized faders
Four force-feedback encoders for non-intensity parameter control
Dedicated high-resolution intensity level wheel
Backlit Eos keypad

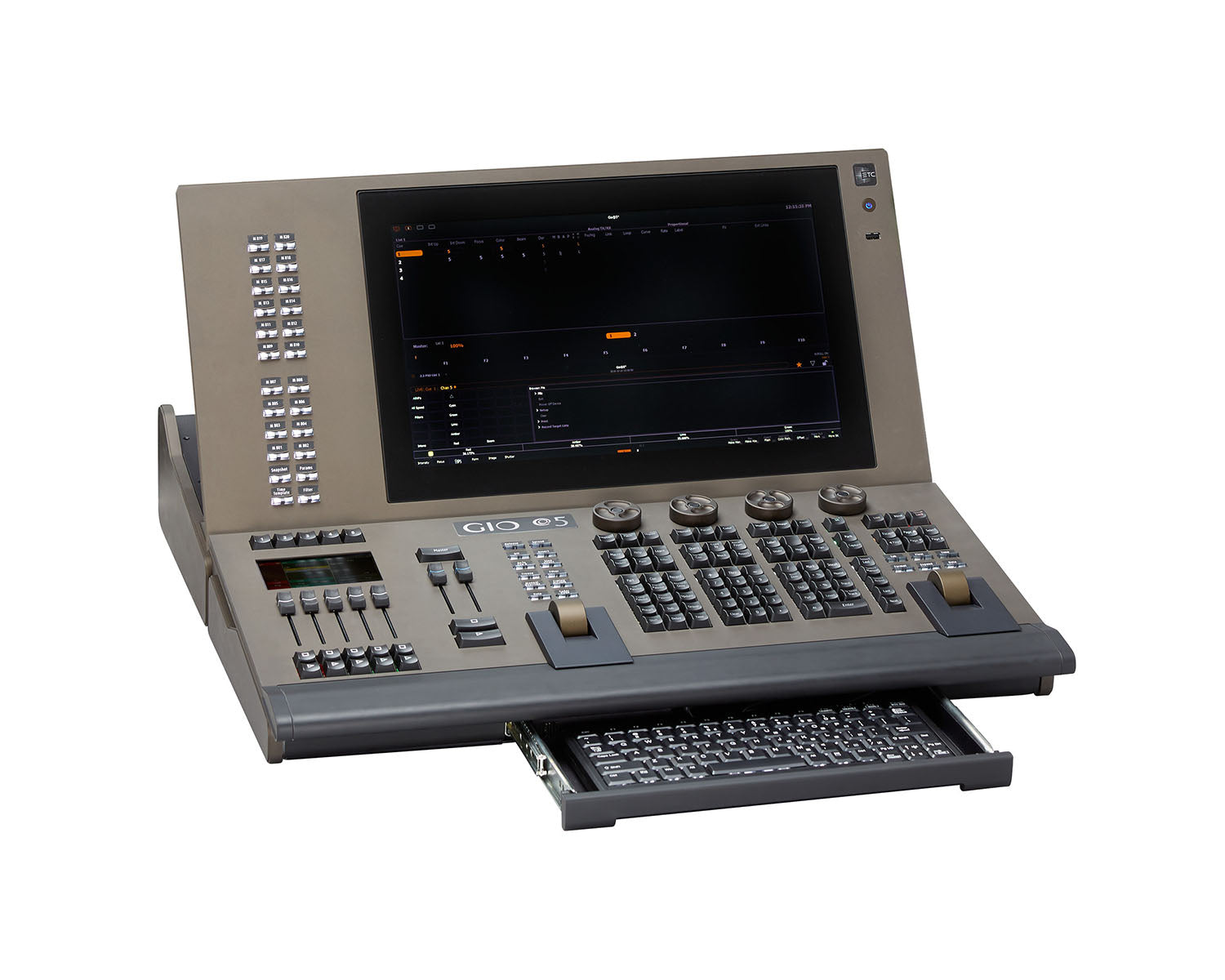

Built-in keyboard tray
Dedicated macro buttons
Solid-state hard drive
IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
Two individually configurable Gigabit Ethernet ports, RJ45 connectors
One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
sACN and Art-Net network output protocols
Four DMX-512 / RDM 5-pin XLR ports
Contact closure triggers via D-Sub connector
USB 3.1 ports, for flash drives, pointing devices, keyboards (9 USB-A ports, 2 USB-C ports)
One Littlite XLR port
One Kensington lock port
Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateway

Product Specifications

System Capacity

4,096 or 24,576 Outputs
32,768 Control Channels (mapped to any number from 1 to 99,999)
100,000 Cues
999 Cue Lists
999 Submasters
100 Fader Pages
4 x 10,000 Palettes (Intensity, Focus, Color, Beam)
10,000 Presets (all palette)
10,000 Groups
10,000 Effects (relative, absolute or step)
99,999 Macros
10,000 Snapshots
10,000 Curves
10,000 Color Paths
99 discrete users
Partitioned control
Show import from Obsession, Express™, Expression®, Emphasis®, Congo®, Cobalt®, Grand MA 1, Grand MA 2, Safari and Strand 500/300 Series
Augment3d 3D programming and visualization environment, with support for augmented reality features via connected phone or tablet app
Magic Sheets suite for customized user programming and displays
Virtual Media Server function for pixel-mapping effects, images, and animations
Support for multiple languages, including English, German, Spanish, French, Italian, Japanese, Korean, Russian, and Chinese (Simplified and Traditional)

Hardware/Interfaces

One 18.5-inch multi-touch LCD touchscreen for display, direct selection and context-sensitive control
Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/IC support
Five 60mm motorized faders, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control
Main Playback with two 60mm motorized faders
Four force-feedback encoders for non-intensity parameter control
Dedicated high-resolution intensity level wheel
Backlit Eos keypad
Built-in keyboard tray
Dedicated macro buttons
Solid-state hard drive
IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
Four individually configurable Gigabit Ethernet ports, etherCON connectors, PoE++ (802.3bt compliant PSE)
Two individually configurable Gigabit Ethernet ports, RJ45 connectors
One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
sACN and Art-Net network output protocols
Four DMX-512 / RDM 5-pin XLR ports
Contact closure triggers via D-Sub connector
USB 3.1 ports, for flash drives, pointing devices, keyboards (9 USB-A ports, 2 USB-C ports)
One Littlite XLR port
One Kensington lock port
Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
