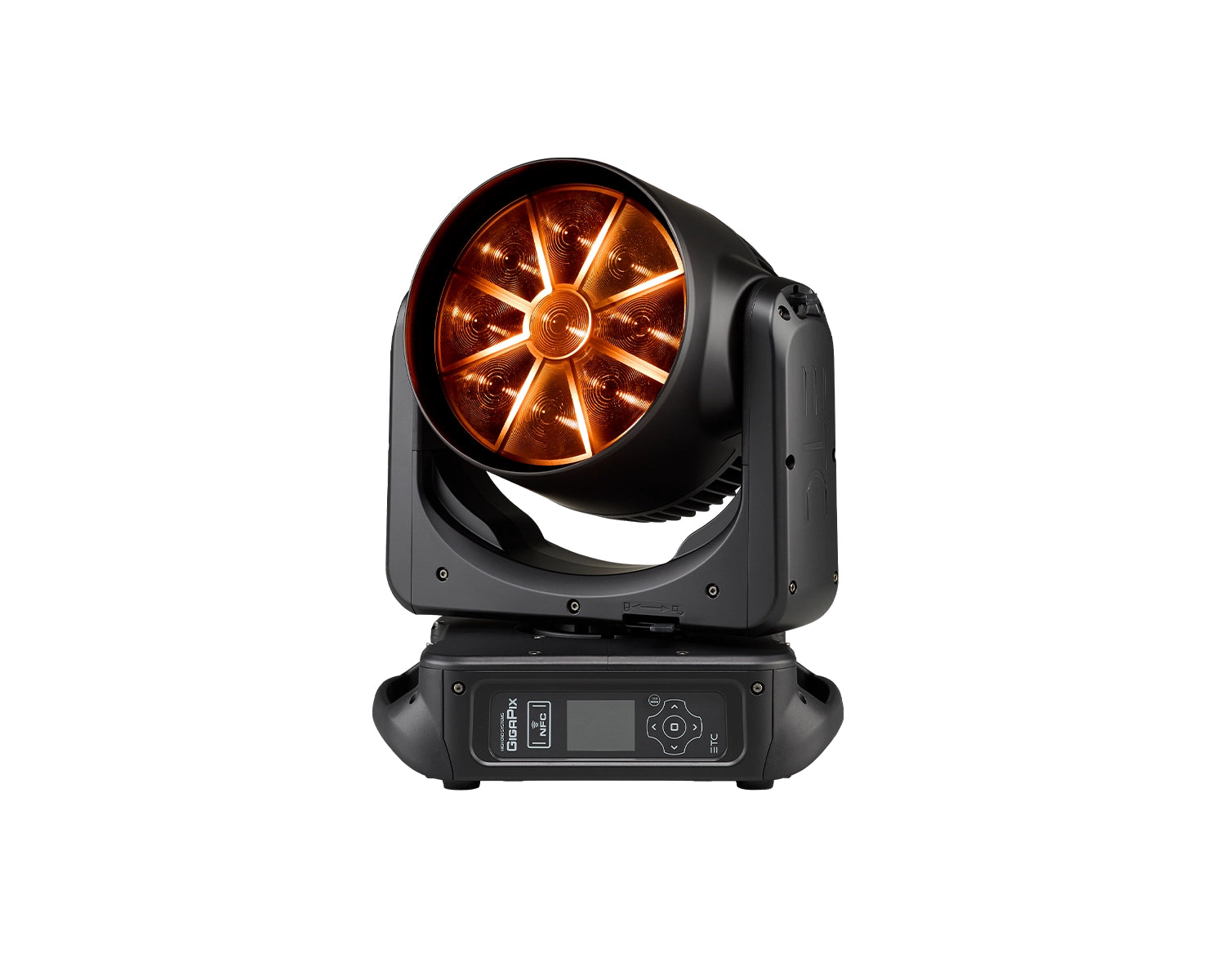

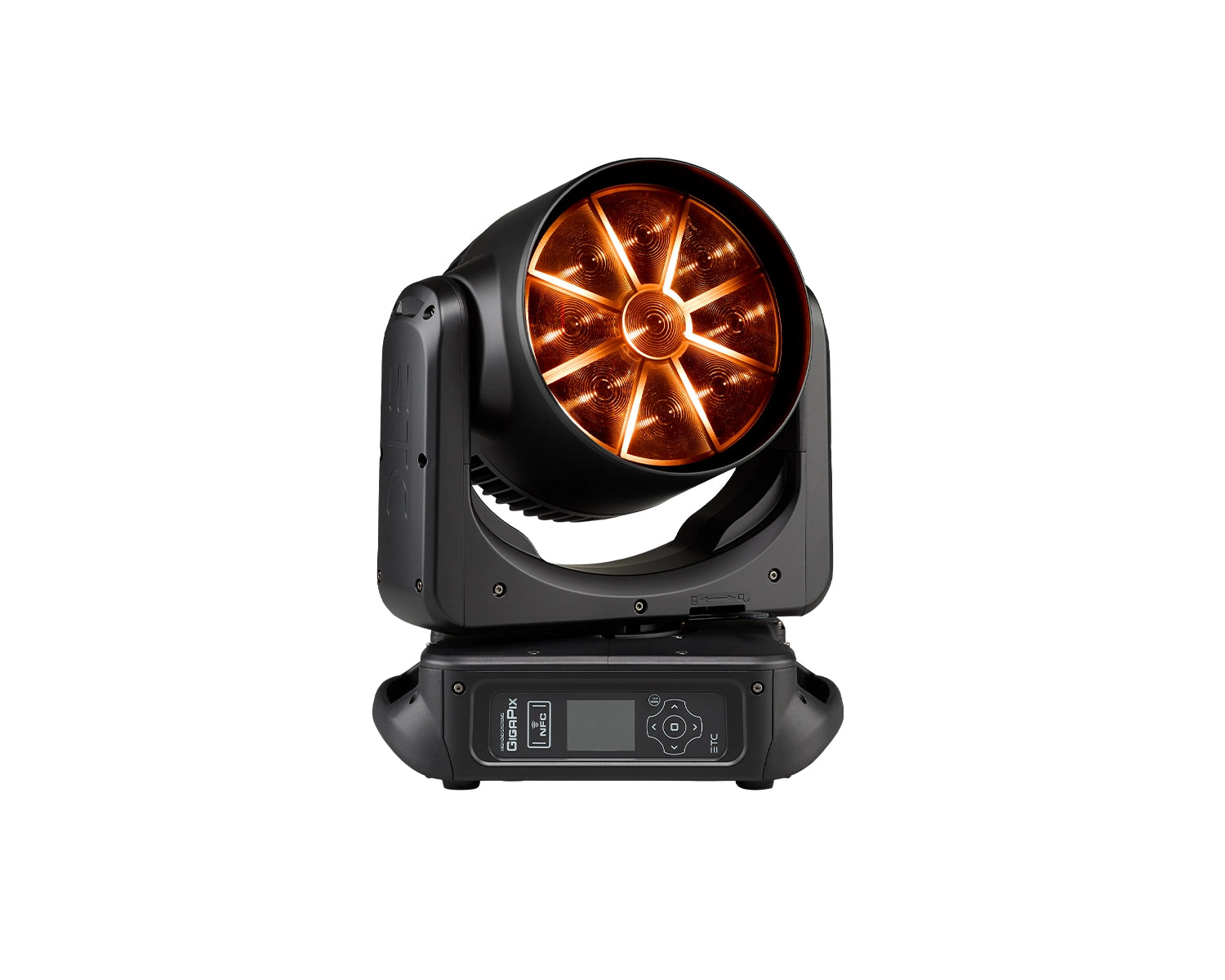

GigaPix brings next-level performance to the pixel wash fixture. With a patented Integrated Fresnel Lens (IFL) System, these fixtures deliver the classically beautiful output characteristics of a Fresnel lens. Create a wide range of elegant stage washes with advanced RGBL colour mixing, smooth dimming, and a 2000–10000 K CT channel. On top of all that, a robust Pixel, Macro, and Flex Effects system provides unique face looks and plenty of splash. Weather-rated with an IP54 rating, GigaPix is protected from dust and rain, whether used inside the theatre or outside on a festival stage.

Product Features

Additive LED, RGBL, colour mixing system for powerful
saturated colours and tuneable white control
Exceeds 17,000 Lumens
Patented Integrated Fresnel Lens system and HaloGraphic
Pixel Definition
Soft field with 4.5°–55° zoom
CT Channel achieves the top tier TM30 colour rendering
Preference 1 (P1) guidelines from 2,000–10,000 K
FleX Effects Generator for easily customizable macros
Nine cell pixel mapping
Modular control with Art-Net or sACN in addition to
simultaneous DMX control
Weather rated for temporary use outdoors against rain and
dust (IP54)
HazeFree™ protected lenses for improved efficiency,
longevity, and visual impact

Product Specifications

Source
- Engine Custom: RGBL LED
- LED Details: Nine (9) 60 W LED engines
- Field Lumens: See photometrics on page 4
- Max Integrating Sphere Lumens: 16,700
- LPW: 31
- LED Life: 50,000 hours
Colour
- Colour Mixing: Additive RGBL colour mixing
- Colour Temperature: 2000 K to 10000 K
- TM-30 Preference 1
Optical
- Angle Range: 4.5°–55°
- Aperture Size: 217 mm
- Diffusion: Soft and homogenized field of light
  throughout entire zoom range
- Flicker Control/Hz Range: 2.4 kHz, 16 kHz, 25 kHz
Control
- Input Method: DMX (5-pin) or Ethernet
  - Protocols
    - DMX via RS-485
    - Art-Net or sACN via Ethernet
- Ethernet Pass-Thru: No
  - Modes (Footprint)
    - Wash (15)
    - Base (25)
    - Base+Flex (45)
    - separately addressable Pixel Control Module
      (36)
- RDM Functions: Yes
  - UI Type
    - Full-colour graphical UI
    - 5-button navigational contro
    - lNFC configuration
- Local Control: Yes
- Dimming Performance: 16-bit, DMX controlled
- Wireless: Multiverse via optional MV-Mount Adaptor
  and Multiverse Connect Module (CT-5914)
- Notes: All LED sources experience some lessening of light output and
  some colour shift over time. LED output will vary with thermal conditions.
- Thermal conditions can be affected by ambient temperatures and
  orientation.
Electrical
- Voltage Range: 100–240 V 50–60 Hz
- Input Method: REAN® power X Series Connectors
- Wattage: 750 W
  - Current (Max):
    - 7.5 A @ 100 V
    - 3.0 A @ 240 V
  - Inrush (First Half Cycle)
    - 120 V: 25 A
    - 230 V: 45 A
- Fixtures per Circuit
- 2 fixtures (R20 module or similar)
- Note: REAN power X Series connector rated
  for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)
Thermal
- Ambient Operating Temp: -10°C to 40°C (14°F to 104°F)
- Fan Mode: Auto, Studio, Linear fan control
  - Stationary Noise
    - Standard - 39.4 dBA
    - Studio - 30.3 dBA
- Lowest settable fan setting - 26.7 dBA
  All tests at 18.9 dBA background noise
Physical
- Pan and Tilt Range: 540° pan, 264° tilt
- Max Pan/Tilt Speed: 360° in 1.3 s/180° in 0.65 s
- Materials: Steel and aluminium frame with moulded plastic
  covers and protected rubber bellows
- Colour Options: Black, white by request
- Mounting Options: Any orientation
- IP Rating: IP54
- Weight: 15 kg (33 lb)
