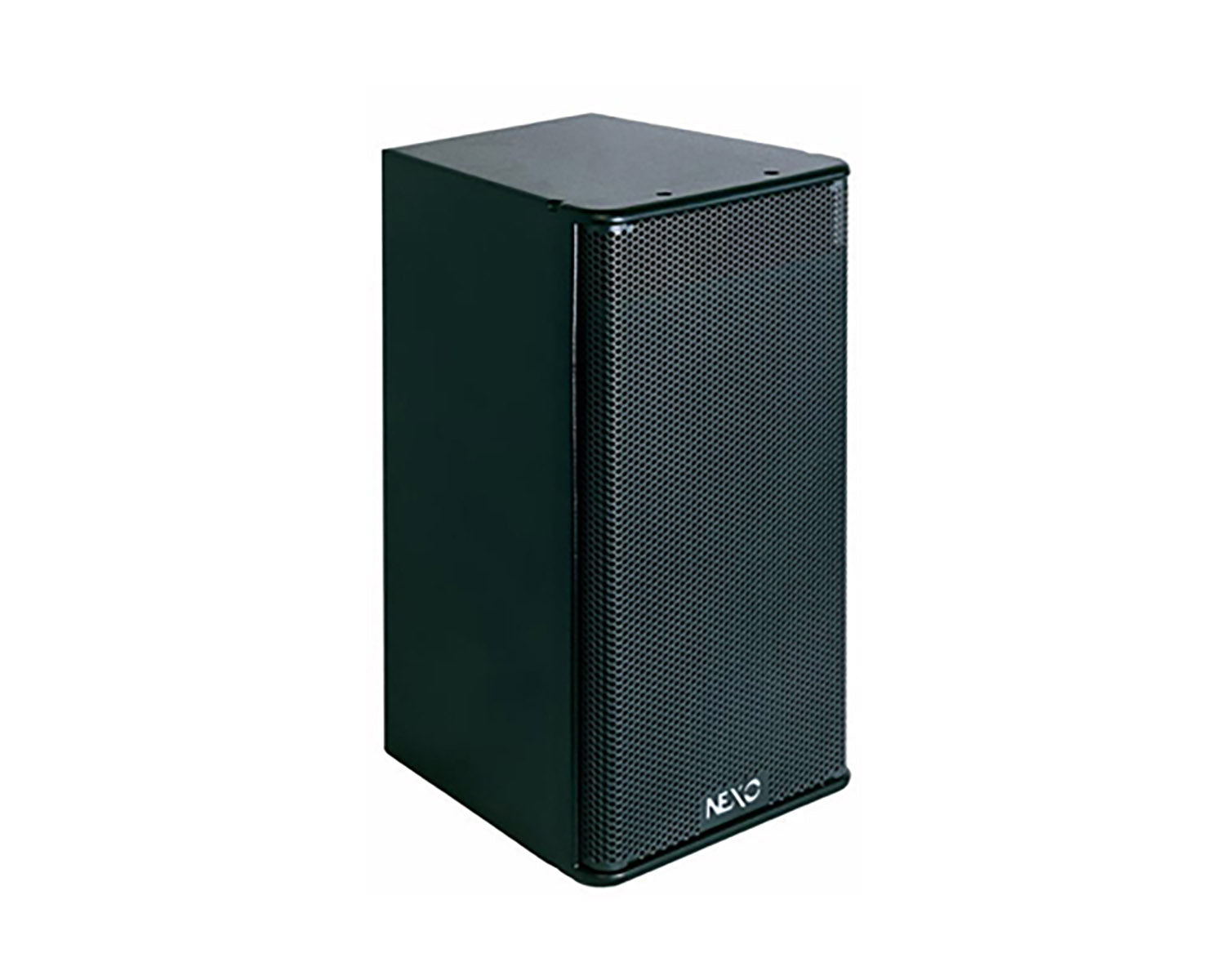

NEXGS1210S - NEXO GEOS1210 STADIUM Line Array Module 10degree Black Image 1

NEXO’s compact, 2-way GEO S1210-ST is a high-output, long throw version of the standard GEO S1210 cabinet, designed for stadium installations. While a narrow-Q (10°) device in single-source mode, S1210-ST’s unique Hyperboloid Reflective Wavesource (HRW) also allows coupled S1210-STs to radiate as coherent, wavefronts, in either horizontally or vertically arrayed systems. GEO S1210-ST’s coupled MF/HF pattern control is array-dependent, as designed by NS-1 array software, and configured according to venue -specific geometry. Non- coupled MF/HF coverage configures at 80°or 120°. The S1210-ST module displays exceptional MF-LF output (105dB SPL nominal sensitivity -1W @1m) from a single 12″ loudspeaker and NEXO’s proprietary Directivity Phase Device (DPD).

Product Features

High SPL for long-throw applications
Enhanced speech intelligibility
Coherent Wave Propagation from NEXO’s Advanced GEO Hyperbolic Wavesource
Advanced Constant Velocity Profile Output from 5.1° Wavefront Curvature
NS-1 Configurable, EtherSound™ (Network)

Product Specifications

General

Frequency response [a]: 53Hz – 19kHz ±3dB
Usable range @-6dB [a]: 50Hz – 20kHz
Sensitivity 1W @ 1m [b]: 105dB SPL nominal
Peak SPL @ 1m [b]: Configuration Dependent [d]
Dispersion [c]: Coupling Plane: Configuration dependent [d] Non-Coupling Plane: Configurable 80° / 120°
Crossover frequency: LF- HF: 1.1kHz Passive or Active (internally configurable)
Nominal impedance: HF: 16Ω; LF: 16Ω
Recommended amplifiers:
- 3x GEO S1210-ST in parallel: HF: 875 to 1550W into 4Ω, LF: 1750 to 3100W into 4Ω
- 4x GEO S1210-ST in parallel: HF: 1000 to 1800W into 4Ω, LF: 2000 to 3600W into 4Ω
- 6x GEO S1210-ST in parallel: HF: 1650 to 3000W into 2Ω, LF: 3300 to 6000W into 2Ω

Features

Components:
- HF: 1 x 3” voice coil, 1.4” throat 16Ω ND driver on a 5° hyperboloid reflective wavesource
- LF: 1 x 12” (30cm) high excursion neodymium 16Ω driver
Height x Width x Depth: 344 x 675 x 378 mm (13 1/2” x 26 1/2” x 14 7/8”) excluding accessories
Rigging axis to axis height: 345mm (13 1/2”)
Shape: 10° Trapezoid
Weight net: 28.05kg (61.8 lbs) including array assembly system
Connectors: 2x NL4MP SPEAKON 4-pole (In & Through)
Construction: Baltic Birch ply with structured black coating
Front finish: Molded dark grey metal grille
Flying points: Two plates connecting with external accessories.Intercabinet angle adjustments
- = 0.2°, 0.315°, 0.5°, 0.8°; 1.25°, 2.0°, 3.15°, 5°, 6.3°, 8.0°, 10.0° (logarithmic steps)
