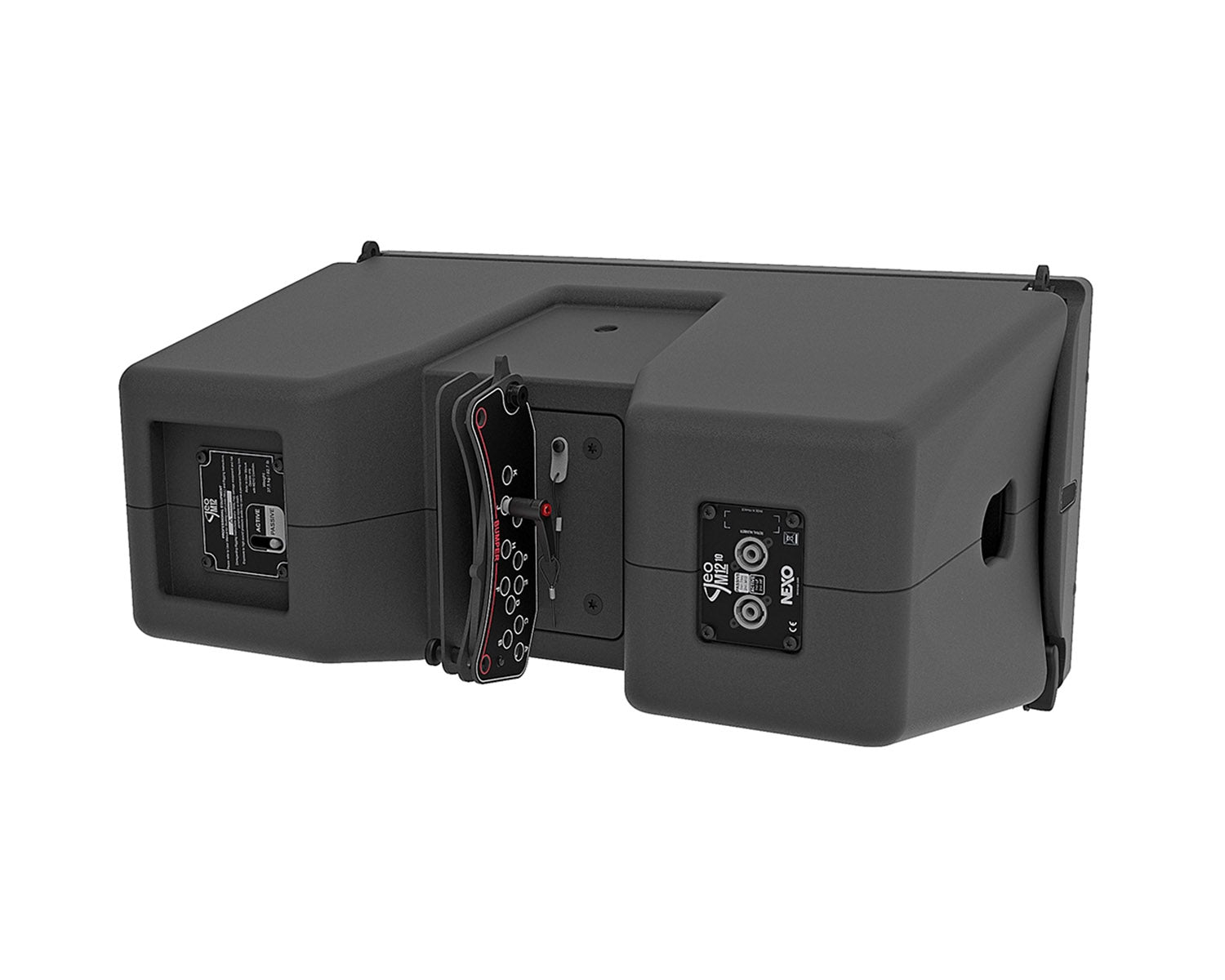

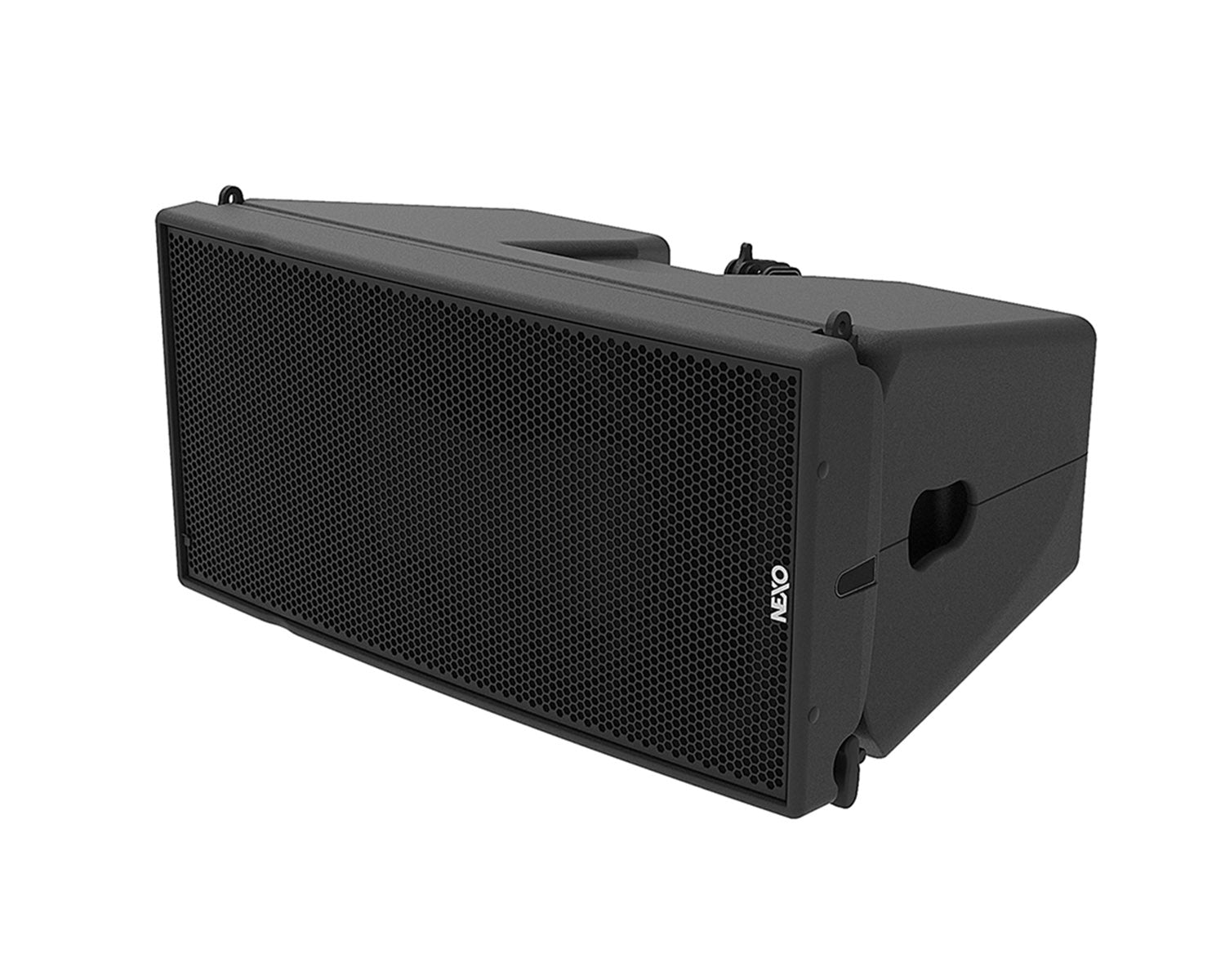

The GEO M1210 is 2-way passive or active line array element with 12″ LF and 3″ voice coil / 1.4″ throat HF drivers. Measuring 700mm wide x 370mm high x 446mm deep and weighing 34kg, the GEO M1220 is a touring version of the GEOM12 with 10° vertical dispersion. Cabinets can be set for 80° or 120° horizontal dispersion using magnetic flanges in the waveguide, with no tools required. Cabinets are constructed from a honeycomb-structure urethane co-polymer material and feature integral rigging with no loose parts and handles on the rear and sides. GEO M1210 is available in black, white or custom RAL colours.

Product Features

• Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
• Integrated rigging hardware with no loose part and AutoRigTM feature
• Incorporates latest NEXO patented technology from the flagship STM series
• Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications
• Available in black, white and custom RAL colours

Product Specifications

General

• Frequency Response @-6 dB: 50 Hz to 20 kHz
• Sensitivity 1W@1m: 105 dB SPL Nominal
• Peak SPL@1m: 140 dB
• Vertical Dispersion: 10°
• Horizontal Dispersion: 80° / 120°
• Passive Mode Crossover Frequency: 1.1 kHz
• Nominal Impedance: Active mode: (8 ¬ LF + 16 ¬ HF) / Passive mode: 8Ω
• Recommended Power: Active mode: (1250 Watts LF + 625 W HF) / Passive mode: 1250 Watts

Features

• LF Component: 1 x 12” 8 Ohms long excursion Neodymium driver with PDDTM
• HF Component: 1 x 3” voice coil 1.4” throat driver on a BEA/FEA optimized HR WavesourceTM
• Height x Width x Depth: 370mm x 700mm x 446 mm (14.6” x 27.6” x17.6”)
• Weight: Net: 34 kg (75 lbs)
• Connectors: 2 x NL4, 4 poles connectors
• Connectors pinout: Passive mode: (1+/1- Through, 2+/2- GEO M12) / Active Mode: (1+/1- LF, 2+/2- HF)
• Active / Passive mode selection: Ruggedized, recessed, waterproof 2 position switch
• Construction: Lightweight Polyurethane Composite
• Fittings: 2 x Side handles horizontal + back grip
• Front Finish: Steel front grill + back mesh
• Operating temperature range: 0°C - 40 °C (32° F - 104° F)
• Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
