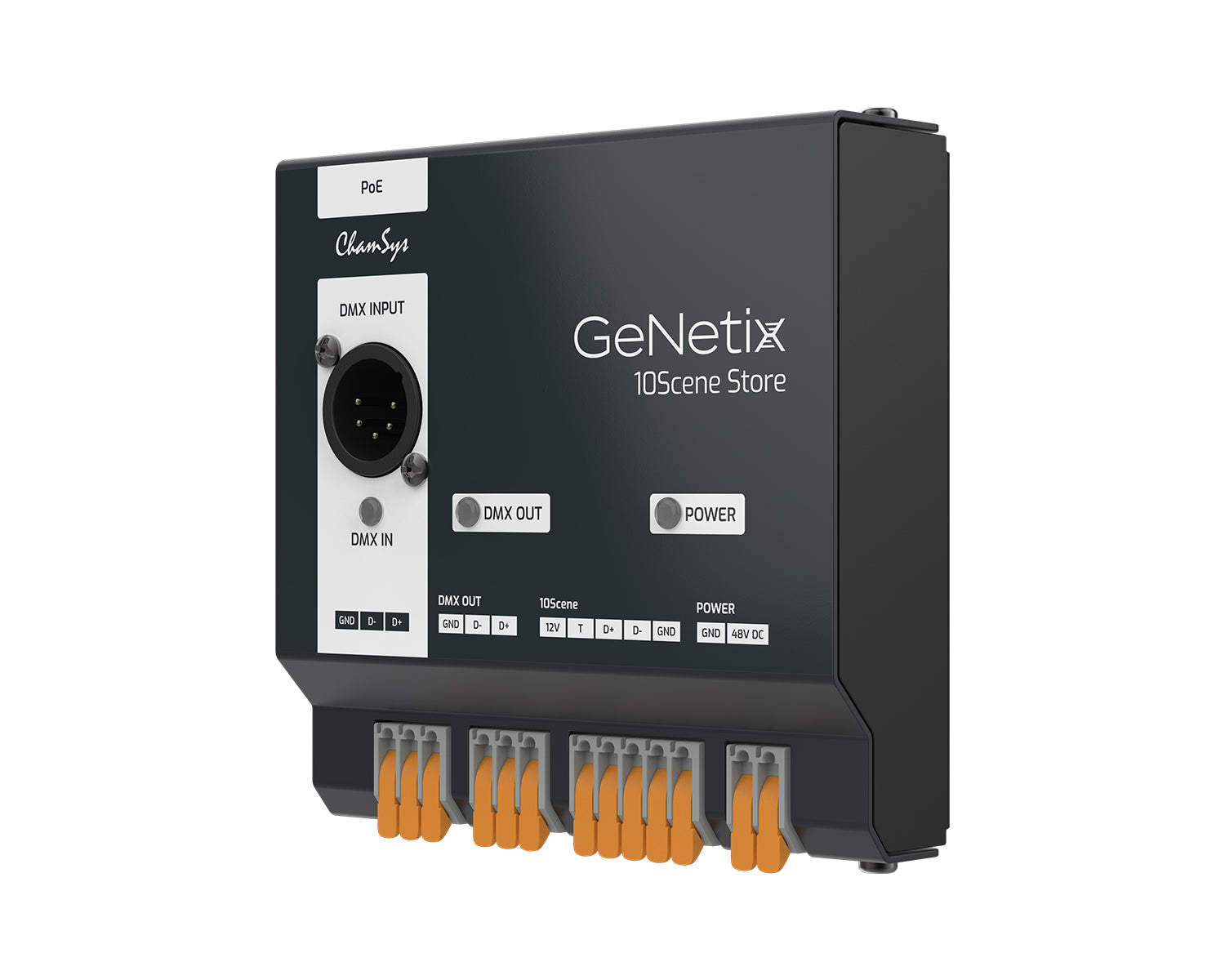

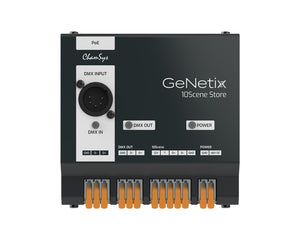

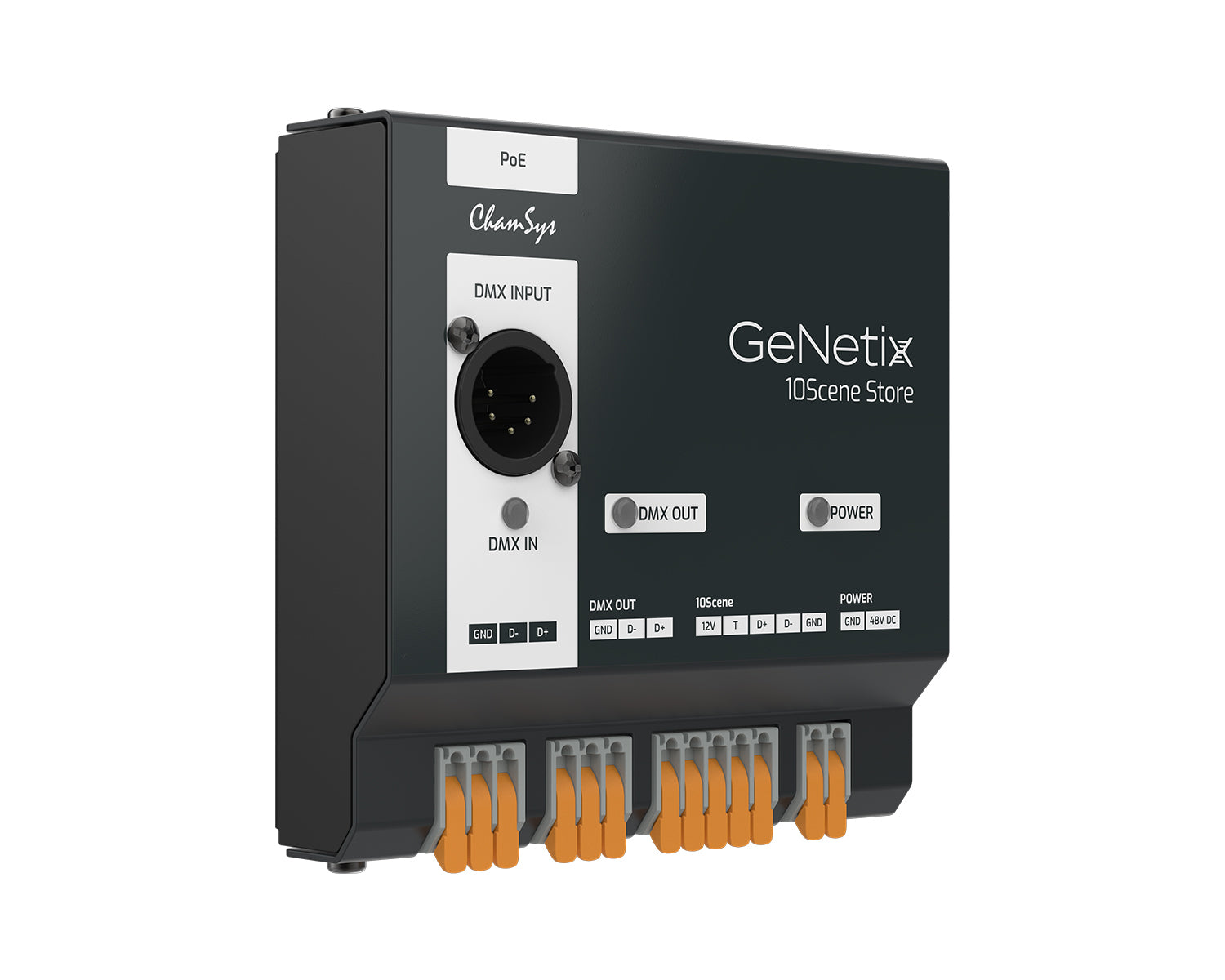

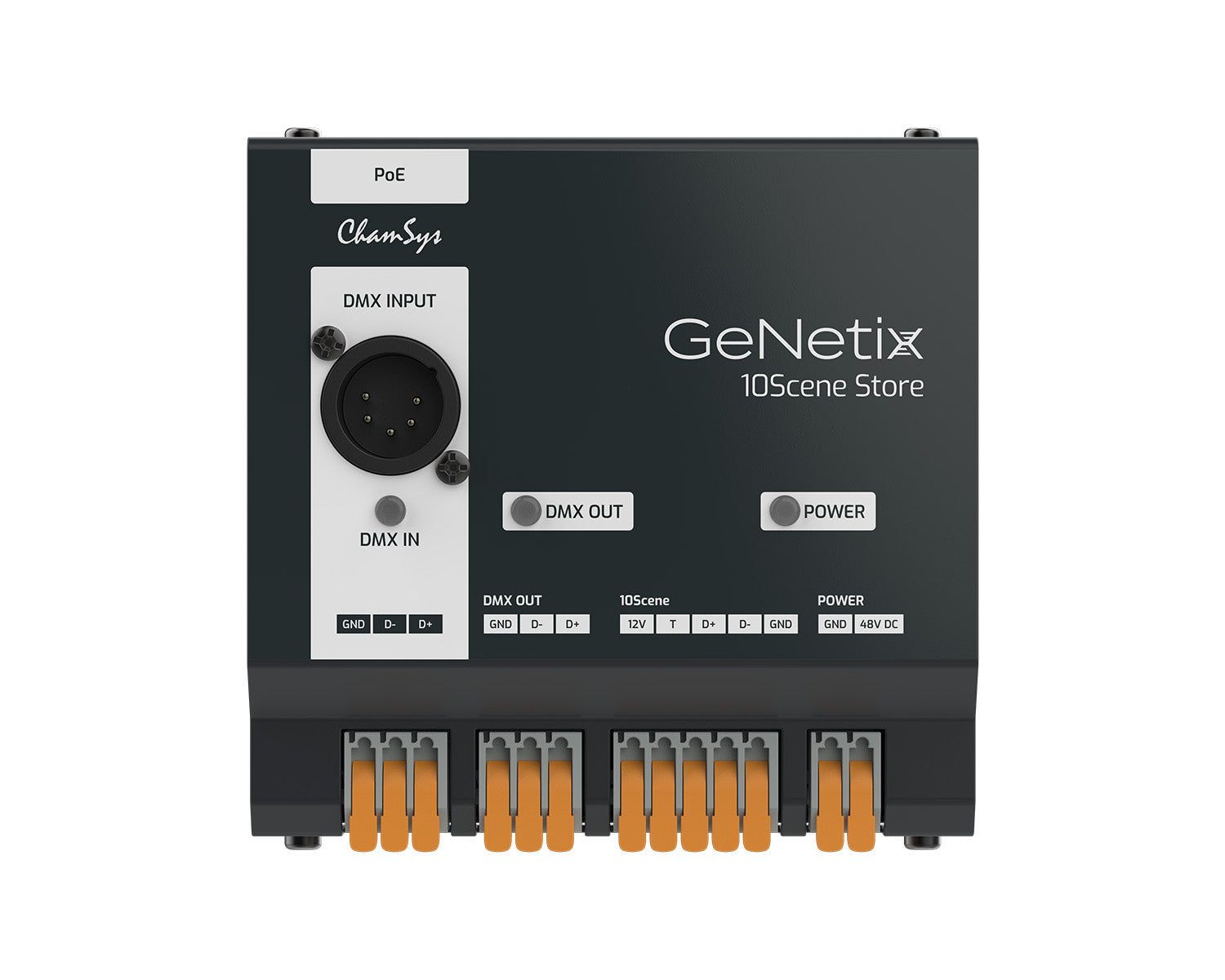

GeNetix 10Scene Store is a single universe wall or DIN Rail mounted standalone playback device that stores 10 static lighting Scenes (cues) which can be recalled with connected 10Scene wall plates. Load Scenes from either QuickQ or MagicQ show files or program via its in-built DMX Input port. Powered by either PoE or external 48V power supply, this simple installation device supports up to ten 10Scene wall plates, and features one DMX IN (XLR5 & Wago), one DMX OUT (Wago) and a network port.

Product Features

• Single Universe DMX Output via Direct DMX or Art-Net / sACN
• Stores 10 Lighting Scenes with Fade times between Scenes
• Capture Scenes via Direct DMX from any console
• Transfer Scenes via Network from MagicQ or QuickQ Systems
• PoE or 48v Direct Input powered
• Wall or DIN Rail mounted

Product Specifications

Hardware Specifications

• DMX Output Ports: 1 (Wago)
• DMX Input Ports: 1 (Linked Wago & 5 Pin DMX)
• Network Ports: 1
• 10Scene Ports: 1 (Wago)
• PoE Input: Yes
• 48v Power Input: Yes (Wago)

Software Specifications

• 10 Scene Snapshot Record via DMX Input with Fade times
• Load Scenes from MagicQ or QuickQ consoles
• Web Server

Weights and Dimensions

• Width: 116mm (4.57”)
• Depth: 32mm (1.26”)
• Height: 117mm (4.60”)
• Weight: 0.45 KG (1.00 lbs)

What's in the Box?

• Din Rail Mount Clip
