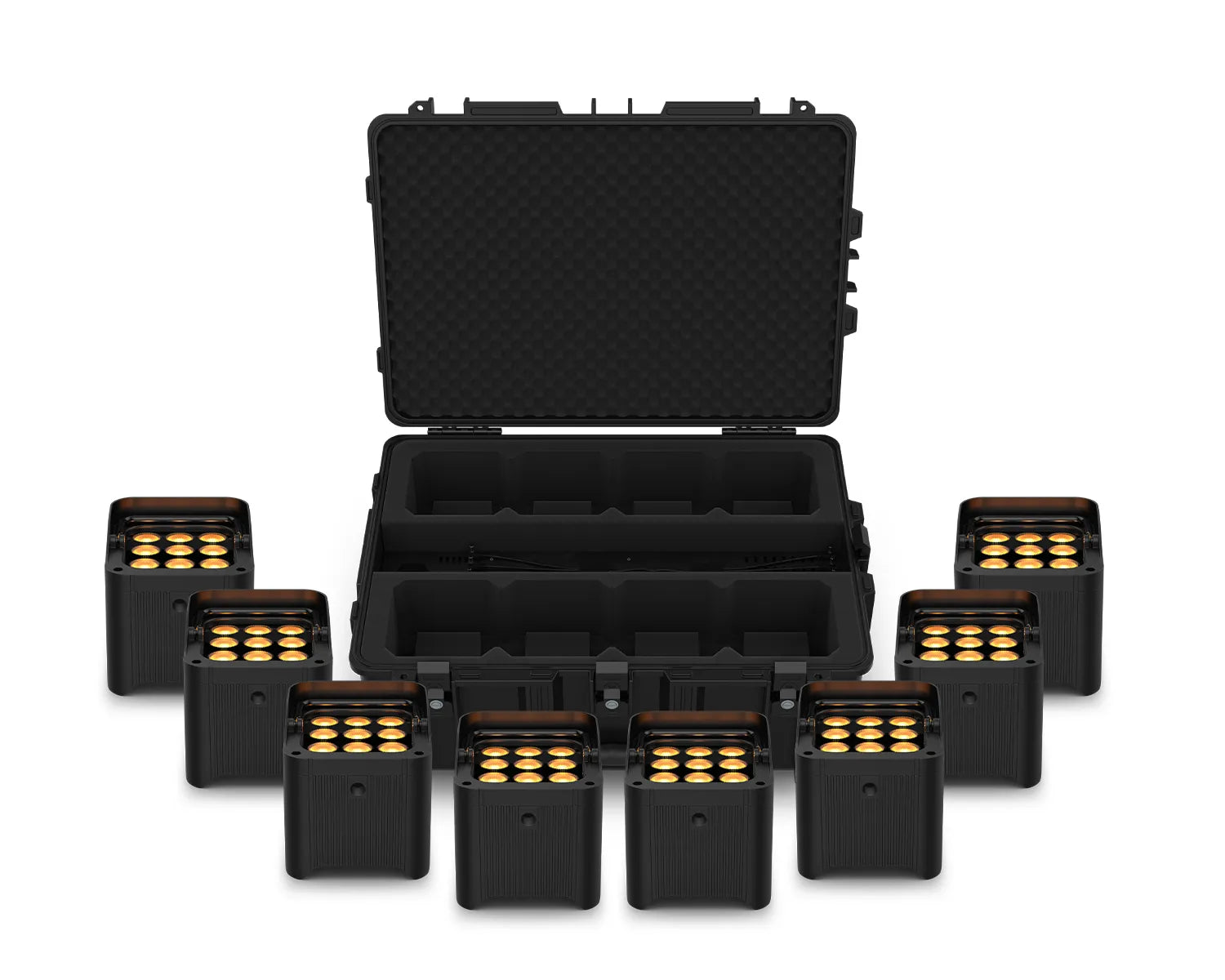

Complete up-lighting kit featuring eight powerful Freedom Par H9 IP units with the Freedom Charge 8P charging case for easy storage and charging.

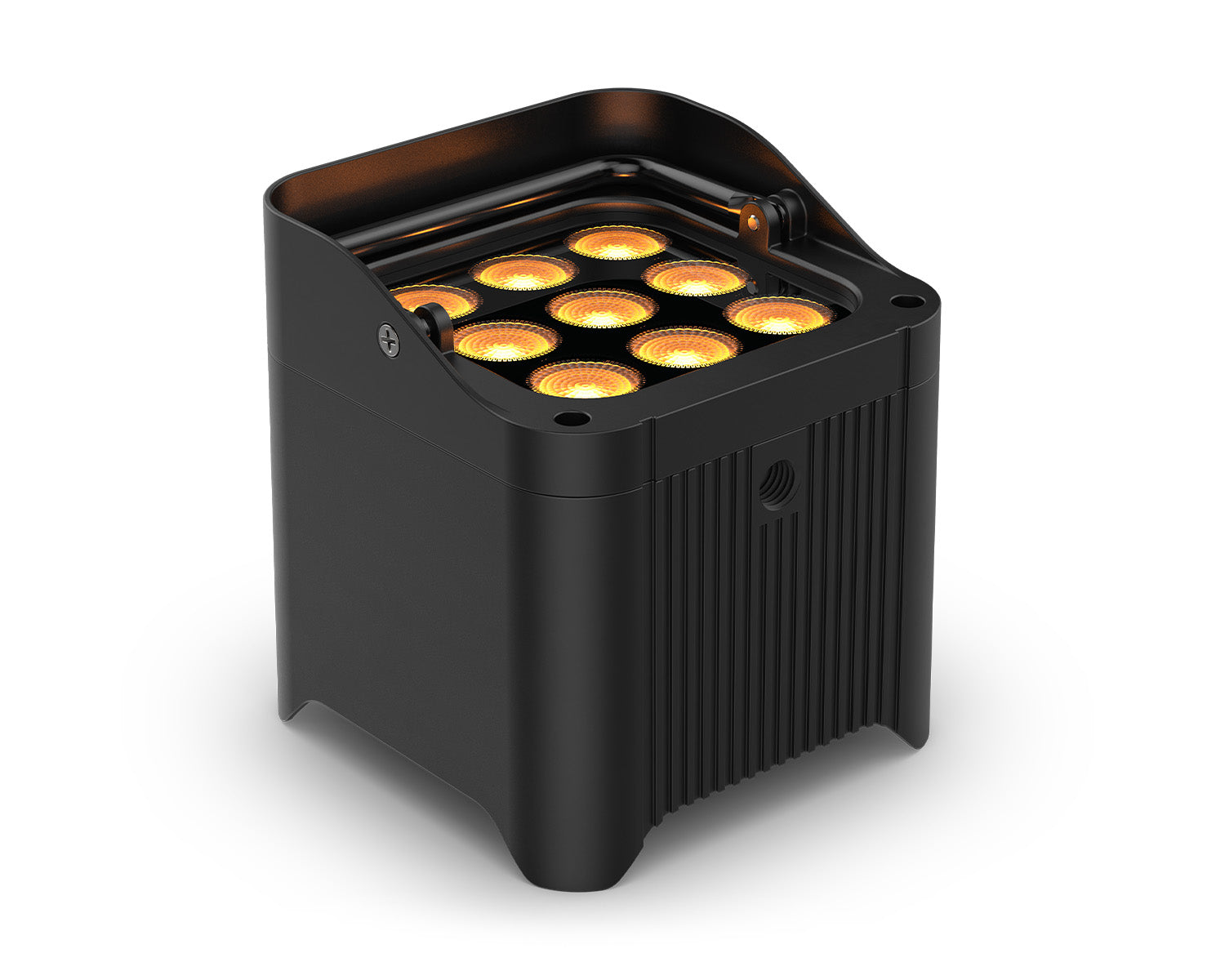

Experience the next generation of 100% TRUE wireless, battery-operated event lighting power with Freedom Par Q9. This quad-colour (RGBA) LED uplight not only has the favourite built-in D-Fi transceiver for wireless DMX control, but even more wireless options are available with a built-in RF receiver for use with the RFC or RFC-XL optional remotes. Brilliant colour mixing comes from new secondary optics and a magnetic diffuser pops on or off with ease to widen the coverage area. Adjusting settings has never been easier with the OLED display with full-text and now you can adjust run times to keep the Freedom power going all event long!

Freedom Charge 8P is a rolling transport case that charges up to 8 Freedom Par fixtures simultaneously. Its high-strength polypropylene material is water-resistant and resistant to damage and its custom moulded interior ensures a damage-free transportation experience. Fixed cable leads plug directly into fixtures without needing individual power cords. Rugged wheels and a telescoping handle make transportation stress-free while multiple child-resistant latches with the ability to add pad locks reduce unwanted intrusions.

Product Features

Freedom Par Q9 Uplighter Features

• 100% TRUE wireless, battery-operated, quad-colour (RGBA)
• LED uplight with built-in D-Fi transceiver
• New secondary optics provide perfect colour blending with nearly no artefacts
• Magnetic diffuser pops on or off with ease and widens the coverage area
• Adjustable run times ensure the fixture will last the length of the event
• OLED display allows for full-text and to easily change fixture’s settings
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• Adjust the projection angle using the spring-loaded kickstand
• Built-in glare shield protects light spillage and eye fatigue
• Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry
• Achieve smooth LED fading with built-in dimming curves
• Compact and lightweight design easily fits inside sticks of TRUSST®

Freedom Charge 8P Charging Case Features

• Pelican-style transport case charges up to 8 Freedom Par fixtures simultaneously
• High strength polypropylene material is water-resistant and resistant to damage
• Custom moulded interior ensures a damage-free transportation experience
• Fixed cable leads plug directly into fixtures without needing individual power cords
• Rugged wheels and telescoping handle make transportation stress-free
• Multiple child-resistant latches with ability to add pad locks reduce unwanted intrusions

Product Specifications

Freedom Par Q9 Uplighter Specifications

• DMX Channels: 4, 6 or 14
• Light Source: 9 LEDs (quad-colour RGBA) 6 W, (2.3A), 50,000 hours life expectancy
• Strobe Rate: 0 to 22 Hz
• Beam Angle: 14°
• Field Angle: 35°
• Illuminance: 3580 lux @ 2 m
• Beam Angle (with diffuser): 37°
• Field Angle (with diffuser): 68°
• Illuminance (with diffuser): 529 lux @ 2 m
• Lumens: 1,161
• Run Time (adjustable): 3, 5, 8, or 12 hrs
• Recharge Time: 3 hours
• Operating Frequency: 2.412 to 2.484 GHz
• Max Unobstructed Distance: 600 ft (183 m)
• Input Voltage: 24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
• Power and Current: 31 W, 0.3 A @ 120 V, 60 Hz
• Power and Current: 30 W, 0.2 A @ 230 V, 50 Hz
• Mounting Hole: M12
• Optional Controllers: RFC, RFC-XL, FlareCON
• Approvals: CE, UKCA, RoHS, FCC
• Weight: 4.6 lbs (2.1 kg)
• Size: 4.7 x 4.7 x 4.9 in (120 x 120 x 126 mm

Freedom Charge 8P Charging Case Specifications

• Compatible Fixtures: Freedom Par Q9 and Freedom Par H9 IP (with optional sleeves)
• IP Rating: IP65 (Charging case only, fixture is not IP rated)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 304 W, 3.0 A @ 120 V, 60 Hz
• Power and Current: 280 W, 2.5 A @ 230 V, 50 Hz
• Weight (empty): 20.6 lbs. (9.3 kg)
• Weight (full): 62.2 lbs. (28.2 kg)
• Handle Height: 15.5 in (394 mm)
• Size: 24.8 x 10.7 x 19.3 in (631 x 272 x 489 mm)
• Approvals: CE, UKCA, RoHS

What's in the Box?

• 8 x Freedom Par Q9

• 8 x Magnetic diffuser
• Freedom Charge 8P
• Power cord
