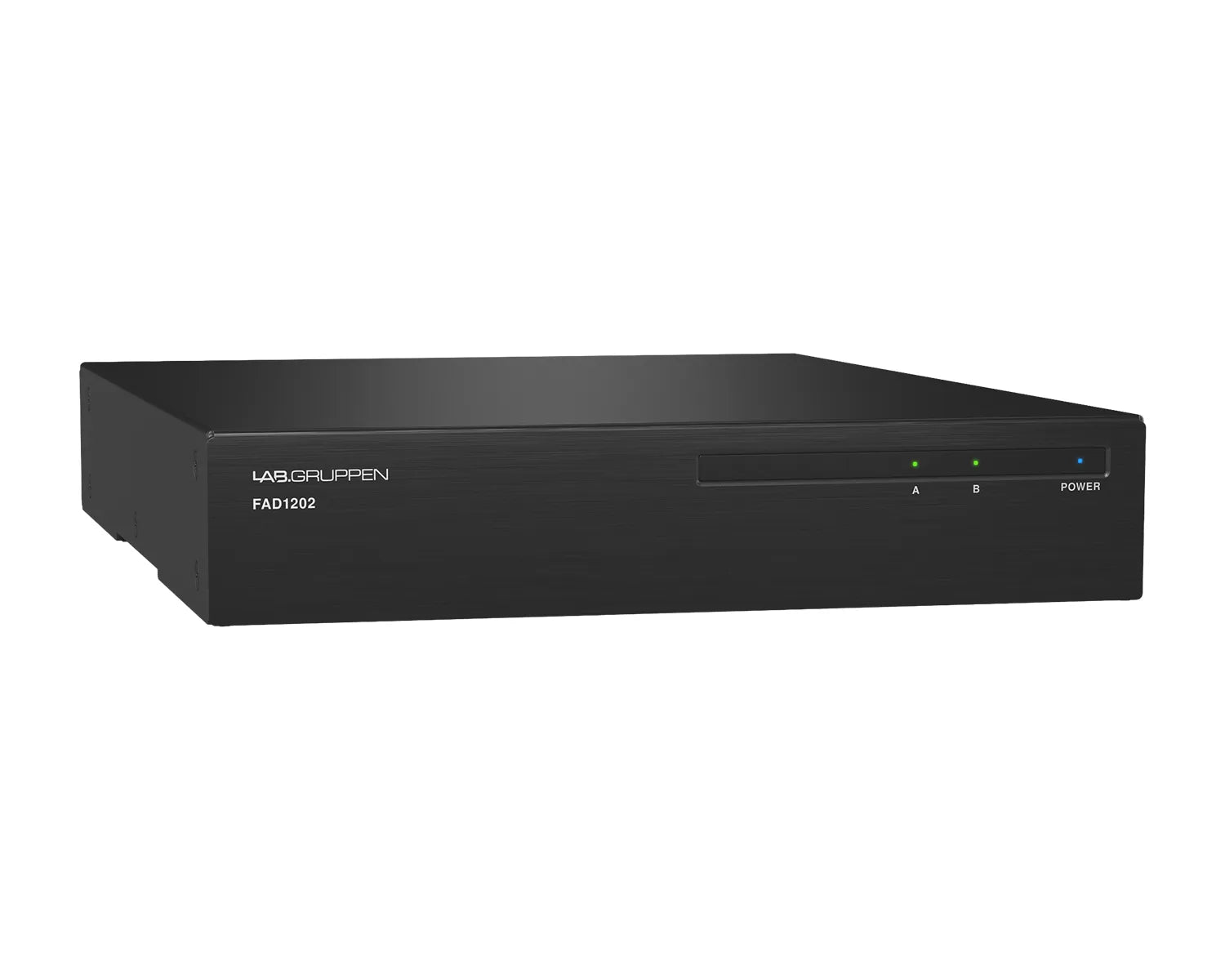

2 x 120 Watt dual-channel Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. FAD1202 is easy to install and operate – even for non-technical personnel. Simply put, the FAD1202 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

Dante replaces point-to-point analogue and digital connections with a standard IP network that delivers completely lossless audio, massive channel counts and near infinite signal routing flexibility, all while being incredibly easy to deploy and use.

Not only does FAD1202’s direct drive constant power technology provide superior audio performance and reliability, it also consumes less mains power than competing models, which has earned it Energy Star * certification.

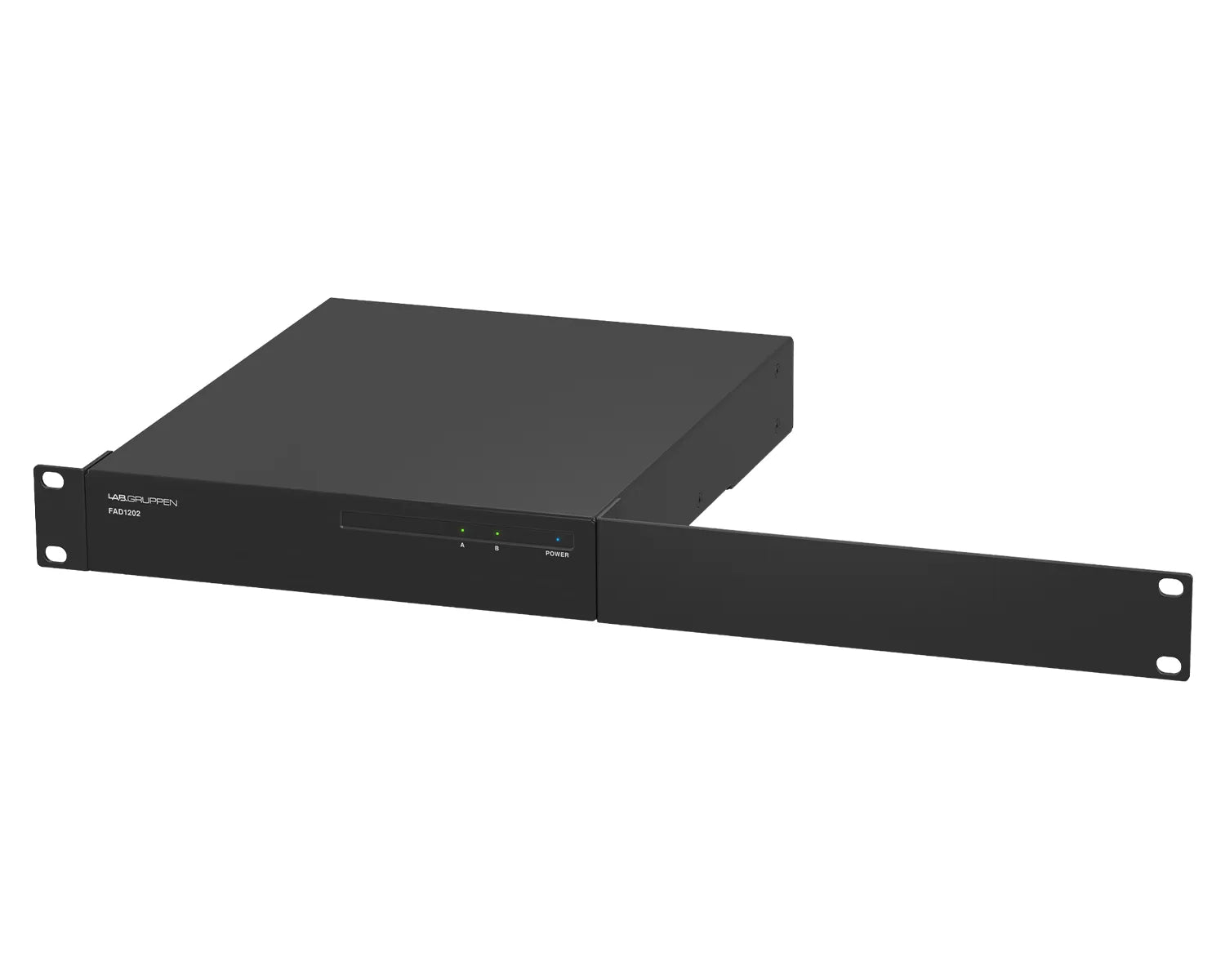

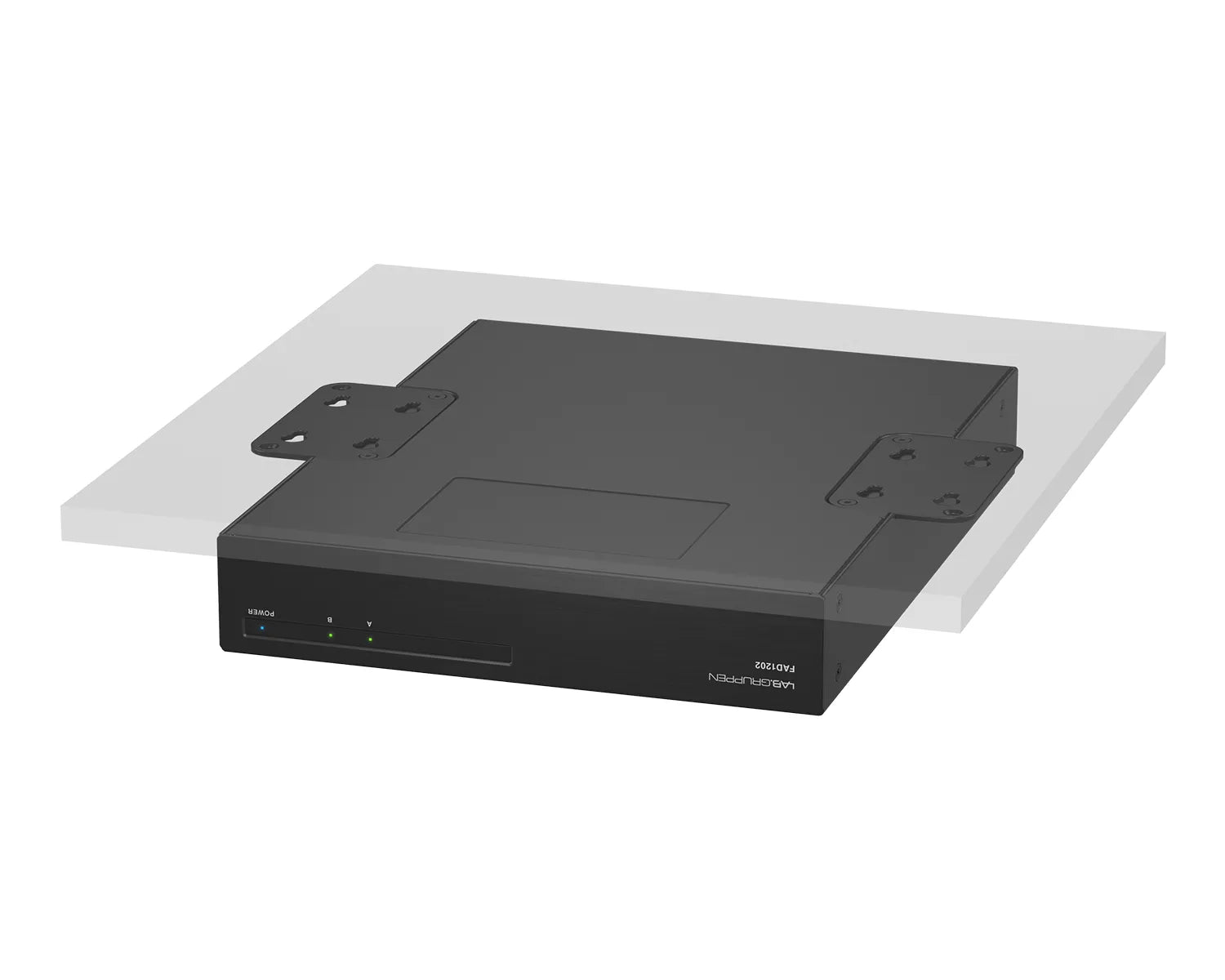

The FAD1202 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.

Product Features

2 x 120 Watt amplifier for commercial and industrial applications
Low-Z (4/8 Ohm) and High-Z (70/100 V) operation per output with switchable high-pass filter
Direct drive, constant power technology for superior audio performance and reliability
Dante audio connectivity to enable creating large audio systems over a local network
Energy Star certified design conserves energy and drastically reduces operational cost
GPI remote volume control using standard RJ-45 connector and Ethernet cable
Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
Tamperproof gain controls for each channel on rear panel location
Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
Euroblock type amplifier output connectors
Convection-cooled, fan-less amplifier technology for low noise

Product Specifications

Maximum Output Power
- 4 or 8 Ω per channel: 120 W
Number of Output Channels
- Number: 2
Minimum Load Impedance
- 4 Ω mode: 4 Ω
- 8 Ω mode: 8 Ω
- 70 V output mode: 41 Ω
- 100 V output mode: 82 Ω
Controls

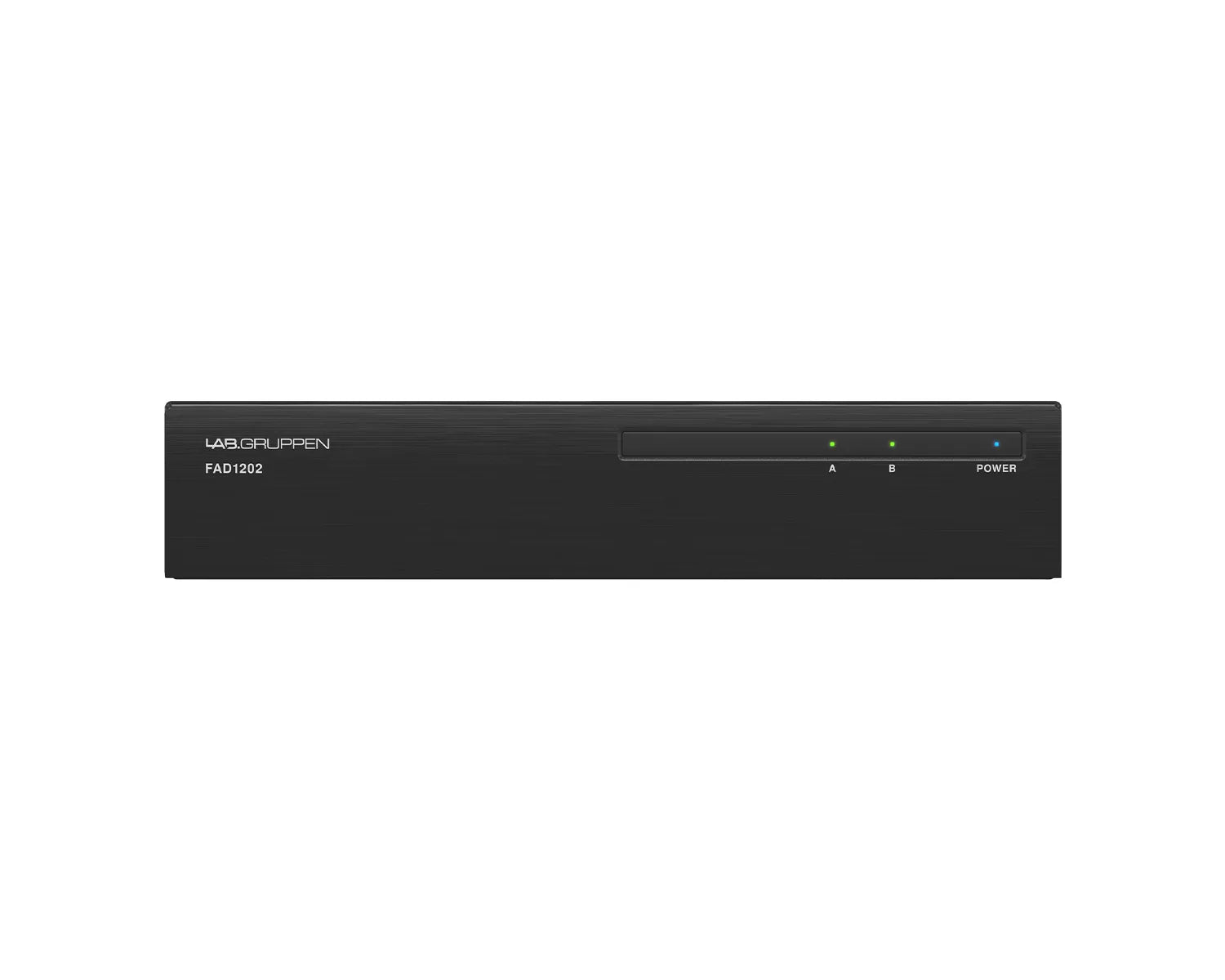

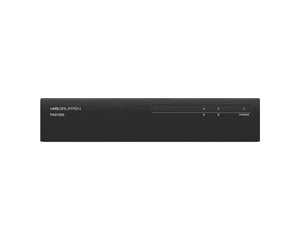

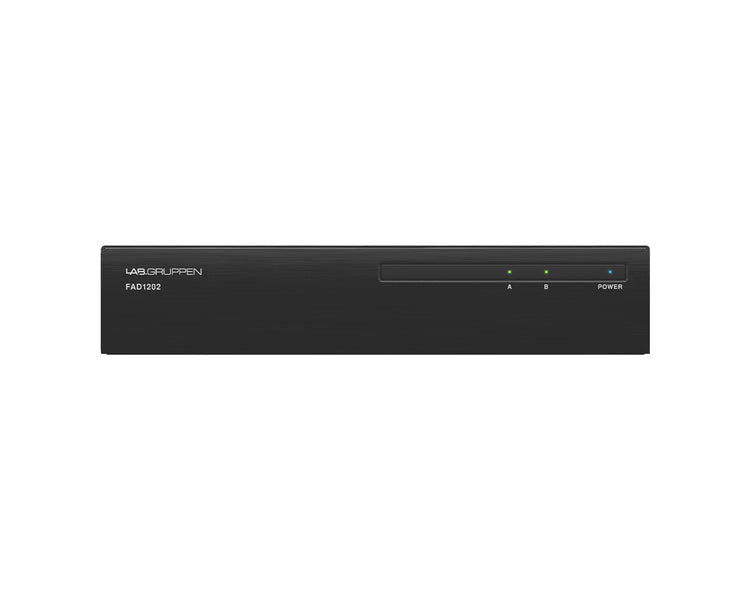

- Front: N/A

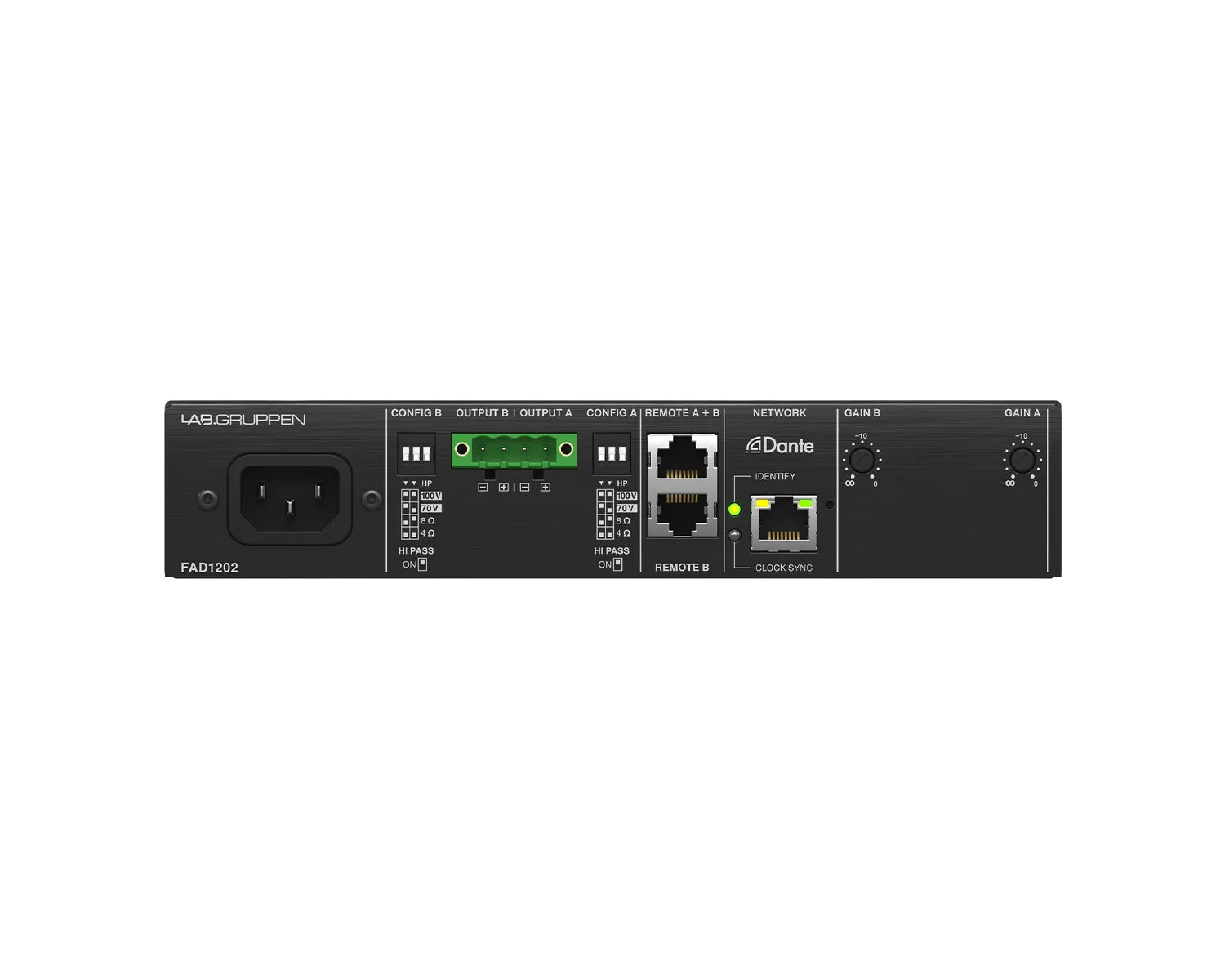

- Rear: Gain control, input sensitivity select (4 dBu / -10 dBV), load config (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter
Indicators
- Power: On (blue), standby (yellow)
- Limit (red LED), per channel: -1.5 dBFS (digital)
- Signal (green LED), per channel: > -63 dBFS (digital)
- Fault (red LED): Overheat, DC fault, over current etc
- Rear, Dante: Identify (yellow), clock sync (white)
System
- Input transmission type: Dante, 2 channels Rx
- Input connectivity: 1 x RJ45 Ethernet connector, 1-port 100 Mbps to Dante interface
- Input sensitivity: -2 dBFS (digital)
- Maximum input level: 0 dBFS (digital)
- Outputs connectivity: 1 x 4-pin 5.08 mm Euroblock connector
- Output circuit type: Class D
- Remote connector: 2 x RJ45 Ethernet connector
Performance
- Distortion, 1/8 rated power: <0.1%
- Frequency response: 20 Hz to 20 kHz, +0 / -1.5 dB
- Crosstalk: >72 dB
- Signal-to-noise: >101 dBA
- High-pass filter: 80 Hz HPF
Circuit Protection
- Cooling: Convection-cooled, fanless
- Amplifier protection: Thermal protection, over current protection, DC protection, high frequency protection
- Load protection: Controlled start and shutdown behaviour, DC-fault protection
Power Supply, Voltage
- Main voltage: 100-240 V~, 50/60 Hz with active power factor correction
- Power consumption 1/8th rated power @ 4 Ω: 70 W
- Mains connector: Standard IEC connector
Dimensions / Weight
- Dimensions (H x W x D): 44 x 218 x 280 mm (1.7 x 8.6 x 11.0")
- Weight: 2.6 kg (5.7 lbs)
- Finish: Brushed black anodised aluminium chassis with black painted steel bottom
- Approvals: CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B, Energy Star 3.0
