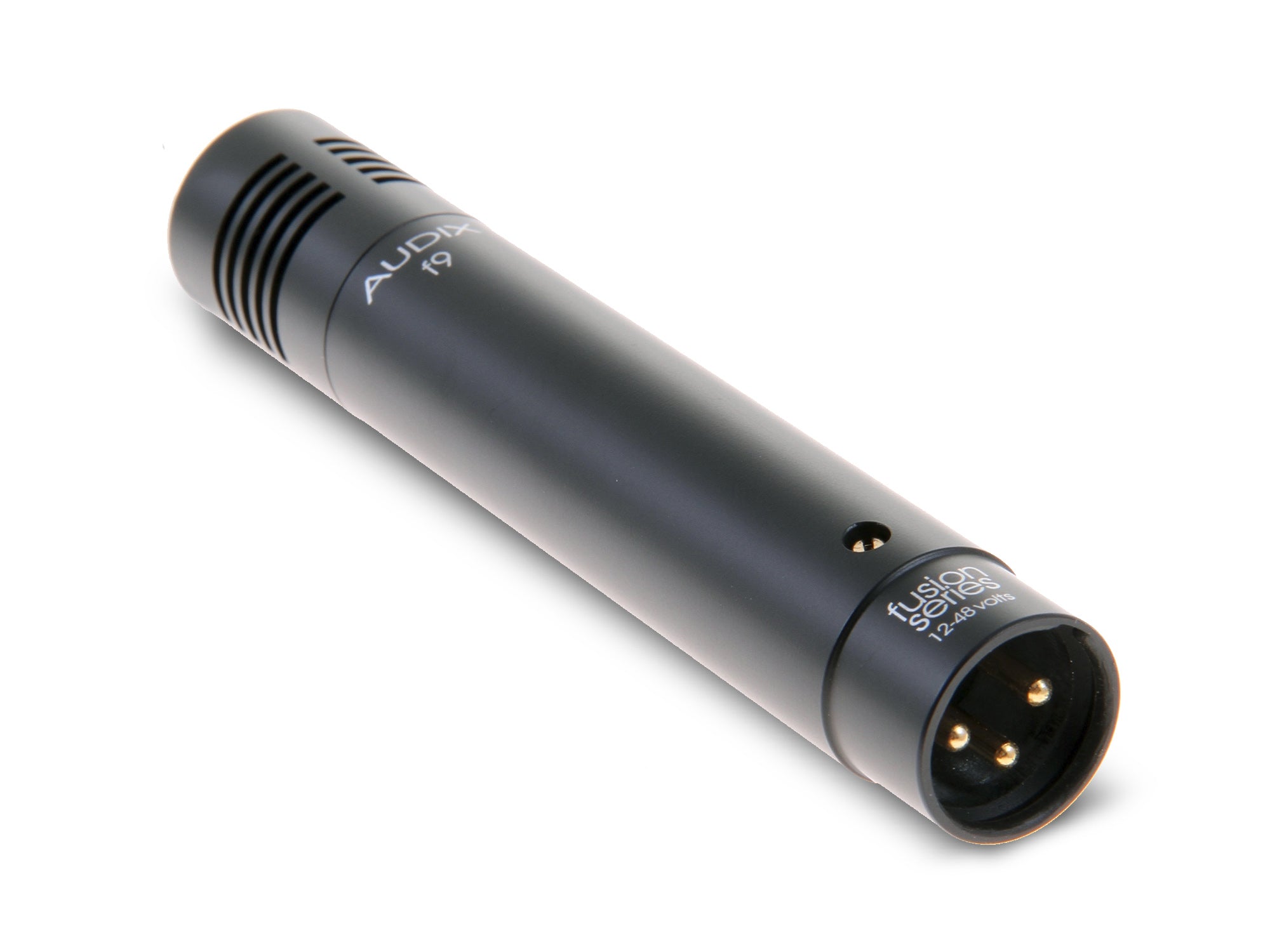

This f9 all-purpose pencil condenser microphone is suited for instruments requiring detailed reproduction in mid-high and extended high end frequency ranges in live and studio applications. A wide cardioid pick-up pattern paired with high sensitivity, allows close, overhead and distance miking.

With its low impedance and balanced output, the f9 instrument condenser microphone has interference-free performance. This microphone operates on phantom power of 12-48 V.

Product Features

• All-purpose pencil condenser microphone for live sound or home studio
• Excellent transient response
• Modular capsule design
• 3-year warranty

Product Specifications

General

• Transducer Type: Pre-Polarized Condenser
• Frequency Response: 40 Hz - 20 kHz
• Polar Pattern: Cardioid
• Output Impedance: 200 ohms
• Sensitivity: 8 mV / Pa @ 1k
• Capsule Technology: Gold Vapor Deposition
• Equivalent Noise Level: 25 dB (A-weighted)
• Signal to Noise Ratio: 69 dB
• Off-Axis Rejection: >24 dB
• Maximum SPL: ≥137 dB
• Power Requirements: 12-48 V Phantom
• Dynamic Range: 112 dB
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Physical & Dimensions

• Materials: Finish Zinc Alloy / Black Finish
• Weight: 95 g / 3.3 oz
• Length: 111 mm / 4.37 in

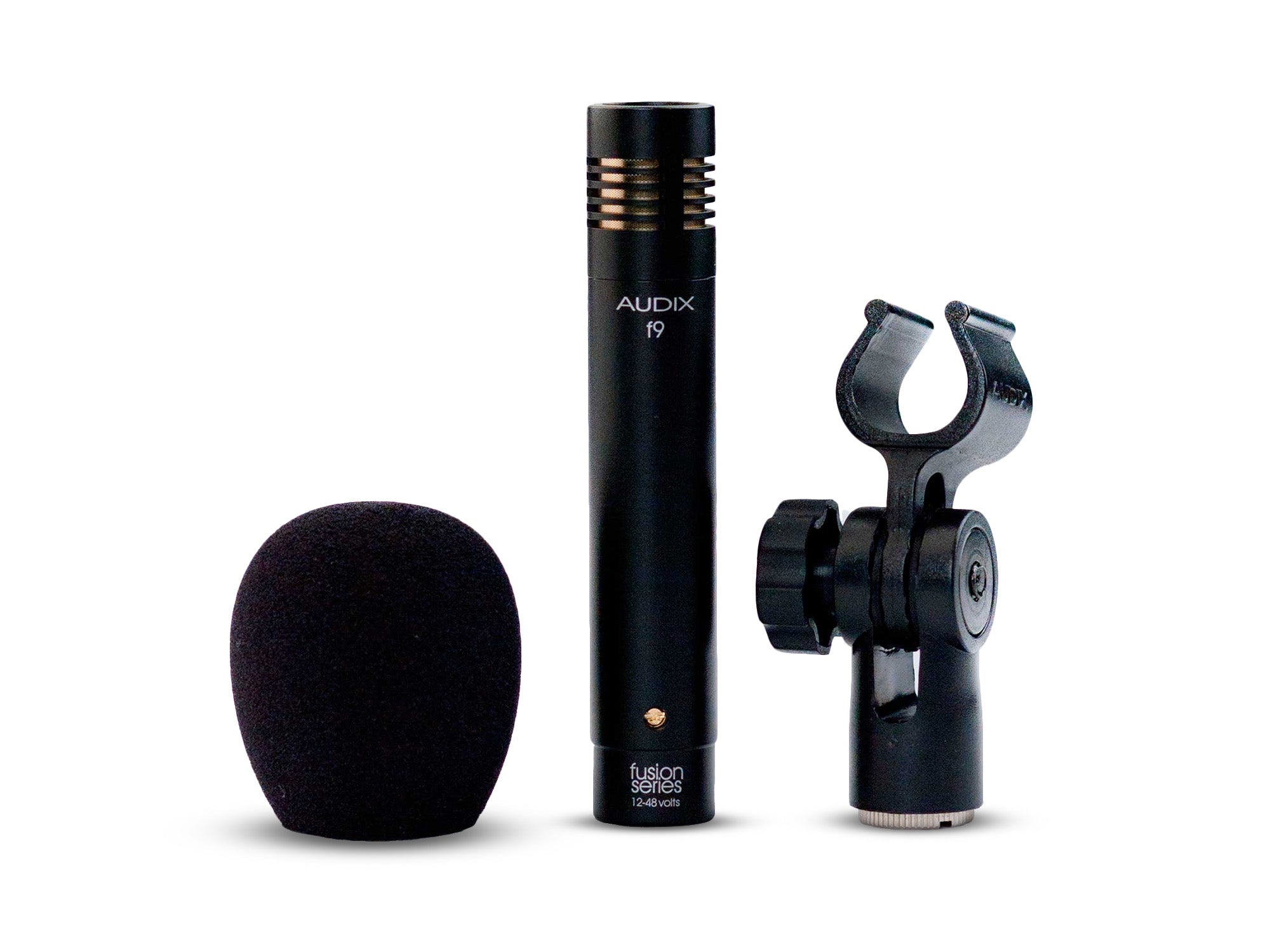

What's in the Box?

• 1 x f9 Instrument Microphone

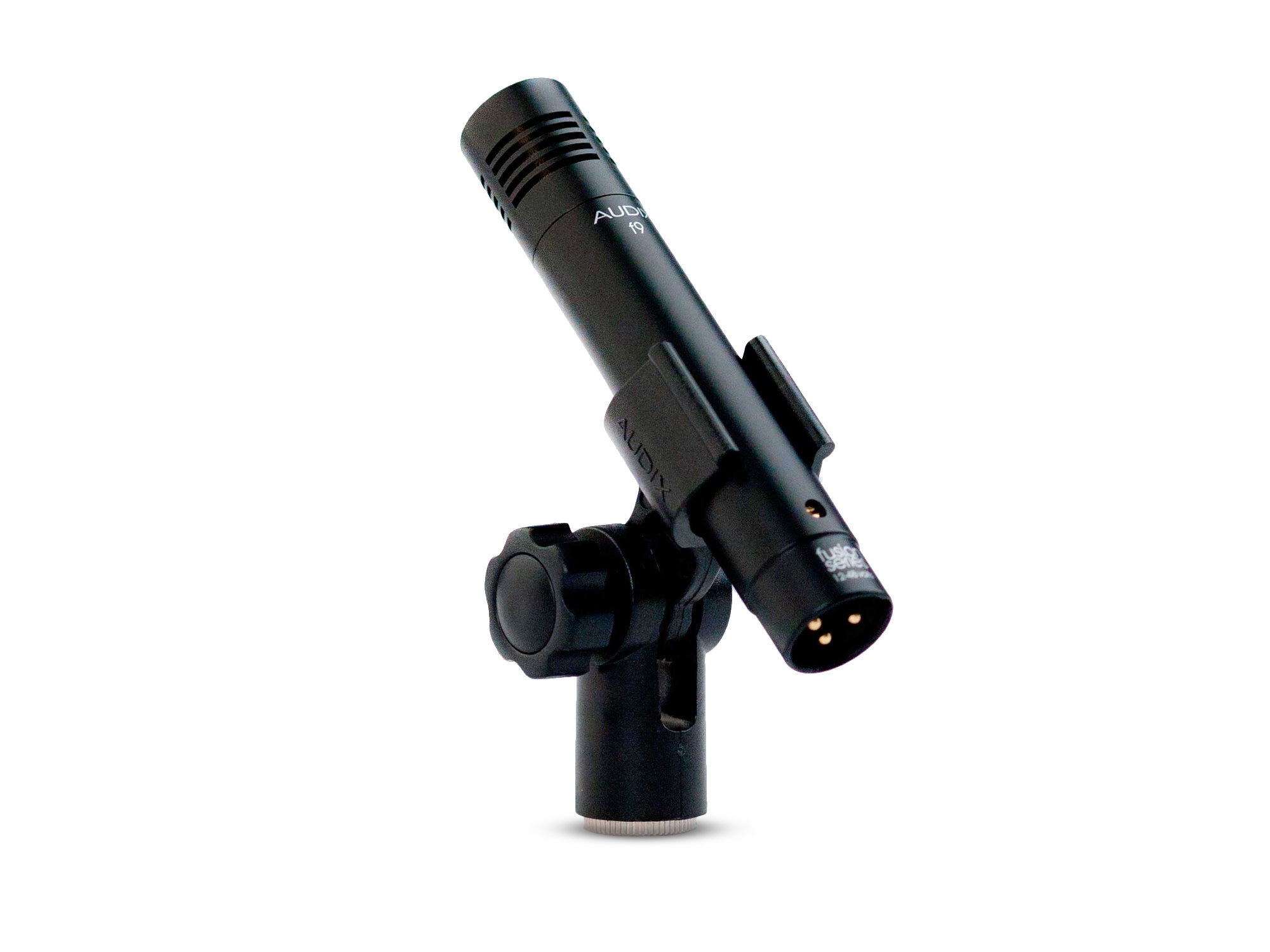

• 1 x DCLIP Microphone Clip
• 1 x P1 Carrying Pouch

Optional Accessories

• TRIPOD - Metal tripod desktop stand for use with any 5/8” threaded mic clip.
• DFLEX - Dual pivot rim mounted clip with extra wide butterfly jaws. Attaches firmly to drum rims, congas, mic stands, drum stands, or goodie table. Comes stock with DCLIP but can be used with any standard mic clip.
• DVICE - Flexible mini-gooseneck with spring loaded rim mount clamp. Includes DCLIP plastic clip.
• DCLAMP - Flexible mini-gooseneck with drum tension lug mount. Includes DCLIP plastic clip.
• CBL20 - 20’ premium XLR-XLR balanced mic cable. Quad conductor, twisted pair with braided shield for maximum conductivity. 6 mm PVC jacketed.
• CBLDR25 - 25’ premium right angle XLR-XLR balanced mic cable. Quad conductor, twisted pair with braided shield for maximum conductivity. 6 mm PVC jacketed.
• SMT25 - Optional low-profile shock mount system with nylon cable and thumbscrew for positioning.

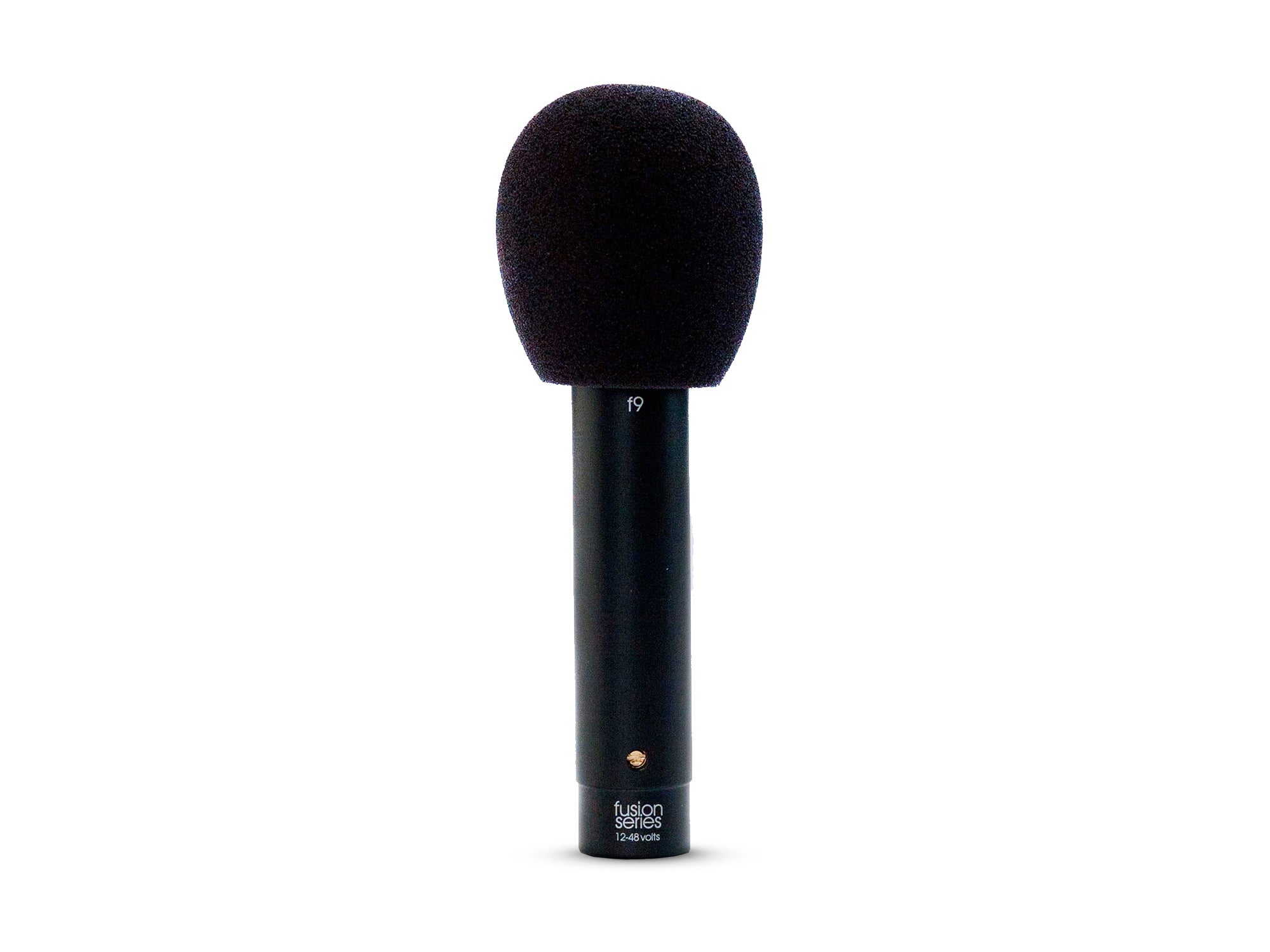

• WS81C - External foam windscreen for reducing wind, sibilance, and pop noise.
• APS2 - Two-channel 48 V phantom power supply for condenser microphones. 110 V switchable to 240 V. Detachable power cord.
