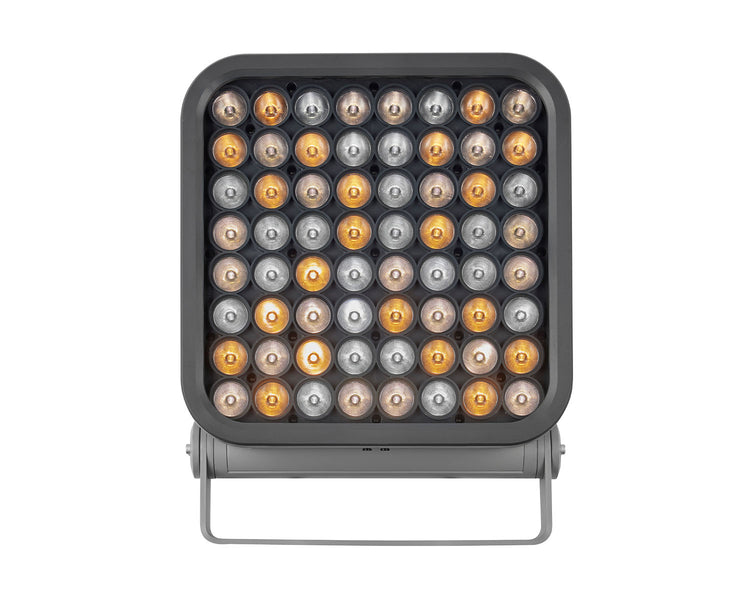

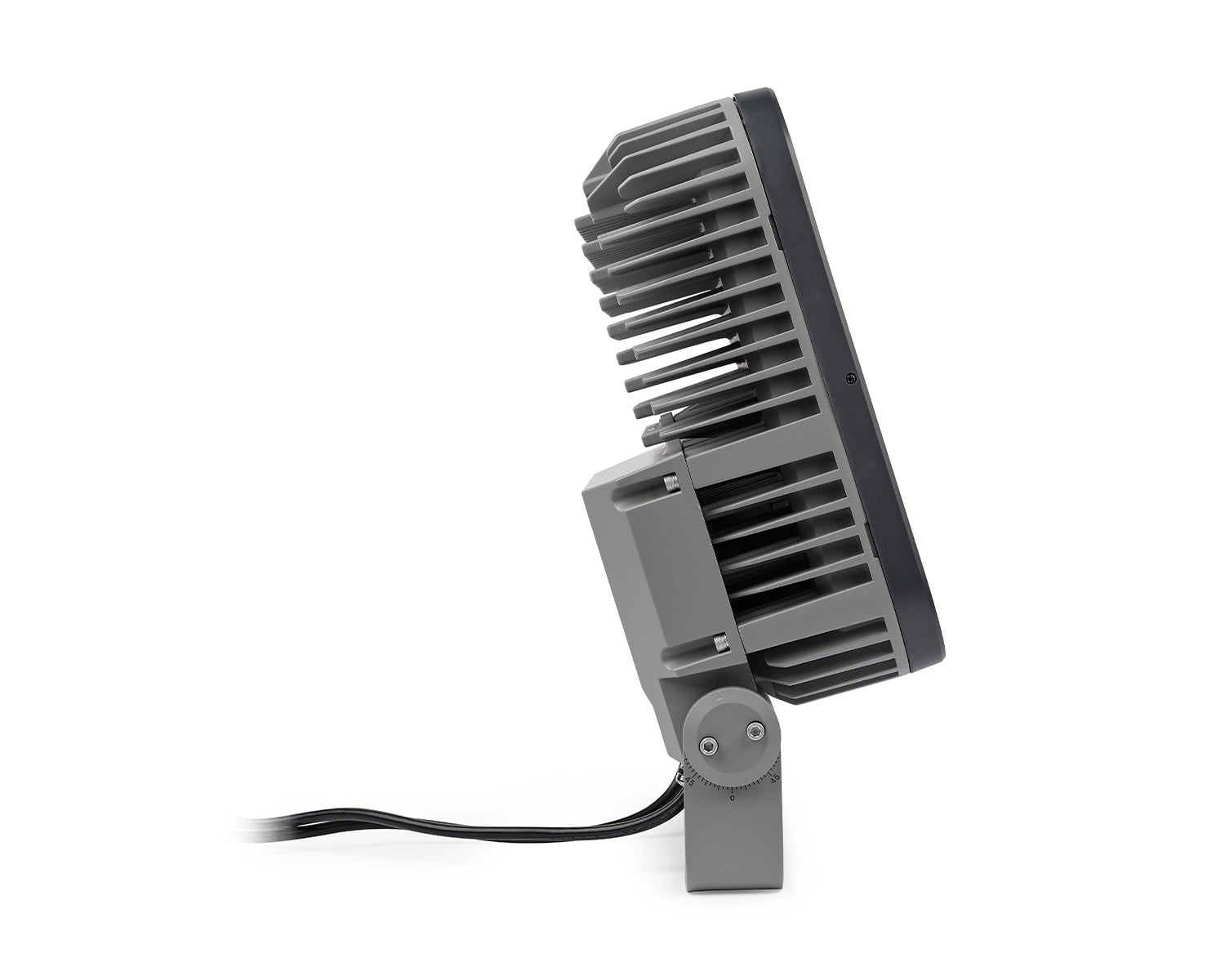

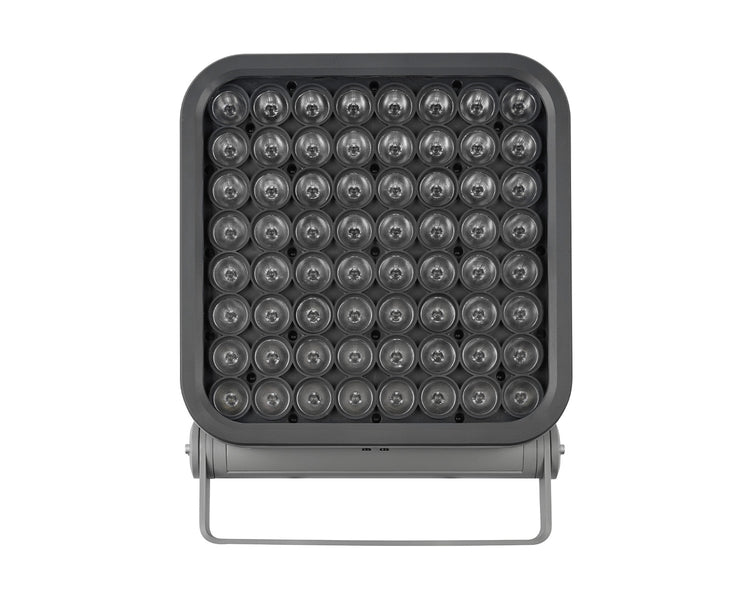

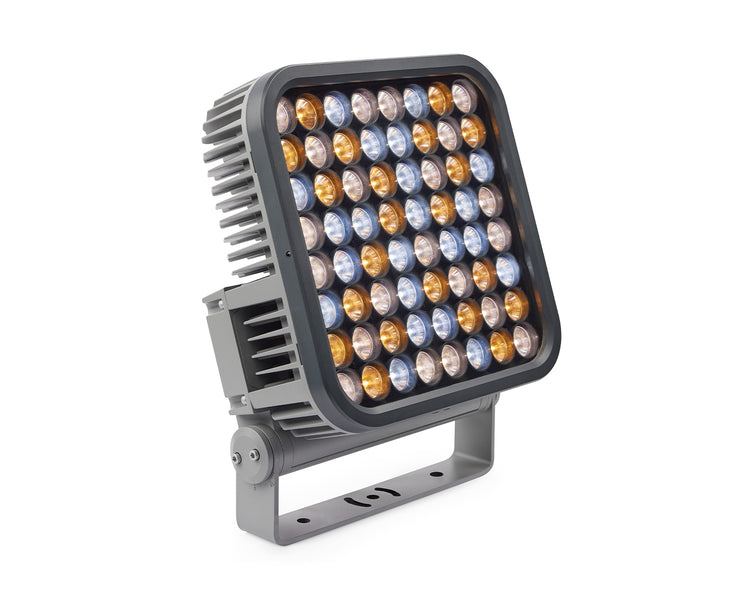

Engineered for harsh conditions and creativity, Exterior Wash Pro XL CTC provides a logical, user-friendly and versatile lighting solution designed to illuminate large scale structures and building facades. Featuring external lenses and an optional baffle snoot, this fixture provides configurable beam control. Exterior Wash Pro XL CTC offers dedicated color temperature control from 2400K - 6500K. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.

Product Features

• Logic family of four sizes and lumen packages (S, M, L, XL)
• Compact and slim design
• Extended colour temperature control from 2400K - 6500K
• More than 60 lm/W efficacy
• Narrow beam-angle using high-power LEDs
• Optional baffle snoot
• Externally mounted micro lens diffusers
• RDM and DMX control
• Local diagnostics and focusing via magnetic sensor
• Power and DMX In/Out pre-mounted cables
• Optional Hybrid In/Out cable solution
• Fully weatherised housing (IP66, IK08 and C-5 High corrosion rating)
• 5-year warranty

Product Specifications

Dynamic Effects

• Intensity: 0 - 100 %
• Colour temperature control: 2400K - 6500K

Control and Programming

• Control systems: DMX, RDM
• User interface: Magnetic sensor for local diagnostics and focusing
• Stand-alone control: Up to 20 scenes with individual fade/hold times
• Control resolution: 8-bit DMX control of each colour
• Dimmer Resolution: 16-bit DMX control of intensity
• DMX channels: 3/3 (Standard/Basic)
• DMX compliance: USITT DMX512/1990
• RDM compliance: ANSI/ESTA E1.20
• DMX/RDM Transceiver: Galvanic-isolated RS-485
• Firmware update: Serial upload via DMX link

Optics

• Light source: 21 x 2400K, 21 x 4000K, 22 x 6500K white colour LEDs
• Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*
• LED manufacturer: Cree
• Binning: Tight colour and flux binning
  • *Figure obtained under manufacturer test conditions at Ta = 25° C.

Beam Angle Options

• Native beam angle: 7°
• Narrow micro lens: 9°
• Medium micro lens: 15°
• Wide micro lens: 30°
• Very Wide micro lens: 50°
• Asymmetric micro lens: 8° x 60°

Photometric Data

• CRI (Colour Rendering Index) : > 70
• CCT: 2400K - 6500K (default 4000K)

Luminous Output*:

• 2400K: 8200 lm
• 4000K: 17000 lm
• 6500K: 13000 lm
• * All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.

Installation

• Mounting: Adjustable bracket
• Orientation: Any
• Minimum distance to illuminated surfaces: 0.4 m (1.3 ft.)

Connections

• Power connection: 2 m (6.5 ft.) cable tail open ended
• Power input cable type, EU models: H07RN-F 3G 1.0 mm², 450/750V, VDE
• Power input cable type, US models: PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
• Data connection: 2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
• Hybrid power/data cables (in & thru) 8-pin custom connectors available on request

Electrical

• AC power: 100 - 240 / 277 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Typical half-cycle RMS inrush current: 14 A
• Surge protection: 4 KV
• Max earth leakage: 0.5 mA
• Power factor: 0.99 @ 110 V / 120 V, 0.96 @ 208 V / 230V, 0.90 @ 277 V
• Max current draw: 2.50 A @ 100 V, 2.1 A @ 120 V, 1.1 A @ 230 V, 0.54 A @ 277 V

Power Consumption

• Maximum: 250 W (reduced mode 200W)*
• Idle: 4.0 W*
  • * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity

Thermal

• Cooling: Convection
• Total heat dissipation (calculated, +/- 10%): 853 BTU/hr
• Maximum ambient temperature (Ta max.): 45° C (113° F)*
• Minimum ambient temperature (Ta min.): -30° C (-22° F)**
  • *Above this temperature, the fixture regulates output to protect from overheating.
  • **Power must be maintained below -20° C (-4° F)

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Efficacy (max output): 70 lm/W
• LWR*: 960 lm/kg (436 lm/lb)*
• Packaging: FSC certified cardboard inlay and outer box
  • *LWR = Lumen-to-Weight Ratio

Construction

• Housing: Cast Aluminium
• Colour: Traffic grey RAL 7042 - other colours available on request
• Surface treatment: Anodized and electrostatic powder-coated
• Protection rating: IP66
• Effective Projected Area (EPA): 0.0149 m² / 0.180 m²
• Impact resistance: IK08
• Corrosion resistance: C5 High (ISO 12944-6)
• Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)

Physical & Dimensions

• Length: 175 mm (6.89 inch.)
• Width: 351 mm (13.82 in.)
• Height: 438 mm (17.24 in.)
• Weight: 17.7 kg (39.0 lbs.)
