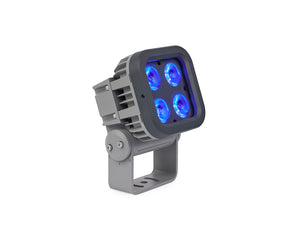

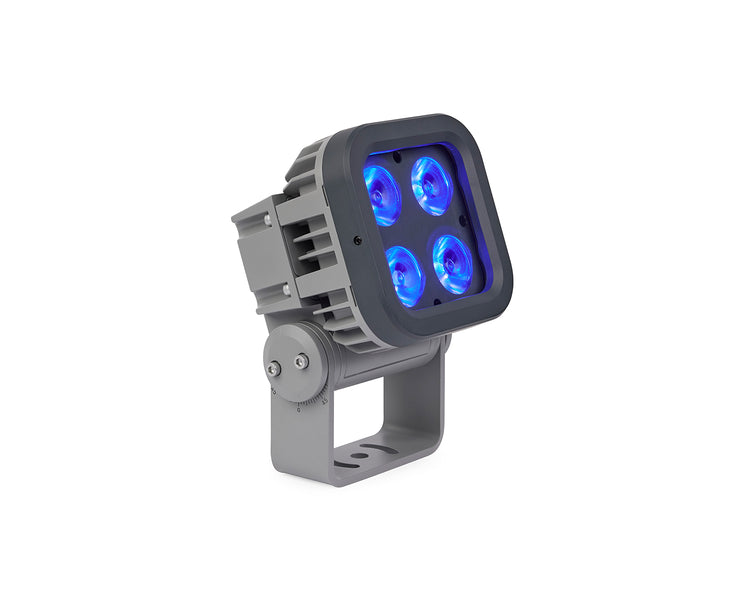

Engineered for harsh conditions and creativity, Exterior Wash Pro S QUAD provides a logical, user-friendly and versatile lighting solution designed to illuminate smaller structures, features of a building and landscaping. Featuring external micro lenses and an optional baffle snoot, this fixture provides configurable beam control. The Exterior Wash Pro S QUAD features unparalleled colour performance. The factory colour calibration ensures superior colour consistency and provides a dedicated colour temperature control channel spanning from 1000K to 12,500K, precisely following the black-body curve. The integrated colour boost technology encompassing smart ratio between LED capacity and PSU capacity results in saturated and mixed colours up to three times brighter than previous models. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.

Product Features

• Logic family of four sizes and lumen packages (S, M, L, XL)
• Compact and slim design
• Superior color consistency based on factory calibration
• Colour boost for bright saturated and mixed colors
• Dedicated colour temperature control channel
• Narrow beam-angle using high-power RGBW LEDs
• Optional baffle snoot
• Externally mounted micro lens diffusers
• RDM and DMX control
• Local diagnostics and focusing via magnetic sensor
• Power and DMX IN/OUT pre-mounted cables
• Optional Hybrid IN/Out cable solution
• Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
• Shipped in FSC certified carboard packaging
• 5-year warranty

Product Specifications

Dynamic Effects

• Intensity: 0 - 100 %
• Colour mixing: RGB + CTC (Colour Temperature Control)
• Colour temperature control: 1000 K - 12500K in 50K steps

Control and Programming

• Control systems: DMX, RDM
• User interface: Magnetic sensor for local diagnostics and focusing
• Stand-alone control: Up to 20 scenes with individual fade/hold times
• Control resolution: 8-bit DMX control of each colour
• Dimmer Resolution: 16-bit DMX control of intensity
• DMX channels: 6/3/7/4 (Standard/Basic/Extended/Raw)
• DMX compliance: USITT DMX512/1990
• RDM compliance: ANSI/ESTA E1.20
• DMX/RDM Transceiver: Galvanic-isolated RS-485
• Firmware update: Serial upload via DMX link

Optics

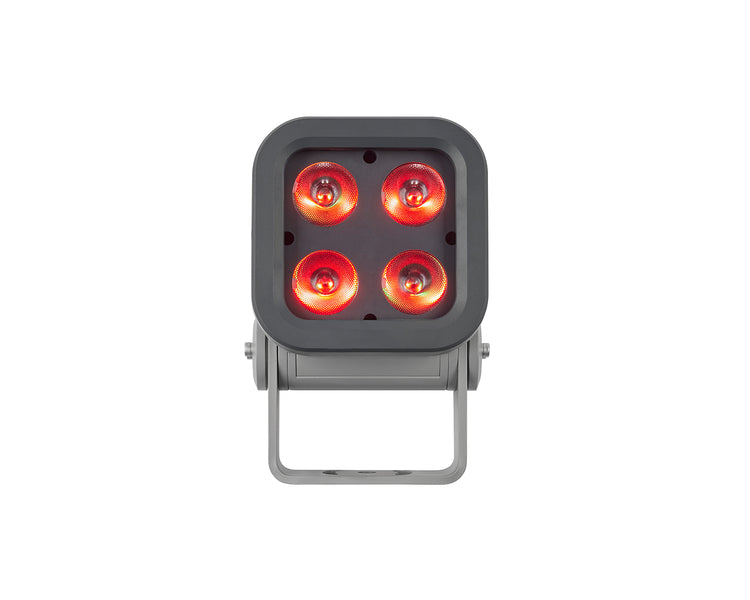

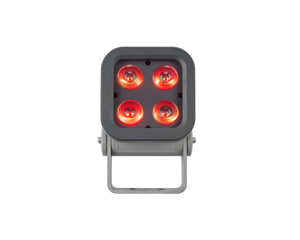

• Light source: 4 x high-power RGBW LEDs
• Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*
• LED manufacturer: Osram
• Binning: Tight colour and flux binning
• Calibration: Full Gamut Colour Calibration (1 step MacAdam ellipse)
  • *Figure obtained under manufacturer test conditions at Ta = 25° C.

Beam Angle Options

• Native beam angle: 8°
• Narrow micro lens: 11°
• Medium micro lens: 15°
• Wide micro lens: 30°
• Very Wide micro lens: 50°
• Asymmetric micro lens: 8° x 50°

Photometric Data

• CRI (Colour Rendering Index) : > 70
• CCT: 1000K - 12500K (Default 4000K)

Luminous Output*:

• Full: 1500 lm
• Red: 550 lm
• Green: 1000 lm
• Blue: 350 lm
  • * All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.

Installation

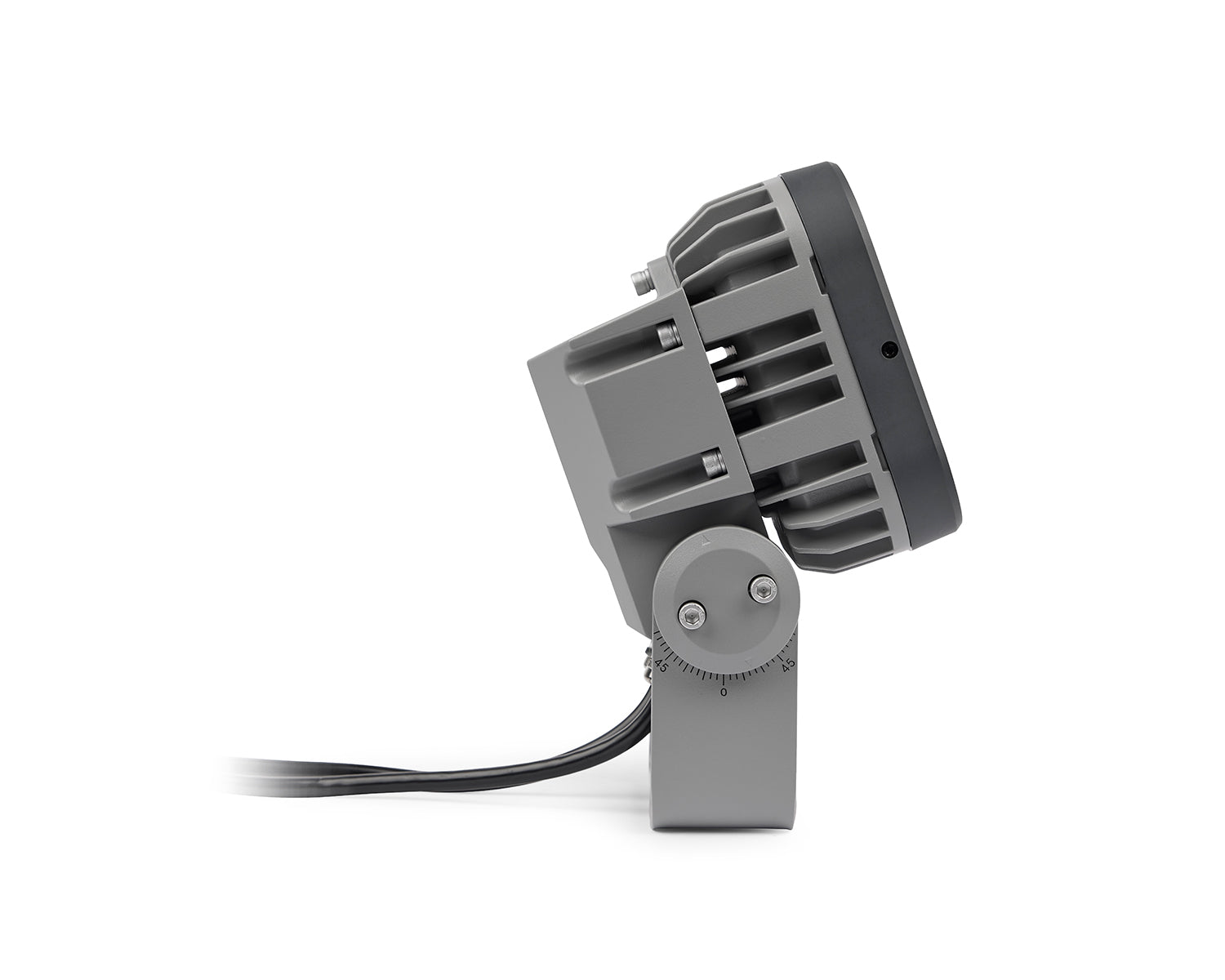

• Mounting: Adjustable bracket
• Orientation: Any
• Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)

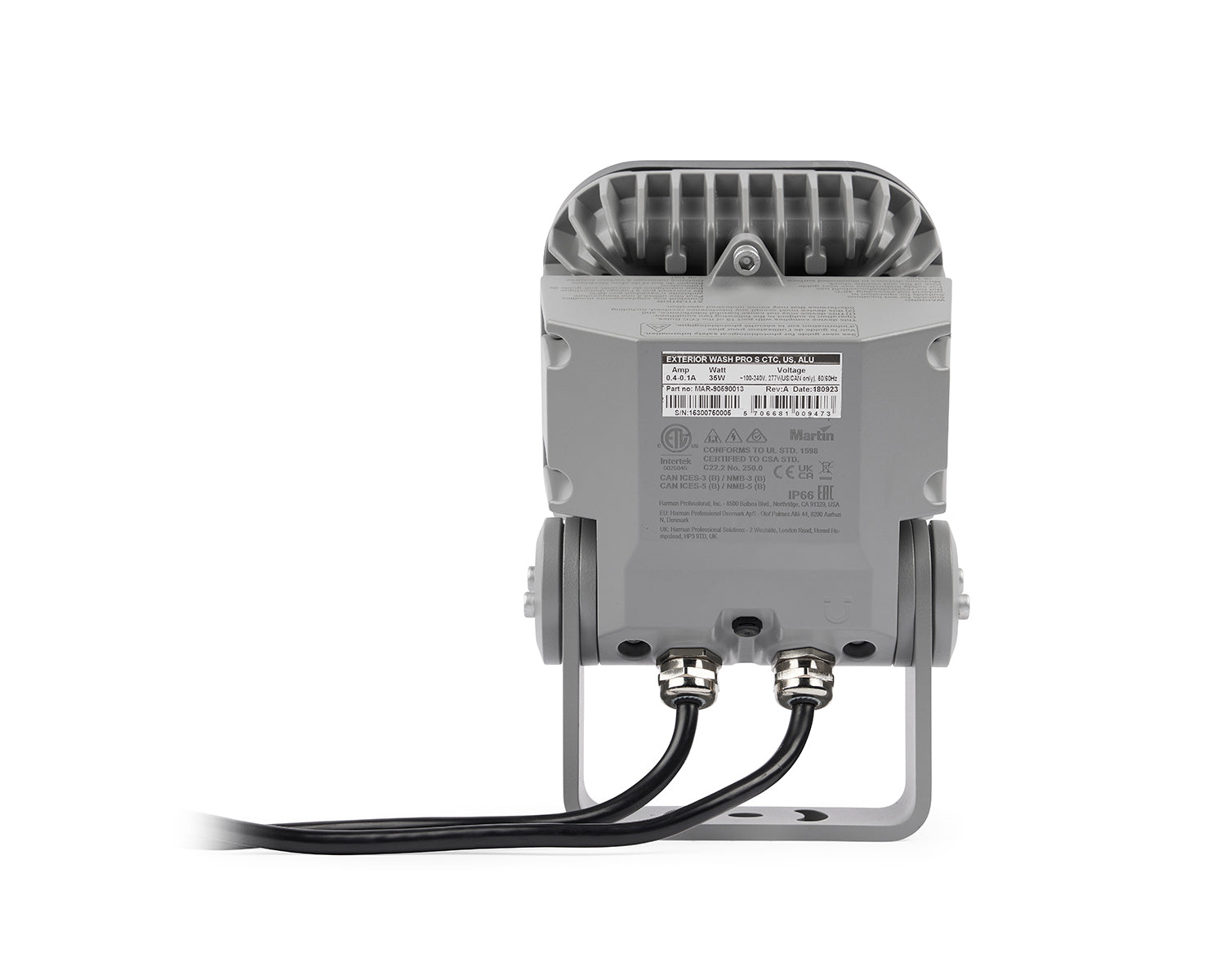

Connections

• Power connection: 2 m (6.5 ft.) cable tail open ended
• Power input cable type, EU models: H07RN-F 3G 1.0 mm², 450/750V, VDE
• Power input cable type, US models: PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
• Data connection: 2 m (6.5 ft.) open ended 6-conductor combined In/Out cable tail
• Hybrid power/data cables (in & thru) 8-pin custom connectors available on request

Electrical

• AC power: 100 - 240 / 277 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Typical half-cycle RMS inrush current: 12 A
• Surge protection: 4 KV
• Max earth leakage: 0.5 mA
• Power factor: 0.99 @110 V / 120 V, 0.94 @208 V / 230V, 0.92 @277 V
• Max current draw: 0.35 A @100 V, 0.29 A @120 V, 0.15 A @230 V, 0.13 A @277 V

Power Consumption

• Maximum: 35 W (Reduced mode 28W)*
• Idle: 2.0 W*
  • * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity

Thermal

• Cooling: Convection
• Total heat dissipation (calculated, +/- 10%): 119 BTU/hr
• Maximum ambient temperature: 45° C (113° F)*
• Minimum ambient temperature: -30° C (-22° F)**
  • *Above this temperature, the fixture regulates output to protect from overheating.
  • **Power must be maintained below -20° C (-4° F)

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Efficacy (max output): 43 lm/W
• LWR*: 340 lm/kg (154 lm/lb)*
  • *LWR = Lumen-to-Weight Ratio
• Packaging: FSC certified cardboard inlay and outer box

Construction

• Housing: Cast Aluminium
• Colour: Traffic grey RAL 7042 or Traffic white RAL 9016 - other colours available on request
• Surface treatment: Anodized and electrostatic powder-coated
• Protection rating: IP66
• Effective Projected Area (EPA): 0.026 m² / 0.038 m²
• Impact resistance: IK08
• Corrosion resistance: C5 High (ISO 12944-6)
• Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)

Physical

• Length: 141 mm (5.55 inch.)
• Width: 155 mm (6.10 inch.)
• Height: 236 mm (9.29 inch.)
• Weight: 4.4 kg (9.7 lbs)
