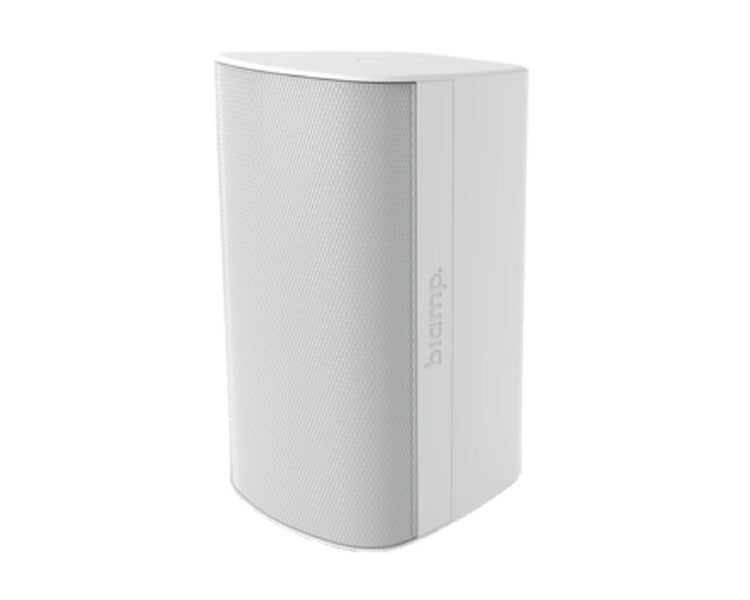

The Desono EX-S10, the largest member of the EX Series, 10 inch two-way surface mount loudspeaker provides excellent musicality with deep LF extension. It’s perfectly suited as the front-of-house in small venues or used in distributed applications without subwoofers.

Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Brackets are theft and tamper resistant.

Product Features

• Exceptional audio clarity with small footprint and attractive styling
• Uniform coverage from coaxially mounted HF/LF drivers
• Utilizes innovative ClickMount U-Brakcet for mounting
• 6-position switch selects 70 V/100 V taps or low impedance bypass
• ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
• EN54-24 and ISO 7240-24 certification

Product Specifications

General

• Operating Mode: Passive with selectable low-impedance or 70 V/100 V operation
• Operating Environment: Indoor/Outdoor
• Operating Range (-10dB): 48 Hz to 20 kHz
• Nominal Beamwidth (H x V): 100° x 100°
• Transducers:
  • LF 1 x 10" (250 mm) treated paper cone
  • HF 1 x 1.4" (35 mm) voice coil compression driver
• Sensitivity: @ 1 m 91 dB (2.83 V) 91 dB (1 W, 8 Ω)
• Nominal Continuous Power Handling: 49 V (300 W, 8 Ω Nominal Impedance)
• Nominal Maximum SPL (Processed):
  • @ 1 m
  • Continuous: 118 dB
  • Peak: 124 dB
• Rated Continuous Voltage: 45.7 V (33 dBV)
• Rated Maximum SPL (Processed):
  • @ 1 m
  • Continuous: 114 dB
  • Peak: 126 dB
• Transformer: 70 V: 120 W, 60 W, 30 W, 15 W; 100 V: 120 W, 60 W, 30 W
• Crossover / Protection: 1.48 kHz crossover, driver protection circuitry
• Required Accessories: 48 Hz, 18 dB / oct. Butterworth high pass filter; DSP preset
• Recommended Amplifiers: 300 W - 600 W, 8 Ω (49 V - 69 V)
• Input Connection: Lever-actuated wire clamping 4-position terminal block with pass-through
• Controls: Wattage / low impedance selector switch
• Mounting Provisions: ClickMount U-bracket
• Compliance:
  • ETL listed to comply with UL 1480A,
  • CSA STD C22.2# 62368-1
  • EN54-24, ISO 7240-24, IEC 62368-1
• Environmental Rating:
  • IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation),
  • IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2),
  • IEC 60068-2-60 (Chlorine)

Physical

• Dimensions H x W x D: 529  mm x 310 mm x 312 mm [20.8" x 12.2" x 12.3"]
• Weight (loudspeaker only): 15.2 kg [33.43 lbs]
• Finish: White

What's in the Box?

• EX-S10
• EXUB-S10B - EX-S10 ClickMount U-Bracket Kit (White)
