Two-channel digital half-rack (9,5") Dante®-enabled receiver for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Extended 88 MHz switching bandwidth, intermodulation-free operation [intermodulation-free equidistant channel spacing] for up to 293 channels with secure AES 256 encryption and redundant power supply via Power over Ethernet (PoE).

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.

The NT 12-35 CS PSU with an EW-D power distribution cable can power up to 4 dual receivers.

Product Features

• Two-channel digital half rack (9.5") with Dante® in rugged metal housing
• Up to 88 MHz switching bandwidth
• Flexible network modes: single cable (Control, Dante®, PoE), split mode (Control + PoE and Dante® daisy chain), redundancy mode (Control + PoE, Dante® Prim, Dante® Sec)
• Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
• Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
• Power over Ethernet (PoE IEEE 802.3af Class 3)
• Ethernet connectivity (IPv4 and IPv6)
• Secure transmission of confidential content using AES 256 encryption
• AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
• Link Quality Indicator (LQI) showing the quality of the links separate to the RF levels
• Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)

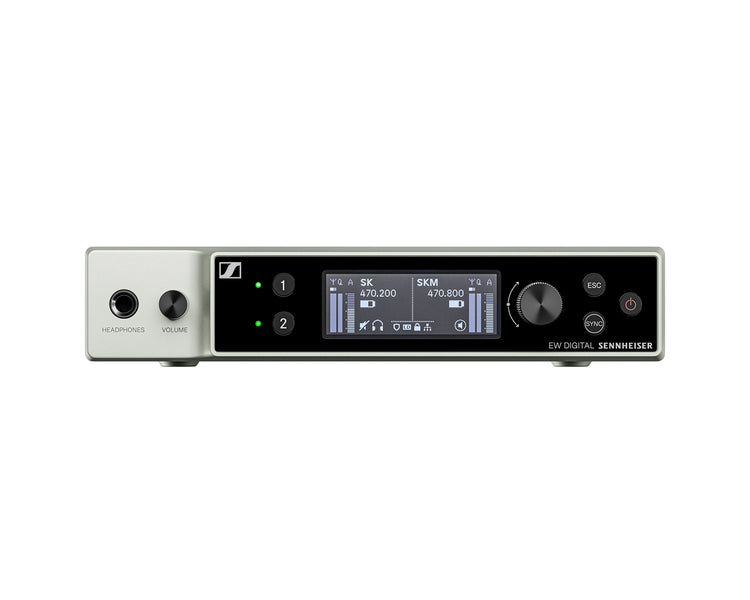

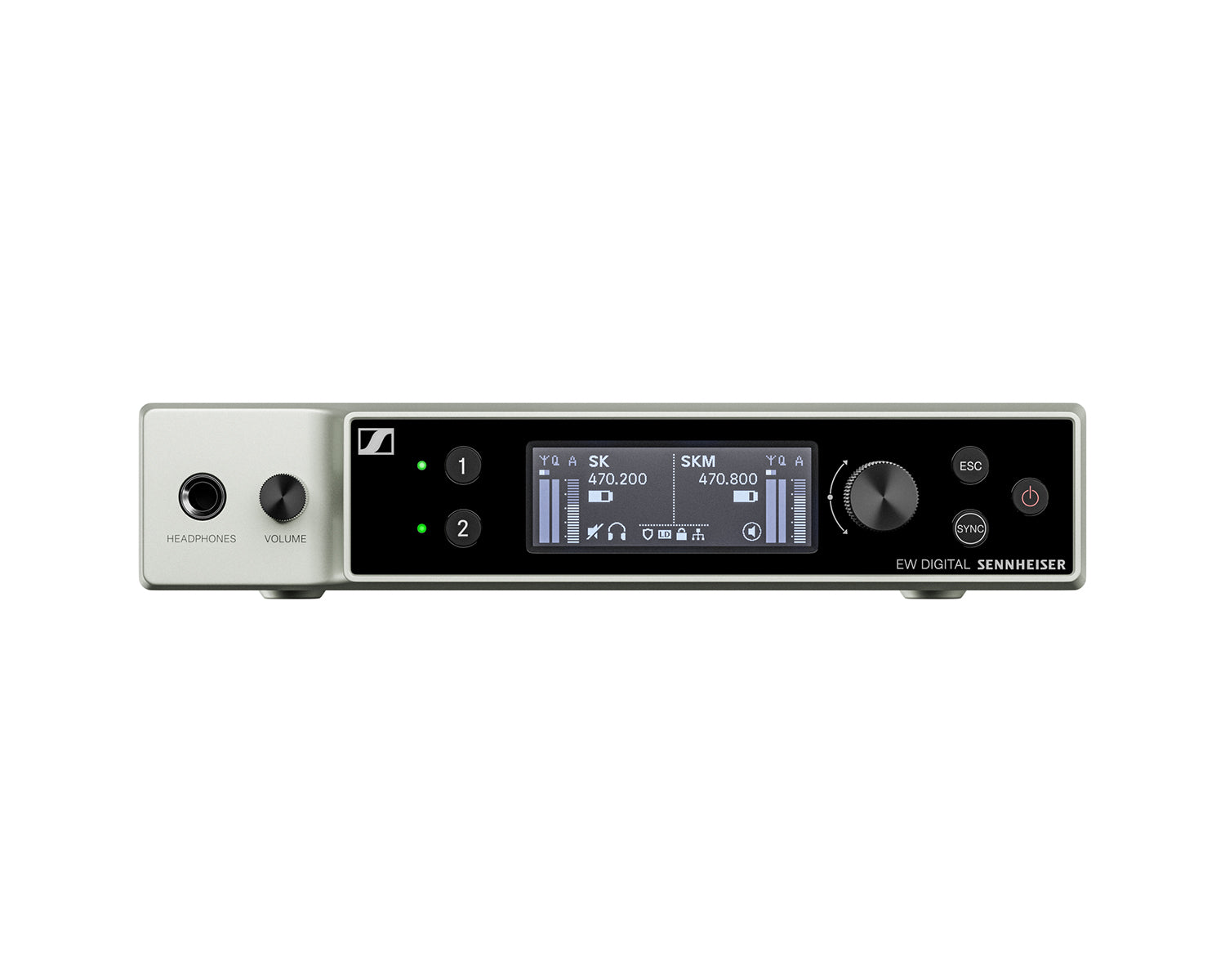

• Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
• Selective headphone output with volume control on front panel
• Extended menu settings such as custom frequency list, selectable sync parameter and walk test
• External PSU 12V/1A
• Worldwide usage (specific frequencies subject to local RF regulations)

Product Specifications

System

• Audio link frequency ranges:
  • Q1-9: 470.2 - 550 MHz
  • R1-9: 520 - 607.8 MHz
  • S1-10: 606.2 - 693.8 MHz
  • S2-10: 614.2 - 693.8 MHz
  • S4-10: 630 - 693.8 MHz
  • U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
  • V3-4: 925.2 - 937.3 MHz
  • V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
  • X1-6: 1350.2 - 1398.8 MHz
  • X9-18: 1435.2 - 1524.8 MHz
  • Y1-3: 1785.2 - 1799.8 MHz
• Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
• Audio frequency response: 20 Hz - 20 kHz (-3 dB)
• Audio THD:
  • ≤ -60 dB for 1 kHz
  • @ -3 dBfs input level
• Dynamic range: 134 dB
• System latency: 1.9 ms
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Relative humidity: 5 - 95 % (non-condensing)

EW-DX EM 2 (Rack Receiver)

• Input voltage: 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
• Input current: ≤ 1 A
• Transmit power (radiated): BLE: max. 10 mW EIRP
• Audio output power: 18 dBu max.
• Headphone output: 2x 70 mW @ 32 Ω
• Ethernet:
  • RJ-45 socket, IEEE802.3
  • 100Base-TX (half+full duplex)
  • 10Base-T (half+full duplex)
  • (CAT5e or higher)
• Dimensions: 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
• Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)

What's in the Box?

• EW-DX EM 2 Dante rack receiver
• GA 3 rack mount kit
• EW-D Power Supply with country adapters
• 2 rod antennas
• 4 rubber feet
