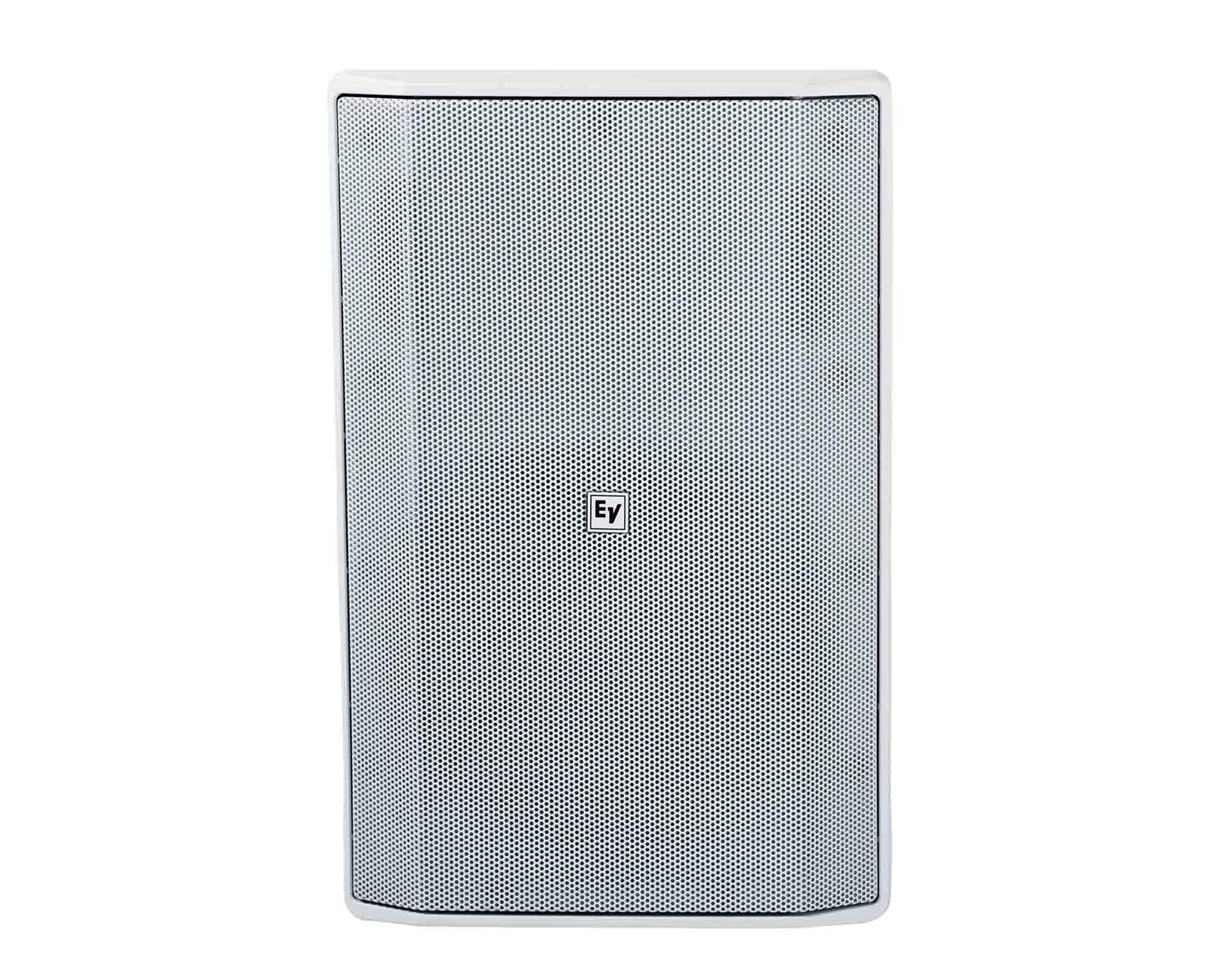

The EVID-S8.2 from Electro-Voice is a high-performance, two-way, full-range, 8" (203 mm) surface mount speaker with excellent wide, uniform coverage, and outstanding performance. It is designed for background and foreground music, paging, and sound reinforcement, and it ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation, sturdy weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S8.2 is the perfect solution for a wide variety of surface mount applications.

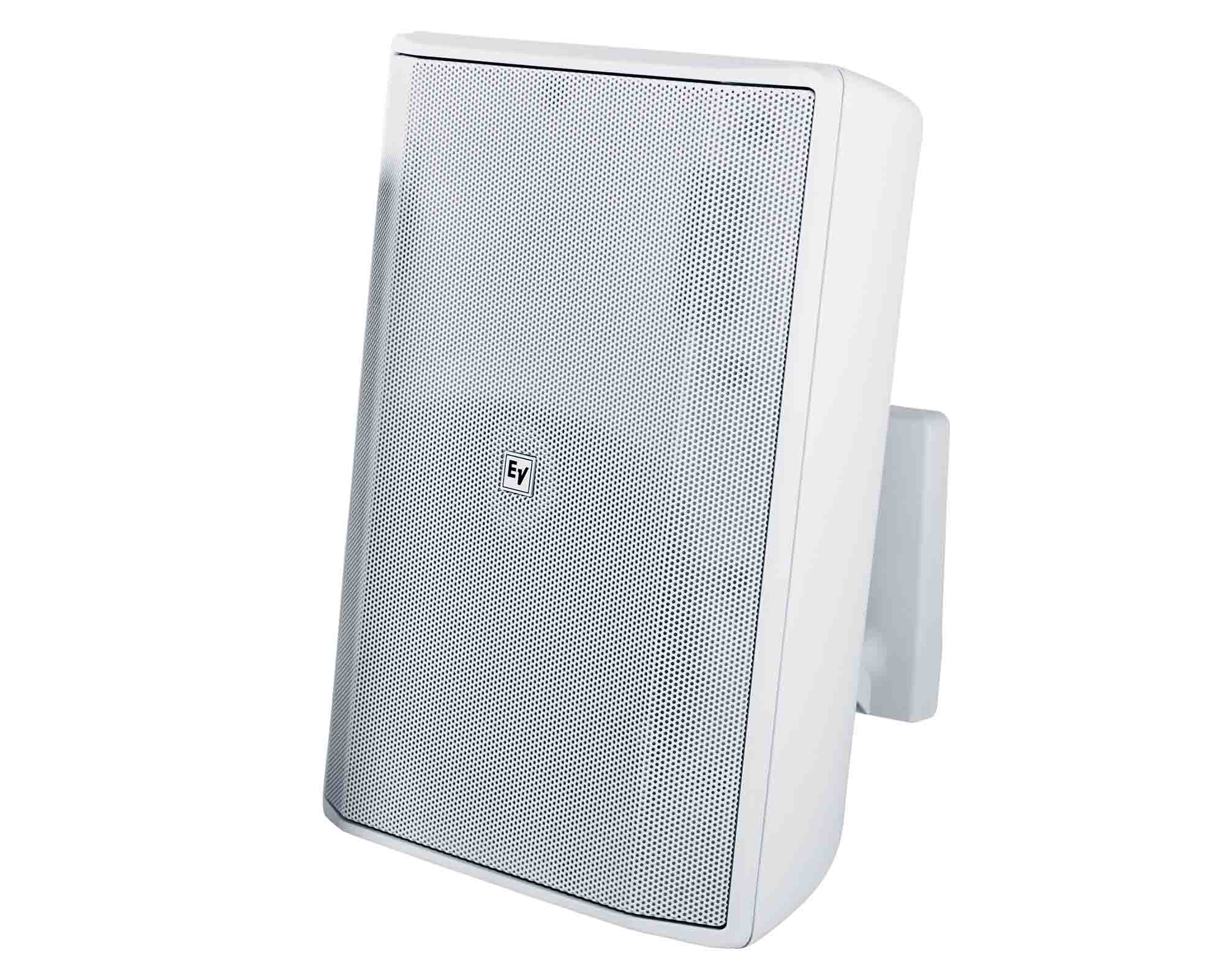

The EVID-S8.2 includes the unique and innovative mount system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.

The EVID-S8.2 has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The full-range speaker is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture.

Product Features

• EVID S8.2T surface mount speaker
• Carefully engineered for outdoor environments, without compromising performance
• Long throw 8" (203 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 50 Hz
• 90 W power handling provides for 110 dB maximum SPL (116 dB peak)
• 70/100 V transformer for constant voltage systems
• IP Rating: IP54

Product Specifications

General

• Frequency Range (-10 dB): 50 Hz – 20 kkHz
• Colour: White
• Connector Type: Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
• Coverage (Nominal -6 dB) H: 90°
• Coverage (Nominal -6 dB) V: 90°
• Environmental Specs: IP54 (per IEC-60529)
• Frequency Response (-3 dB): 70 Hz – 20 kkHz
• HF Transducer: 1 inch (25 mm)
• LF Transducer: 8 inch (203 mm)
• Max. SPL/1m (calc): 110dB
• Minimum Impedance: 6Ω
• Nominal Impedance: 8Ω
• Power Handling (Continuous / Peak): 90W/360W
• Recommended High-Pass Frequency: 50Hz
• Weatherized: Yes
• IP Rating: IP54

Physical & Dimensions

• Height: 390mm
• Width: 250mm
• Depth: 223mm
• Weight: 5.1kg
