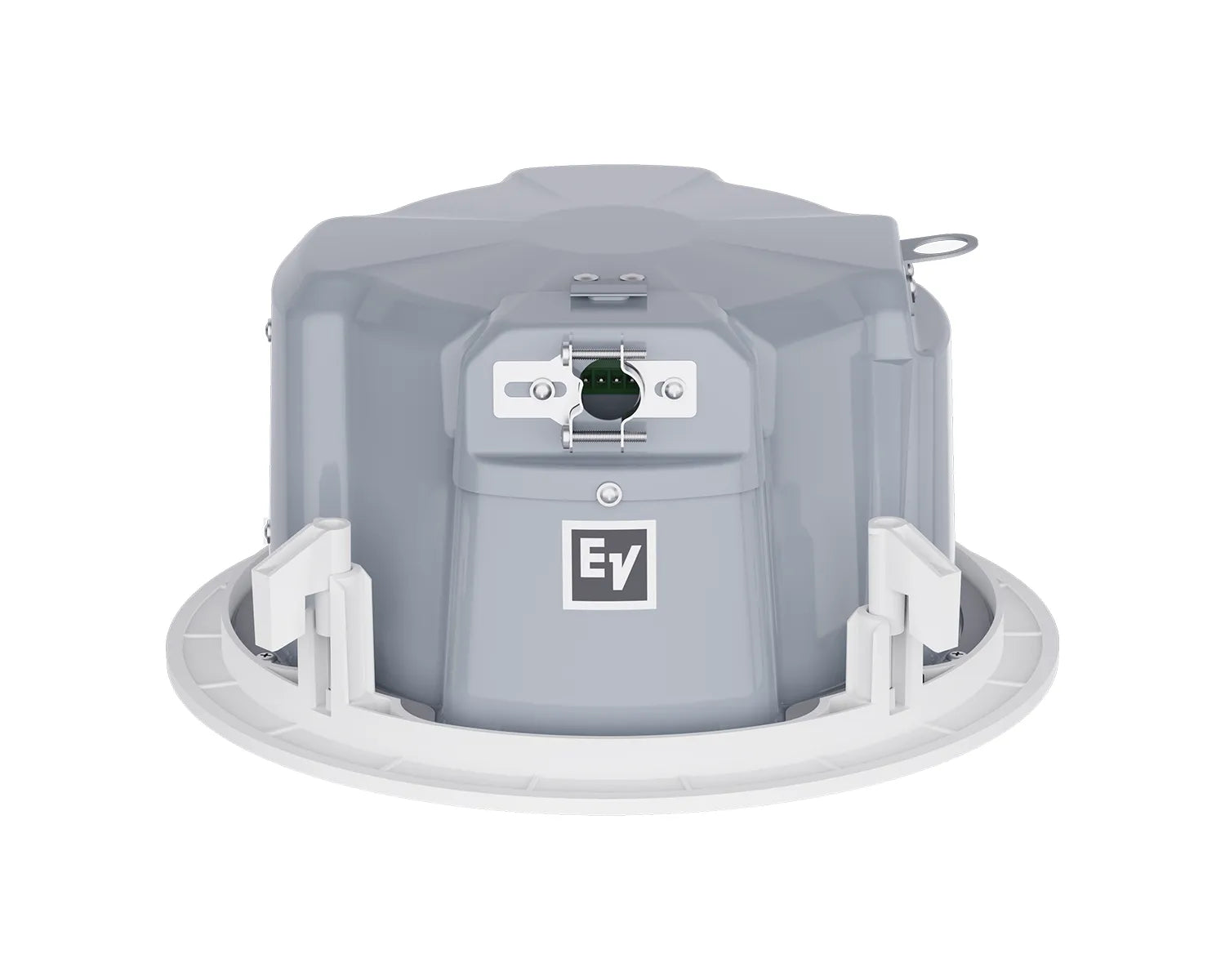

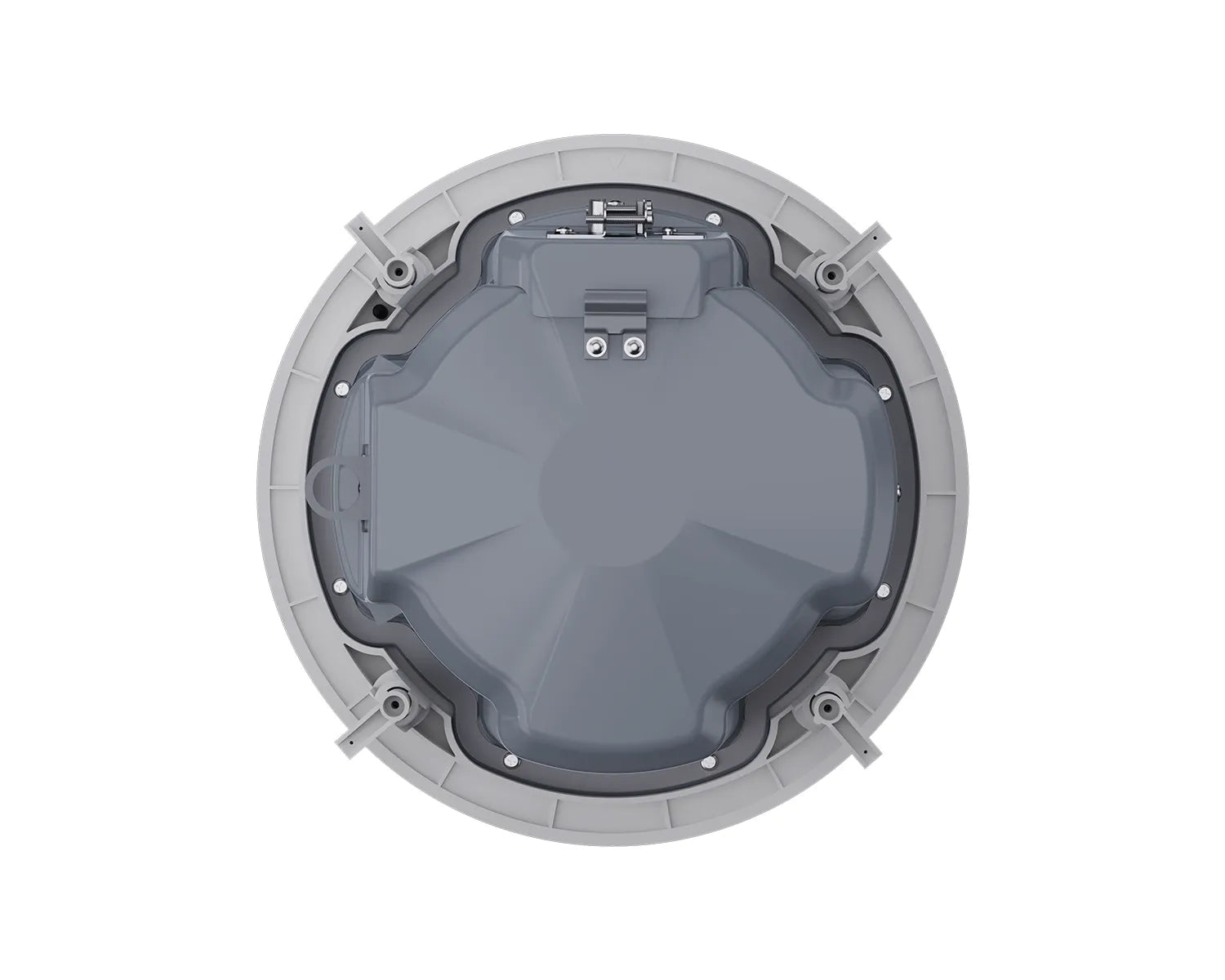

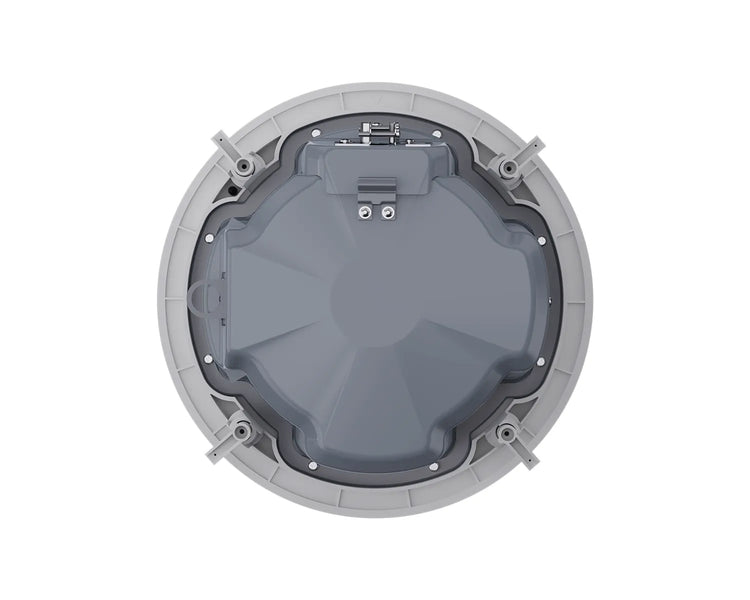

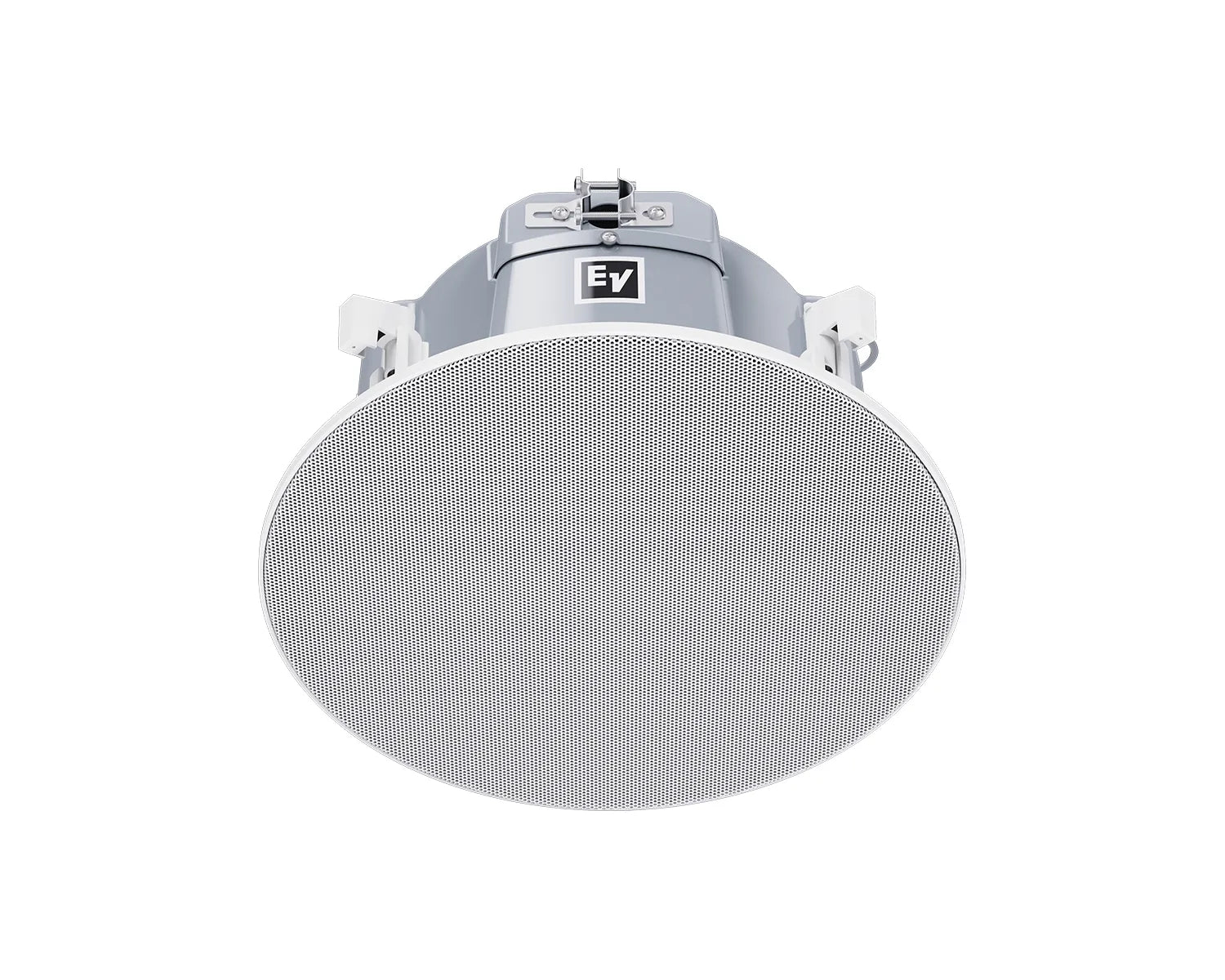

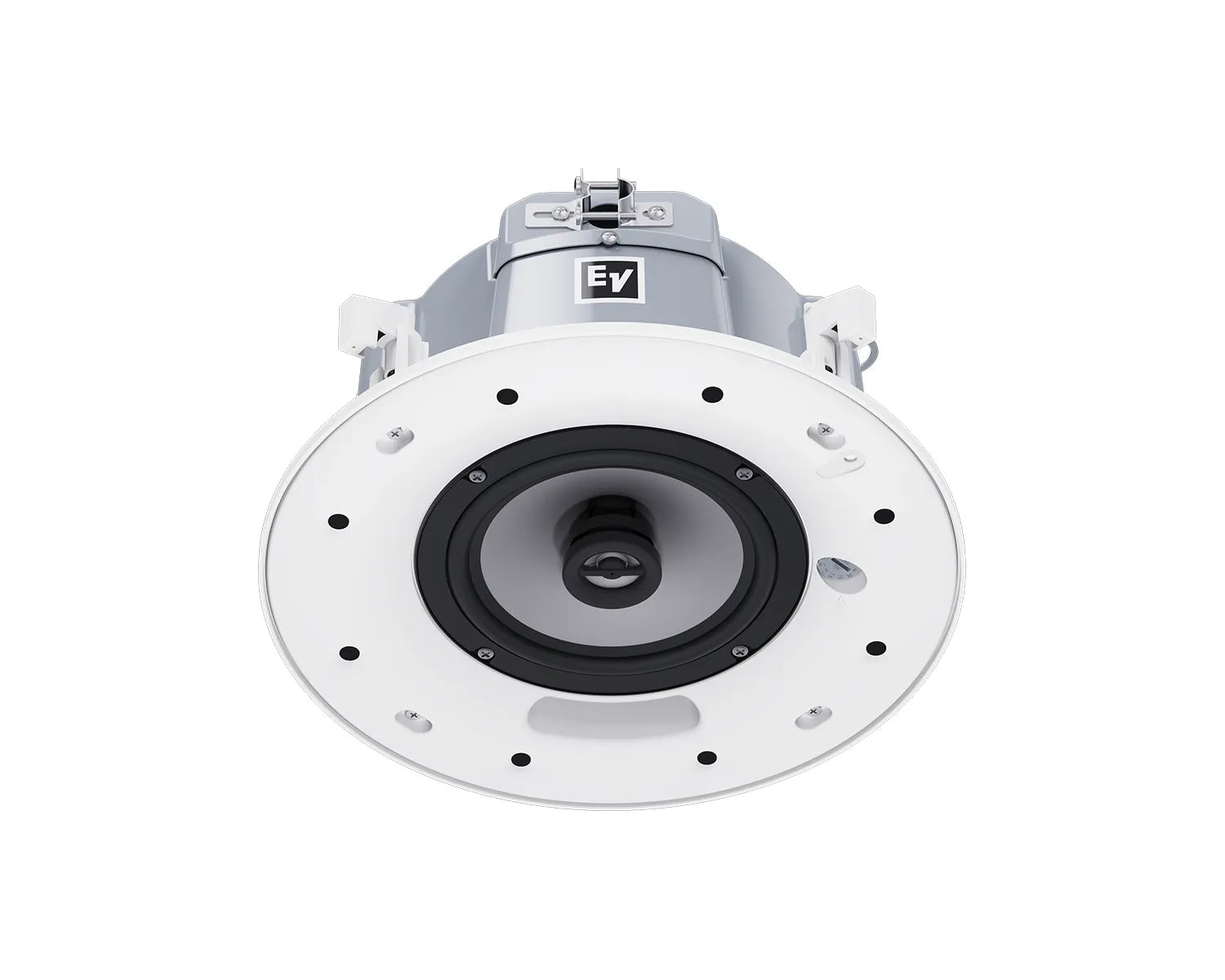

The Electro-Voice EVID-EC6.2E is a complete 6.5-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. The EVID-EC6.2E utilises a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-EC6.2E ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

Product Features

• Bezel-less design with easy-attach grille

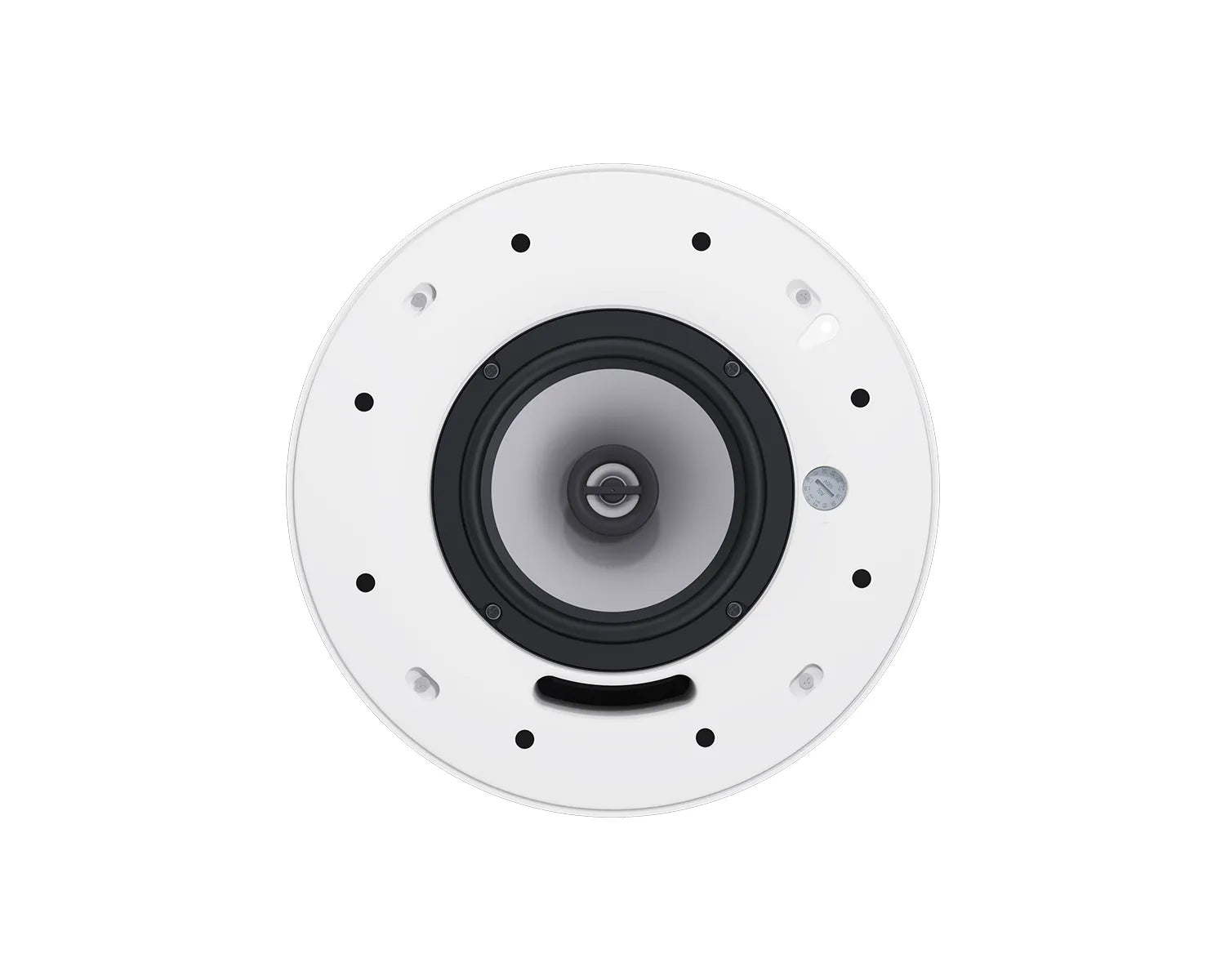

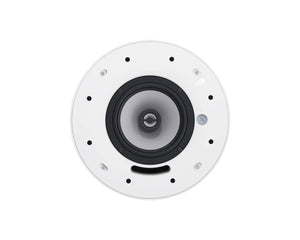

• Front baffle wattage tap adjustment
• Includes tile rail and C-Ring for easy installation
• UL 1480, UL 1480A, EN54-24:2008, UL 2043, CAN/ULC 541:2023, CSA C22.2 No. 205, and IEC 62368-1 certified

Product Specifications

• Frequency range (-10 dB) (Hz):  85 Hz – 20,000 Hz
• Maximum SPL (continuous) (dB):  107 dB
• Maximum SPL (peak) (dB):  113 dB
• Sensitivity (1 W, 1 m):  82 dB SPL 1 W, 1 m
• Coverage angle conical (°):  110°
• Power handling (continuous) (W):  30 W
• Power handling (peak) (W):  120 W
• Long term power handling (continuous) (W):  30 W
• Long term power handling (peak) (W):  120 W
• Nominal impedance (Ω) (Low Z):  8 Ω
• Recommended high pass (Hz):  90 Hz
• Transformer taps 70 V line (W):  30 W; 15 W; 7.5 W; 3.75 W; 1.88 W
• Transformer taps 100 V line (W):  30 W; 15 W; 7.5 W; 3.75 W
• LF transducer size (in):  6 in
• HF transducer size (in):  1 in
• Material:  Steel
• Grille material:  Powder coated steel
• Connector type:  4-pin Euroblock, Input + Pass through
• Wire size (AWG):  12AWG (maximum)
• Wire diameter (mm2):  3.3 mm2 (maximum)
• Colour:  White; Customised colours
• Colour (RAL):  RAL 9003 Signal white
• Mounting cutout:  272 mm (10.7 in)
• Dimensions (Ø x D):  307.20 mm x 153.8 mm (12.1 in x 6.1 in)
• Mounting depth:  149 mm (5.9 in)
• Ceiling thickness:  12.5 mm - 38 mm (0.5 in - 1.5 in)
• Weight:  2.5 kg (4.8 lb)
• IP rating:  IP34
• Weatherisation:  Indoor
• Operating temperature:  0 °C – 50 °C (32 °F – 122 °F)
• Safety agency ratings:  UL 1480A, safe for use in airhandling spaces per UL 2043, CSA C22.2 No. 205 certified, IEC 62368-1
