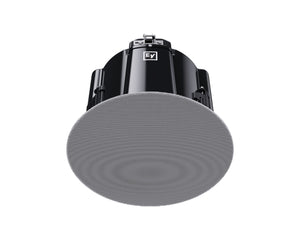

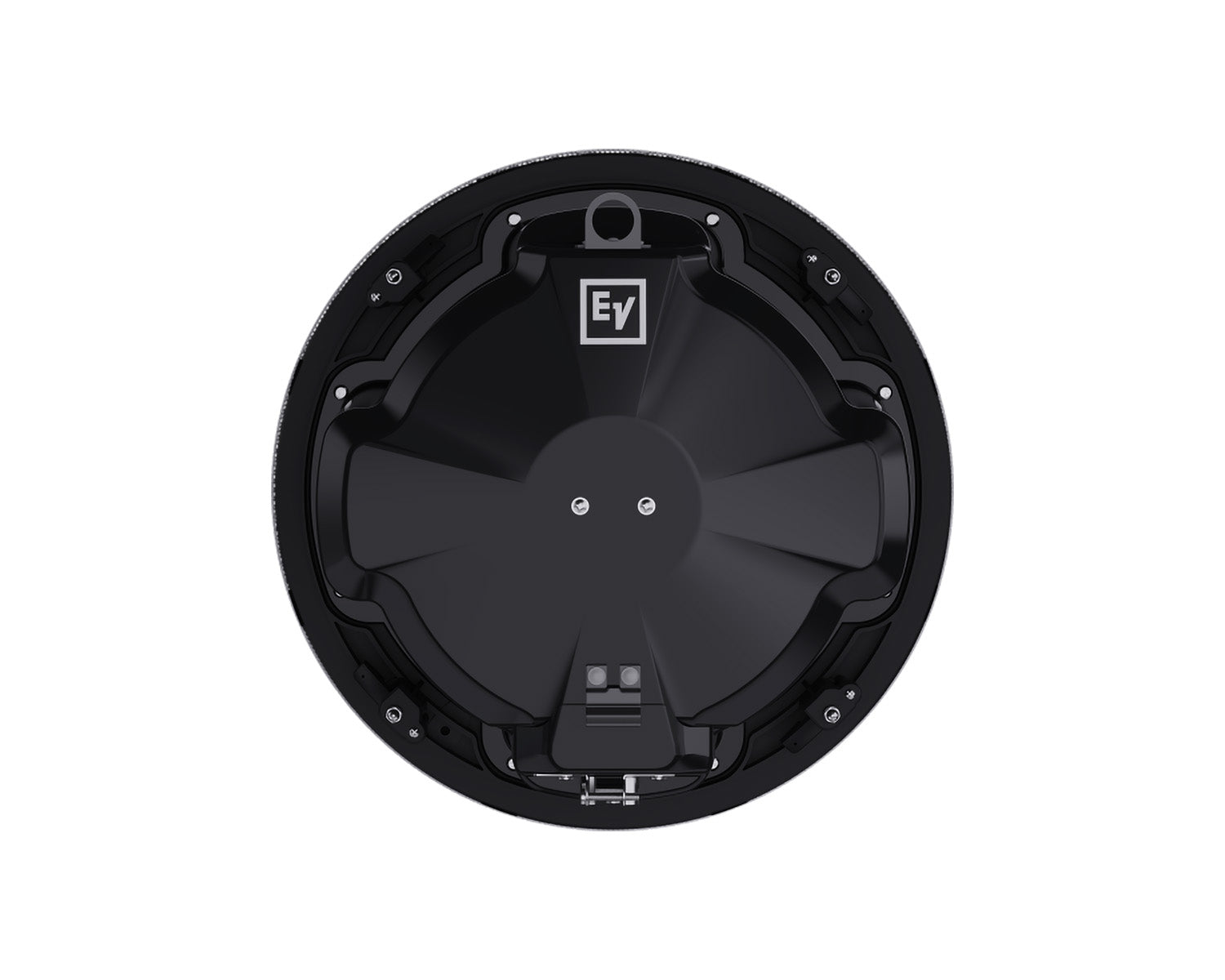

The Electro-Voice EVID-C8.1S-G2 is a complete 8-inch subwoofer that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety. The subwoofer features a point-source design to improve off-axis response and overall uniform coverage.

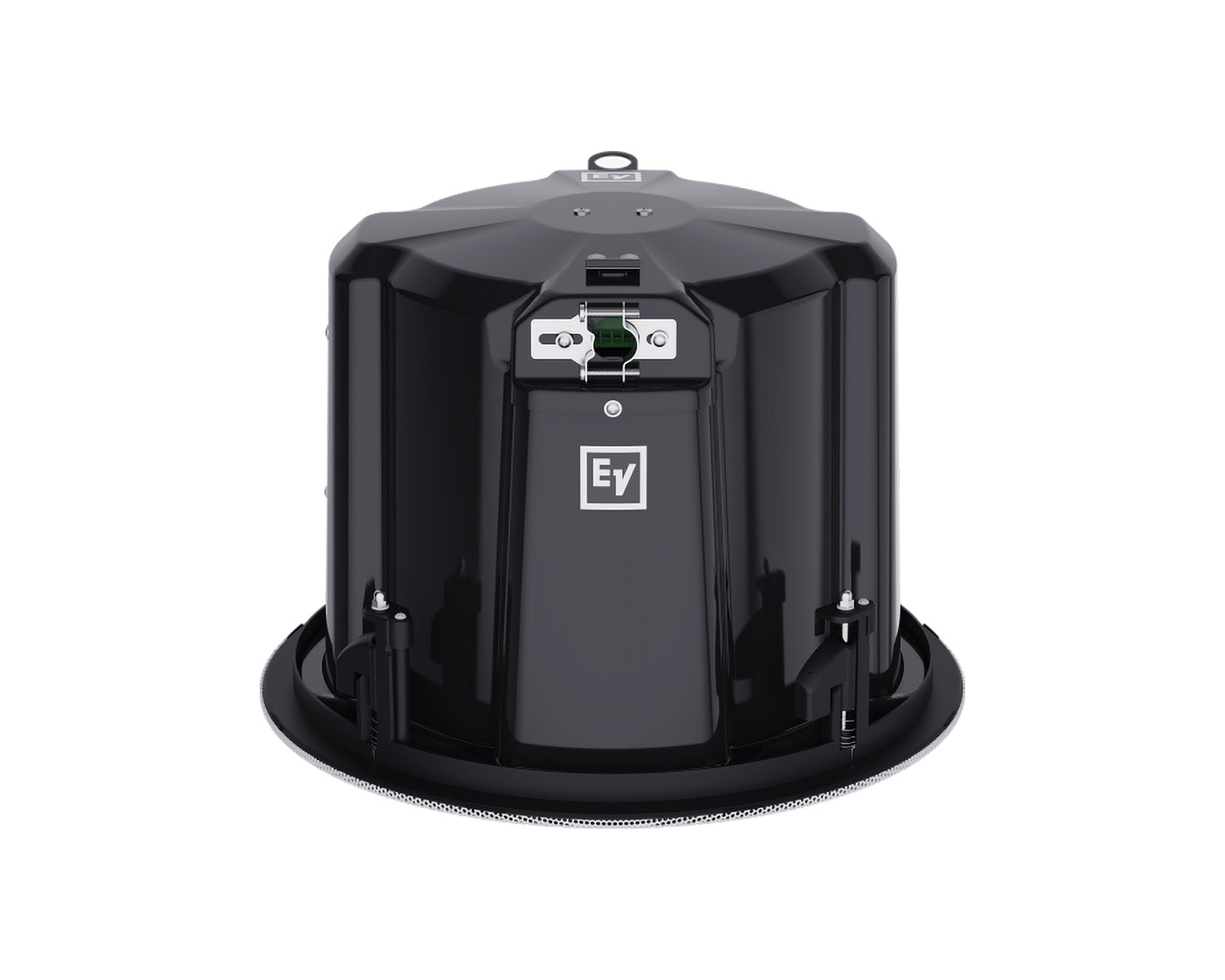

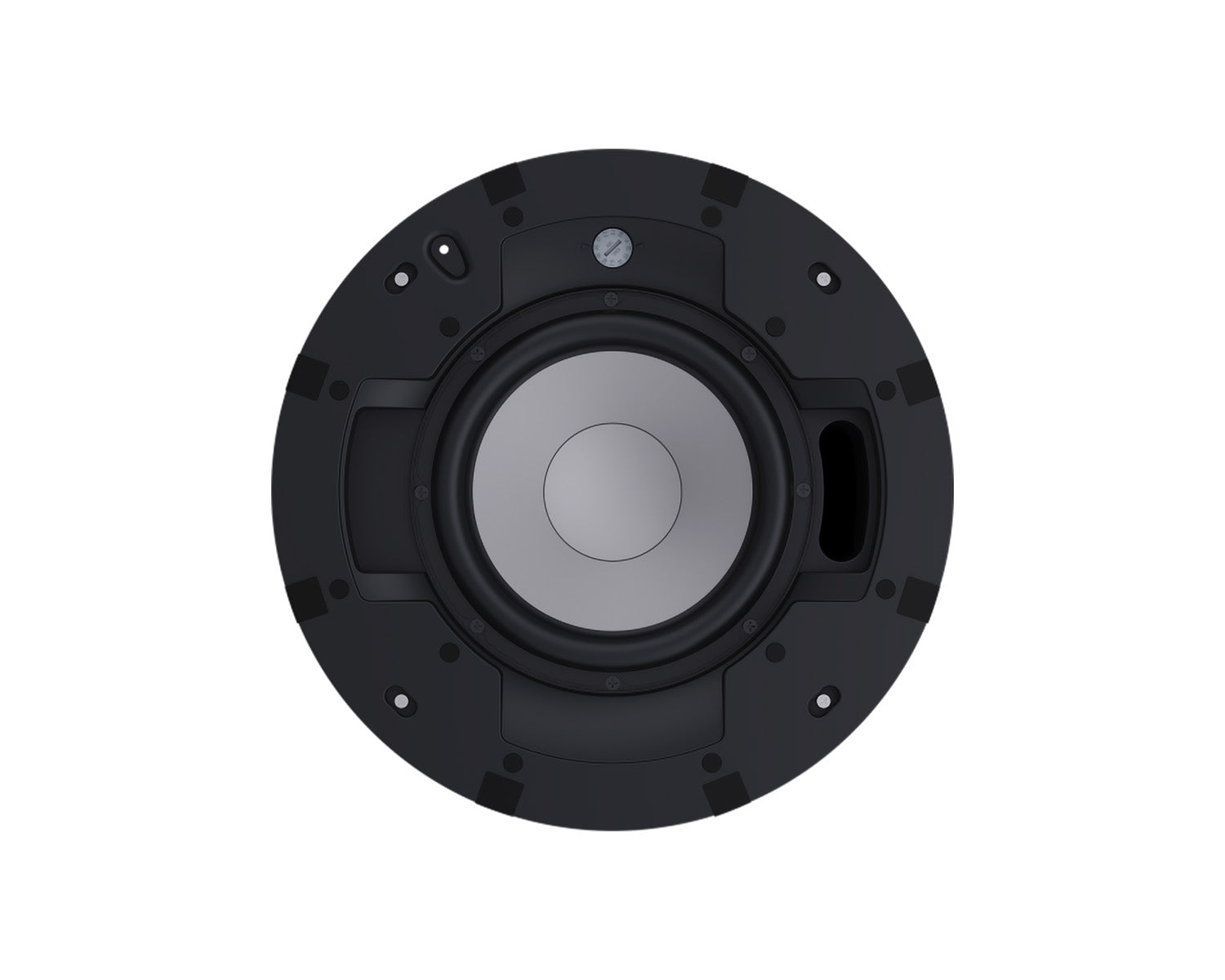

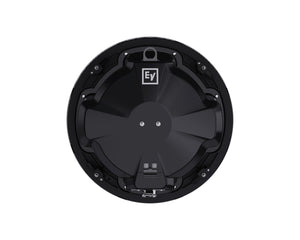

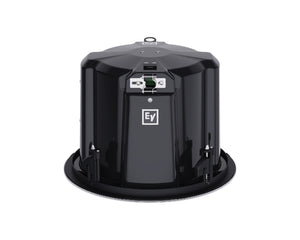

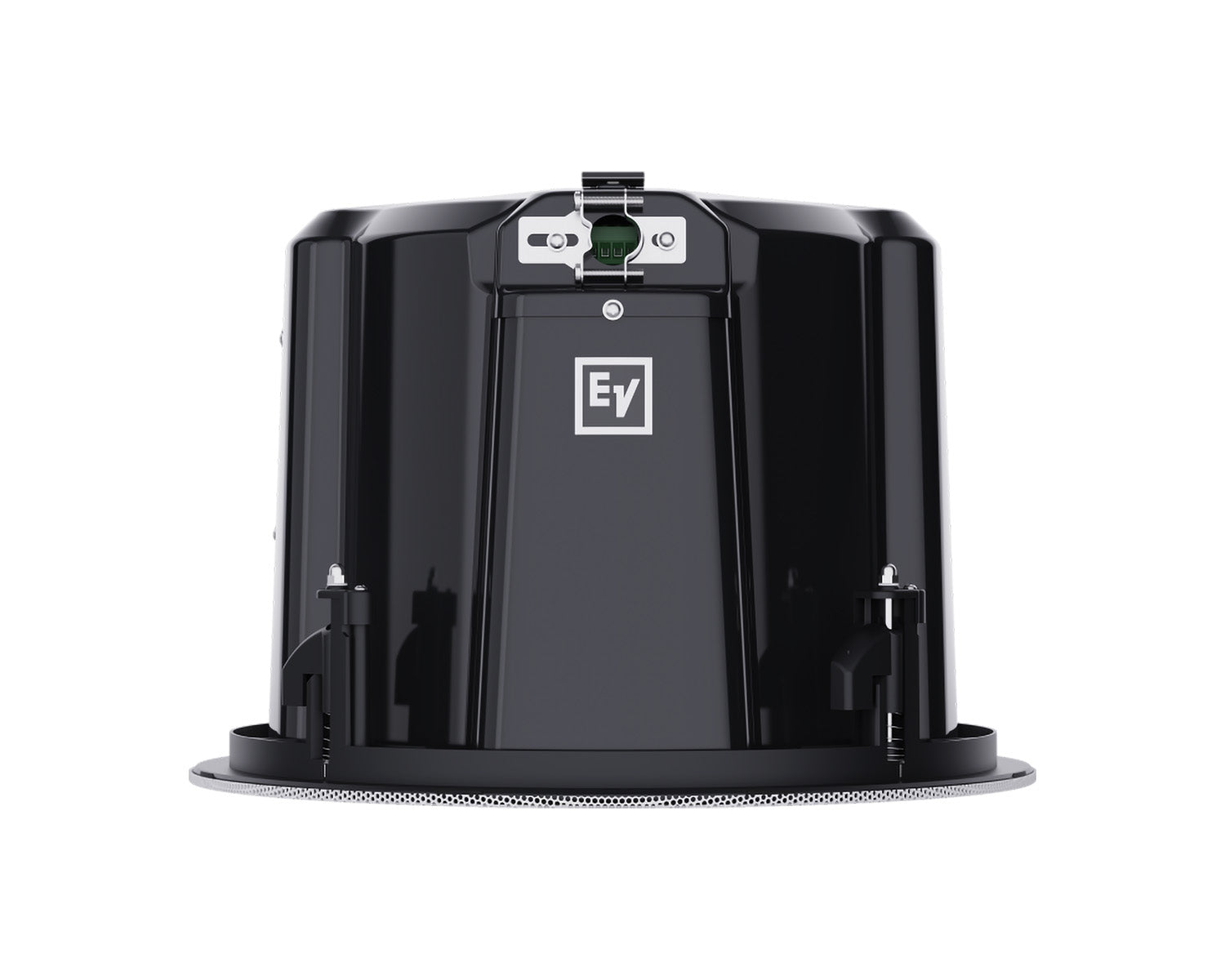

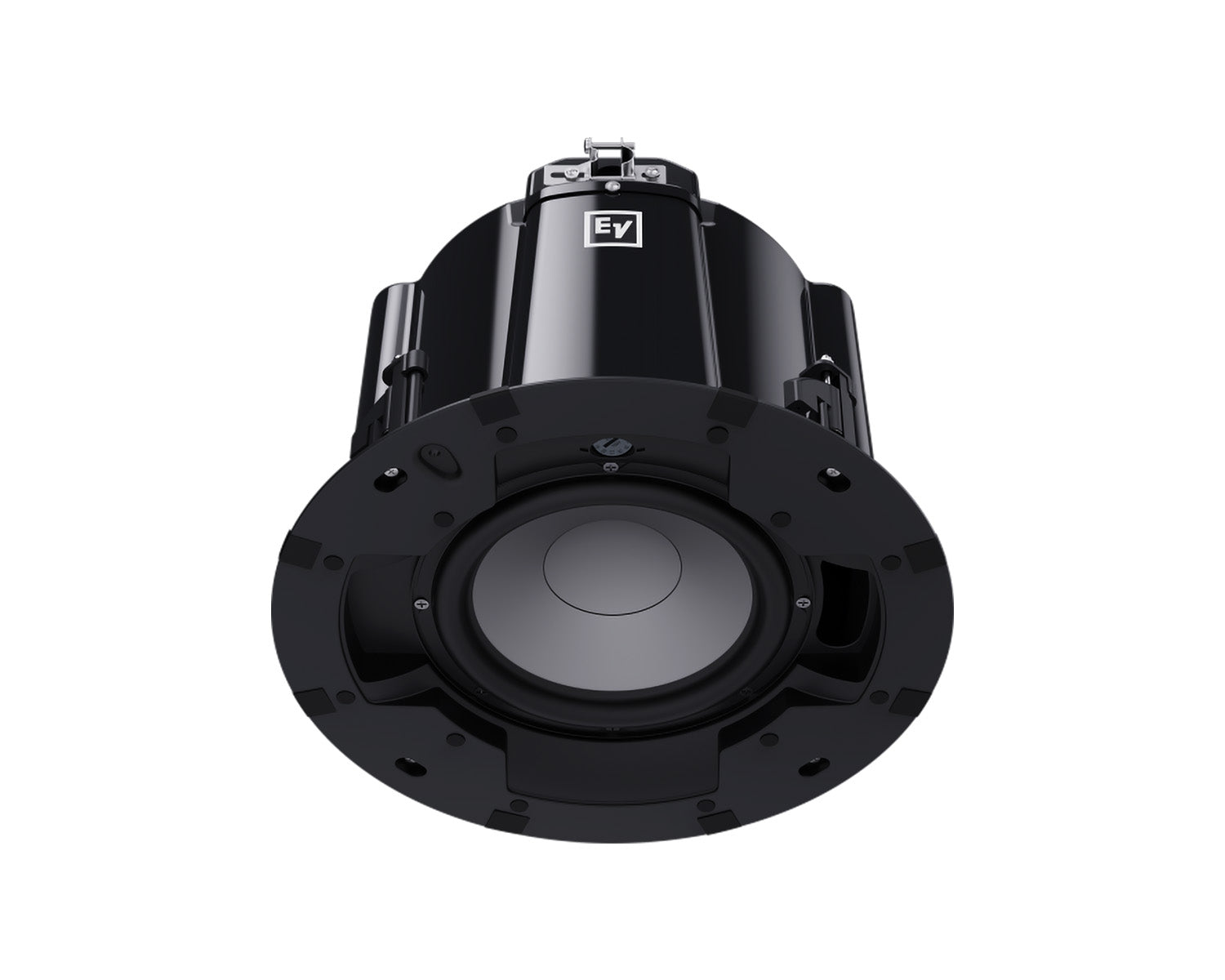

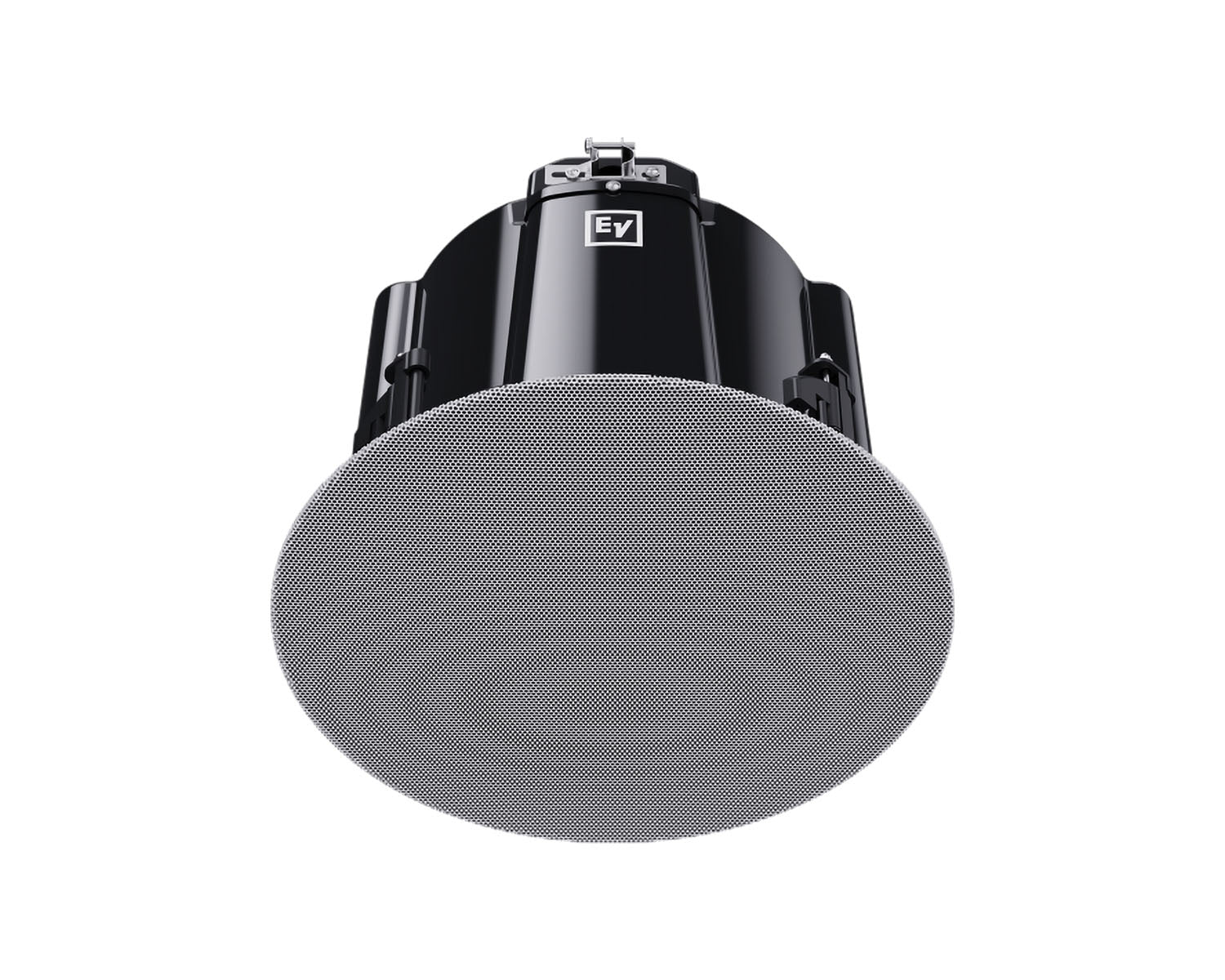

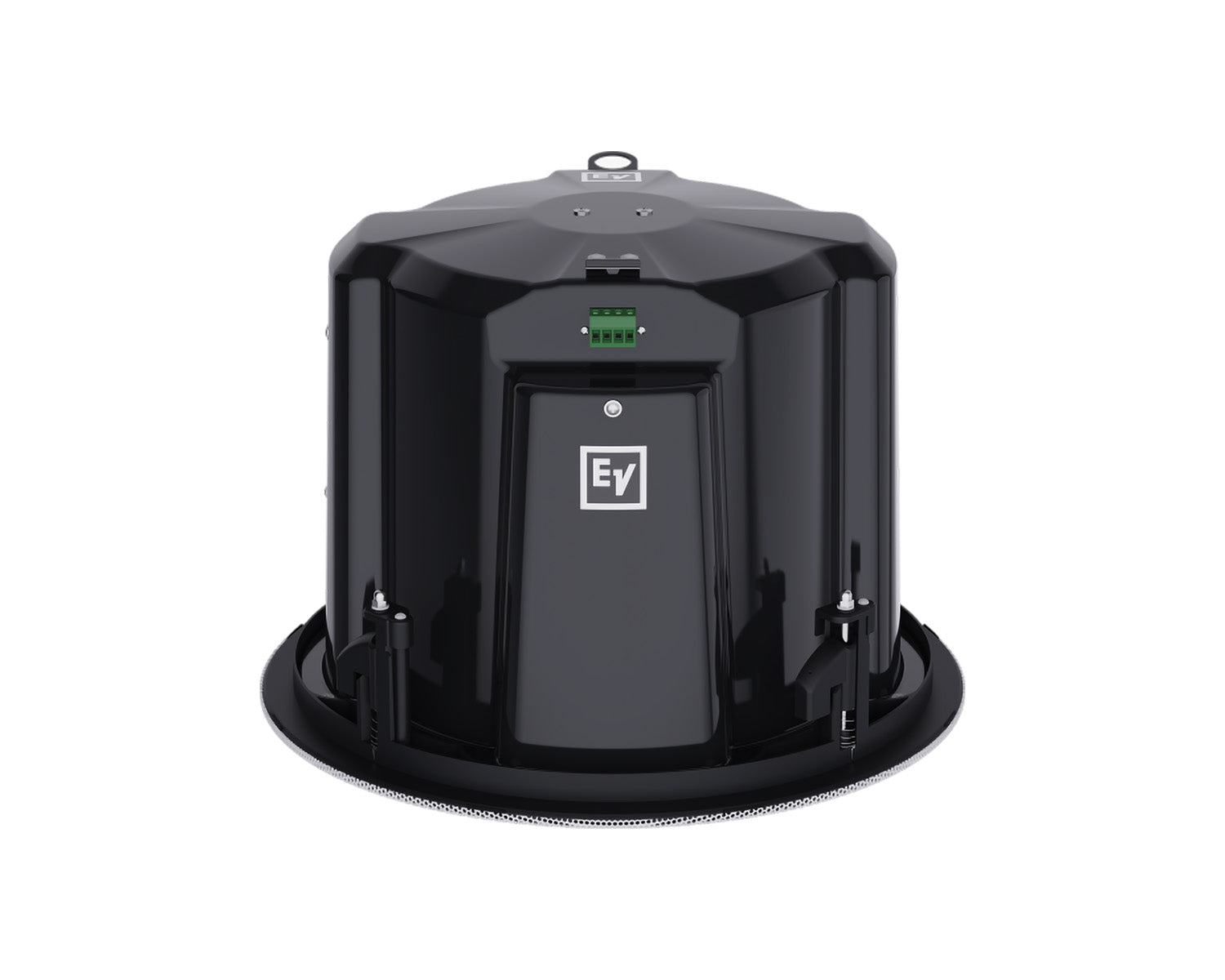

The EVID-C8.1S-G2 utilises a transformer that offers a selection of 3.75 (70-V only), 7.5, 15, 30 or 60 watts delivered to the subwoofer system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-C8.1S-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fibre-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

Product Features

• 8-inch ceiling subwoofer
• Selectable 100V Line or 8Ω
• Enclosure constructed from heavy gauge coated steel
• EZ-install system for quick, safe, and reliable installation
• Bezel-less design with easy-attach grille
• Front baffle wattage tap adjustment
• Includes tile bridge and mounting ring for easy installation
• UL 1480A, UL 2043 and CSA 22.2 205 certified

Product Specifications

• Frequency range (-10 dB) (Hz):  45 Hz – 380 Hz
• Maximum SPL (continuous) (dB):  113 dB
• Maximum SPL (peak) (dB):  119 dB
• Sensitivity (1 W, 1 m):  90 dB SPL 1 W, 1 m
• Coverage angle conical (°):  360°
• Power handling (continuous) (W):  180 W
• Power handling (peak) (W):  720 W
• Long term power handling (continuous) (W):  150 W
• Long term power handling (peak) (W):  600 W
• Nominal impedance (Ω) (Low Z):  8 Ω

• Transformer taps 70 V line (W):  60 W; 30 W; 7.5 W; 3.75 W
• Transformer taps 100 V line (W):  60 W; 30 W; 7.5 W
• LF transducer size (in):  8 in

• Material:  Steel
• Grille material:  Powder coated steel
• Connector type:  4-pin Euroblock, Input + Pass through
• Wire size (AWG):  12AWG (maximum)
• Wire diameter (mm2):  3.3 mm2 (maximum)
• Colour:  White; Customised colours
• Colour (RAL):  RAL 9003 Signal white
• Mounting cutout:  322 mm (12.7 in)
• Dimensions (Ø x D):  353 mm x 350.7 mm (13.9 in x 9.9 in)
• Mounting depth:  240 mm (9.5 in)
• Ceiling thickness:  12.5 mm - 38 mm (0.5 in - 1.5 in)
• Weight:  7.25 kg (16 lb)
• IP rating:  IP34
• Weatherisation:  Indoor
• Operating temperature (°C):  0 °C – 50 °C
• Safety agency ratings:
  • UL 1480A, safe for use in airhandling
  • spaces per UL 2043, CSA
  • 22.2 205 certified, IEC 62638
