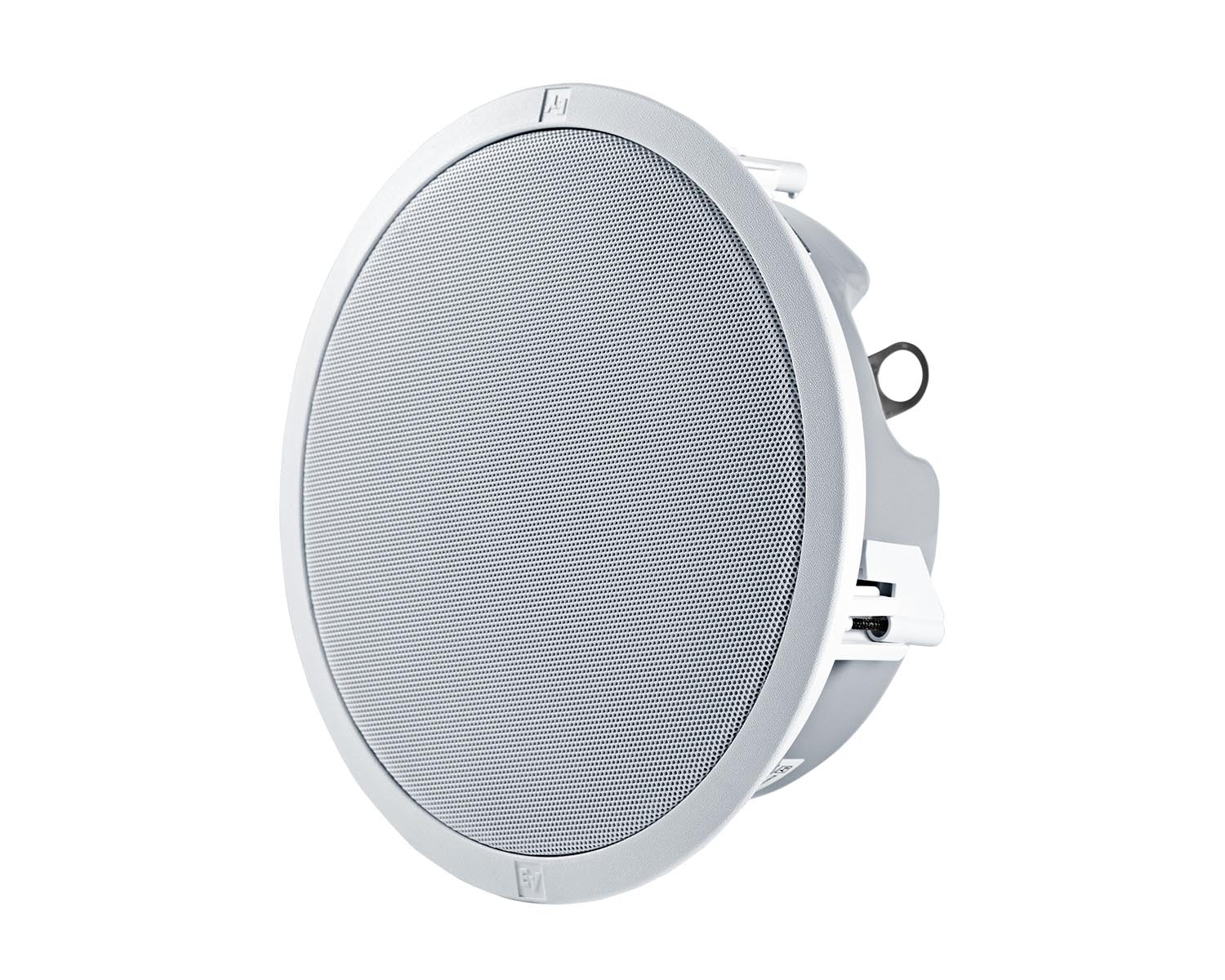

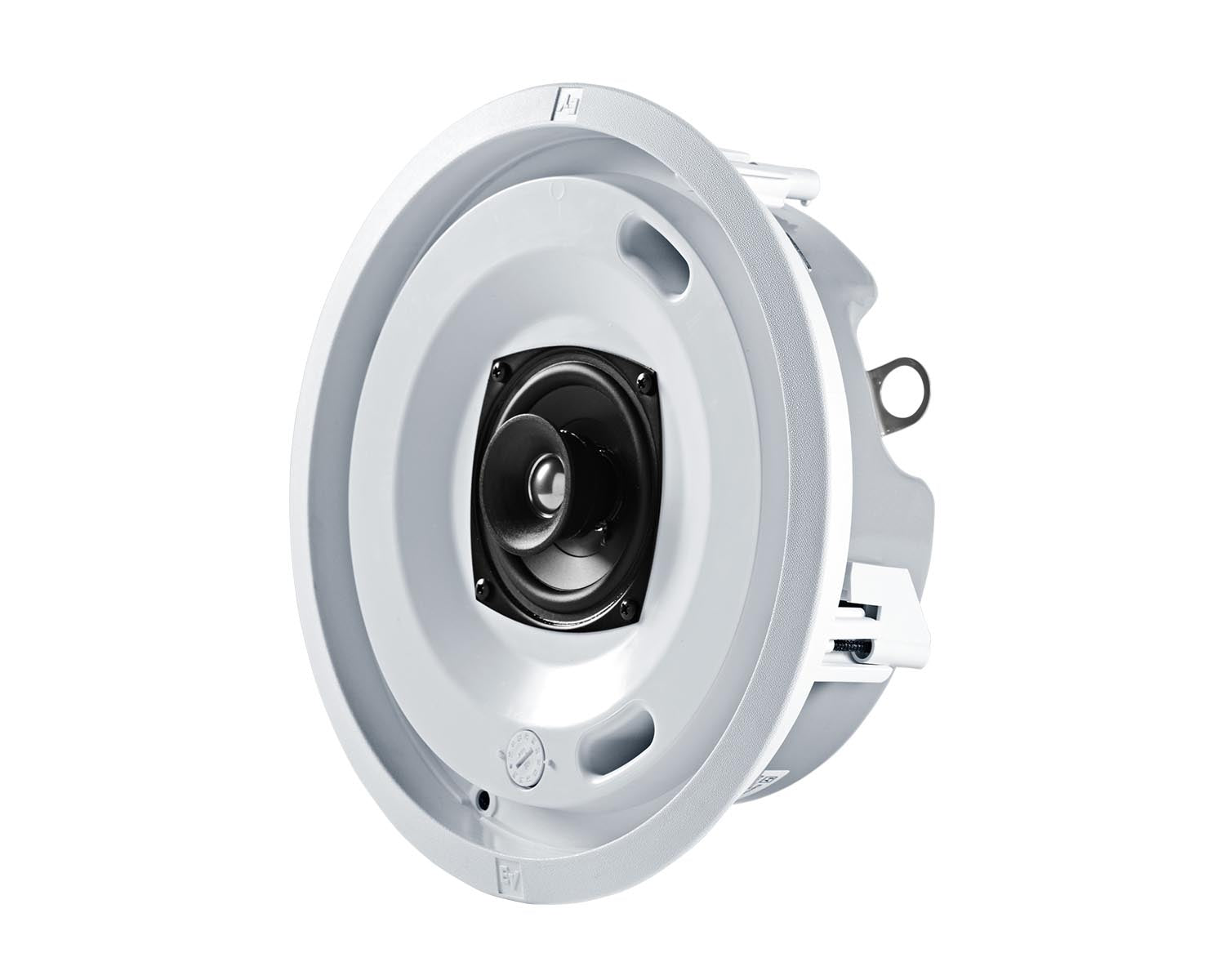

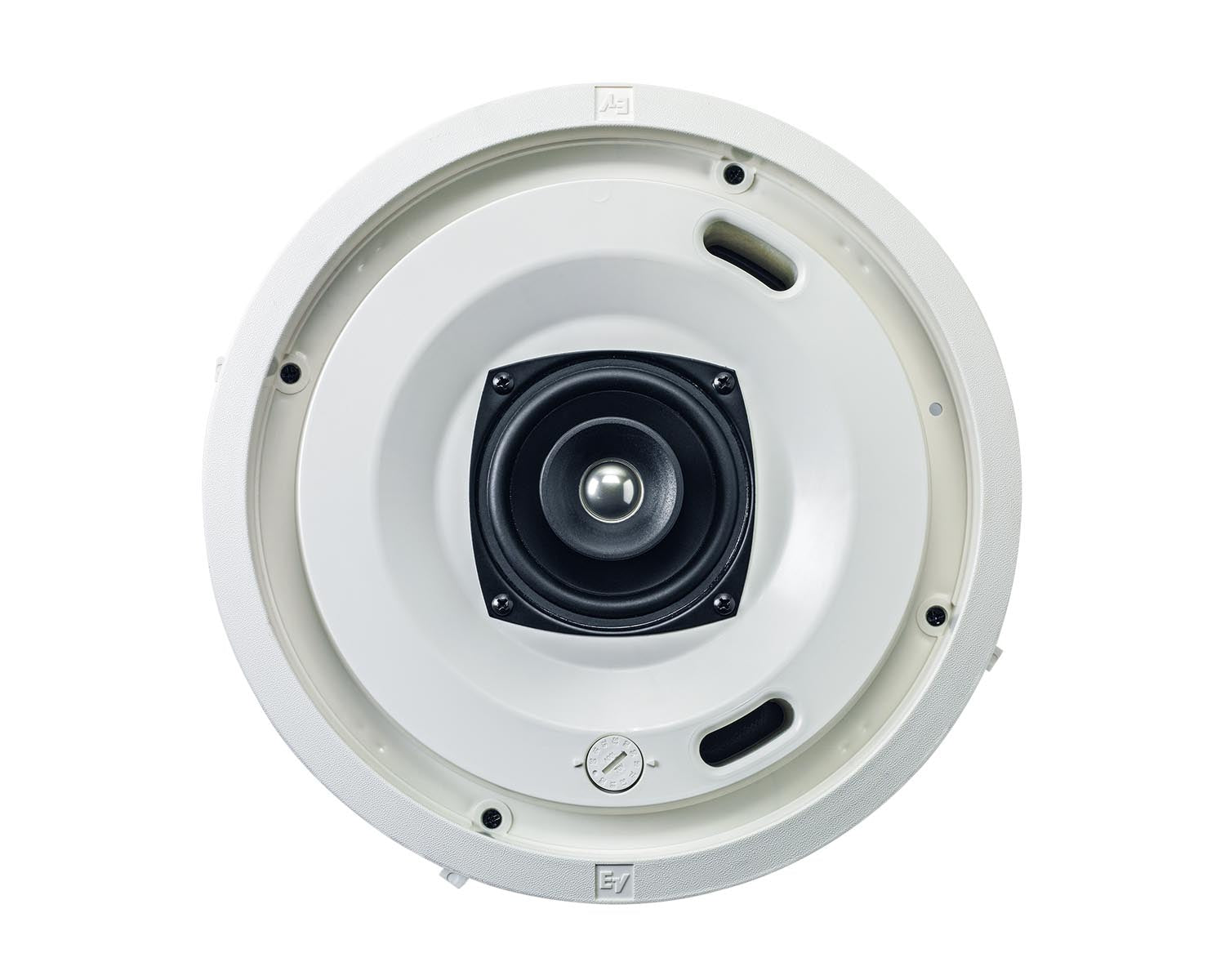

The Electro-Voice EVID-C4.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a very low profile package. The package consists of a bezel assembly, grille, rear enclosure, 4-inch coax two-way loudspeaker and internal line-matching transformer.

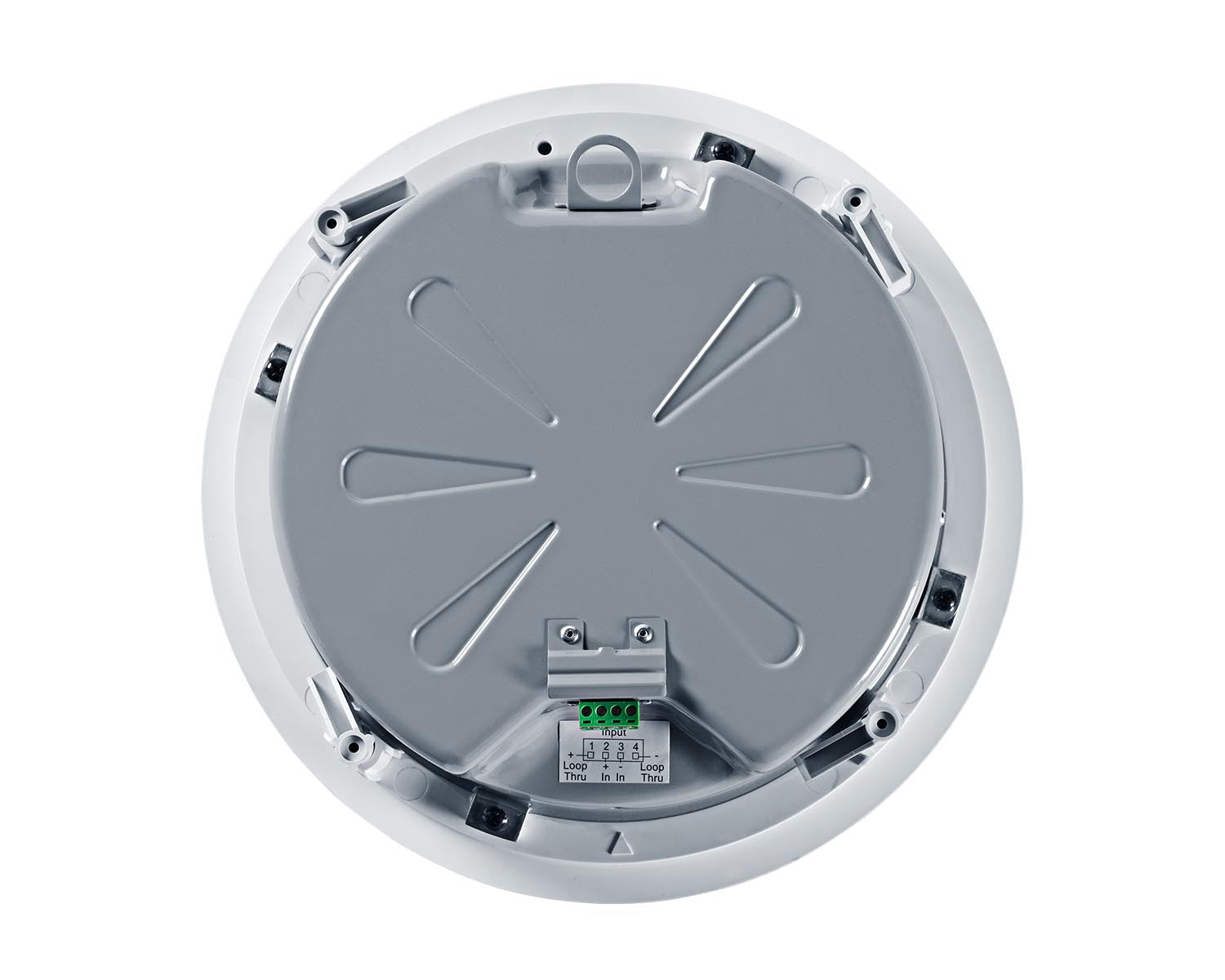

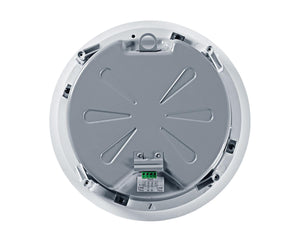

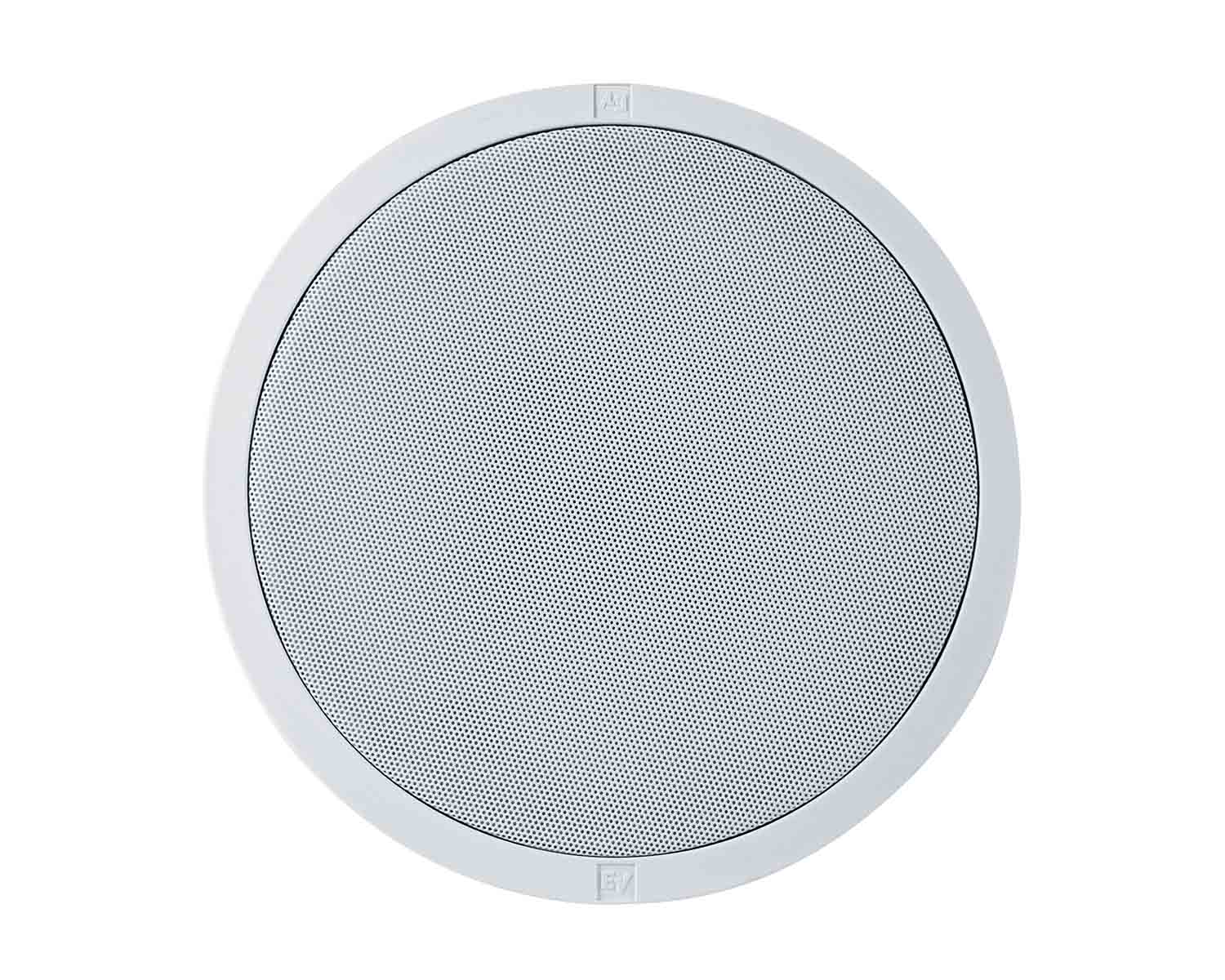

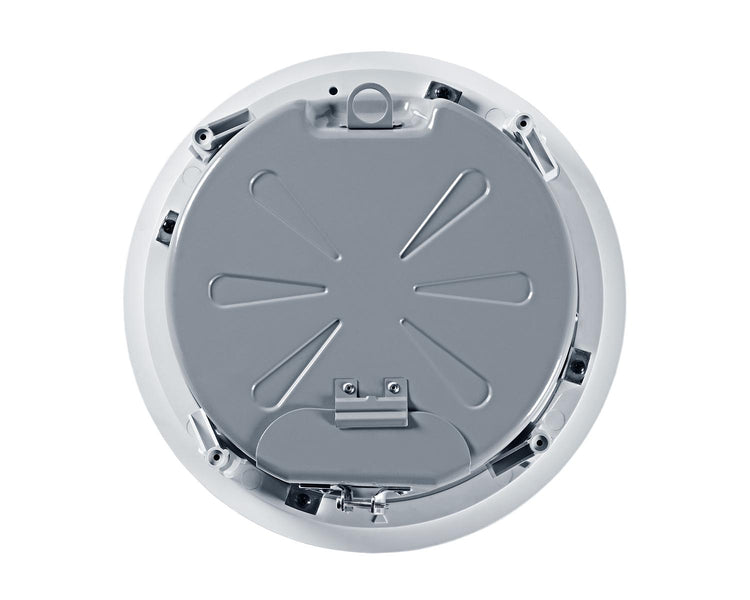

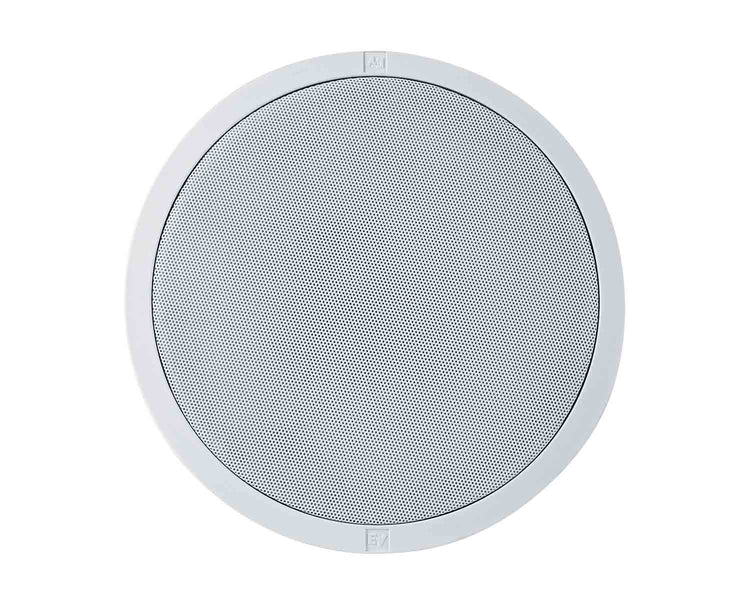

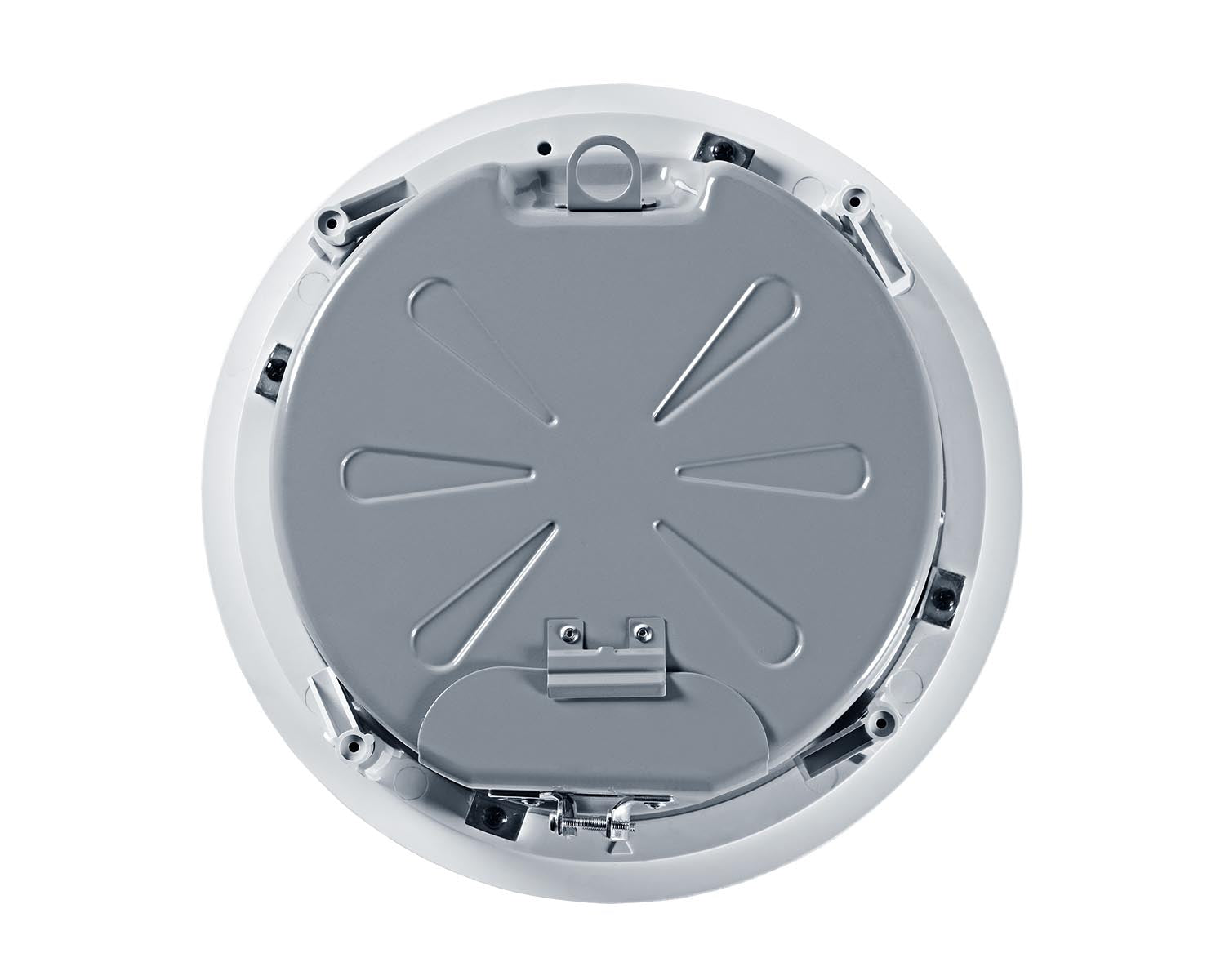

The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C4.2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C4.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semigloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The low profile enclosure makes it easy to mount in very tight spaces. A side cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVIDC4.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Product Features

• A pair of white low-profile ceiling speakers
• Low profile 4” coaxial two-way (3.7” deep)
• Full bandwidth overload protection
• Front baffle wattage tap adjustment
• Includes tile bridge and mounting ring for easy installation
• UL1480A and CSA 22.2 205 certified

Product Specifications

General

• Frequency response: 60 Hz - 20 kHz
• Sensitivity (SPL 1 W/1 m): 86 dB
• Coverage pattern: 130° conical
• Power handling (@ 8Ω): 50 W (with overload protection)
• Rated Impedance: 8 Ω
• Recommended High-Pass frequency: 65 Hz
• Input configuration: 8Ω; 70V/100V
• 70V/100V power taps: 1.8 (70V only)/3.7/7.5/15/30 W
• LF transducer: 4 in (100 mm) high-compliance driver (weatherized cone)
• HF transducer: 0.75 in (19 mm) Ti-coated dome
• Safety agency ratings: UL 1480 (Safe for use in air handling spaces per UL 2043)

Physical

• Mounting system: Integrated 4-point toggle anchors
• Acoustic design: Ported cabinet, two-way design, internally damped, w/passive crossover
• Cabinet construction: Steel enclosure and UL94V-0 rated baffle and bezel
• Grille construction: Powder-coated steel
• Colour: White (paintable)
• Cutout dimensions (diam.): 10.6 in (269 mm)
• Dimensions (depth x diam.): 3.7 in x 11.8 in (94 mm x 300 mm)
• Net weight: 7.35 lb (3.32 kg)

What's in the Box?

• 2x Speaker systems
• 4x Tile rails
• 2x C-ring supports
• 2x Grilles
• 1x Owner’s manual
• 4x Support ring screws
• 2x Terminal connectors
• 1x Service centre card
• 1x Cutout template
• 2x Paint shields
