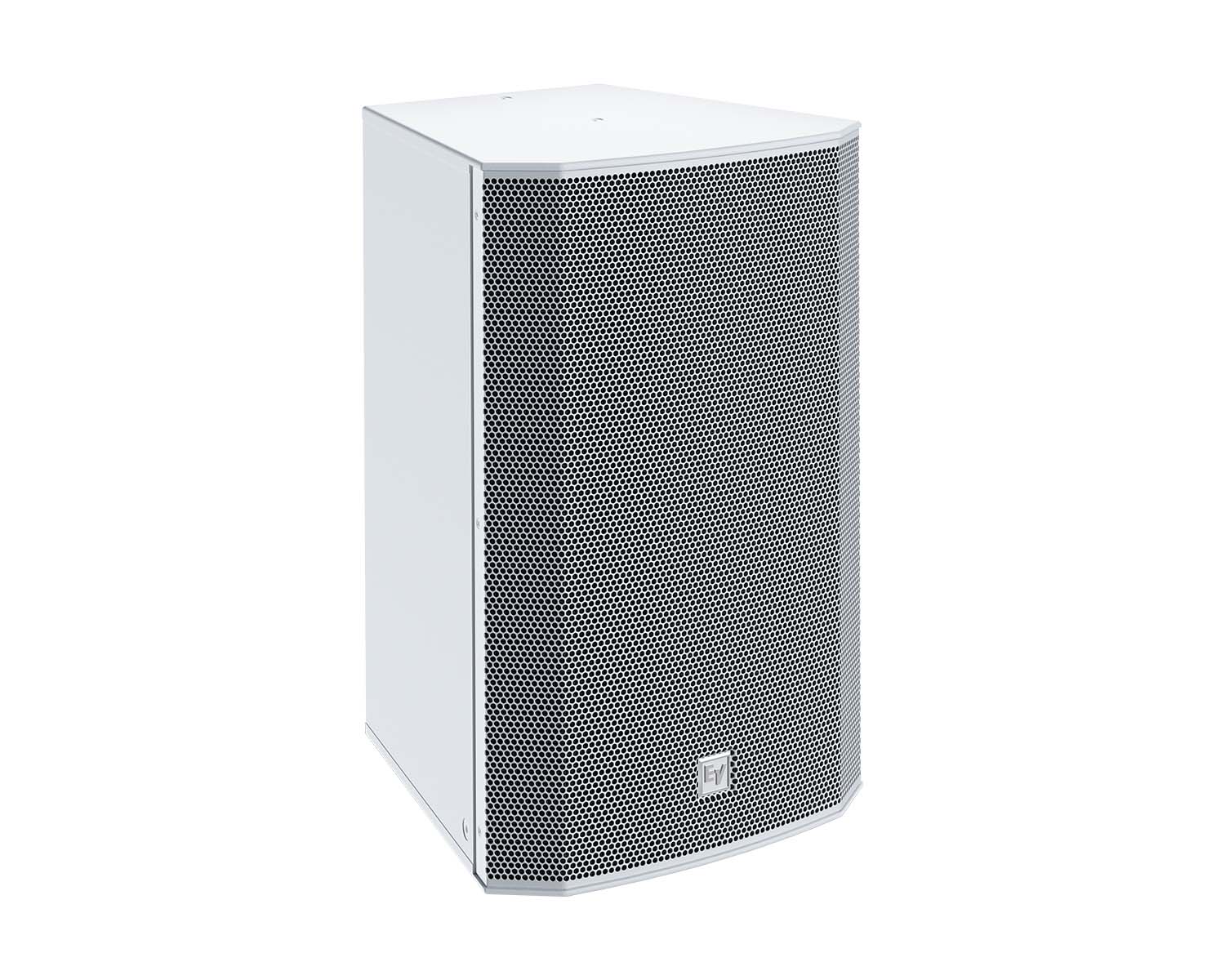

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).

The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.

The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

For 70V/100V operation, the input panel has an internal landing pad for mounting EV high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.

Product Features

• 15-inch, two-way loudspeaker, with 60˚ x 45˚ constant directivity, rotatable waveguide
• Power rating: 350 W Continuous, (1400 W Peak)
• Passive system: 98 dB, 129 dB maximum
• Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines
• Finish: White

Product Specifications

• Frequency response (-3 dB): 70 Hz - 20 kHz
• Frequency range (-10 dB): 50 Hz - 25 kHz
• Rotatable coverage: 60° x 45°
• Rec. high-pass frequency: 40 Hz
• Passive crossover frequency: 1.6 kHz
• Axial sensitivity: 98 dB (1 W/1 m)
• Max. calculated SPL: 129 dB
• Power handling: 350 W (Continuous), 1400 W (Peak)
• Nominal impedance: 8 Ω
• Minimum impedance: 6.7 Ω
• LF transducer: EVS-15M
• HF transducer: DH-3
• Connectors: Dual four-pin 10 AWG Phoenix/ Euro Block screw-terminals
• Enclosure: 15-mm plywood with EVCoat
• Grille: 18 GA powder-coated steel with rotatable logo
• Environmental: IEC 60529, IP44
• Suspension: (8) M10 suspension points
• Colour: White
• Dimensions (H x W x D): 684 mm x 433 mm x 451 mm (26.91 in x 17.05 in x 17.77 in)
• Net weight: 25.0 kg (55.1 lb)
• Shipping weight: 27.7 kg (61.0 lb)
