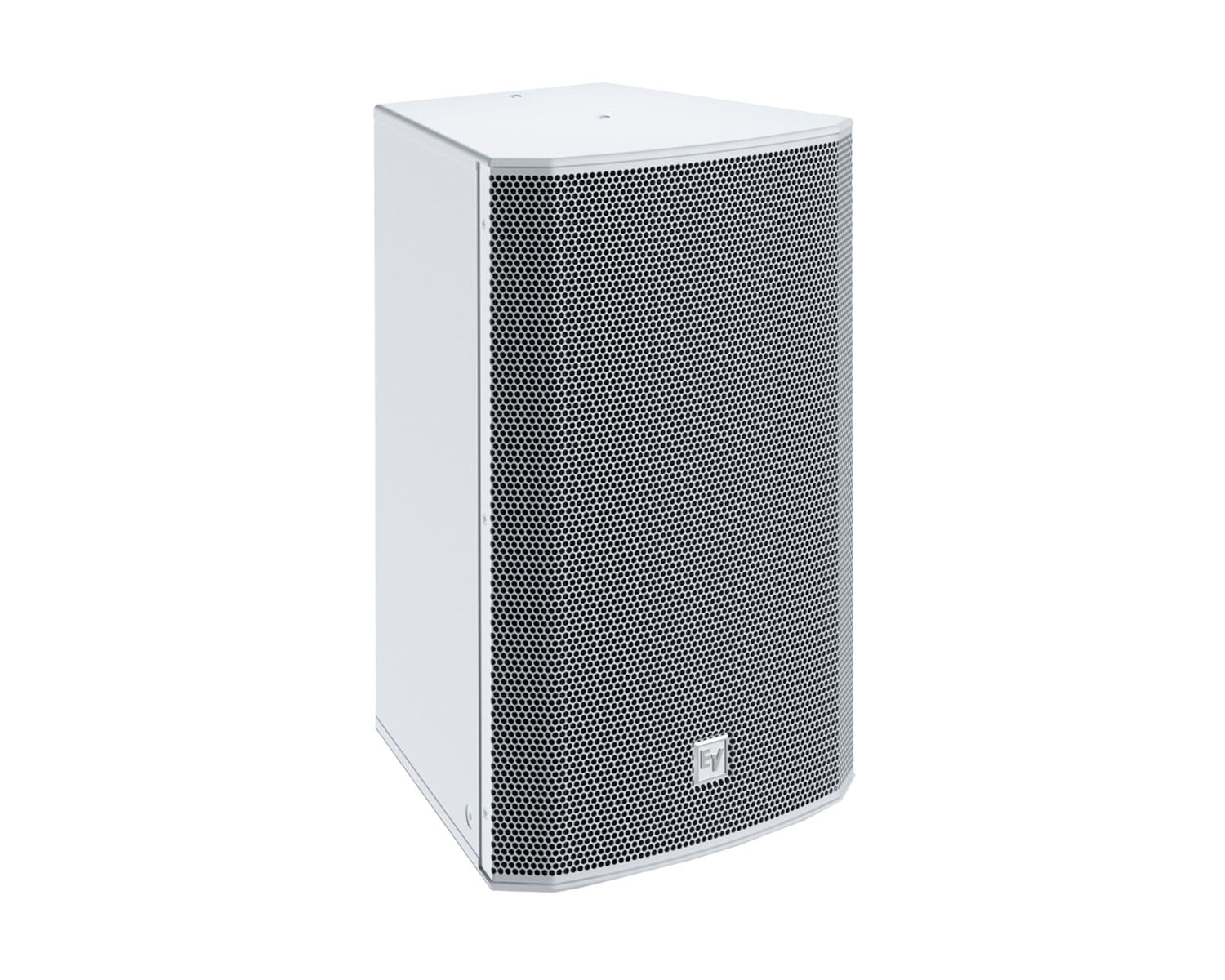

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).

The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.

The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

For 70V/100V operation, the input panel has an internal landing pad for mounting EV high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.

Product Features

• 12’’ low frequency transducer using FEA optimized woofer
• 1.25” titanium compression driver with 1’’-throat diameter
• Rotatable CD waveguide with labeled coverage angles
• Enhanced 4th Order Crossover with response-shaping equalization and high frequency protection resulting in acoustical crossover slope of 24 dB per octave or steeper
• Integrated crossover with an acoustic crossover frequency of 1,600 Hz
• Electrical compensation network that responds to the drive signal by modifying the response of an integral high-pass filter when an inline transformer is installed in the loudspeaker, in order to minimize transformer saturation and protect system electronics
• Compact, symmetrical, trapezoidal-shaped enclosure made of 15-mm plywood
• (8) M10 suspension points and optional flying hardware
• White textured paint
• Euro block input connectors, handling wire gauges up to AWG 10
• Input panel has an internal landing pad for 70V/100V transformer mounting
• ANSI / IEC 60529 – IP55
• Maximum sustained humidity 80%
• Salt content of normal air < 20%
• 18 GA stainless steel backed with acoustically transparent hydrophobic cloth

Product Specifications

• Frequency response (-3 dB): 70 Hz - 20 kHz
• Frequency range (-10 dB): 50 Hz - 25 kHz
• Rotatable coverage: 60° x 45°
• Rec. high-pass frequency: 45 Hz
• Passive crossover frequency: 1.6 kHz
• Axial sensitivity: 95 dB (1 W/1 m)
• Max. calculated SPL: 126 dB
• Power handling: 300 W (Continuous), 1200 W (Peak)
• Nominal impedance: 8 Ω
• Minimum impedance: 7 Ω
• LF transducer: EVS-12M
• HF transducer: DH-3
• Connectors: Dual four-pin 10 AWG Phoenix / Euro Block screw-terminals
• Enclosure: 15-mm plywood with EVCoat
• Grille: 18 GA Stainless steel with hydrophobic cloth
• Environmental: IEC 60529, IP55
• Suspension: (8) M10 suspension points
• Colour: White
• Dimensions (H x W x D): 616 mm x 395 mm x 401 mm (24.26 in x 15.56 in x 15.77 in)
• Net weight: 20.3 kg (44.7 lb)
• Shipping weight: 22.7 kg (50.0 lb)
