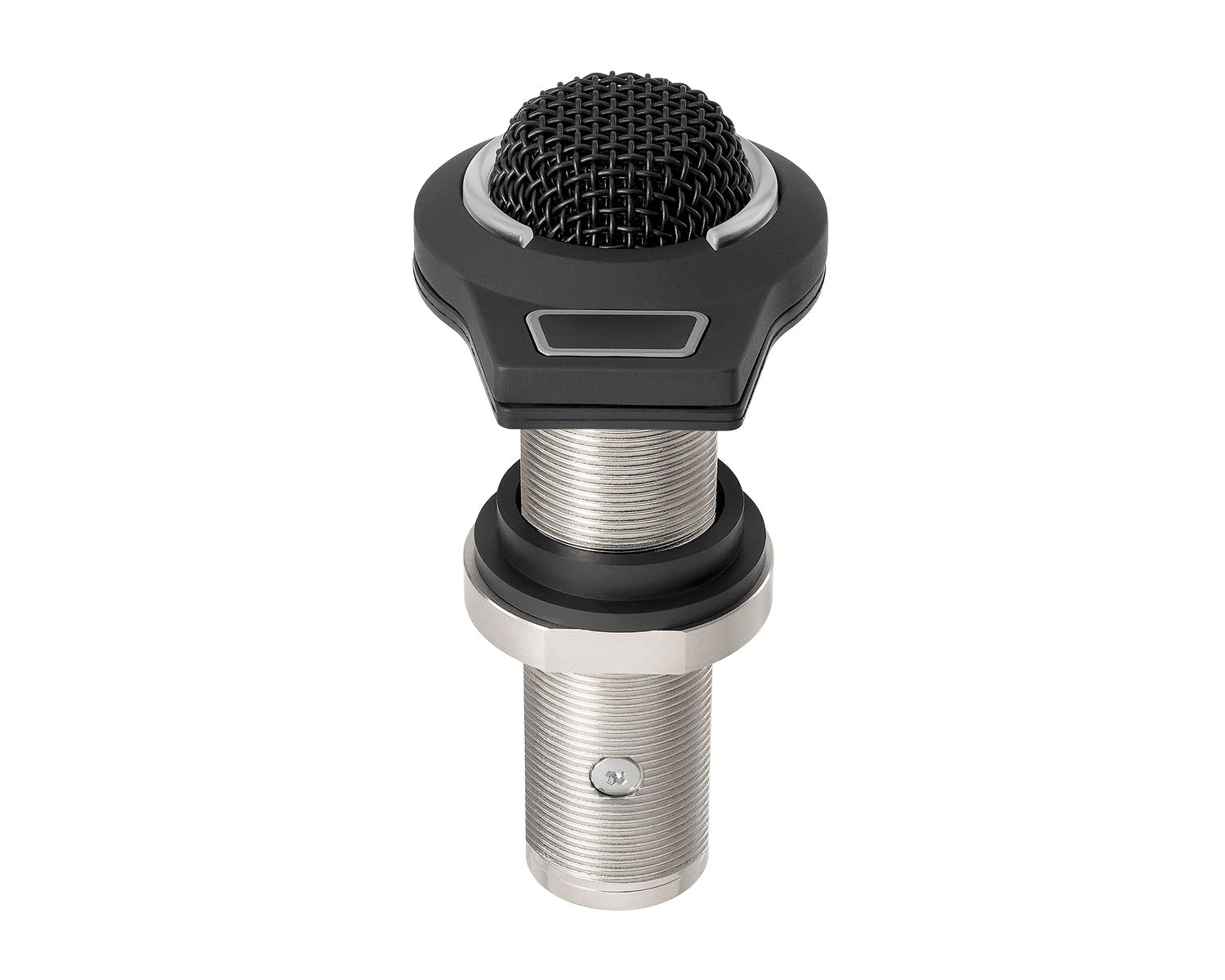

This phantom-powered omnidirectional condenser boundary microphone features a 5-pin XLR output connector with a touch-sensitive capacitive-type user switch for enhanced control in conference and boardroom installations. Not only can the switch be configured to toggle between mute and live audio, but, with the microphone’s external contact closure, it can also be set up to trigger an external device, such as a camera or the room’s lighting.

Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES945O/FM5 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colours + OFF) to keep users apprised of the status.

The microphone’s omnidirectional polar pattern provides 360° coverage. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).

The ES945O/FM5 is equipped with a self-contained power module, eliminating the need for an external one, and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

Product Features

• Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
• Logic I/O capability permits control of remote devices from mic’s touch-sensitive capacitive-type user switch

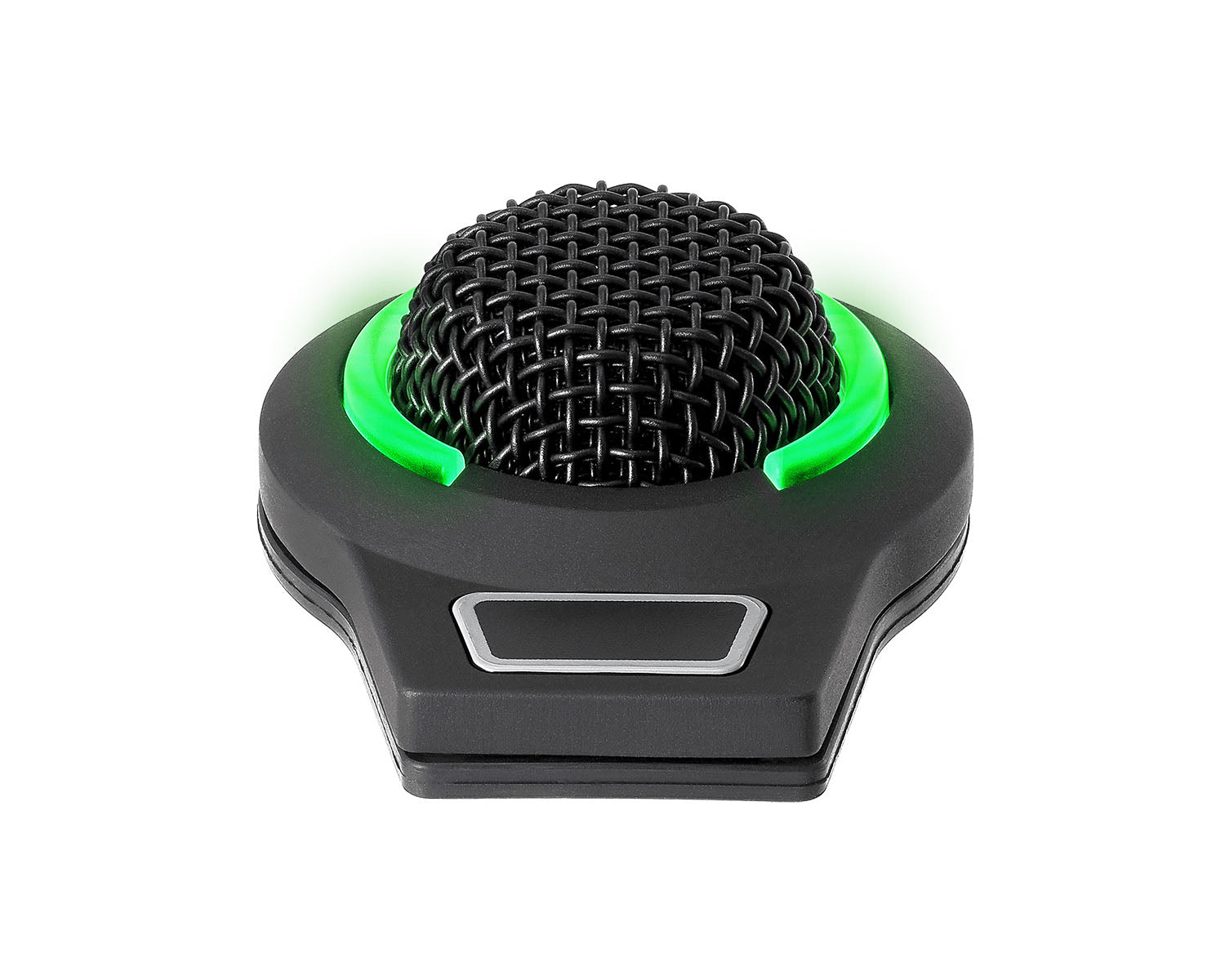

• Highly visible two-state RGB LED ring (7 selectable colours + OFF) indicates mic status
• Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle
• Mounts unobtrusively in tabletops and panels

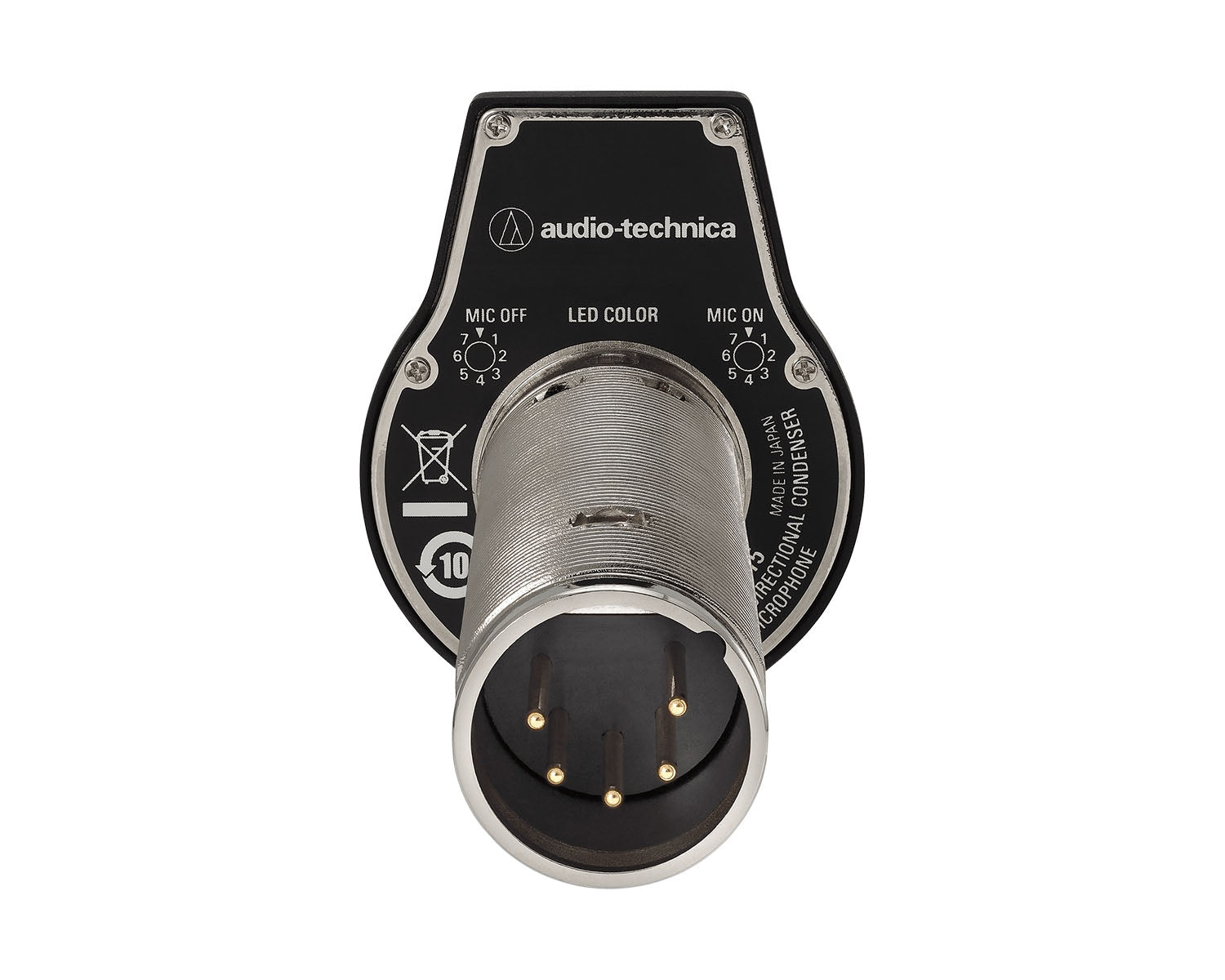

• Self-contained power module with 5-pin XLR output connector
• Rugged all-metal case with a two-layer steel mesh grille
• Rubber Isolators provide mechanical dampening of mounting-surface vibration
• Requires 11V to 52V DC phantom power
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Product Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 60-15,000 Hz
• Open Circuit Sensitivity: -33 dB (0 dB = 1V/Pa, 1 kHz)
• Output Impedance: 60 ohms
• Maximum Input Sound Level: 130 dB SPL (1 kHz at 1% THD)
• Dynamic Range: (typical) 109 dB (1 kHz at max SPL)
• Signal-to-Noise Ratio: 73 dB (1 kHz at 1 Pa, A-weighted)
• Phantom Power Requirements: 11-52V DC, 7.5 mA
• Weight: 59 g (2.1 oz)
• Dimensions: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 84.8 mm (3.34") H
• Output Connector: 5-pin XLRM-type

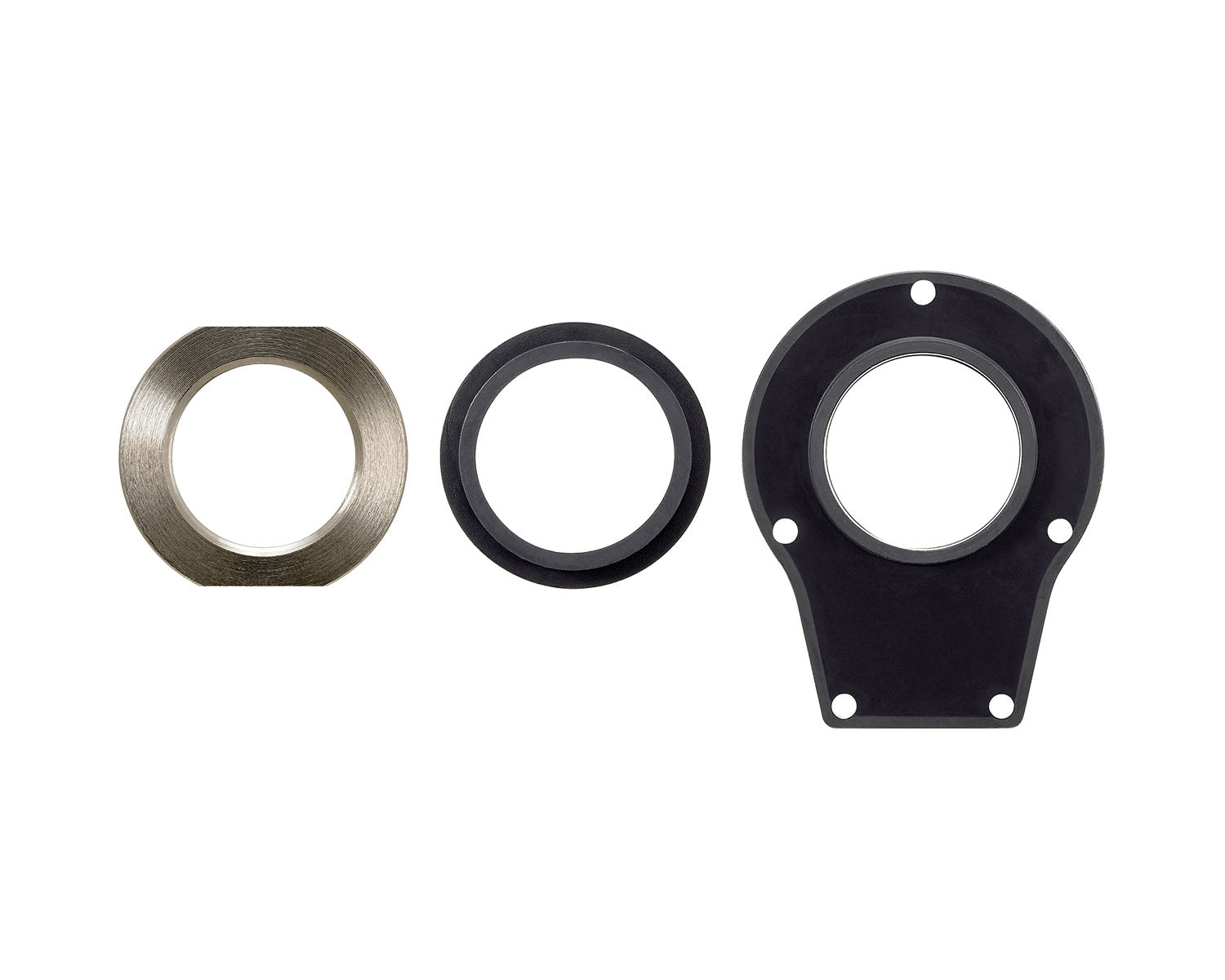

• Accessories Included: Rubber isolators (two types), nut

What's in the Box?

• ES945O/FM5
• Rubber isolators (two types)
• Nut
