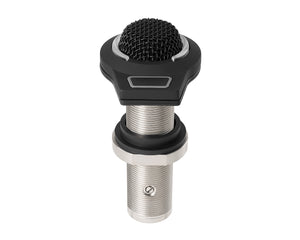

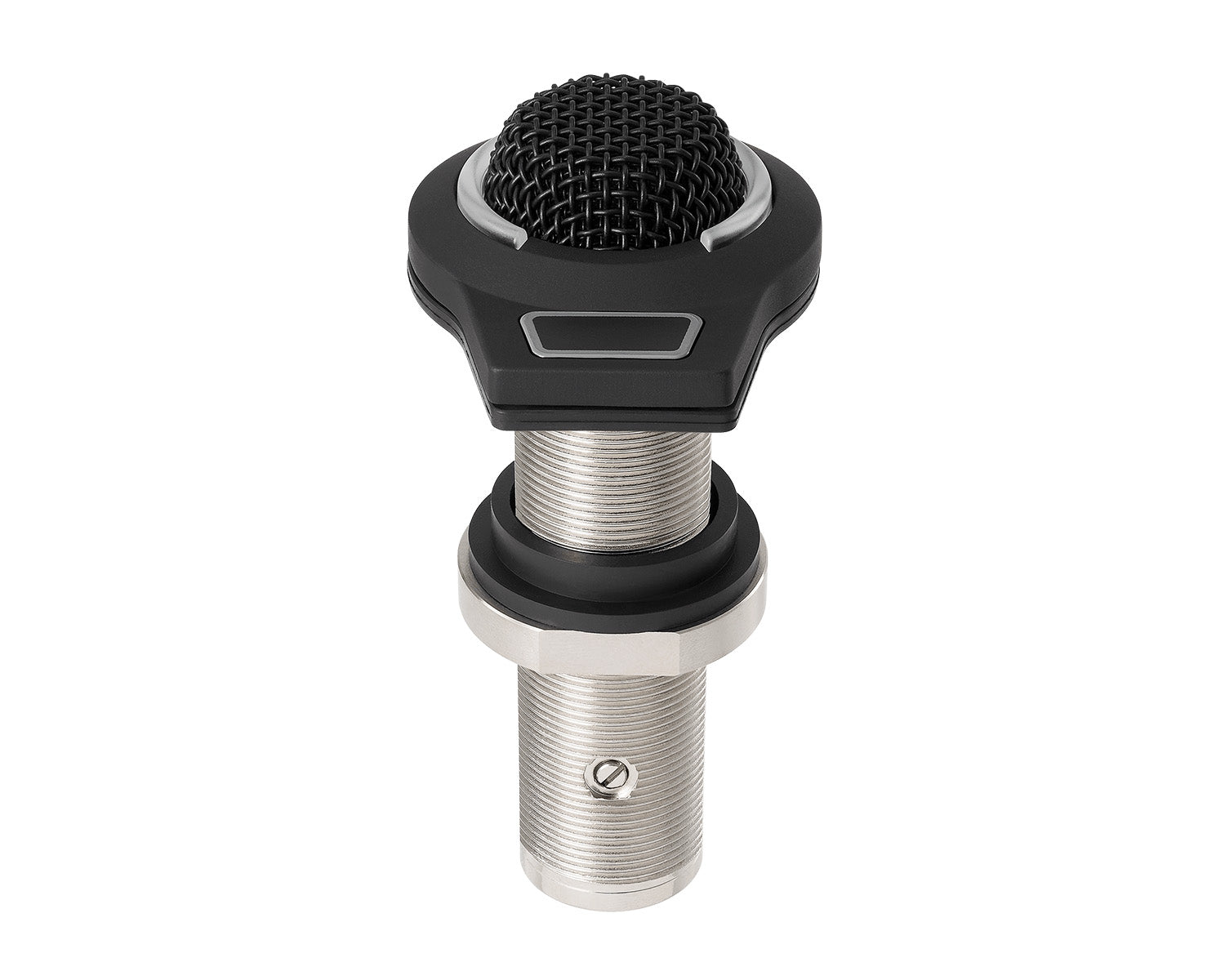

This phantom-powered omnidirectional condenser boundary microphone features a 3-pin XLR output connector with a capacitive touch switch that enables local muting of the microphone.

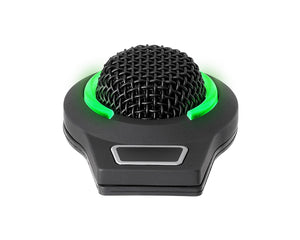

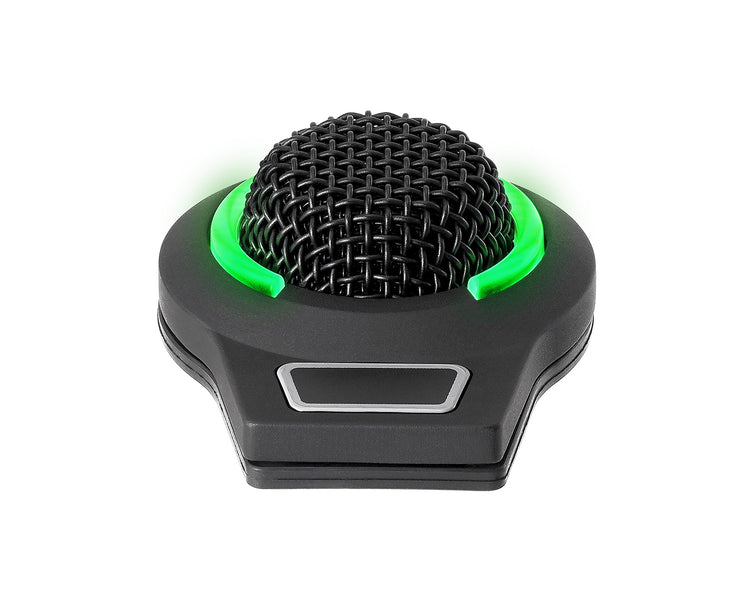

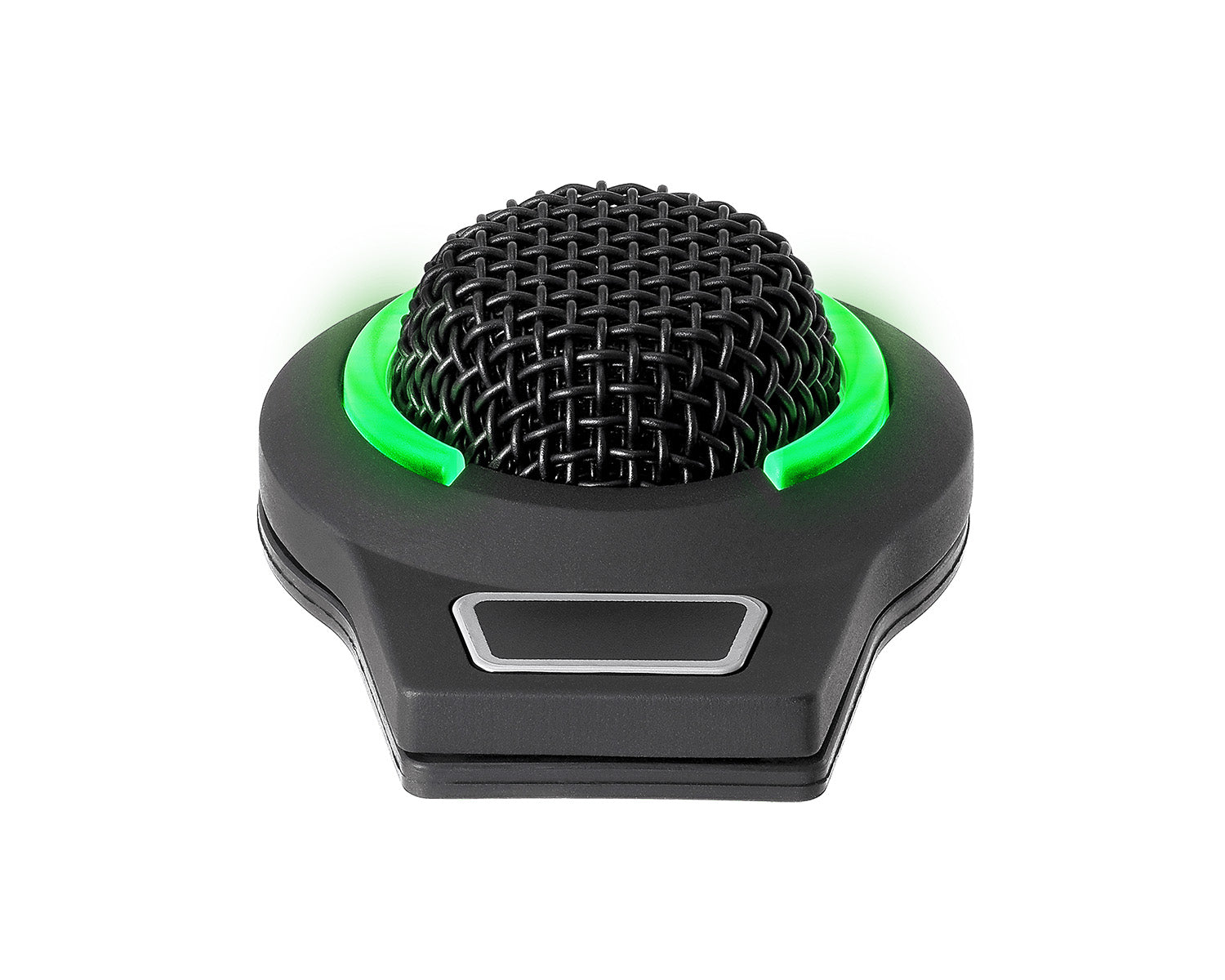

Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES945O/FM3 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colours + OFF) to indicate mute status.

The microphone’s omnidirectional polar pattern provides 360° coverage. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).

The ES945O/FM3 is equipped with a self-contained power module, eliminating the need for an external one, and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

Product Features

• Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
• Capacitive touch switch enables local muting of the microphone
• Highly visible two-state RGB LED ring (7 selectable colours + OFF) indicates mute status
• Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle
• Mounts unobtrusively in tabletops and panels

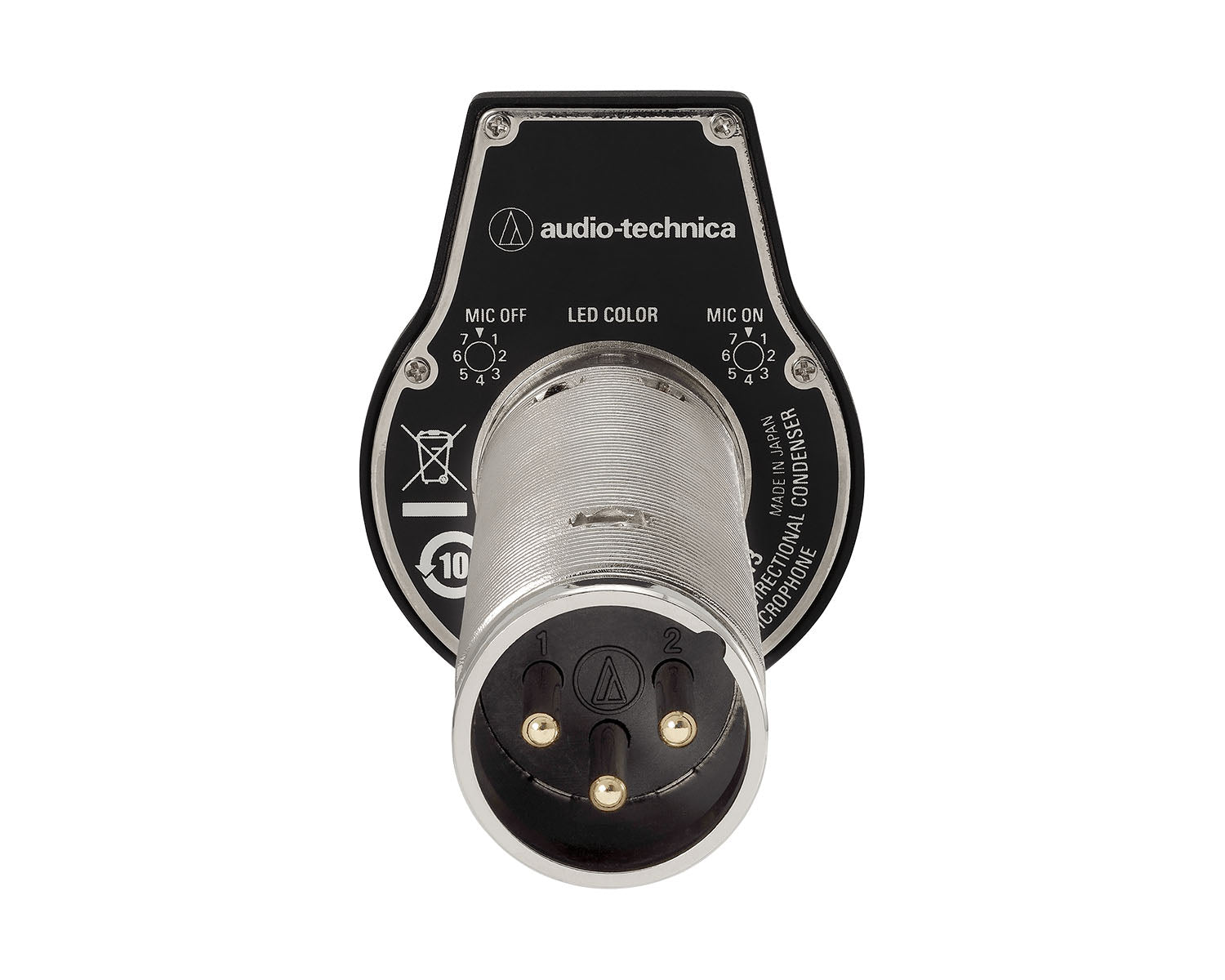

• Self-contained power module with 3-pin XLR output connector
• Rugged all-metal case with a two-layer steel mesh grille

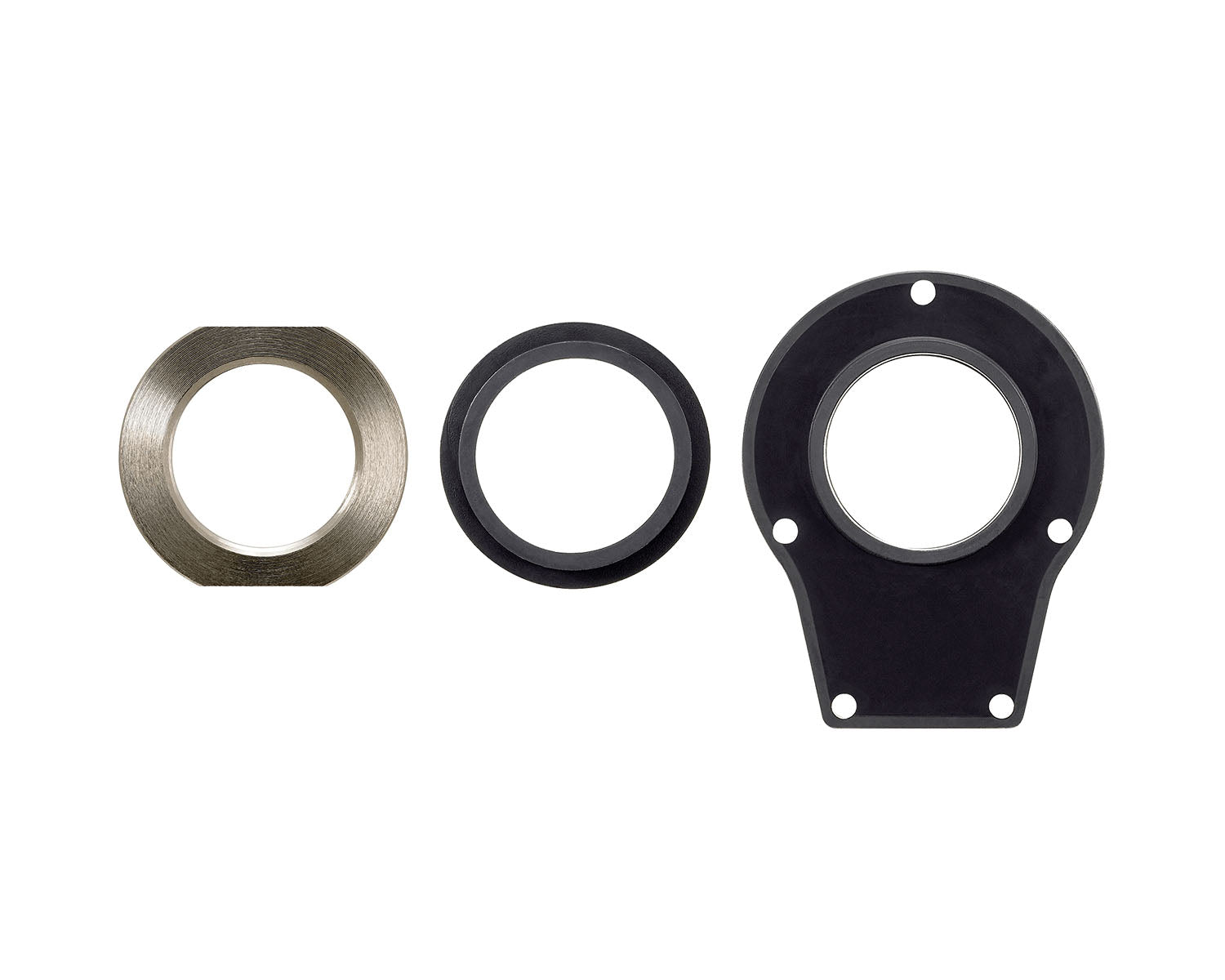

• Rubber Isolators provide mechanical dampening of mounting-surface vibration
• Requires 11V to 52V DC phantom power
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Product Specification

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 60-15,000 Hz
• Open Circuit Sensitivity: -33 dB (0 dB = 1V/Pa, 1 kHz)
• Output Impedance: 60 ohms
• Maximum Input Sound Level: 130 dB SPL (1 kHz at 1% THD)
• Dynamic Range: (typical) 109 dB (1 kHz at max SPL)
• Signal-to-Noise Ratio: 73 dB (1 kHz at 1 Pa, A-weighted)
• Phantom Power Requirements: 11-52V DC, 7.5 mA
• Weight: 59 g (2.1 oz)
• Dimensions: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 84.8 mm (3.34") H
• Output Connector: 3-pin XLRM-type
• Accessories Included: Rubber isolators (two types), nut

What's in the Box?

• ES945O/FM3
• Rubber isolators (two types)
• Nut
