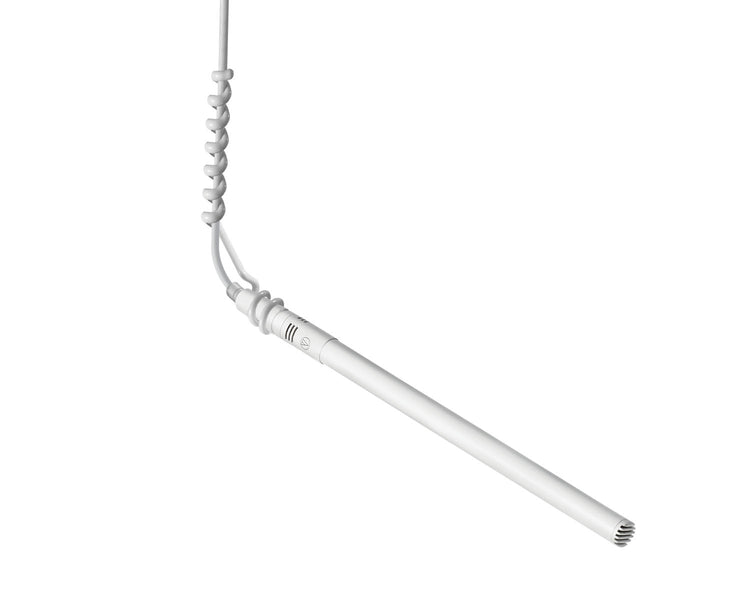

The ES933 condenser hanging microphone is designed for quality sound reinforcement, professional recording, television, and other demanding sound pickup applications. Its low-profile design and excellent response make it ideally suited for suspending over choirs, instrumental groups and theatre stages.

The microphone is equipped with a 15.2 m (50\') permanently attached miniature cable, terminated with a TA3F-type connector that attaches to compatible Audio-Technica power modules. UniGuard® RFI-shielding technology protects the microphone from radio frequency interference (RFI).

The microphone comes with a two-stage foam windscreen and vinyl-coated steel hanger.

Product Features

• Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
• Small size and excellent response are ideal for suspension over choirs, instrumental groups and theatre stages
• Available interchangeable elements permit angle of acceptance from 90º to 360º
• Superior off-axis rejection for maximum gain before feedback
• Requires 11V to 52V DC phantom
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality

Available Configurations

• ES933C/MIC: cardioid polar pattern (120° acceptance angle); no power module; low-reflectance black finish.
• ES933H/MIC: hypercardioid polar pattern (100° acceptance angle); no power module; low-reflectance black finish.
• ES933ML/MIC: MicroLine polar pattern (90° acceptance angle); no power module; low-reflectance black finish.
• ES933WC/MIC: cardioid polar pattern (120° acceptance angle); no power module; low-reflectance white finish.
• ES933WH/MIC: hypercardioid polar pattern (100° acceptance angle); no power module; low-reflectance white finish.
• ES933WML/MIC: MicroLine polar pattern (90° acceptance angle); no power module; low-reflectance white finish.
• ES933C: cardioid polar pattern (120° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
• ES933H: hypercardioid polar pattern (100° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
• ES933ML: MicroLine polar pattern (90° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
• ES933WC: cardioid polar pattern (120° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
• ES933WH: hypercardioid polar pattern (100° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
• ES933WML: MicroLine polar pattern (90° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.

Product Specifications

• Polar Pattern: MicroLine
• Element: Fixed-charge back plate, permanently polarised condenser
• Frequency Response: 30 - 20,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Open Circuit Sensitivity: -40 dB (10.0 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 138 dB SPL, 1 kHz at 1% THD
• Dynamic Range: 109 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 65 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical
• Switches: Flat, roll-off
• Cable: 15.2 m (50\') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable, terminated with TA3F-type connector
• Finish: White

What's in the Box?

• ES933
• ES933 MicroLine Capsule

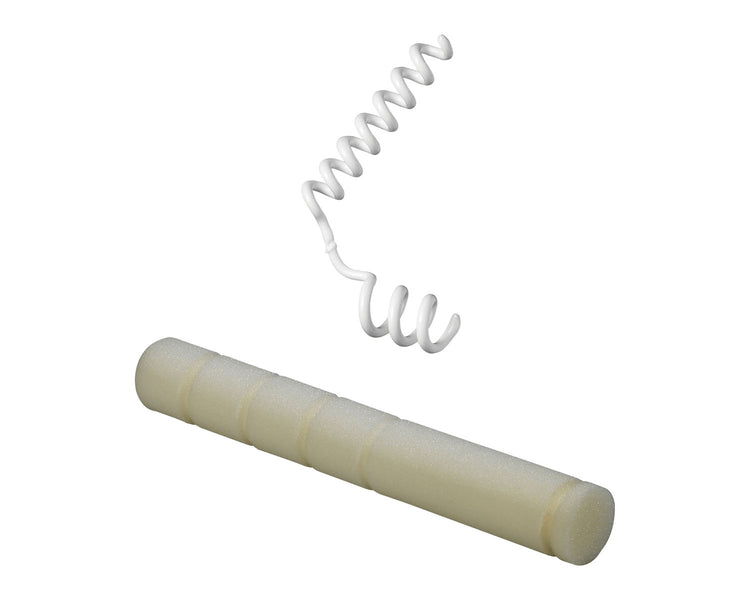

• AT8109(WH) two-stage foam windscreen
• AT8452(WH) steel hanger
