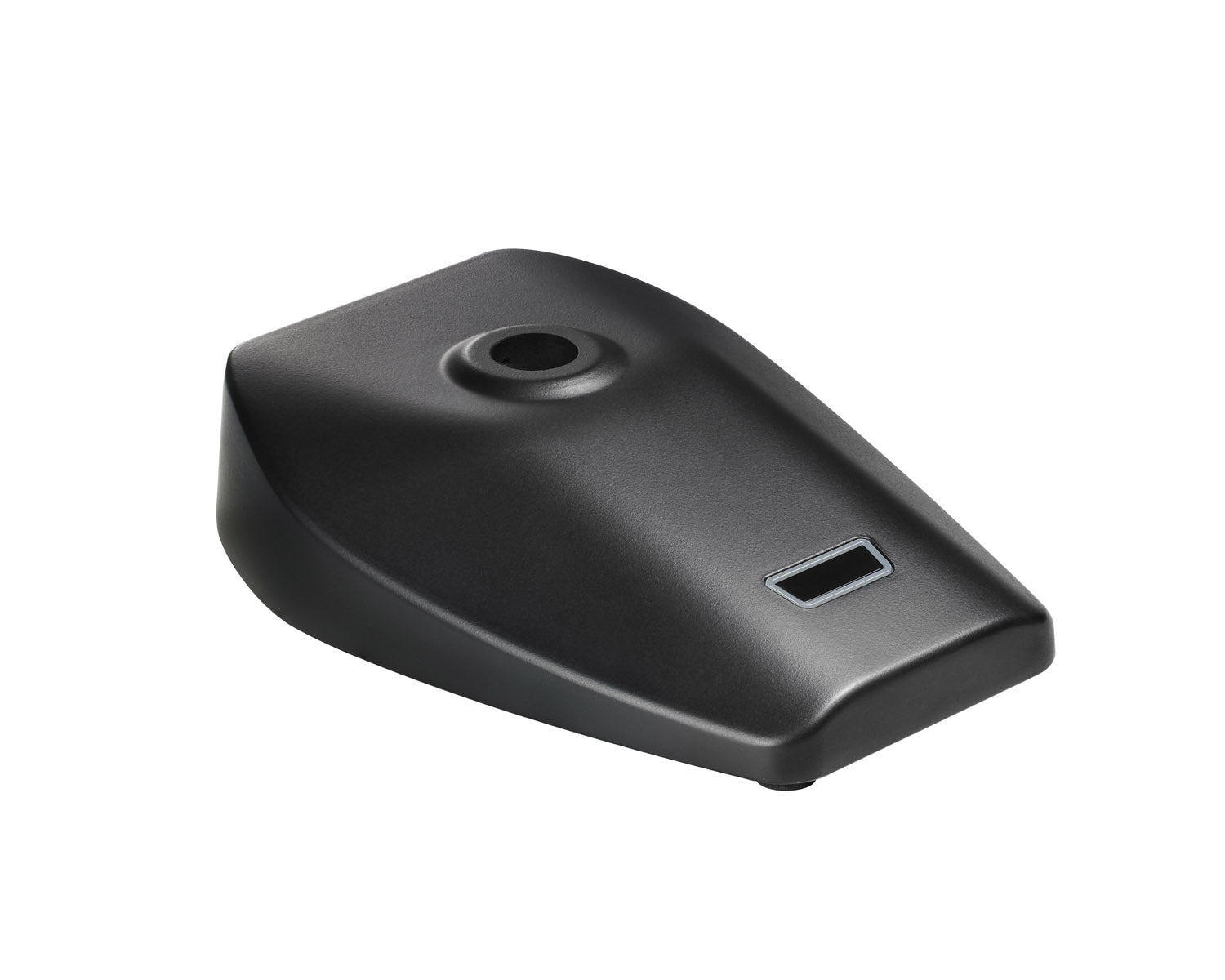

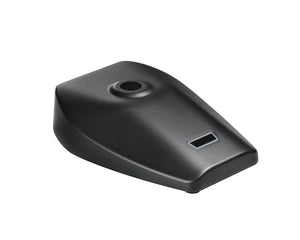

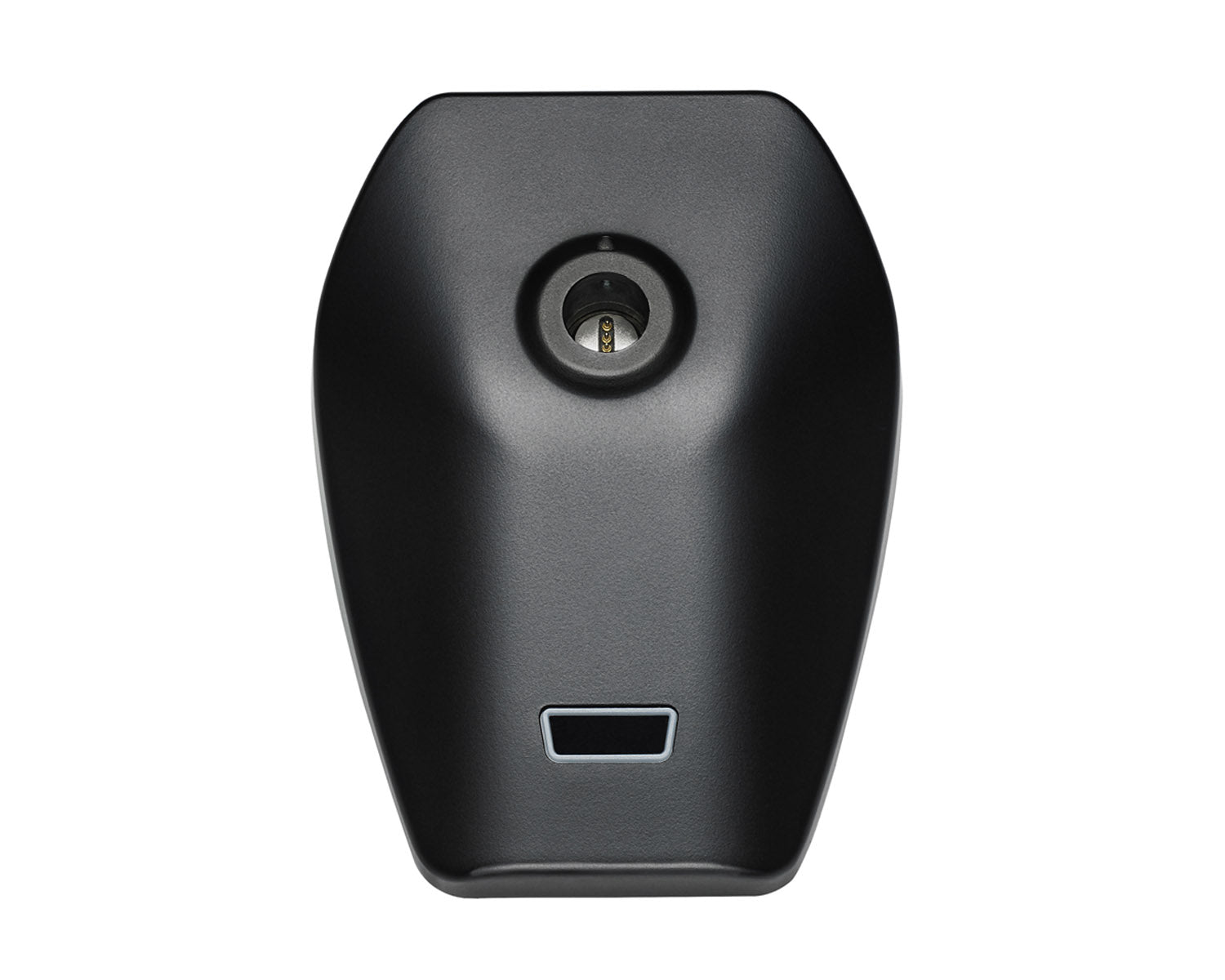

The ES8766RC desk stand power module works with ES925 goosenecks and microphone elements. The desk stand features a 5-pin TB5M-type output connector, heavy die-cast construction, and no-slip bottom pads to minimise coupling of surface vibration to the microphone. It is equipped with a touch-sensitive capacitive-type user switch with local and remote switching options. Locally, it can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute.” For enhanced control in conference and boardroom installations, the unit’s external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The desk stand is also equipped with a highly visible, single-state RGB LED status indicator and a UniSteep® filter that provides steep low-frequency attenuation to improve sound pickup without affecting vocal reproduction quality.

This power base can be interchanged with a variety of different condenser capsules (Cardioid, Hypercardioid & MicroLine®) and gooseneck lengths (6”, 12”, 15”, 18”, 21” & 24”)

This component is available in four different power modules (XLR, FM3, FM5 & DS5)

Download our Audio-Technica ES925 System Guide, located in the ‘Downloads’ tab.

Product Features

• 5-pin desk stand power module for use with ES925 goosenecks and microphone elements
• Logic I/O capability permits control of remote devices from the desk stand’s touch-sensitive capacitive-type user switch
• Capacitive touch switch can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute”
• Equipped with highly visible, single-state RGB LED status indicator
• Integral UniSteep® filter provides steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Heavy die-cast construction and no-slip bottom pads minimize coupling of surface vibration to the microphone
• Available in four different power modules (XLR, FM3, FM5 & DS5)
• ES925 Compatible condenser capsules (Cardioid, Hypercardioid & MicroLine®)
• ES925 Compatible gooseneck lengths (6”, 12”, 15”, 18”, 21” & 24”)
• All product combinations available

Download our Audio-Technica ES925 System Guide, located in the ‘Downloads’ tab.

Product Specifications

General

• Impedance: 130 ohms
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Switches: LED colour x2: mic on, mic off
• Power Requirements: 22-52V DC
• Output Connector: TB5M-type

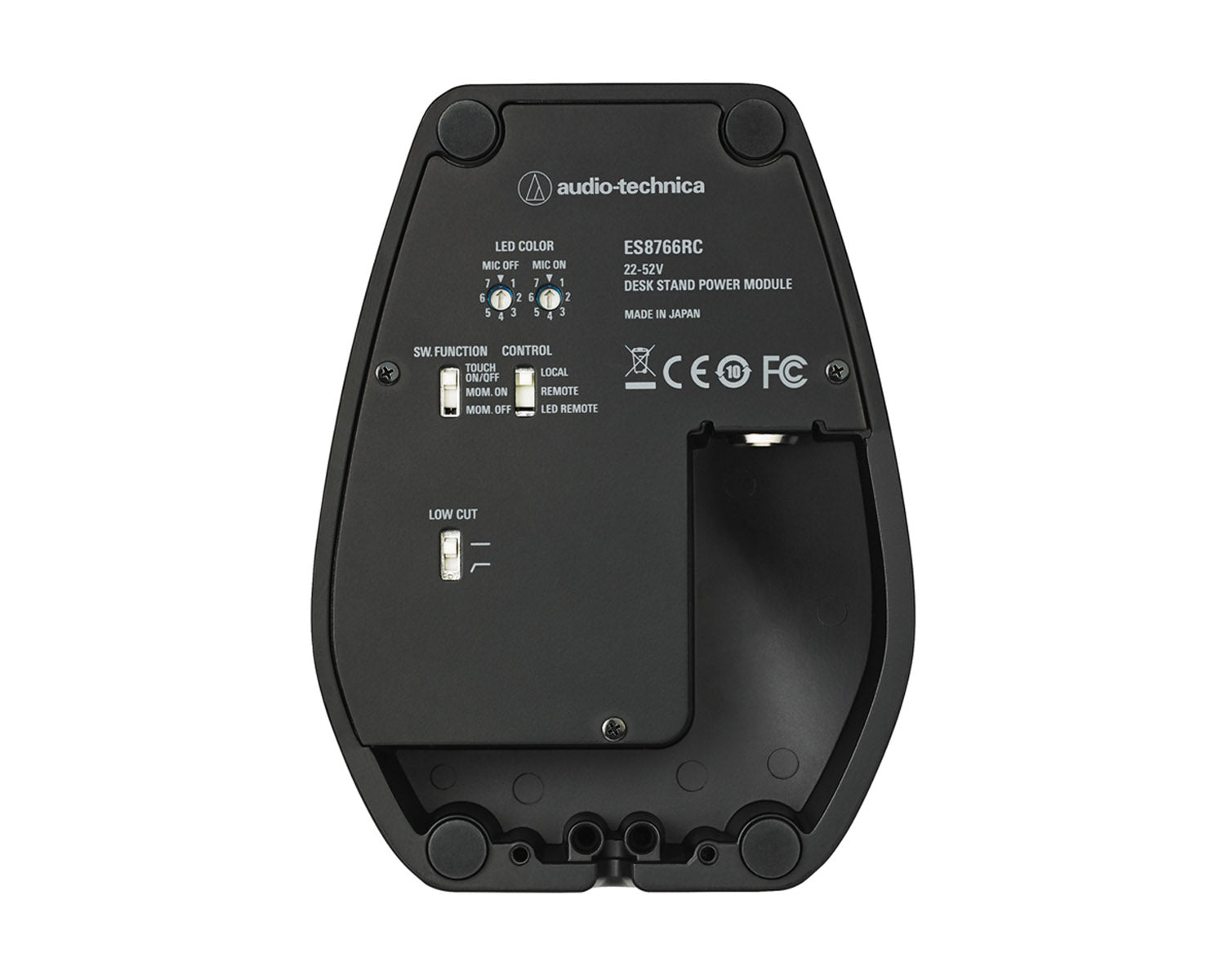

• Switch Logic: Local, remote, LED remote

Physical

• Weight: 640 g
• Dimensions: 97.0 mm W x 130.0 mm D x 33 mm H

What's in the Box?

• ES8766RC Desk Stand Power Module 5-Pin
• One pair of isolators
• Nut
• Set screw (M2 x 2)
• Hex wrench
