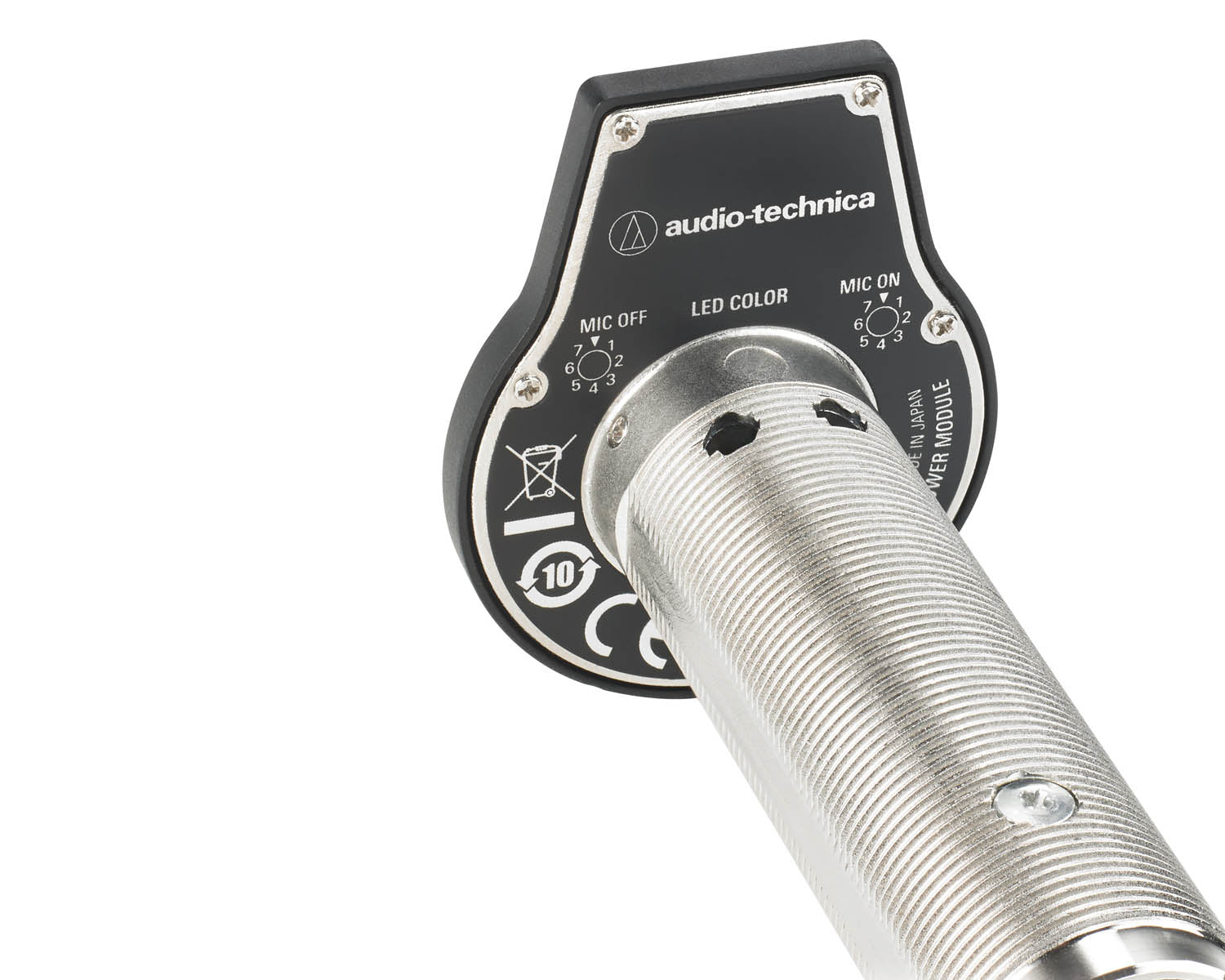

The ES8755RC 5-pin flush-mount power module works with ES925 goosenecks and microphone elements. The power module is equipped with a 5-pin XLRM-type output connector and a touch-sensitive capacitive-type user switch. For enhanced control in conference and boardroom installations, the unit’s external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The power module mounts unobtrusively in tabletops and comes with isolators that provide mechanical dampening of the mounting surface. The power module also features a highly visible, single-state RGB LED status indicator.

This power base can be interchanged with a variety of different condenser capsules (Cardioid, Hypercardioid & MicroLine®) and gooseneck lengths (6”, 12”, 15”, 18”, 21” & 24”)

This component is available in four different power modules (XLR, FM3, FM5 & DS5)

Download our Audio-Technica ES925 System Guide, located in the ‘Downloads’ tab.

Product Features

• 5-pin flush-mount power module for use with ES925 goosenecks and microphone elements
• Logic I/O capability permits control of remote devices from the power module’s touch-sensitive capacitive-type user switch
• Equipped with highly visible, single-state RGB LED status indicator
• Power module mounts unobtrusively in tabletops
• Included isolators provide mechanical dampening of mounting surface vibration
• Available in four different power modules (XLR, FM3, FM5 & DS5)
• ES925 Compatible condenser capsules (Cardioid, Hypercardioid & MicroLine®)
• ES925 Compatible gooseneck lengths (6”, 12”, 15”, 18”, 21” & 24”)
• All product combinations available

Download our Audio-Technica ES925 System Guide, located in the ‘Downloads’ tab.

Product Specifications

General

• Impedance: 130 ohms
• Switches: LED Colour x2: mic on, mic off
• Power Requirements: 22-52V DC
• Output Connector: Integral 5-pin XLRM-type
• Switch Logic: Remote, LED remote

Physical

• Weight: 75 g
• Dimensions: 38.0 mm W x 48.0 mm D x 90.8 mm H

What's in the Box?

• ES8755RC Flush Mount Power Module 5-Pin
• One pair of isolators
• Nut
• Set screw (M2 x 2)
• Hex wrench
