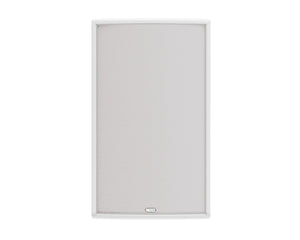

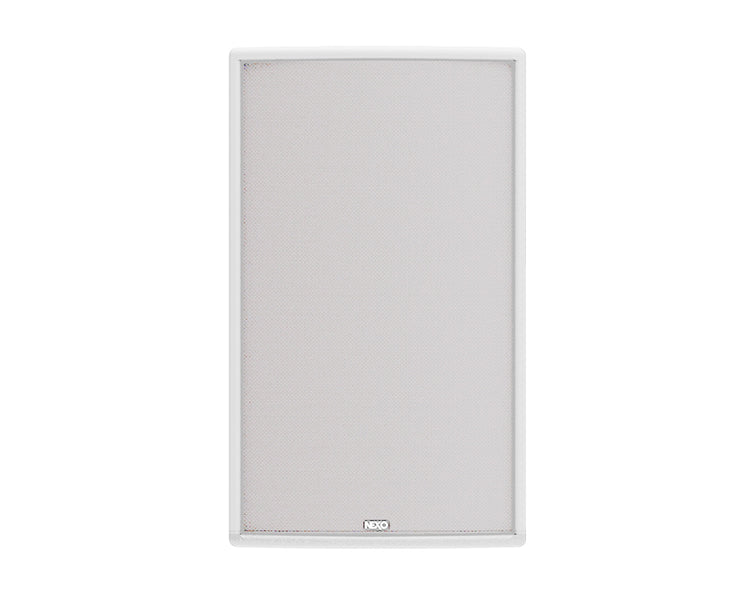

Measuring 531mm high x 316mm wide x 285mm deep and weighing 14.8Kg, the ePS10 combines a high excursion 10-inch LF driver with a 1.4- inch voice coil HF driver in a trapezoidal cabinet constructed in a bass-reflex design from 15mm baltic birch plywood. Achieving a peak SPL of 130dB with a frequency range of 70Hz to 20kHz, the ePS10 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.

Product Features

• High power (130 dB peak) point source loudspeaker for fixed installation
• Lightweight (14.8.kg / 32.6lbs) design
• Robust 15 mm Birch plywood enclosure
• NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
• IP55 protection level
• Comprehensive range of accessories for deploying in a wide variety of fixed installation applications
• White finish with custom RAL colours available

Product Specifications

• Frequency Response @-6 dB: 70 Hz to 20 kHz
• Sensitivity 1W@1m: 101 dB SPL Nominal
• Peak SPL@1m: 130 dB
• Vertical Dispersion: +25°/-30°
• Horizontal Dispersion: 50° to 100° Asymmetrical
• Crossover Frequency: 70 Hz, 120 Hz
• Nominal Impedance: 8 Ω
• Recommended Power: 500 to 800 Watts / 8 Ohms
• Number of ways: 2 way passive
• LF Component: 10” 8 Ohms long excursion neodymium driver
• HF Component: 1.4” diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn
• Connectors: 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles)
• Compatible cables section: Cables from 0.75 mm² to 3.31 mm² (AWG 18 to 12) copper section
• Compatible cables outside diameter: Cable with maximum outside diameter of 9 mm
• Rigging points: 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
• Material: 15 mm thick birch plywood body and galvanized grill
• Finish: White structural paint (RAL9005 or Custom RAL upon request)
• Front Finish: UV & Fire resistant acoustic fabric
• Height x Width x Depth: 531mm x 316mm x 285mm (14.4” x 7.8” x 7.1”)
• Weight: Net: 14.8 kg (17.9 lbs)
• Operating temperature range: 0°C - 40 °C (32° F - 104° F)
• Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
• IP Rating: IP55
