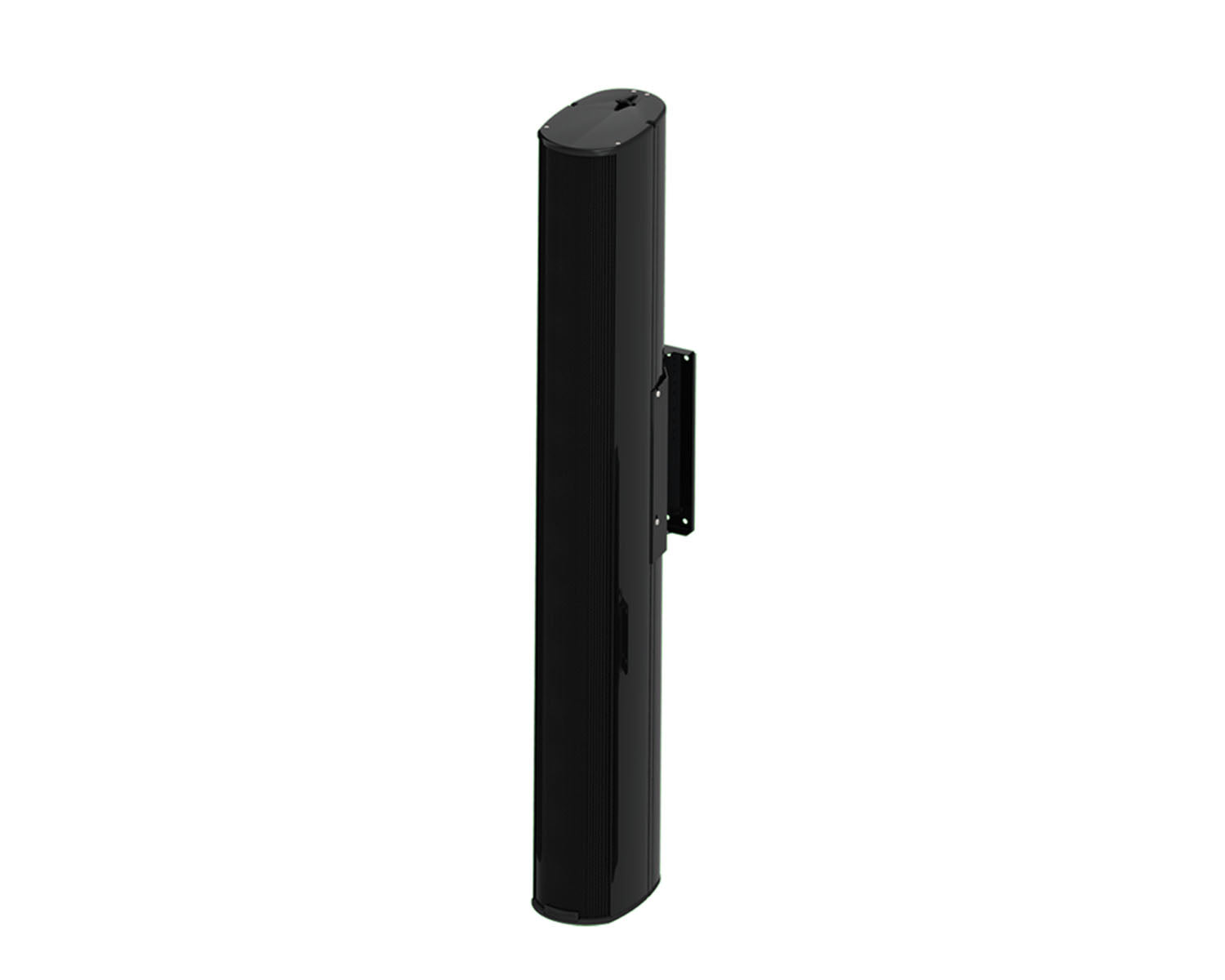

The ENT212 is an all-weather column line array housed in an attractive, heavy duty extruded PVC enclosure. Twice the height of the ENT206, the ENT212 provides vertical directional control at far lower frequencies than the ENT206, plus enough power to cover medium-sized venues as the primary system. The ENT212 excels in noisy environments - gymnasiums and other athletic venues are just two of many examples - while its high-fidelity response makes it suitable for more subtle applications such as scholastic auditoriums, houses of worship, jazz and folk music clubs, corporate AV presentations, and much more. The excellent vertical directivity conquers large, reverberant spaces, providing excellent intelligibility and musicality. With the addition of subwoofers, an ENT212 system is capable of meeting a vast range of requirements, from the soccer stadium to the performing arts center. The ENT212 employs twelve high-power LF cone drivers and four Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a single-amped configuration that employs a 4-way frequency shaded crossover.

All ENTASYS 200 models include selectable low impedance or 70/100-volt operation, a rugged pan-tilt mounting bracket and a permanently mounted safety eyebolt. The paintable enclosures share a 4-5/8-inch wide by 7-1/2-inch deep “teardrop” footprint.

Product Features

• Advanced passive crossover technology and dynamic protection circuitry
• Compact Ribbon Emulator high frequency technology for narrow, well-behaved vertical directivity control
• All-weather construction for indoor/outdoor usage
• Simple installation using the included pan-tilt mounting bracket
• Selectable low impedance or 70V/100V operation
• Constant-directivity vertical dispersion
• Outdoor ready
• Finish: Black
• All ENTASYS 200 models (Black): ENT203, ENT206, ENT212, ENT220
• All ENTASYS 200 models (White): ENT203, ENT206, ENT212, ENT220

Applications

• Houses of Worship
• Bars and restaurants
• Meeting rooms
• Conference rooms
• Court rooms
• Auditoria
• Theatres
• Museums
• Airports
• Stadium concourses
• Gymnasiums
• Athletic facilities
• Multipurpose outdoor and indoor venues

Product Specifications

• Dimensions (H x W x D): 39.1" x 4.62" x 7.47" (993 x 117 x 189 mm)
• Finish: Black high gloss PVC paintable, with dual-layer powder-coated aluminium grille
• 70V/100V Autoformer: 120W, 60W, 30W, 15W, 7.5W(@70V only)
• Continuous Max Output: 121 dB (127 dB Peak)
• Operating Range: 100 Hz - 22 kHz
• Power Handling: 325W continuous @ 8 ohms
• Nominal Beamwidth (H x V): 140° x 15°
• Sensitivity (1W/1m): 96 dB
• Transducers: LF - 12 x 80mm Excursion Mylar HF - 4 x 3-element Compact Ribbon Emulator

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
