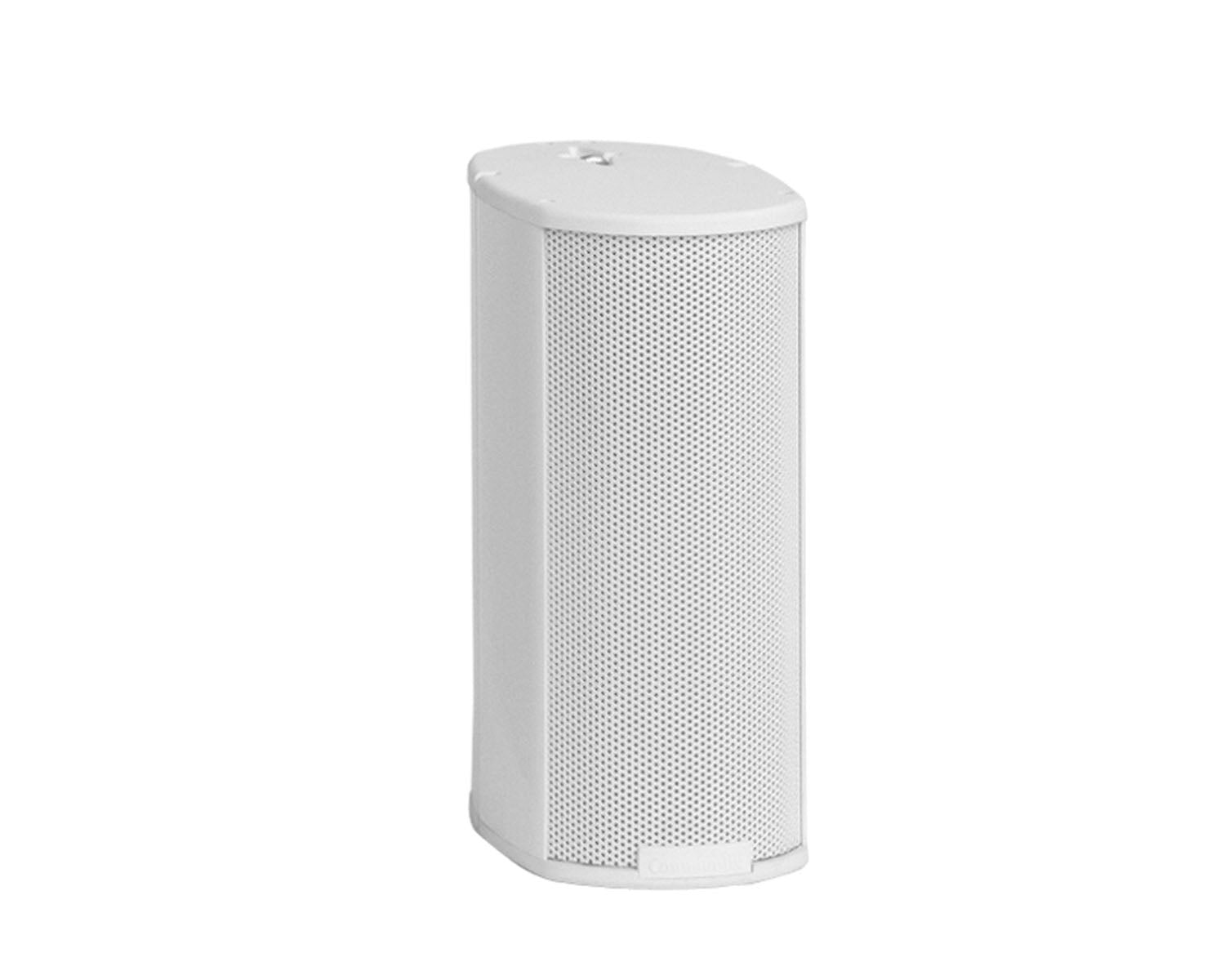

The smallest member of the ENTASYS 200 family, the ENT203 is an excellent choice when sonic clarity and predictable directional control are required from a diminutive and unobtrusive loudspeaker system. Typical applications include music and speech reinforcement for small houses of worship, hotel meeting rooms, transit stations, background and foreground music for hotels, resorts and themed attractions, and much more. Additionally, the ENT203 complements and supports larger loudspeakers when used for delay fill or area fill, particularly in reverberant environments where controlled directivity is vital for intelligibility. The ENT203 employs three high-power LF cone drivers and one Community CRE (Compact Ribbon Emulator) HF tweeter array in a two-way, single-amped configuration.

All ENTASYS 200 models are include selectable low impedance or 70/100-volt operation, a rugged pan-tilt mounting bracket and a permanently mounted safety eyebolt. The paintable enclosures share a 4-5/8-inch wide by 7-1/2-inch deep “teardrop” footprint.

Product Features

• Advanced passive crossover technology and dynamic protection circuitry
• Compact Ribbon Emulator high frequency technology for narrow, well-behaved vertical directivity control
• All-weather construction for indoor/outdoor usage
• Simple installation using the included pan-tilt mounting bracket
• Selectable low impedance or 70V/100V operation
• Constant-directivity vertical dispersion
• Outdoor ready
• Finish: White
• All ENTASYS 200 models (Black): ENT203, ENT206, ENT212, ENT220
• All ENTASYS 200 models (White): ENT203, ENT206, ENT212, ENT220

Applications

• Houses of Worship
• Bars and restaurants
• Meeting rooms
• Conference rooms
• Court rooms
• Auditoria
• Theatres
• Museums
• Airports
• Stadium concourses
• Gymnasiums
• Athletic facilities
• Multipurpose outdoor and indoor venues

Product Specifications

• Continuous Max Output: 111 dB (117 dB Peak)
• 70V/100V Autoformer: 30W, 15W, 7.5W, 3.75W, 1.88W (@70V only)
• Nominal Beamwidth: (H x V): 140° x 40°
• Finish: White high gloss PVC paintable, with dual-layer powder-coated aluminium grille
• Dimensions: (H x W x D): 10.3" x 4.62 " x 7.47 " (262 x 117 x 189 mm)
• Operating Range: 150Hz – 22 kHz
• Sensitivity (1W/1m): 92 dB
• Power Handling: 75W continuous @ 16 ohms
• Transducers: LF - 3 x 80mm Excursion Mylar HF - 1 x 3-element Compact Ribbon Emulator

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
