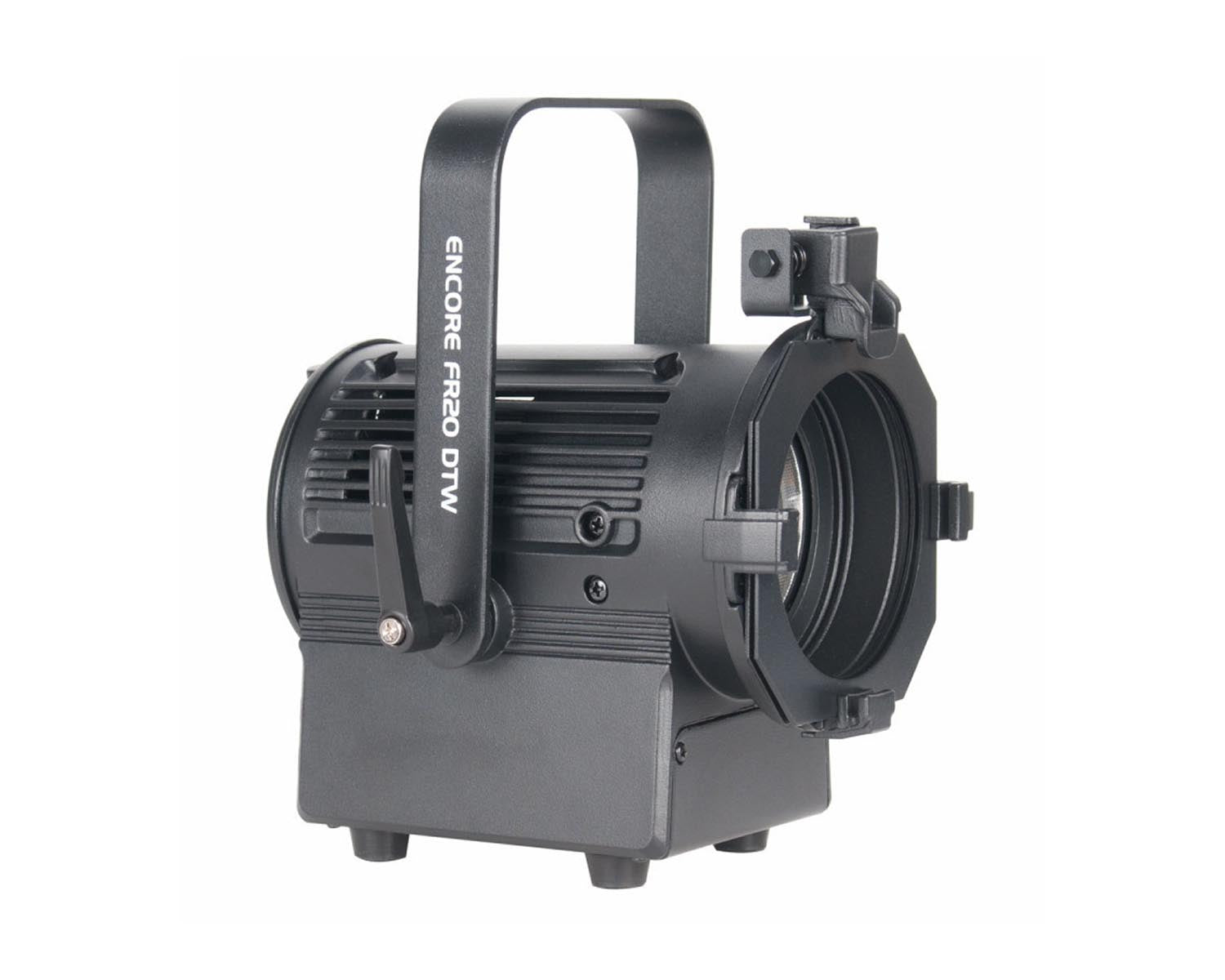

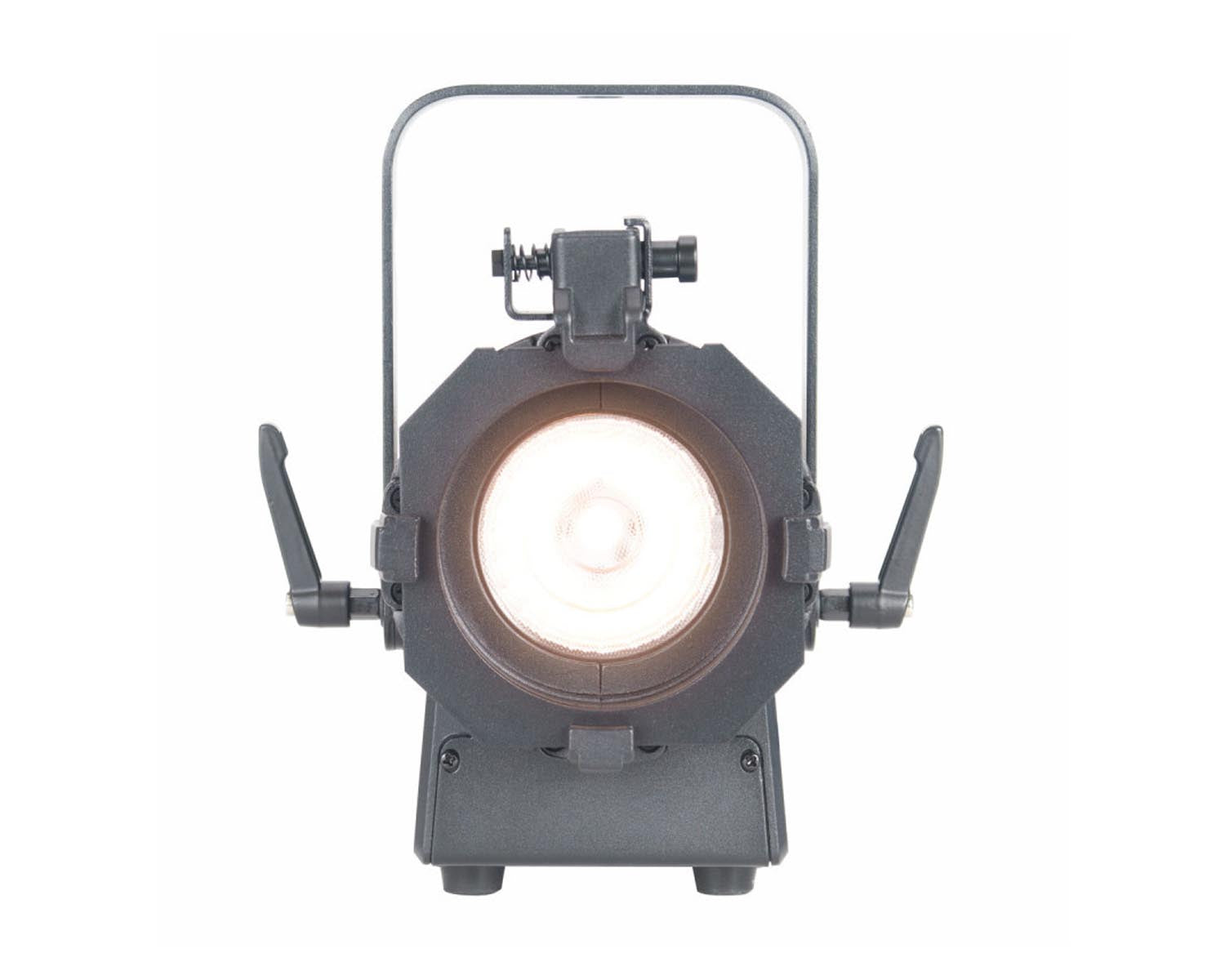

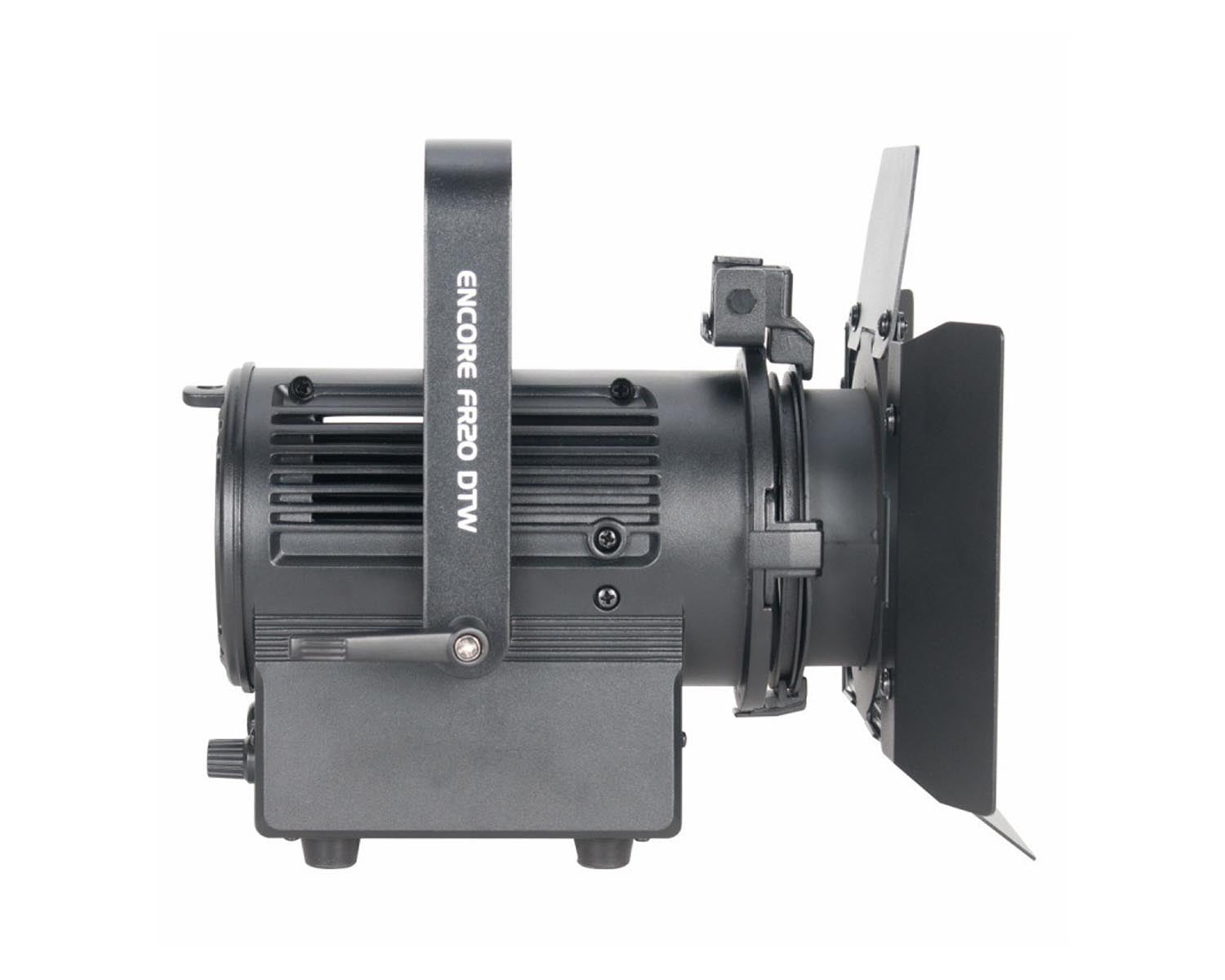

Part of the Encore stage lighting series, the Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine. It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable - compatible with ADJ dimmer packs or standard wall dimmers.

The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light and an additional lens filter to change the beam angle from 19-degrees to 45-degrees.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Equipped with a 2-inch Fresnel lens
• Powered by a 17W warm white LED engine
• Produces a soft-edged beam for stage, theatre and commercial use at 3000K

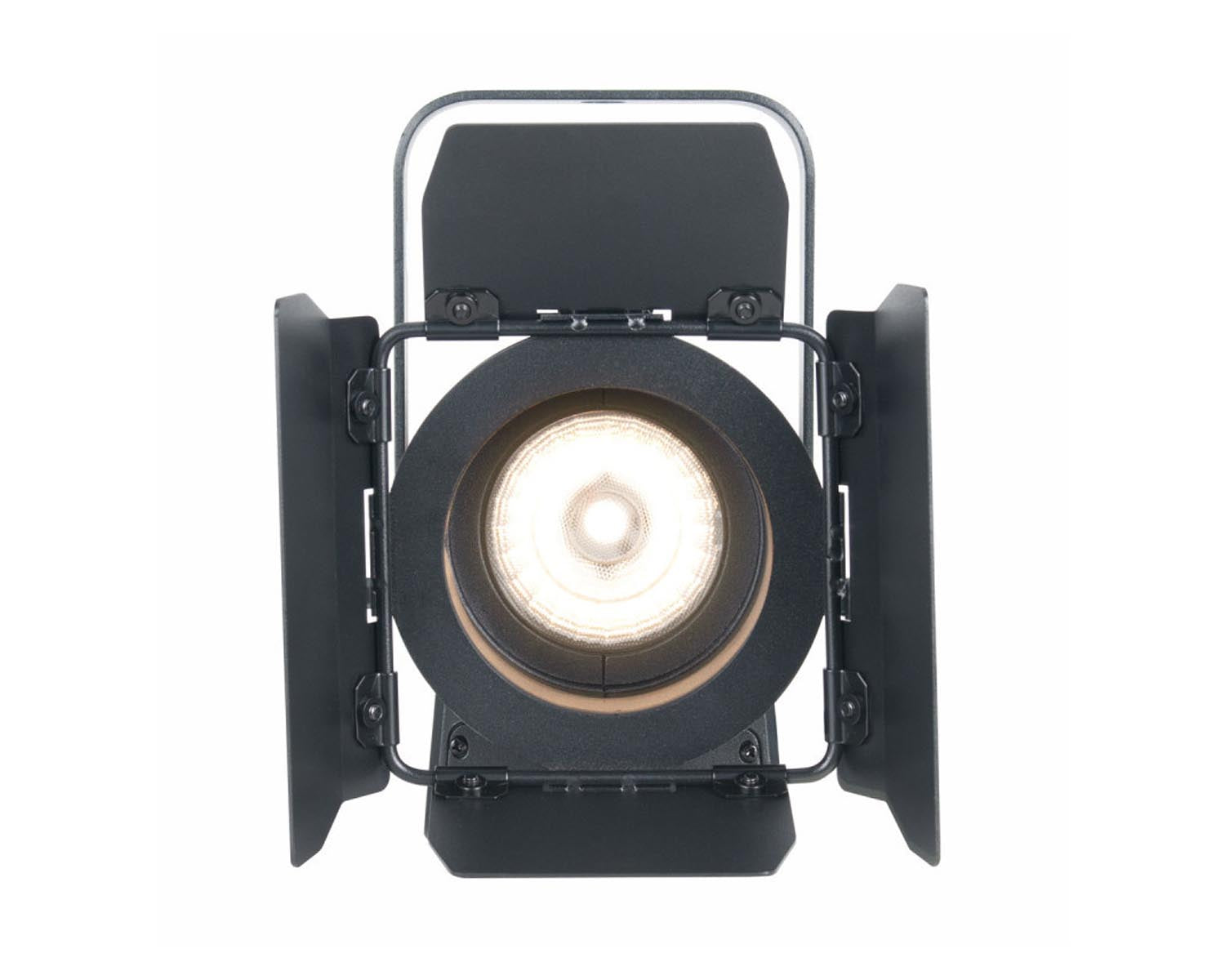

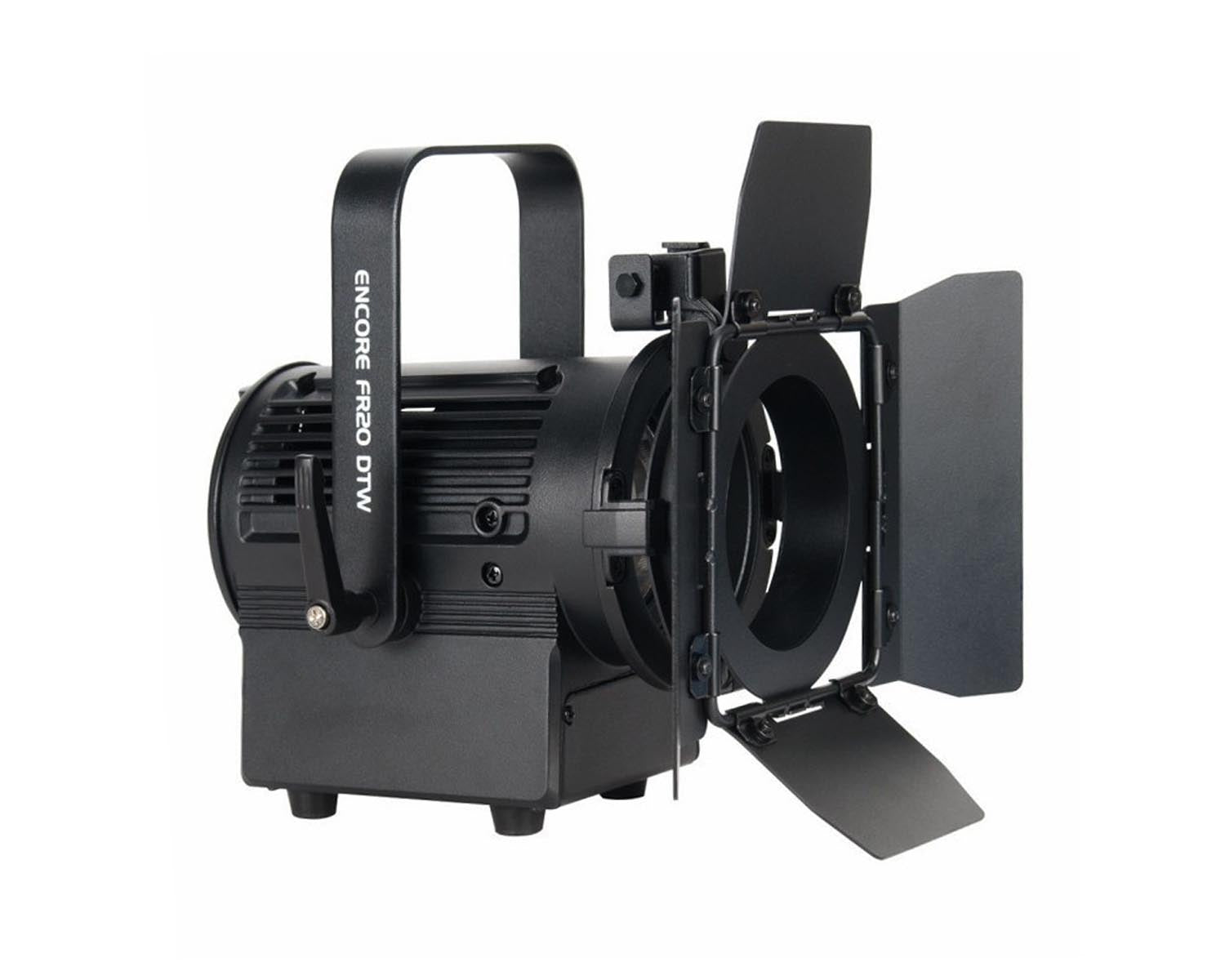

• Comes equipped with barn doors to adjust the beam dispersion
• Manual knob to change the dimming from 100% to 0%
• Encore FR20 DTW comes equipped with a hanging bracket

Product Specifications

Source

• Light Source: 1 WW COB-LED
• Individual LED wattage : 17W
• Average LED lifetime : approximately 50,000 hrs.
• Colour Temperature: 3000K
• CRI: 92

Optics

• Beam Angle: 19 degrees
• Additional 45-degrees Lens-Kit included

Control

• 2 operational Modes : Manual Dimming Potentiometer or DMX Control via external TRIAC Dimmer
• Electronic Dimming: 0 - 100% via potentiometer

Colours

• Warm White 3000K

Construction

• Robust extruded aluminium housing

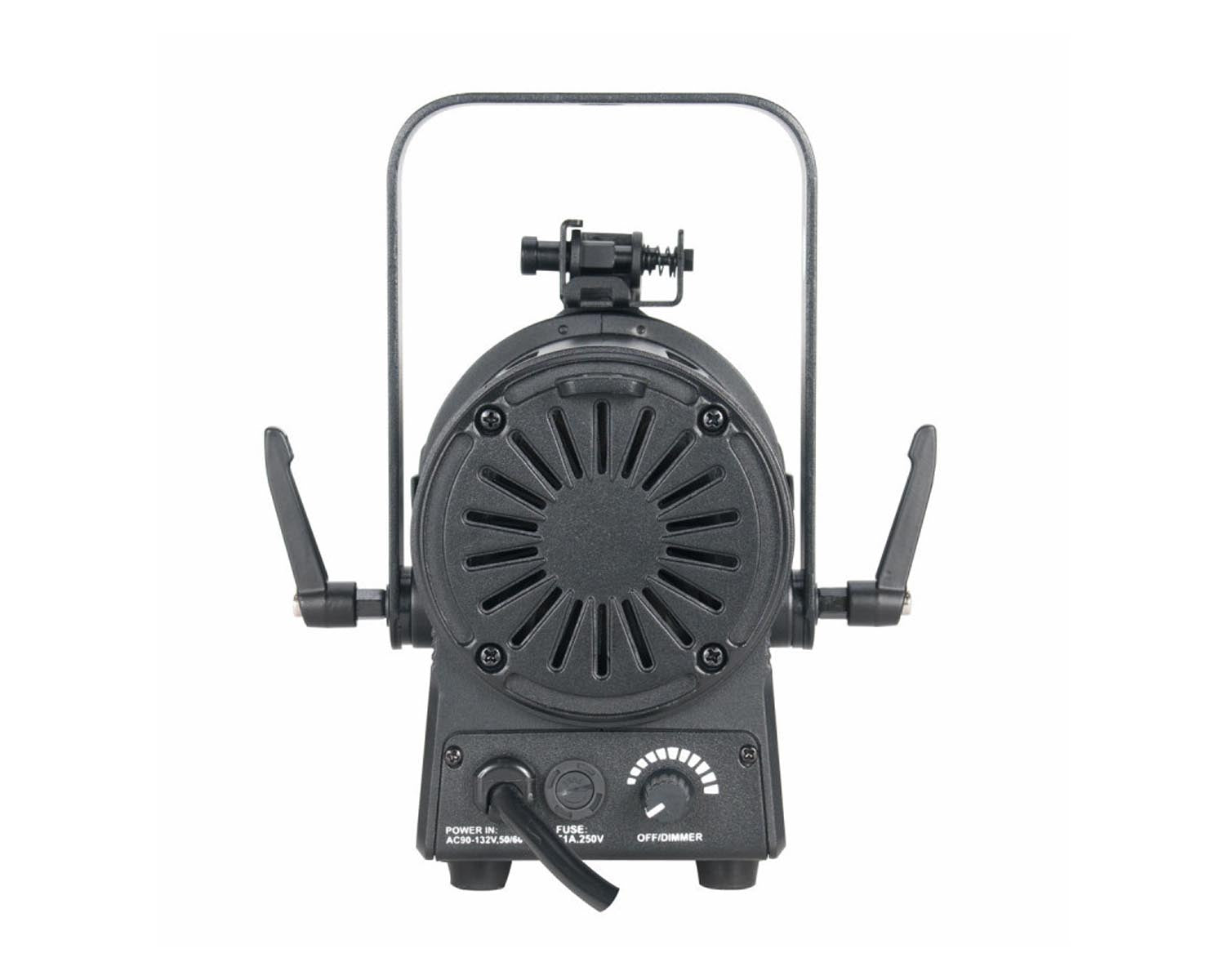

• Manual Dimming knob on rear
• Barndoors & Gel Filter Frame included

Electrical

• Multivoltage 100-240V 50/60Hz
• Power Consumption: 17W

Connections

• Fixed Power Cable

Dimensions & Weight

• Dimensions (LxWxH):
  • Without Barndoors: 185 x 160.89 x 209.85mm
  • With Barndoors: 269.21 x 160.89 x 209.85mm
• Weight:
  • Without Barndoors: 1,95 kg.
  • With Barndoors: 2,25 kg
