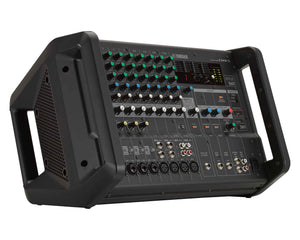

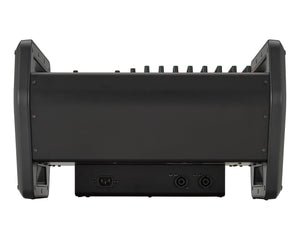

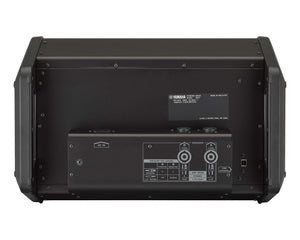

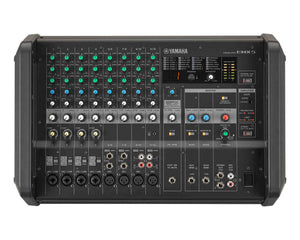

YAMEMX5 - Yamaha EMX5 12Ch Lightweight Powered Mixer Amp 630 and 630W Image 1

YAMEMX5 - Yamaha EMX5 12Ch Lightweight Powered Mixer Amp 630 and 630W Image 2

YAMEMX5 - Yamaha EMX5 12Ch Lightweight Powered Mixer Amp 630 and 630W Image 3

YAMEMX5 - Yamaha EMX5 12Ch Lightweight Powered Mixer Amp 630 and 630W Image 4

The new EMX5 were designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

Product Features

2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006)
2x 500W [4Ω], 2x 370W [8Ω] (1kHz THD+N less than 1% CEA2006)
Powerful & High Efficiency Class-D Amplifier
12 Line Inputs (8 mono + 4 stereo)
High-Z input (channel 4) to connect guitars or basses directly
1-Knob Master EQ™
Onboard Feedback Suppressor
Comprehensive, professional 24 different effects
Metal chassis for extended operation and robustness
Large handles for extreme portability and protection
Universal power supply eliminates concern on power fluctuations
Optional rack-mount kit available

Product Specifications

I/O

Inputs: TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
Phantom power: +48 V
Outputs: SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
Control and others: FOOT SWITCH : Effect Mute on/off

Bus

Stereo: 1, AUX: 2 (Including FX)

Input Channel Function

PAD: 30 dB (CH1-4)
Hi-Z: Supported (CH4)
HPF: 80 Hz, -12 dB/oct. (CH1–3)
COMP: 1-knob COMP (CH1–4)
EQ HIGH: 10 kHz +15 dB / -15 dB (Shelving)
EQ MID: 2.5 kHz +15 dB / -15 dB (Peaking)
EQ LOW: 100 Hz +15 dB / -15 dB (Shelving)

On-Board Processors

DSP: SPX Algorithm 24 programs, Feedback suppressor, Graphic equalizer, Speaker processor

On-Board Amplifiers

Maximum output power @4ohms: 1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W
Maximum output power @8ohms: 1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W

Level Meter

2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)

Frequency Response

Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz

Total Harmonic Distortion

Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)

Hum & Noise Level

Equivalent input noise: -117 dBu (Noise is measured with A-weighting filter)
Residual output noise: Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)

Crosstalk

-85 dB (1 kHz, Measured with 1 kHz band pass filter)

Protection Circuit

Load protection: DC-fault
Amplifier protection: Over heat protection, Over current protection, Integral power protection
Power supply protection: Over heat protection, Over current protection
