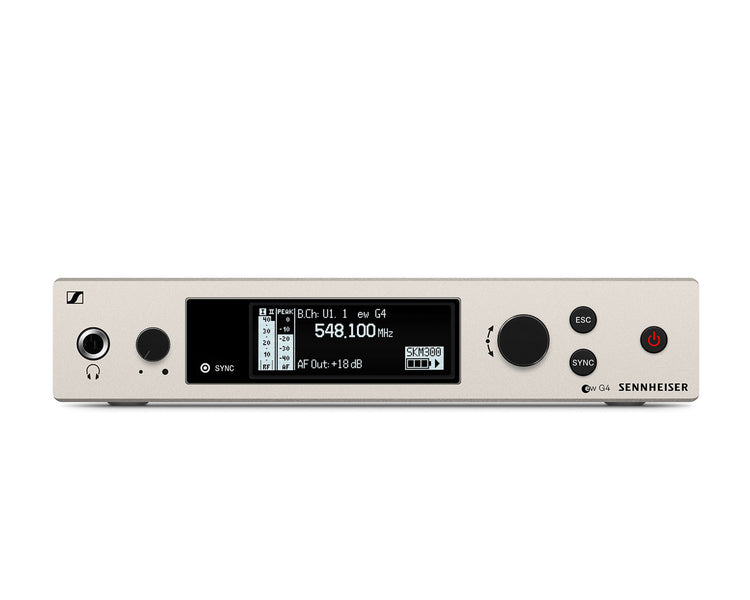

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control with increased bandwidth and transmission power, ready to take the world‘s biggest live stages. For evolution wireless G4 300/500 Series systems.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display
• Easy to use, fast setup time
• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
• Up to 88 MHz bandwidth, up to 32 channels
• Increased RF output power (10/30/50 mW)
• Transmission Range: up to 100 meters / 330 feet
• Compatible with wireless speaker system LSP 500 PRO
• RC (remote control) switch available for the bodypack transmitter

Product Specifications

General

• Modulation: Wideband FM
• Frequency ranges
  • Aw+: 470 - 558 MHz
  • AS: 520 - 558 MHz
  • Gw1: 558 - 608 MHz
  • Gw: 558 - 626 MHz
  • GBw: 606 - 678 MHz
  • Bw: 526 - 698 MHz
  • Cw: 718 - 790 MHz
  • Dw: 790 - 865 MHz
  • JB: 806 - 810 MHz
  • K+: 925 - 937.5 MHz
• Receiving frequencies
  • Max. 2880 receiving frequencies, adjustable in 25 kHz steps
  • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
  • 6 frequency banks with up to 32 programmable channels
• Switching bandwidth: up to 72 MHz
• Nominal/peak deviation: ±24 kHz / ±48 kHz
• Receiver principle: True diversity
• Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
• Adjacent channel selection: Typically ≥ 75 dB
• Intermodulation attenuation: Typically ≥ 70 dB
• Blocking: ≥ 75 dB
• Squelch: 5 to 25 dBμV in steps of 2 dB
• Pilot tone squelch: Can be switched off
• Antenna inputs: 2 BNC sockets
• Compander system: Sennheiser HDX
• EQ presets (switchable, act on line and monitor outputs)
  • Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)
• Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
• Total harmonic distortion (THD): ≤ 0.9 %
• AF output voltage (at peak deviation, 1 kHz AF): 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
• Setting range: “AF Out” 48 dB (3 dB steps)
• Temperature range: -10 °C to +55 °C
• Power supply: 12 V DC
• Current consumption: 350 mA

Physical & Dimensions

• Height: 43mm
• Width: 212mm
• Depth: 202mm
• Weight: 980g

What's in the Box?

• EM 300-500 G4 true diversity receiver
• GA 3 rackmount set
• 2 rod antennas
• Power supply
• Quick guide
• Safety guide
• Manufacturer declaration sheet
