The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.

EV industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

Product Features

• 1600 W (peak), 129 dB peak SPL utilising high sensitivity transducer designed and engineered by EV for maximum punch
• High-output EVS-12L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction
• System reliability verified with over 500 hours of abuse testing and endurance testing
• Ideal for portable and installed applications
• Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish
• Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting
• Finish: Black

Product Specifications

General

• Colour: Black
• Axial Sensitivity (SPL, 1 W @ 1 m): 93dB

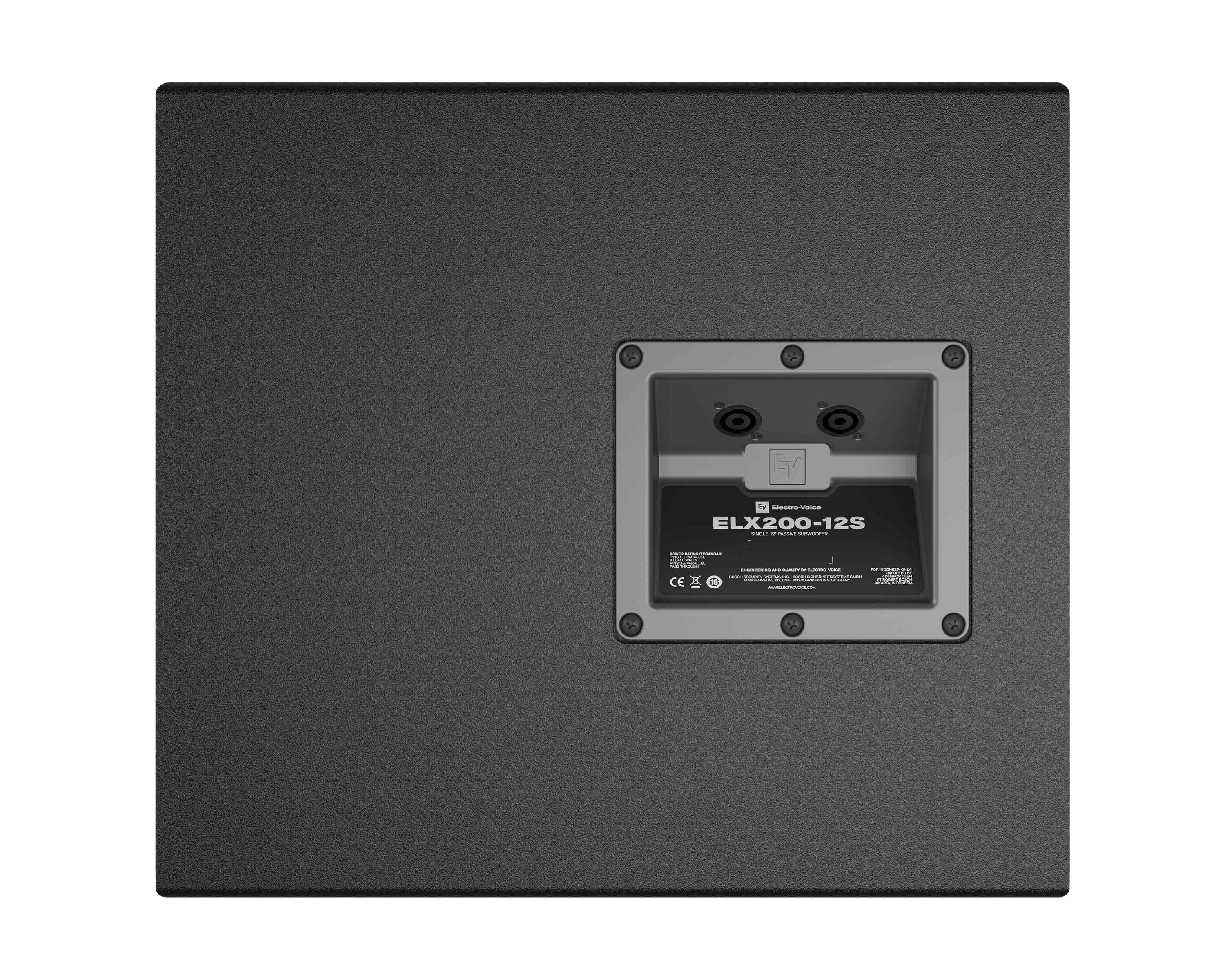

• Connector Type: Dual NL4
• Enclosure Material: 15 mm plywood with durable polyurea top-coat finish
• Family: ELX200
• Frequency Range (-10 dB): 33 Hz - 300 Hz
• Frequency Response (-3 dB): 42 Hz - 220Hz
• Grille: 18 AWG steel with powdercoat
• LF Transducer: EVS-12L 300 mm (12 in)
• Max. SPL/1m (calc): 129dB
• Minimum Impedance: 6.9Ω
• Nominal Impedance: 8 Ω
• Power Handling (Continuous / Peak): 400 W/1600W
• Power Rating: 1600W
• Recommended High-Pass Frequency: 42Hz
• Speaker Type: Subwoofer

Physical & Dimensions

• Height: 397mm
• Width: 445mm
• Depth: 457mm
• Woofer Size: 12inch
• Weight: 20.2kg
