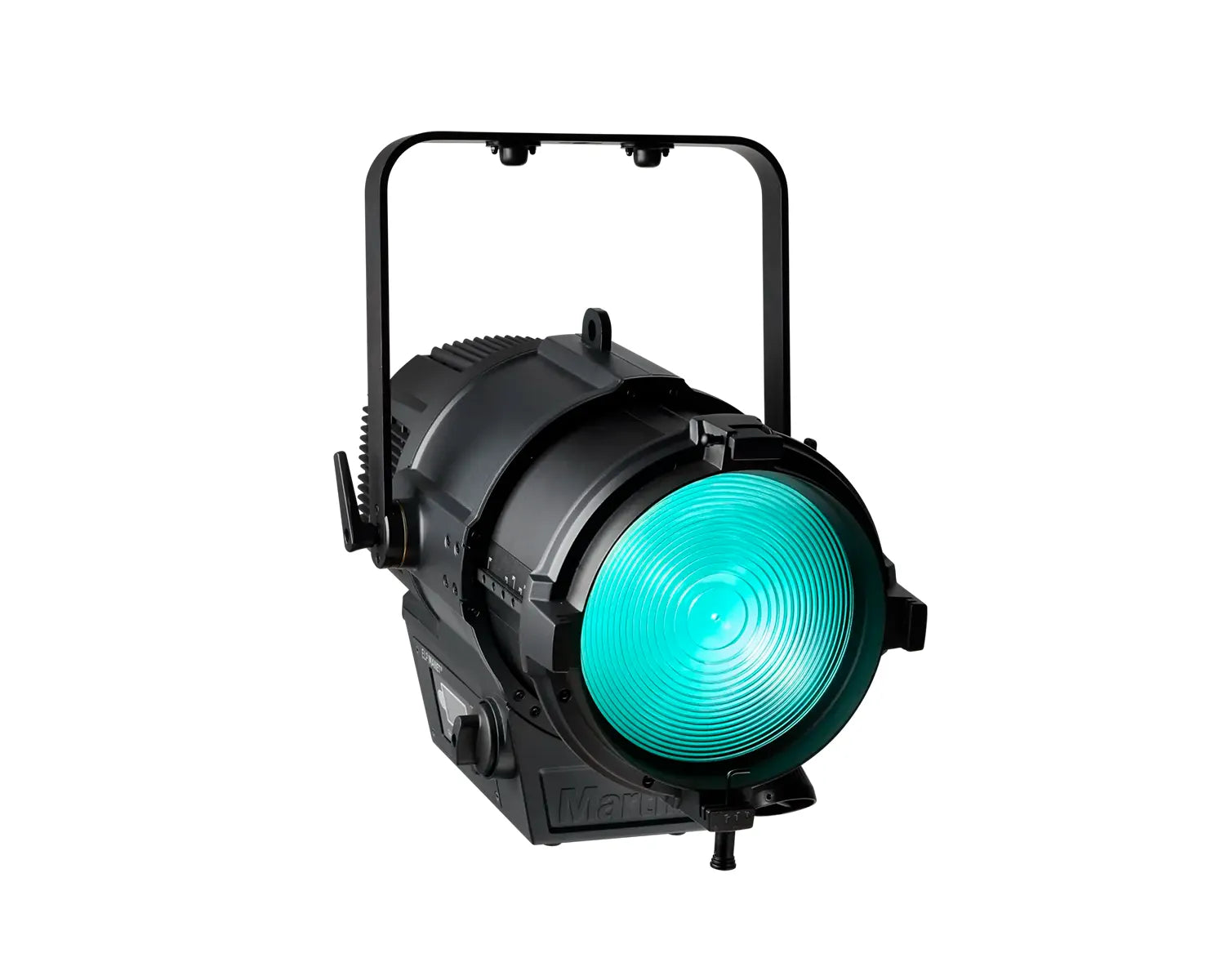

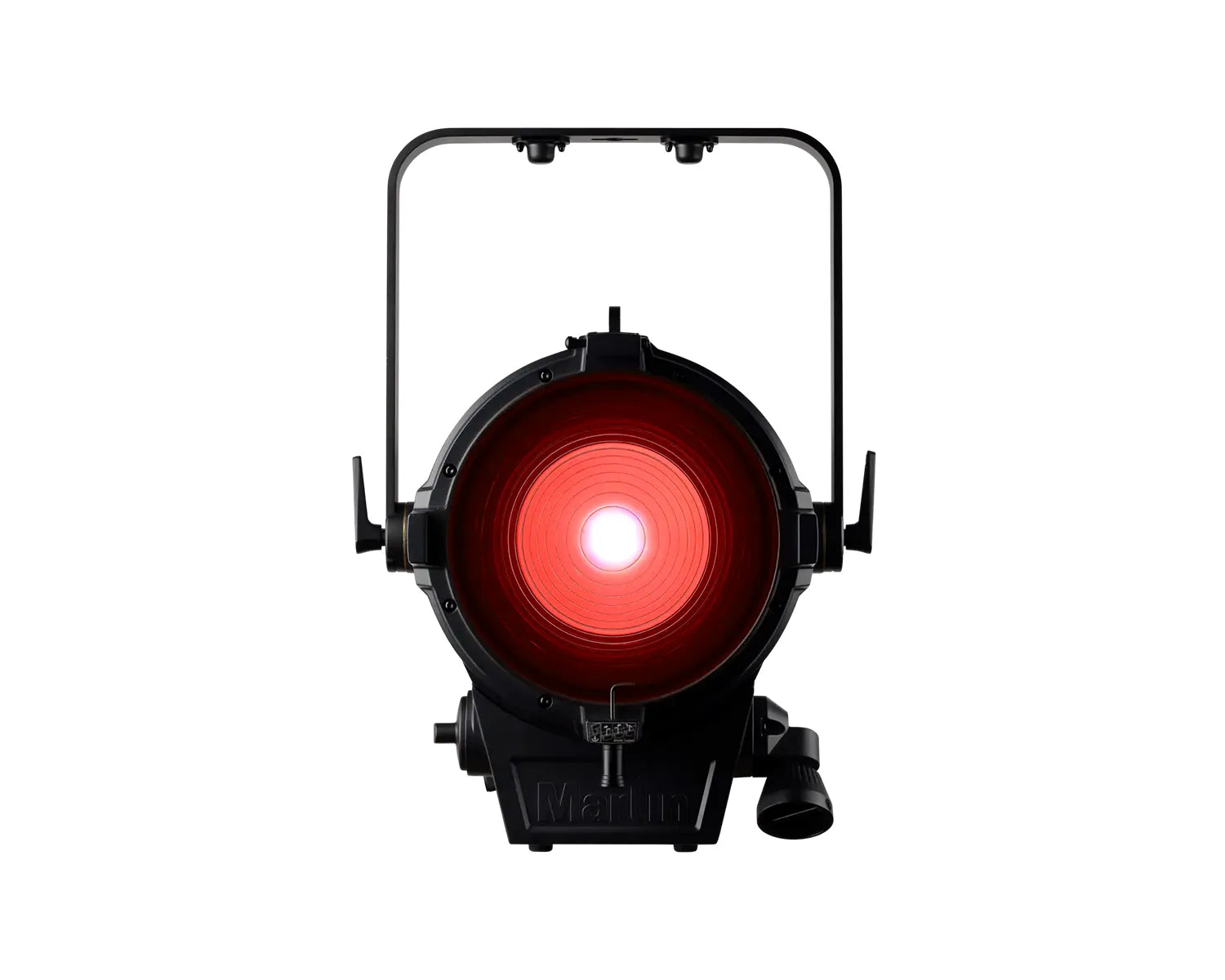

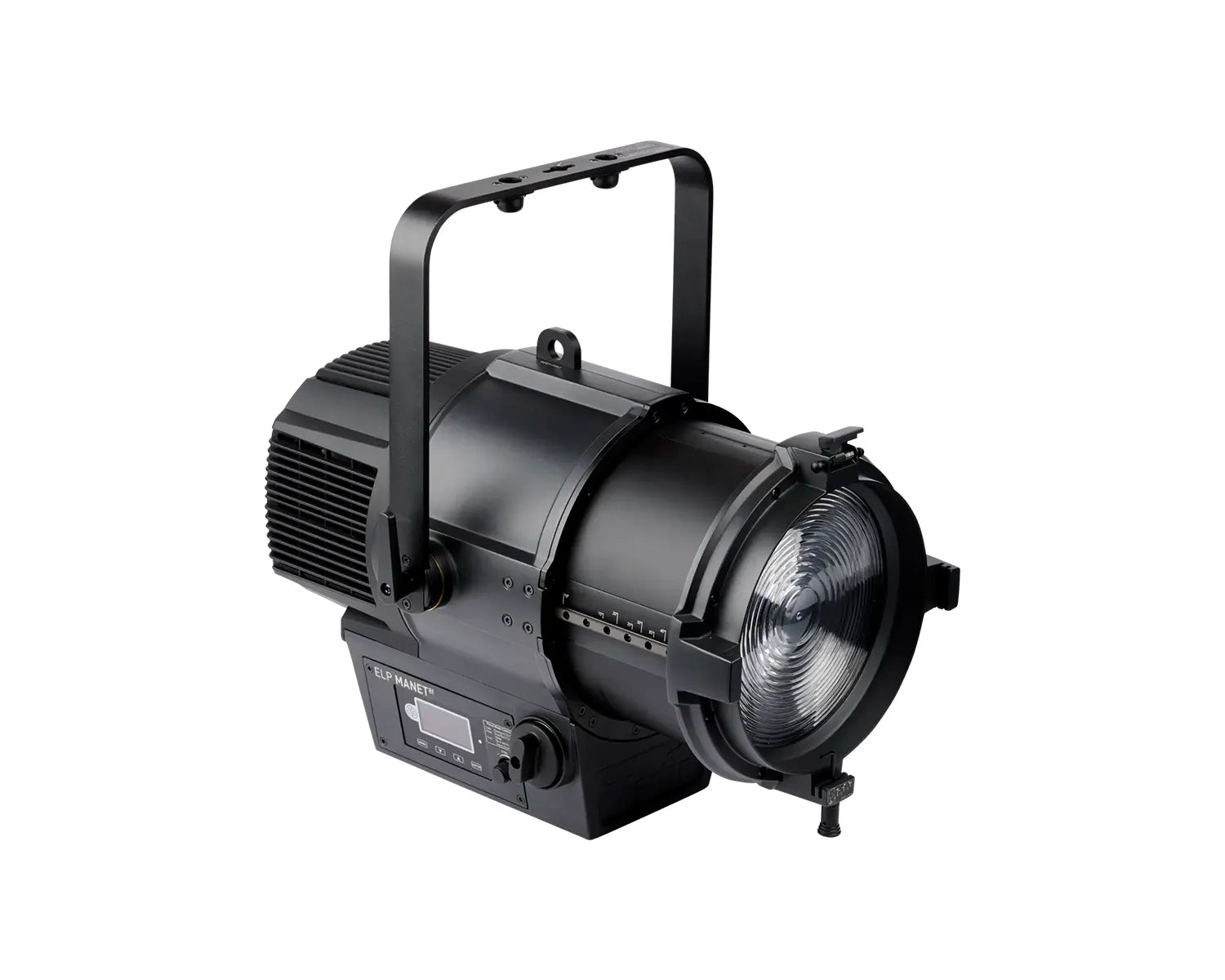

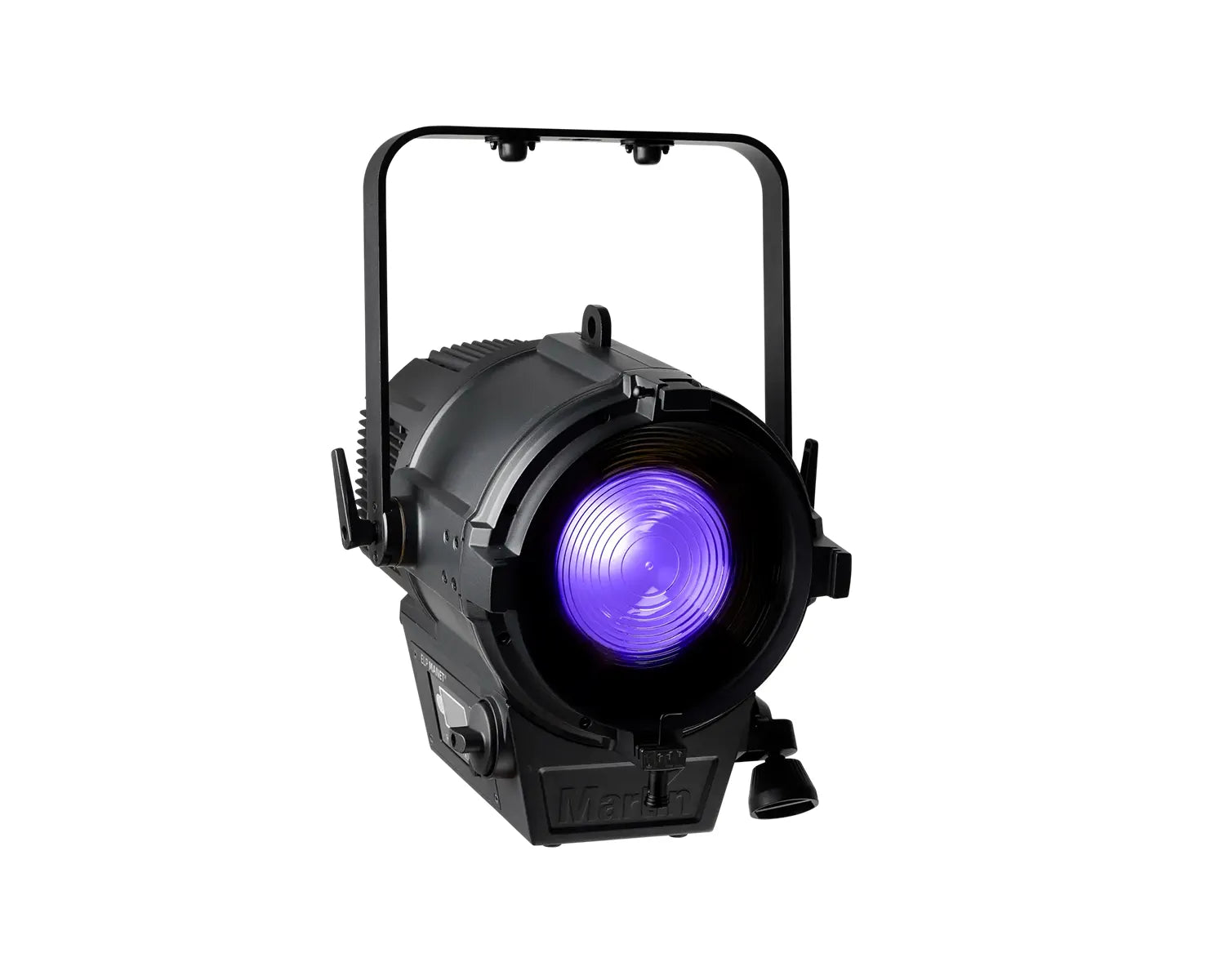

The ELP MANET 8f from Martin Professional redefines static fixture lighting with precision beam control. Inspired by the Latin stage direction "it remains", it pays tribute to Shakespearean theatre and timeless storytelling. Combining classic tungsten-style output with modern LED efficiency, it features a six-colour LED light engine for a rich, refined palette and a TM-30 Rf of 95 and a CRI score of 98. A carefully designed 8-inch (200 mm) Fresnel lens, 9 to 50 degree zoom, and anti-reflective barn doors, deliver smooth, artefact-free fades. With ultra-quiet operation, intuitive controls, and wireless configuration via Martin's Companion App, ELP MANET 8f offers unmatched performance, flexibility, and artistry-ensuring every moment remains unforgettable.

The innovative six-colour light engine featuring red, green, blue, amber, lime, and cyan LEDs, delivers a best-in-class TM-30 Rf of 95 and a CRI score of 98 for consistent, vibrant colour from saturated primaries to delicate pastels across the full colour-temperature spectrum.

A carefully designed 8-inch (200 mm) Fresnel lens produces a uniform wash with a classic soft edge while 13,000 lumens and a 9°-50° zoom range allow this fixture to excel in narrow throws and wide washes.

Precise adjustment from 1,850 K to 12,500 K in 50 K increments ensures seamless transitions between warm and cool whites as well as fully tracking the black body line via the onboard calibration system

Smooth and precise manual zoom control via the onboard dual controls coupled with the optional pole operated yoke set allows for quick and easy focusing from stage to studio, intuitive menu and control options, including NFC compatibility with the Martin Companion Mobile app that simplifies setup and operation.

Product Features

• 13,000+ Lumen Output
• 6-Colour Light Engine with Red, Green, Blue, Amber, Lime, and Cyan LEDs
• Fully Linear 1,850–12,500 K Colour Temperature Control System
• Carefully designed 8-inch (200 mm) Fresnel Lens
• Wide Colour Gamut
• Class-Leading Light Quality
• 9°–50° Manual Zoom Lens
• High-Resolution Low-End Dimming

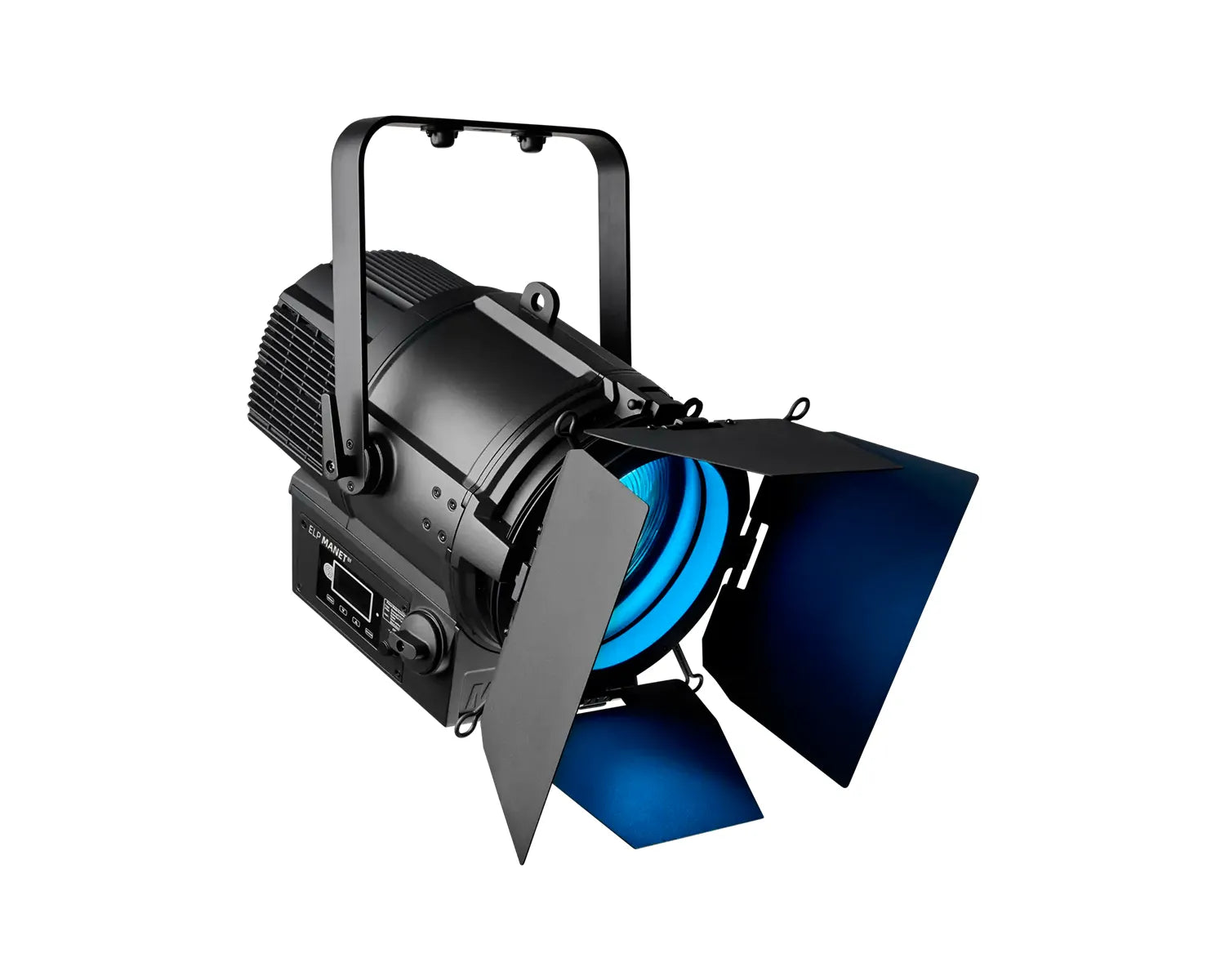

• Anti-Reflective Barn Doors
• Flexible Mounting Options
• Intuitive Control Interface
• Simple RGB Control with Linear CTC and Tint Channels

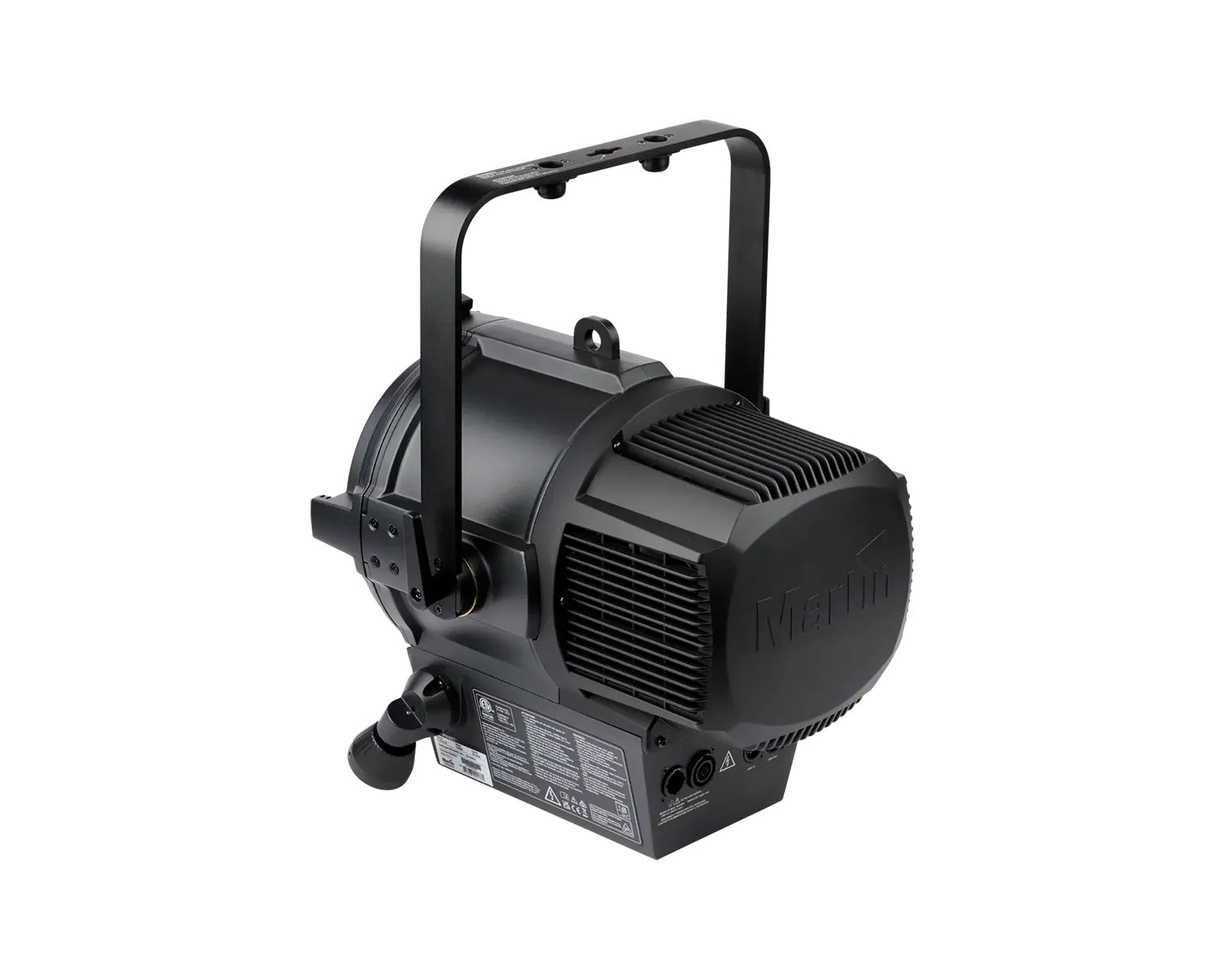

• Ultra Quiet Cooling System
• NFC interface, supporting configuration and diagnostics via Companion Mobile App

Product Specifications

Dynamic Effects

• Dimmer/Shutter:  0 - 100% continuous dimming, regular and random strobe, instant open and blackout
• Dimming options:  Choice of four dimming curves
• Colour Mixing:  RGB(ALC), independently variable 0 - 100%
• Colour Temperature Control:  Variable 1,850 – 12,500 K
• Tint Control:  Variable green-magenta shift Δuv -0.05 – +0.05
• Virtual Colour wheel:  48 colour presets, continuous rotation & random color
• LED Frequency control:  Variable LED PWM control

Control and Programming

• Control Protocols:  DMX and RDM
• DMX Modes:  Compact, Basic & Direct
• DMX Channels:  11, 17 & 17
• 16-bit Controllable Parameters:  Dimming and Colour Mixing
• Setting and Addressing:  Display Menu, NFC or RDM

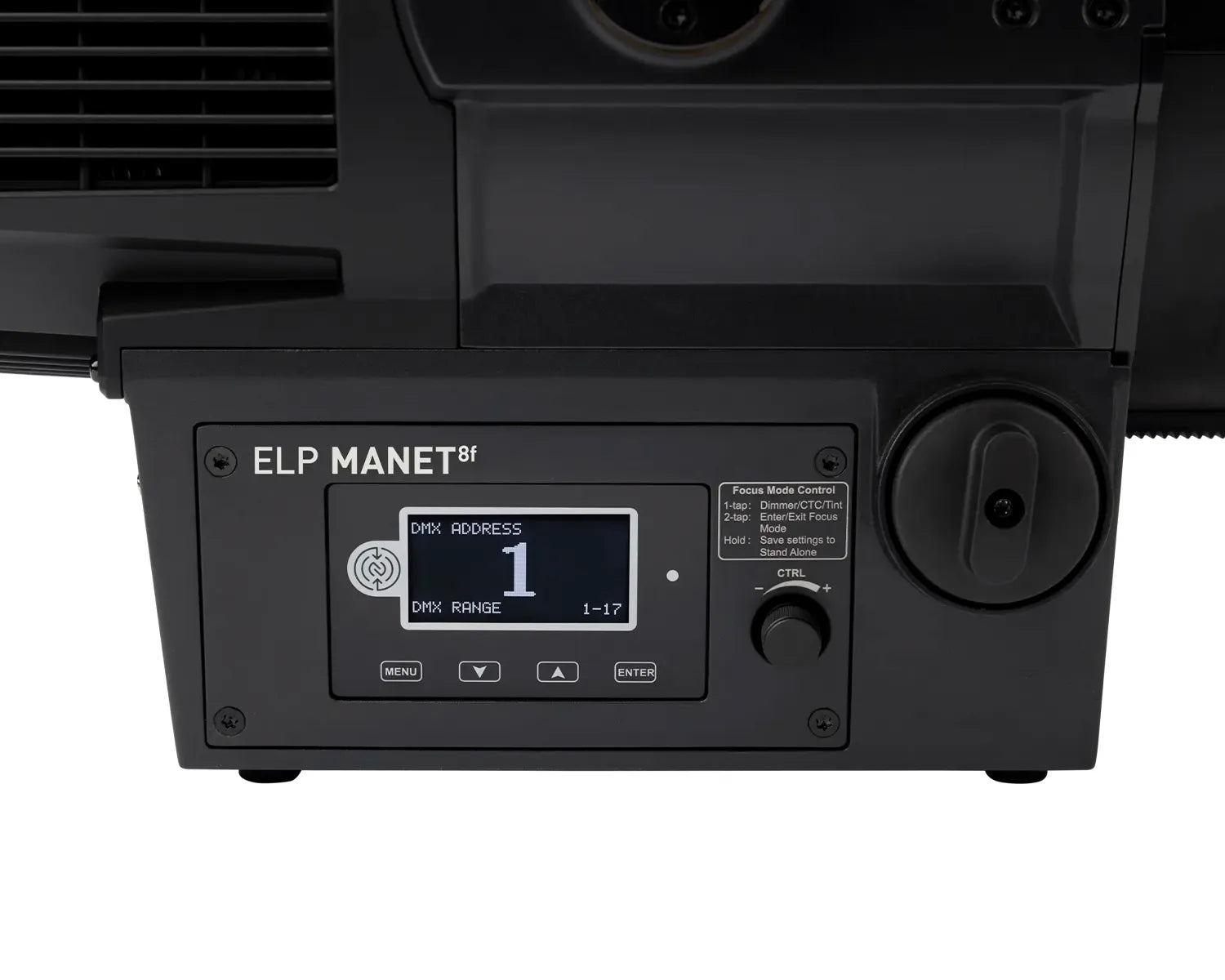

• Local User Interface:  Backlit LCD Display with integrated NFC antenna
• Quick Focus Manual Control:  Rotary Encoder
• Fixture identification:  User-settable ID number
• DMX Compliance:  USITT DMX512-A
• RDM Compliance:  ANSI/ESTA E1.20
• DMX/RDM Transceiver:  Galvanic-isolated RS-485
• DMX/RDM Daisy-Chain Limit:  32 fixtures
• Firmware Update:  via DMX using Martin Companion

Optics

• Front Lens Diameter:  200 mm (7.87 in.)
• Zoom Range:  1:5.6
• Full Zoom Range at Half Peak (Beam Angle):  9° - 50°
• Full Zoom Range at Tenth Peak (Field Angle):  17° - 66°
• Light Source:  500 W RGBALC COB LED
• Max. Total LED Engine Power:  500 W
• Minimum LED lifetime:  > 20.000 hours (to > 70% luminous output)*
• *Figure obtained under manufacturer's test conditions

Photometric Data

• Light Engine Luminous Output:  15,500 lumens
• Fixture Luminous Output Wide:  13,100 lumens
• Fixture Luminous Output Narrow:  5,600 lumens
• CCT:  Variable 1,850 K – 12,500 K (+/- 200 K)
• CRI (Colour Rendering Index) high output mode:  ≥90
• CRI (Colour Rendering Index) high quality mode:  ≥98
• CQS (Colour Quality Scale) high output mode:  ≥85
• CQS (Colour Quality Scale) high quality mode:  ≥95
• TM-30 Rf (IES TM-30-15 Fidelity Index) high output mode:  ≥86
• TM-30 Rf (IES TM-30-15 Fidelity Index) high quality mode:  ≥95
• TM-30 Rg (IES TM-30-15 Gamut Index) high output mode:  ≥107
• TM-30 Rg (IES TM-30-15 Gamut Index) high quality mode:  ≥104
• TLCI (Television Lighting Consistency Index) high output mode:  ≥98
• TLCI (Television Lighting Consistency Index) high quality mode:  ≥98
• LED Refresh Rate:  3,600 Hz with fine adjustment (+/- 2%) (DMX controllable)
• Binning:  Tight colour and flux binning
• Calibration:  Full Gamut Colour Calibration
• Colour Modes:  Direct Colour Mode, Extended Gamut Mode and Calibrated Colour Mode
• * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
• * All Photometric Data measured at 6500 K white

Connections

• AC mains power in/thru:  Neutrik PowerCON TRUE1 TOP
• DMX and RDM data in/thru:  Neutrik 5-pin locking XLR TOP

Electrical

• AC power:  100-240 V AC nominal, 50/60 Hz
• Power supply unit:  Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current at 230 V, 50 Hz:  12.68 A
• Typical earth-leakage current:  0.65 mA
• Power Factor:  0.99 @ 100 V / 120 V / 208 V / 230 V / 240 V
• Max current draw:  5.3 A @ 100 V / 120 V , 2.2 A @ 208 V / 230 V / 240 V
• Typical current draw:  5.26 A @ 100 V , 4.33 A @ 120 V , 2.45 A @ 208 V , 1.92 A @ 230 V , 2.11 A @ 240 V *

Thermal

• Cooling:  Forced air (temperature regulated, low noise, user definable levels)
• Maximum ambient temperature (Ta max.):  40° C (104° F)
• Minimum ambient temperature (Ta min.):  0° C (32° F)
• Maximum surface temperature, steady state, at 40° C ambient:  68° C (154.4° F)
• Total heat dissipation (calculated, +/- 10%):  1808 BTU/hr

Acoustic Data

• Sound Pressure Level (LpA) @ 1m (default regulated high fan mode, full output):  26.7dB(A)
• Sound Pressure Level (LpA) @ 1m (regulated medium fan mode, full output):  21.1 dB(A
• Sound Pressure Level (LpA) @ 1 m (regulated low fan mode, full output):  18.9 dB(A)

Environmental

• RoHS:  Compliant
• REACH:  Compliant
• WEEE:  Compliant
• Proposition 65:  Compliant
• Packaging:  FSC Certified cardboard outer & inner packaging
• Efficacy (max output):  24.6 lm/W
• LWR*:  928.6 lm/kg (421 lm/lbs.)
• * LWR = Lumen-to-Weight Ratio

Approvals

• Global CB Certification/IECEE:  IEC 60598-2-17 (IEC 60598-1)
• EU safety:  EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC:  EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
• US safety:  UL 1573
• US EMC:  FCC Part 15 Class B
• Canadian safety:  CSA C22.2 No. 166
• Canadian EMC:  ICES-003 Class B, ICES-005 Class B
• Australia/NZ:  RCM
• United Kingdom:  UKCA

Installation

• Mounting points:  1 pair of 1/4-turn points for 106mm (4.17 in.) centre-to-centre omega bracket, Single M12 / 1/2" hole for rigging clamp, Two guide holes to support industry standard 28mm Spigot accessory
• Location:  Indoor
• Orientation:  Any
• Minimum distance to combustible materials:  0.2 m (7.87 in.)
• Minimum distance to illuminated surfaces:  1.0 m (39.37 in.)

Construction

• Colour:  Matte black
• Protection rating:  IP20
• Housing Material:  Steel & Aluminium

Physical

• Width:  372.3 mm (14.66 in.)
• Height (head forward):  499.30 mm (19.66 in.)
• Depth:  404.90 mm (15.94 in.)
• Weight:  14.0 kg (30.86 lbs.)

What's in the Box?

• Adjustable Mounting Bracket
• 4 leaf Anti-Reflective Manual Barn Door System
• Colour Filter Frame
• Multi-Language Safety and Installation Manual
