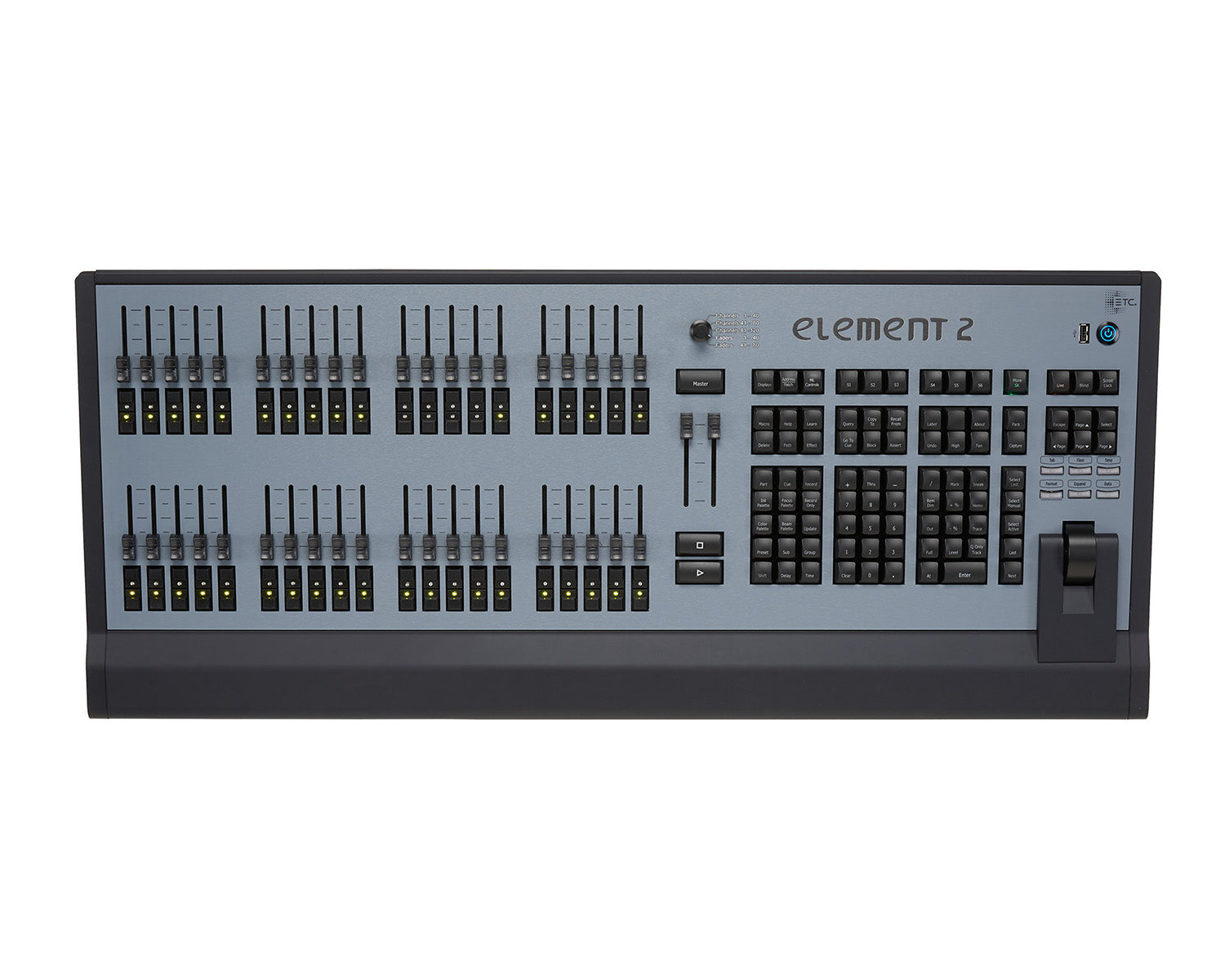

ETCELEMENT2 - ETC Element 2 Control Desk 1024 Outputs c or w Dust Cover Image 1

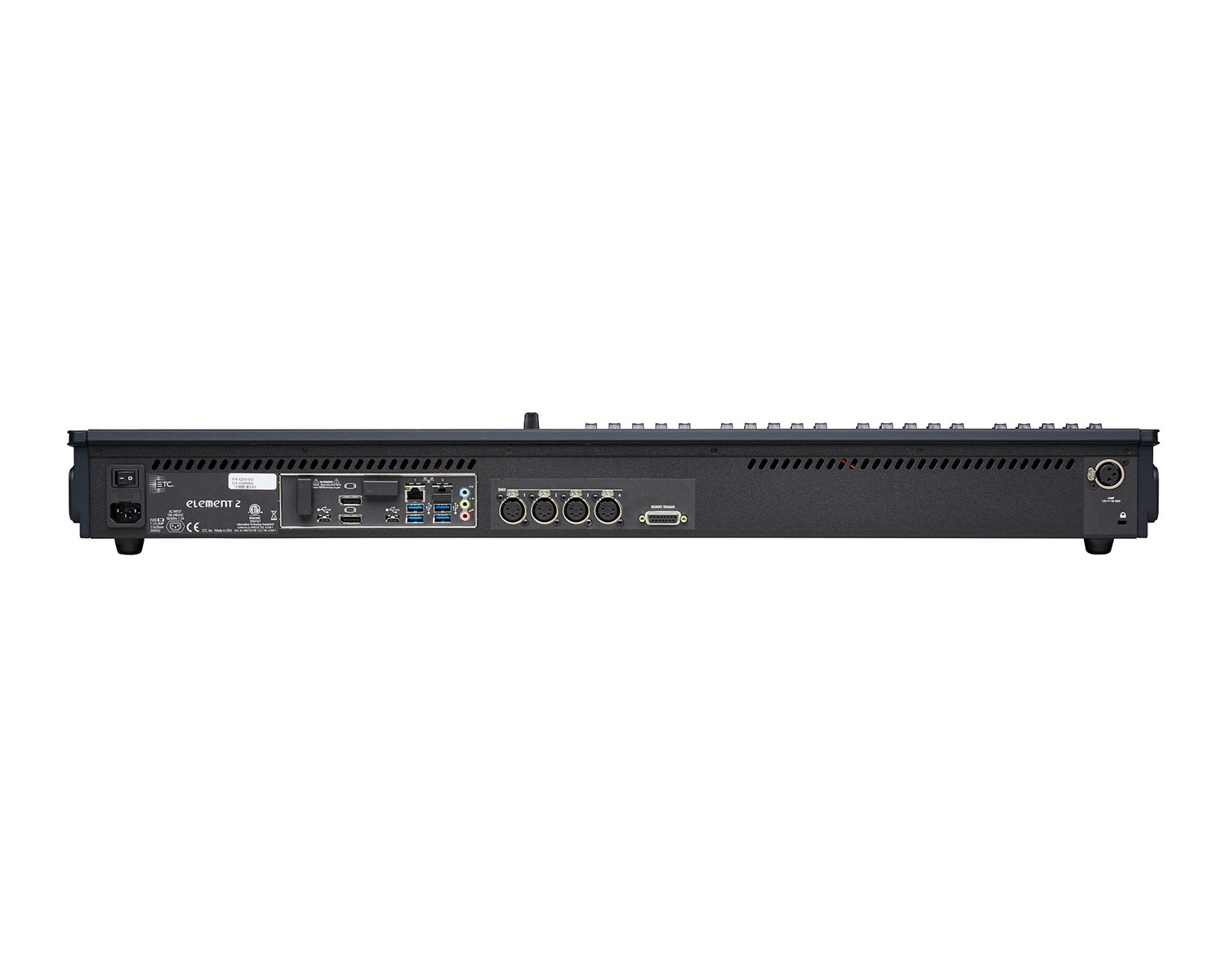

ETCELEMENT2 - ETC Element 2 Control Desk 1024 Outputs c or w Dust Cover Image 2

The Element 2™ console adapts the award-winning Eos family control platform for venues with modest rigs and maximum hands-on fader control needs.

Affordable and easy to use, Element 2 brings the fundamentals of lighting control to the forefront while allowing access to a wealth of advanced control features below the surface. Simply record cues and fade times into Element cue list for basic playback, or use effects, palettes, cue parts, discrete timing and follow times to create intricate lighting looks and transitions.

Need a setup that can be run by students or volunteers? Customizable Magic Sheets let you create a simple topographical or abstract interface to quickly control your rig from a touchscreen monitor.

Use the Element 2 console’s pageable, LTP (Latest Takes Precedence) faders to directly control your channels, or flip a switch and use them to control submasters, IFCB palettes, presets, manual timing and global effects masters and more.

Element 2 provides the same generous programming keypad as the larger desks in the Eos family, so you can move between consoles with ease.

Product Features

40 pageable faders and a Master Fader Pair
Single cue list
Award-winning Eos color control tools
Support for up to two external, Windows® 7-compatible high-resolution monitors (standard, single- or multi-touch), with discrete split-screen controls, frame management and snapshots, and three user-definable workspaces per monitor
Master playback pair with 100mm faders
User-definable direct selects
Four discrete palette types (IFCB)
Presets function as “all palette”
Effects provide dynamic relational and absolute progressive behavior
Central information area (CIA) accesses the browser and other controls
Configurable high-density channel display, with format and flexi-channel modes
Up to six abstract colour spaces, tinting, spectrum and fade path tools.
User configurable, interactive Magic Sheets
ETCNet2 and Net3 (powered by ACN), Art-Net and Avab®
UDP network output protocols
Show import from Obsession, Express, Expression®,
Emphasis®, Congo®, Cobalt®, Grand MA1, Grand MA2, Safari and Strand 500/300 Series
Two individually configurable Ethernet ports
Multiple MIDI and/or SMPTE TimeCode Inputs, Analog/Serial Inputs, OSC transmit/recieve
Virtual Media Server function for pixel mapped effects, images, animations

Product Specifications

Playback Controls

Master Playback crossfade pair with two 100mm
potentiometers, Go and Stop/Back
100 pages of 20 45mm faders, each configurable as:
- IFCB Palette/Preset Lists or single instances
- Configurable Grand Master with Blackout
- Additive or Inhibitive Submaster, with user-configurable
- button/slider behavior
- Channel faders
- Filtered Manual Timing Master
Rate Controller
Playback fader controls include:
- Load to assign content
- Timing Disable
- Release
- Freeze
- Manual Override
- Rate
- Background Enable/Disable
- 10 Priority States
- 10 Background Priority States
- Parameter and channel filters
Macros:
- May be set to play background or foreground
- Startup and Shutdown Macros
- Disconnect Macros

Programming Features

Channel Functions:
- Non-intensity parameters set via numeric entry or pageable encoders
- Encoders support software-controlled tactile response
- Local display of color and gobo images
- Color matching to gel selector
- Color Path, color tinting and color spectrum tools.
- Apply discrete time and delay per channel parameter
Palette and Preset Functions:
- Record and Update
- Toggle display to absolute data
- Up to 999 decimal values may be inserted between any two whole numbers
Effects:
- Create live or blind
- Pattern-based relative dynamic effects
- Absolute effects
- Step effects
- Channel level overrides
- Cue level overrides
- Entry mode determines how parameters enter effects
- Exit mode determines how parameters depart effects
Cue Recording:
- Cue List HTP/LTP Intensity
- Cue List Priority and Background Priority
- Fader as progress controller, manual or intensity master
- Record manual values or channels in use
- Auto playback of recorded cues
- Auto-mark instructions
- Block at cue or parameter level
- Follow or hang times
- Out of sequence link
- Loop functions
- Cue level parameter category timing
- 20-part multi-part cues
- Cue-level rate override
- Up to 999 decimal cues between each two whole-numbered cues
- Execute List
  - Triggers snapshot
  - Triggers macros
  - Show-control triggers
  - Analog triggers
- Update and Update Trace functions
- Undo record and delete
Submaster Recording and Playback:
- 999 additive or inhibitive submasters
- Bump button timing for fade up/dwell/fade out
- Exclusive or Shielded Mode
- Background enable/disable
- Restore to background or minimum value
- LTP/HTP intensity
- Fader as progress controller or intensity master
- Priority and Background Priority status
Curves:
- Assignable in patch to modify dimmer output ramp
- Assignable at cue or cue part level to modify intensity crossfade profile or non-intensity parameter ramping
