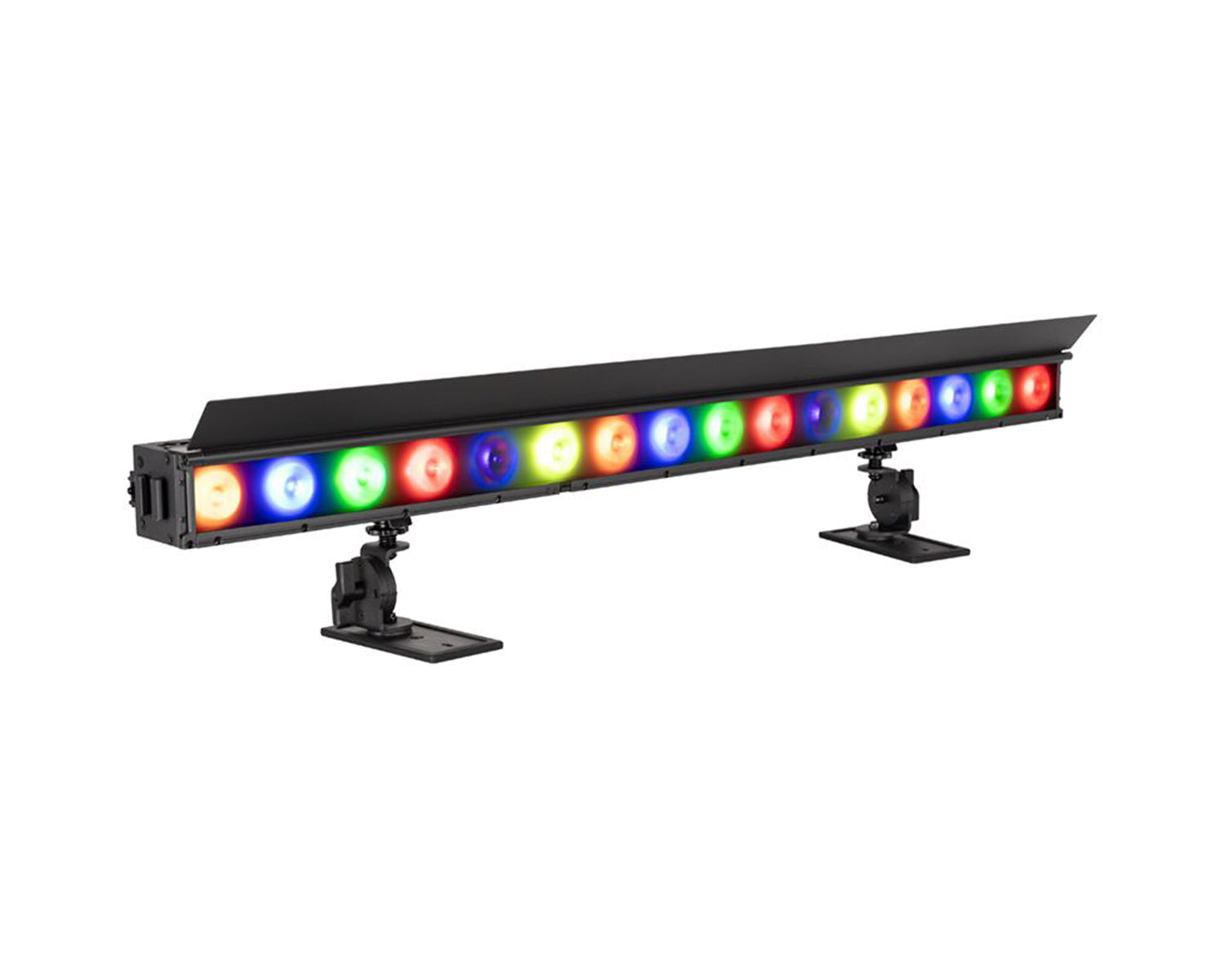

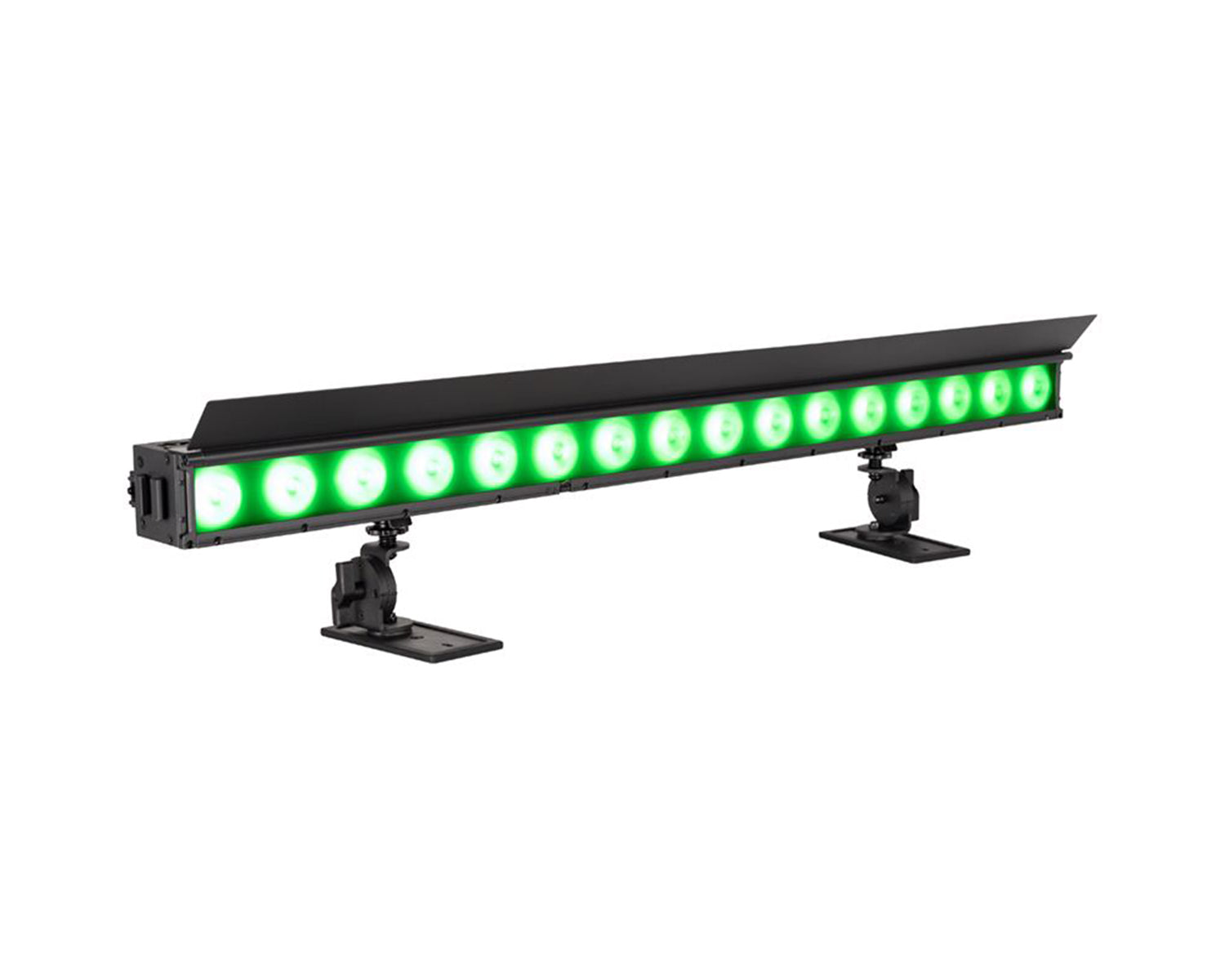

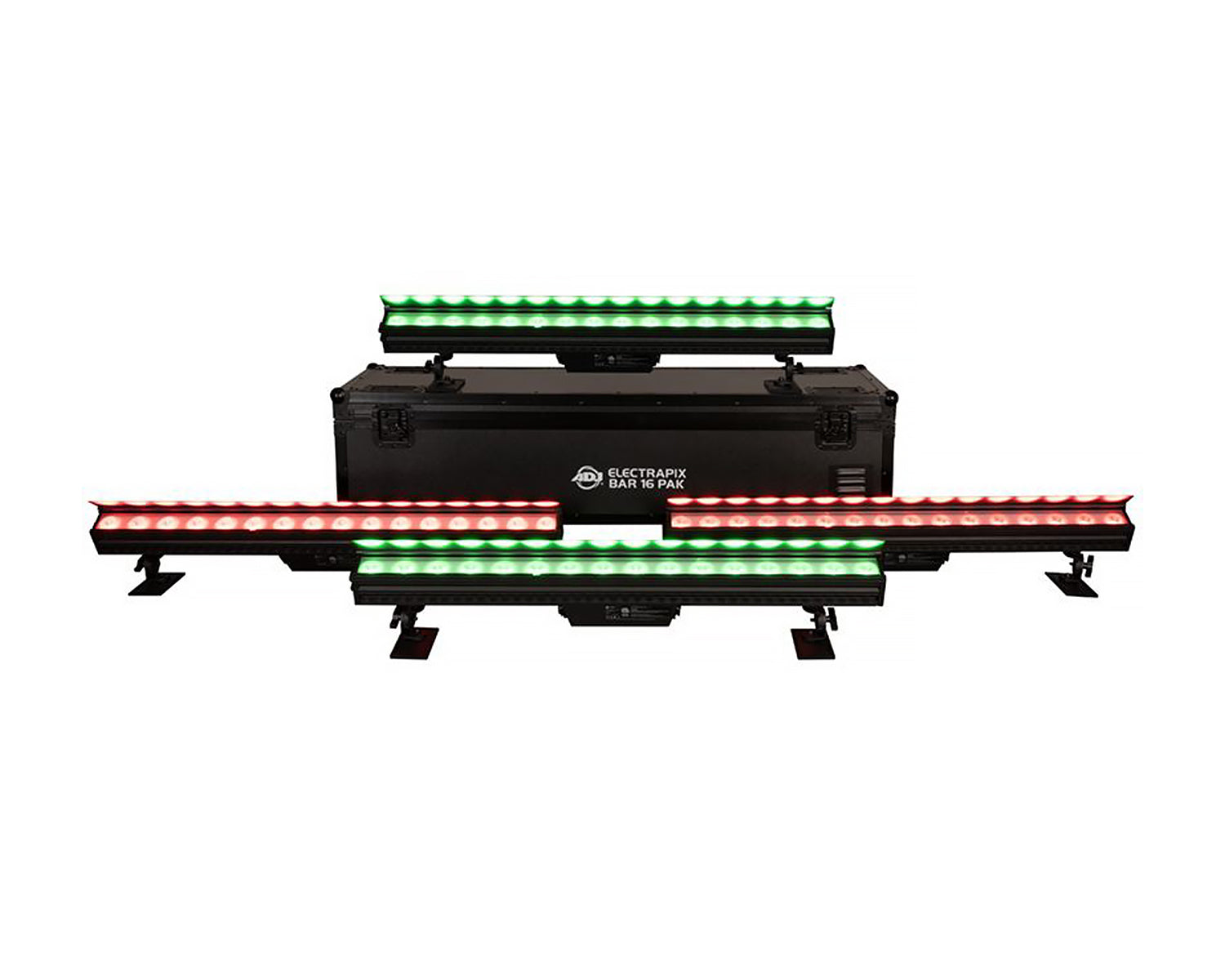

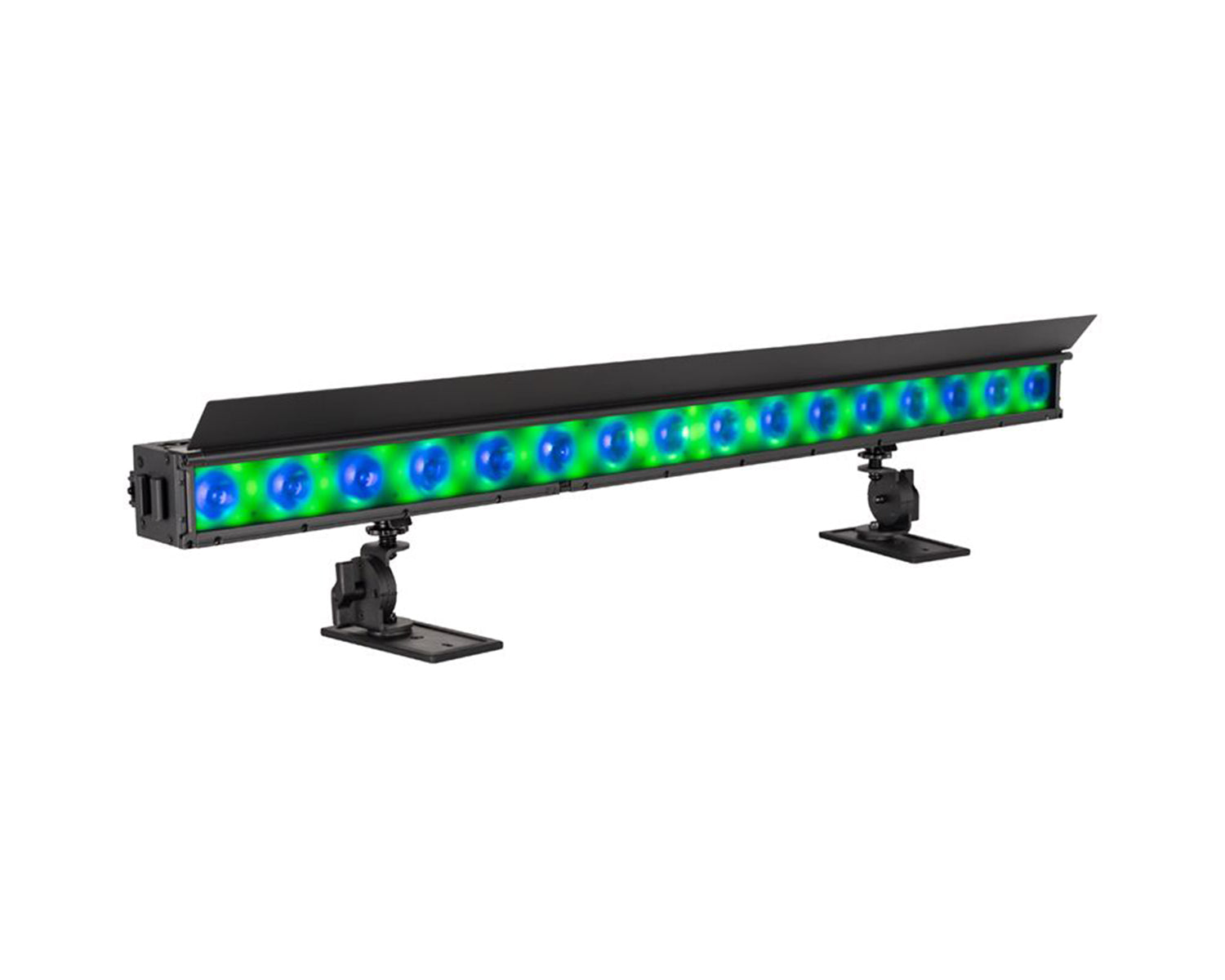

The ElectraPix Bar 16 Pak features four (4) ElectraPix Bar 16 Battery powered, wireless DMX LED linear fixtures housed in a robust road case with dedicated charging slots for each fixture. It is supplied with an ADJ UC-IR24 remote control that allows simple colour selection as well as a power cable which plugs into the side of the case for in-case charging.

Stay powered up and ready to shine with the included six charging bases. Effortlessly recharge your ElectraPix Bar 8 lights, ensuring they are always ready for action. The convenient design of the charging bases allows for efficient organization and easy access, making setup and teardown a breeze.

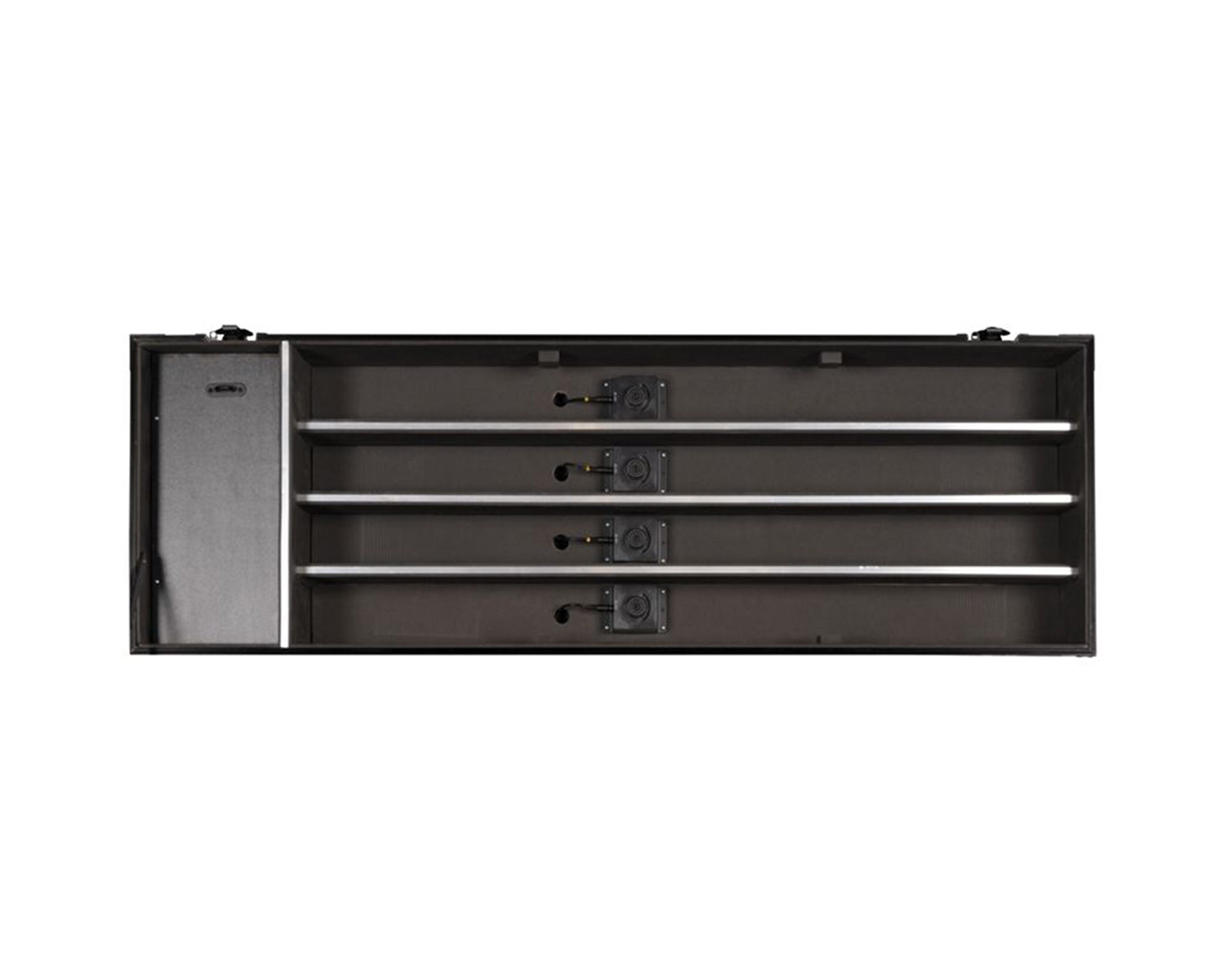

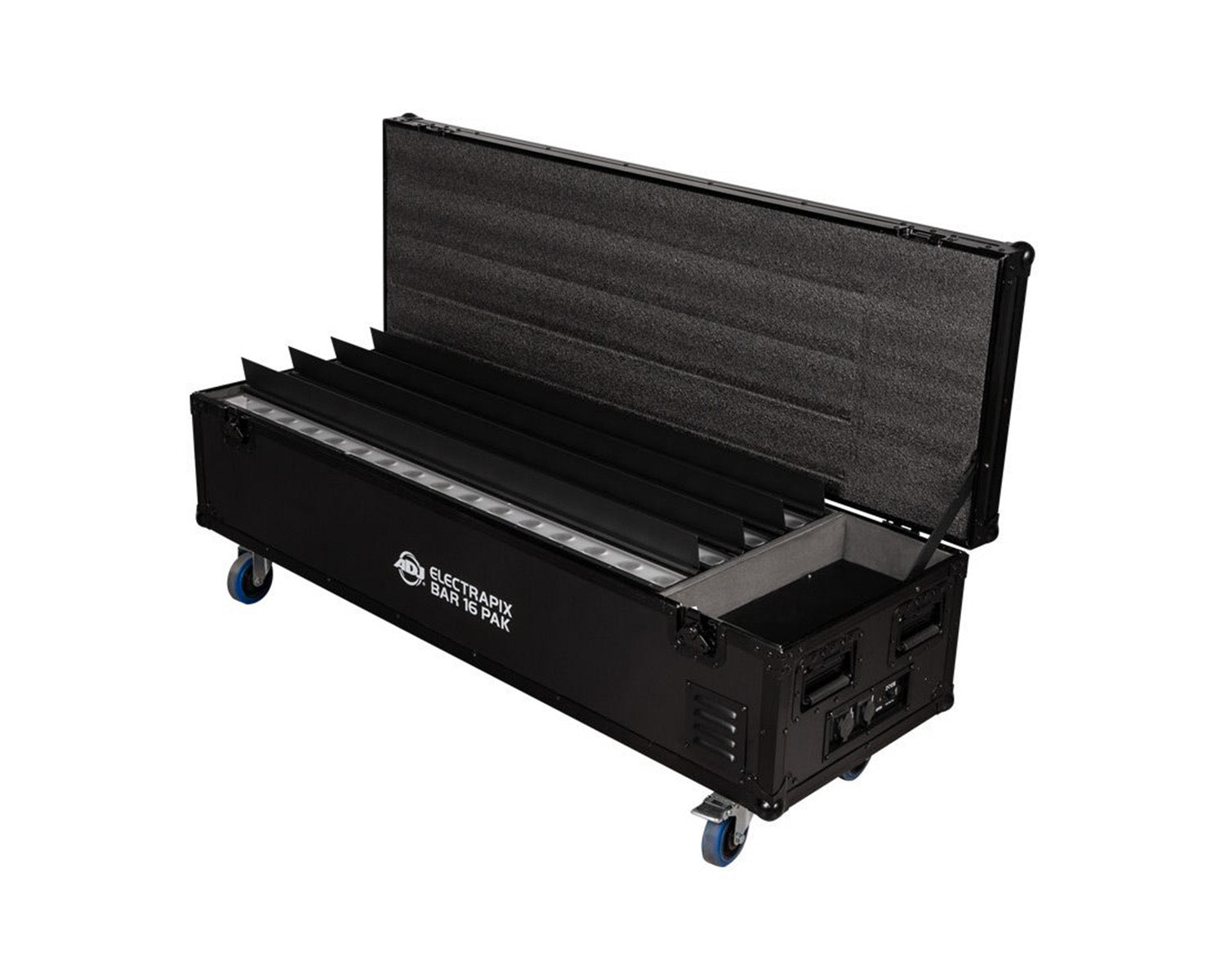

Safeguard your investment and transport your equipment with ease using the ElectraPix Bar 16 FC flight case. This rugged and well-designed case provides a secure and organized storage solution for your lights, charging bases, remote control, and power cable. The dimensions of the flight case (LxWxH): 1443x498.4x459.9mm ensure that your lighting setup remains protected during transit.

Product Features

• 16 Pixel, Hex Colour LED (RGBAL+UV) LED Bar
• Battery or Wall Powered
• 5 Hour Standard Battery Operation and 10 Hour Saver Battery Operation (Menu Option)
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Colour Temperature Control (2,700K ~ 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Colour Calibrated LED
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

Product Specifications

ElectraPix Bar 16 Pak Dimensions / Weight (loaded case with 4 fixtures)

• Length: 1443mm
• Width: 498.4mm
• Vertical Height: 459.9mm
• Loaded Weight: 87 kg

Flight Case Electrical / Thermal

• Power Input: AC100VAC~240VAC, 50/60Hz
• IP65 Power Locking Input and Output
• Max Power Consumption: 400Watts
• Power Draw: 2A @ 230VAC
• Charge status indicator
• -10°C to 45°C

Fixture Source

• (16) 20W Hex Color RGBAL+UV Foreground LED
• (66) 0.2W RGB Background LED
• 50,000 Hour Average Life

Fixture Optical

• 2,300K ~ 9,900K White Color Temperature Range
• 17° Beam Angle
• 45mm Lens Diameter x16

Fixture Physical

• IP65 Housing

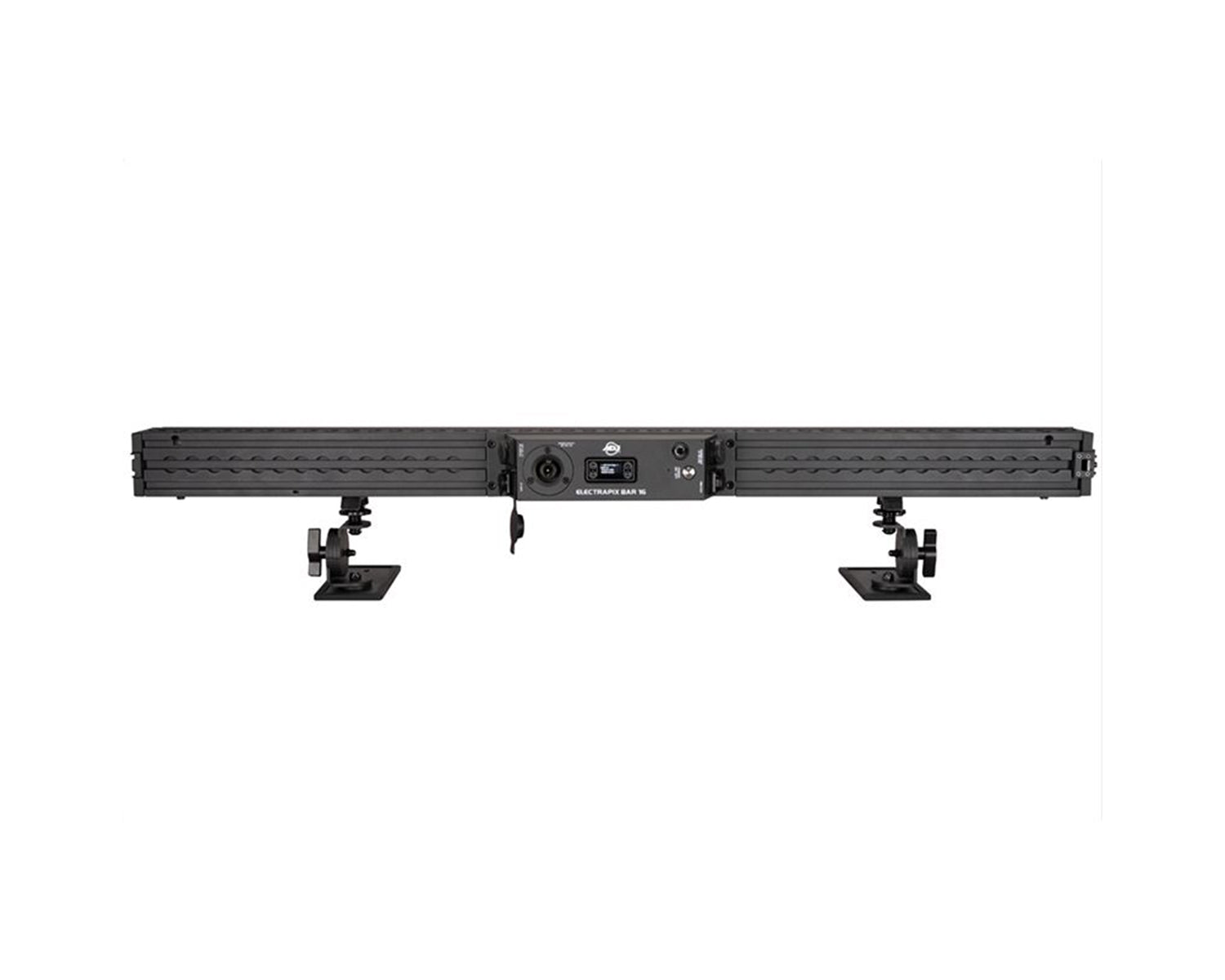

• OLED Digital display
• L Track system for locking accessories / rigging
• Glare Shield
• Diffusion Filter slot
• Angle adjustable feet
• Horizontal slide lock to attach additional ElectraPix Bar 16 or ElectraPix Bar 8

Fixture Control

• DMX512
• Aria X2 Wireless DMX
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (4) DMX Channel Modes (5, 6, 9,13, 21, 24, 96, 99 & 114 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

Fixture Connections

• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• Outdoor Locking Power Sockets
• Battery Charging Socket

Fixture Dimensions & Weight

• Length: 85.7mm, Width: 1163.6mm, Height: 191.2mm
• Weight: 12,5 kg

Fixture Power

• AC100-240V/50Hz-60Hz Input
• 90W Power Consumption
• Link 18 pieces @ 230VAC

Fixture Battery

• Rechargeable Lithium ion
• Battery Capacity: 14,000mAh
• Battery Voltage: 22.2V
• Charge Time: 7 Hours (To Full)
• 5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu
• Battery Cycles: 500

Fixture Thermal

• Ambient Operational Temperature : -20°C to 45°C
• Storage Temperature: -30°C to 45°C

Fixture Certifications & IP Rating

• CE
• cETLus (Pending)
• FCC
• IP65

What's in the Box?

• 4 x ElectraPix Bar 16 Pak (Fixtures)
• 1 x ElectraPix Bar 16 FC (Flight Case)
• 4 x ElectraPix Bar 16 IPCB (Charging bases and power supplies)
• 1 x UC-IR24 Wireless Infrared Controller
• 1 x IP65 Locking Power Cable
