The Laserworld EL-400RGB S is an RGB show laser system with a 15kpps @ 8° scanner and the total output power of up to 400 mW.

The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532 nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colours and bright beams. These beams have a diameter of about ca. 3 mm and a beam divergence of 2 mrad. The laser system has a 15kpps @ 8° for creating different patterns. Effects can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated microphone can be adjusted.

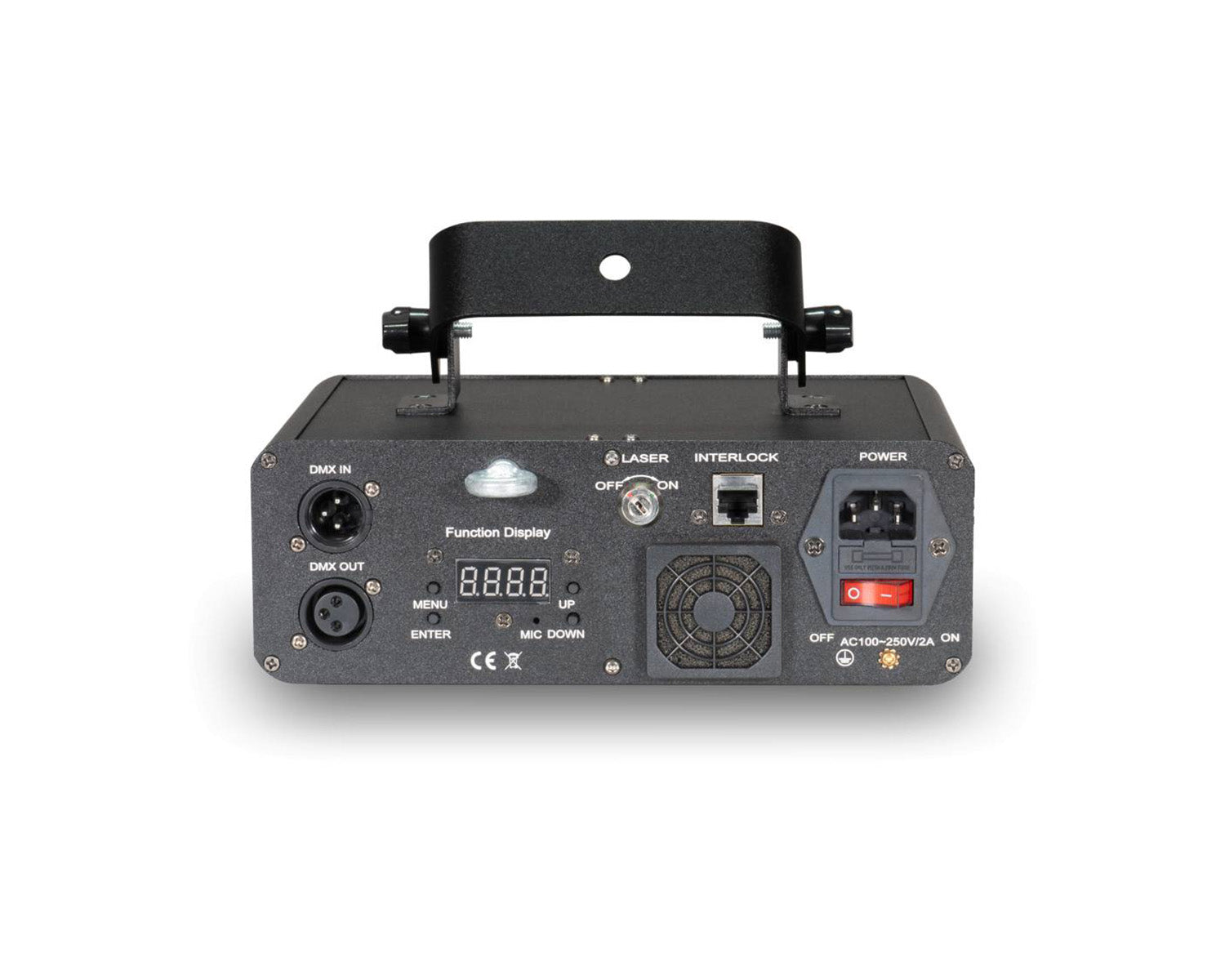

There is an interlock connector for the E-Stop switch as well as a key switch at the rear side of this very compact device.

The Laserworld EL-400RGB S is an innovative solution for first-time and hobby users, as well as for mobile DJs and it is often used in bars, small to medium-sized clubs, at private parties or for home use.

Product Features

• Typical power 400 mW
• 7 colours including white
• Beams, waves & tunnel laser effects
• Sound-to-light mode
• DMX programmable
• 15kpps @ 8° scanner

Product Specifications

• Total Power: 400 mW
• Power Red: 120 mW / 650 nm
• Power Green: 100 mW / 532 nm
• Power Blue: 180 mW / 445 nm
• Beam Specifications*: ca. 3 mm / 2 mrad
• Scanner: 15kpps @ 8° scanner
• Laser Source: Diode, DPSS
• Laser Class: 3B
• Operation Modes: auto-mode, DMX, sound to light, master-slave
• Power Supply: 85 V - 250 V AC
• Power Consumption: 30 W
• Dimensions: 255 x 245 x 100 mm
• Weight: 3.0 kg
