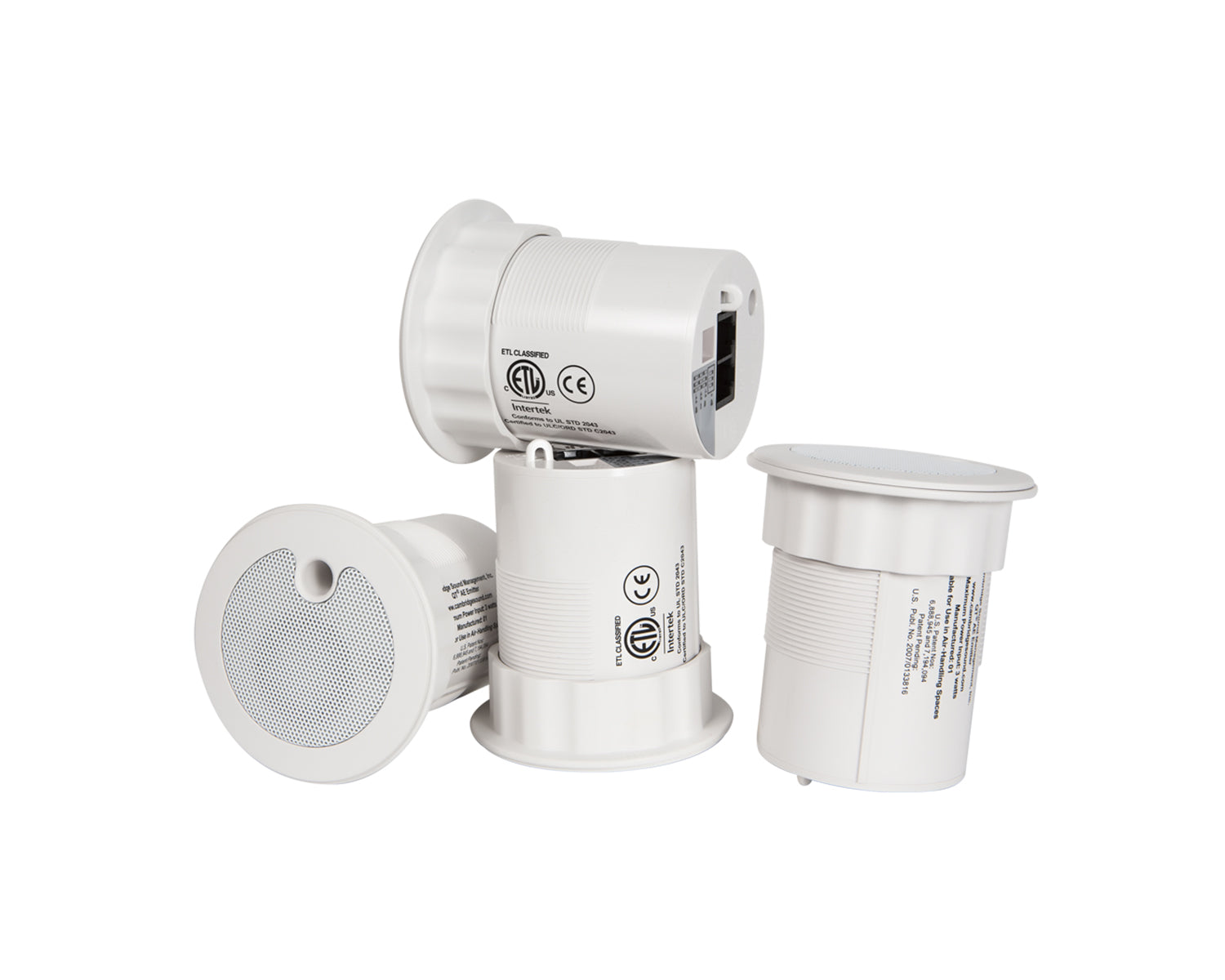

BIAEPW4 - Biamp E P W 4 Active Emitter 4 Pack exl Cables White Image 1

Qt® Active Emitters are wide dispersion (nearly 180 degrees) direct field loudspeakers with 1.25” (3.17 cm) drivers capable of simultaneous reproduction of both sound masking and clear audio sources such as paging signals. Patented directfield technology ensures both uniform, comfortable sound masking as well as clear, articulate paging in a loudspeaker that’s virtually invisible once deployed in finished or open structure ceilings. The Qt Active Emitter features onboard active electronics to power the loudspeaker and a ported enclosure design allowing lower frequency extension to the 125 Hz octave band. Power is delivered via an external power supply and power injectors, both available as accessories. Active Emitters deliver four uncorrelated audio channels, automatically eliminating phasing. Active Emitters are plenumrated, ETL listed, and comply with UL 2043. Each Active Emitter comes standard with a slip-ring mount for acoustical tile mounting. These features, along with plug and play installation and easy configuration capability, make QtPro systems the most intelligently engineered and most effective sound masking systems on the market today.

Product Features

Wide dispersion direct field speakers with 1.25” (32 mm) drivers
Small driver size results in nearly 180° dispersion of direct field sound masking
Reduces acoustical interference by using four uncorrelated channels
DIP switches attenuate the volume level up to 4.5 dB in 1.5 dB decrements for easy micro-zoning
Plug and play installation and easy configuration
Comes standard with slip ring for acoustical tile mounting
CE marked, ETL listed, and RoHS compliant
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Covered by Biamp Systems’ five-year warranty

Product Specifications

Loudspeaker Type: Active with integrated amplifier
Frequency Response:
- Sound Masking: 125Hz to 10kHz
- Music/Paging: 115Hz to 12kHz
SPL:
- Minimum Masking SPL (@ 1m): 30dBA
- Maximum Masking SPL (@ 1m): 57dBA
- Maximum Music/Paging SPL (@ 1m): 56dBA
- Nominal Impedance: 3.6 kΩ
Nominal Dispersion: 170° conical / half space
Channel Selection: 4 Auto-Sequencing and Repeating Channels
Selectable Attenuation: 0 dB, -3 dB, -6 dB, -9 dB
I/O Connectors: 2 RJ-45 connectors
Cabling: Category UTP Cabling (8 conductor)
Maximum Power Consumption: 2 W
Driver Diameter: 1.25” (32mm)
Enclosure: Front Vented
Colour: Black or White
Included Accessories:
Acoustic Ceiling Tile Mounting Ring
Compliance:
- ETL listed (USA and Canada)
- Evaluated to the requirements of UL 1480a and UL 2043 and is suitable for use in air handling spaces
Product Dimensions
- Overall Diameter: 3.25 inches (83mm)
- Depth: 3.5 inches (89mm)
- Weight: 6.5 oz. (184g)
