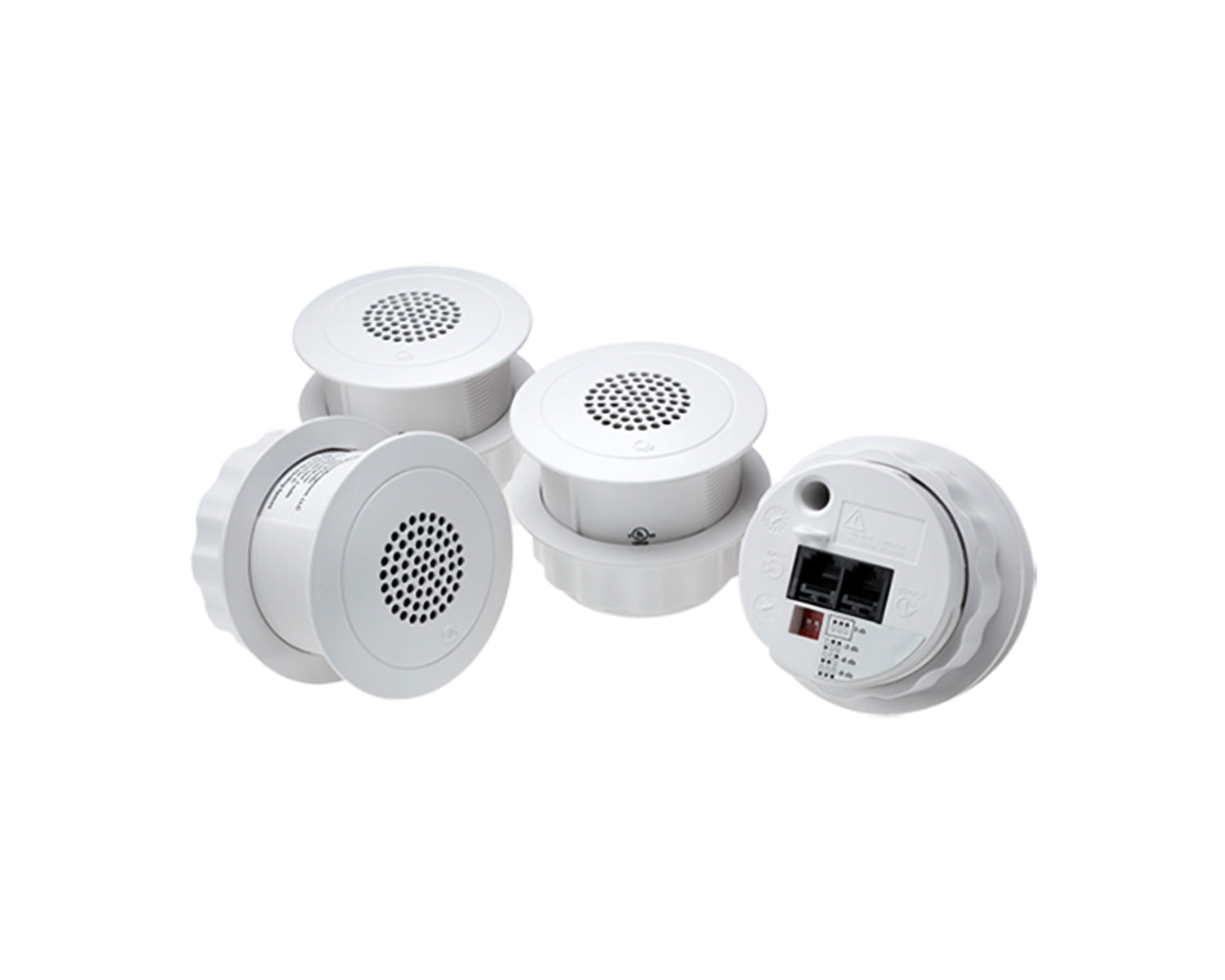

BIAEAW4 - Biamp E A W 4 Passive Emitter 4 Pack exl Cables White Image 1

Qt® Emitters are the backbone of the QtPro™ sound masking system. Qt Emitters are wide dispersion (nearly 180 degrees) direct field loudspeakers with 1.25” (3.17 cm) drivers and are smaller than a coffee mug. Emitters have DIP switches that allow their volume to be reduced 9 dB in 3 dB decrements. Emitters deliver four uncorrelated audio channels, automatically eliminating phasing. Emitters are plenum-rated, ETL listed, and comply with UL 2043. Each Emitter comes standard with a slip-ring mount for acoustical tile mounting. These features, along with plug and play installation and easy configuration capability, make QtPro systems the most intelligently engineered and most effective sound masking systems on the market today.

Product Features

Wide dispersion direct field speakers with 1.25” (3.17 cm) drivers
Small driver size results in nearly 180° dispersion of direct field sound masking
Reduces acoustical interference by using four uncorrelated channels
DIP switches attenuate the volume level up to 9 dB in 3 dB decrements for easy micro-zoning
Plug and play installation and easy configuration
Comes standard with slip ring for acoustical tile mounting
CE marked, ETL listed, and RoHS compliant
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Covered by Biamp Systems’ five-year warranty

Product Specifications

Loudspeaker Type: Passive with transformer
Frequency Response:
- Sound Masking: 200Hz to 6.3kHz
- Music/Paging: 200Hz to 10kHz
SPL:
- Minimum Masking SPL (@ 1m): 30dBA
- Maximum Masking SPL (@ 1m): 57dBA
- Maximum Music/Paging SPL (@ 1m): 56dBA
Nominal Impedance: 3.6 kΩ
Nominal Dispersion: 170° conical / half space
Channel Selection: 4 Auto-Sequencing and Repeating Channels
Selectable Attenuation: 0 dB, -3 dB, -6 dB, -9 dB
I/O Connectors: 2 RJ-45 connectors
Cabling: Category UTP Cabling (8 conductor)
Maximum Power Consumption: .02 W
Driver Diameter: 1.25” (32mm)
Enclosure: Sealed
Colour: White
Included Accessories:
- Acoustic Ceiling Tile Mounting Ring
Compliance:
- ETL listed (USA and Canada)
- CE Marked (Europe)
- RoHS Directive (Europe)
- Evaluated to the requirements of UL 1480a and UL 2043 and is suitable for use in air handling spaces
Product Dimensions
- Overall Diameter: 3.25 inches (83mm)
- Depth: 2.5 inches (64mm)
- Weight: 5.6 oz. (159g)
