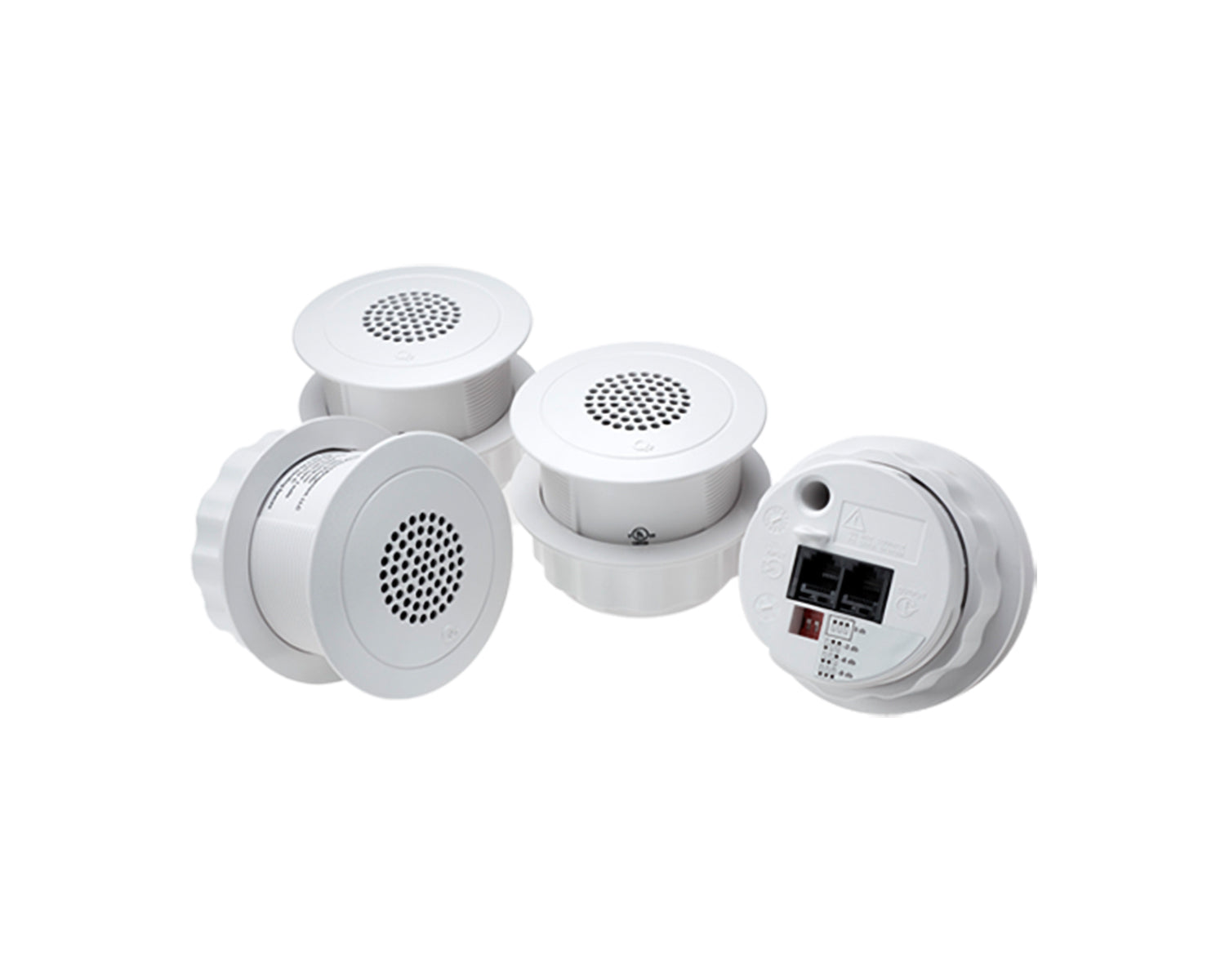

Qt® Emitters are the backbone of the QtPro™ sound masking system. Qt Emitters are wide dispersion (nearly 180 degrees) direct field loudspeakers with 1.25” (3.17 cm) drivers and are smaller than a coffee mug. Emitters have DIP switches that allow their volume to be reduced 9 dB in 3 dB decrements. Emitters deliver four uncorrelated audio channels, automatically eliminating phasing. Emitters are plenum-rated, ETL listed, and comply with UL 2043. Each Emitter comes standard with a slip-ring mount for acoustical tile mounting. These features, along with plug and play installation and easy configuration capability, make QtPro systems the most intelligently engineered and most effective sound masking systems on the market today.

Product Features

• Wide dispersion direct field speakers with 1.25” (3.17 cm) drivers
• Small driver size results in nearly 180° dispersion of direct field sound masking
• Reduces acoustical interference by using four uncorrelated channels
• DIP switches attenuate the volume level up to 9 dB in 3 dB decrements for easy micro-zoning
• Plug and play installation and easy configuration
• Comes standard with slip ring for acoustical tile mounting
• CE marked, ETL listed, and RoHS compliant
• Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
• Covered by Biamp Systems’ five-year warranty

Product Specifications

• Loudspeaker Type: Passive with transformer
• Frequency Response:
  • Sound Masking: 200Hz to 6.3kHz
  • Music/Paging: 200Hz to 10kHz
• SPL:
  • Minimum Masking SPL (@ 1m): 30dBA
  • Maximum Masking SPL (@ 1m): 57dBA
  • Maximum Music/Paging SPL (@ 1m): 56dBA
• Nominal Impedance: 3.6 kΩ
• Nominal Dispersion: 170° conical / half space
• Channel Selection: 4 Auto-Sequencing and Repeating Channels
• Selectable Attenuation: 0 dB, -3 dB, -6 dB, -9 dB
• I/O Connectors: 2 RJ-45 connectors
• Cabling: Category UTP Cabling (8 conductor)
• Maximum Power Consumption: .02 W
• Driver Diameter: 1.25” (32mm)
• Enclosure: Sealed
• Colour: White
• Included Accessories:
  • Acoustic Ceiling Tile Mounting Ring
  • UTP Cable 25ft x 4
• Compliance:
  • ETL listed (USA and Canada)
  • CE Marked (Europe)
  • RoHS Directive (Europe)
  • Evaluated to the requirements of UL 1480a and UL 2043 and is suitable for use in air handling spaces
• Product Dimensions
  • Overall Diameter: 3.25 inches (83mm)
  • Depth: 2.5 inches (64mm)
  • Weight: 5.6 oz. (159g)

What's in the Box?

• 4 x Emitters
• 4 x 25ft Cable
• Ceiling Tile Mounting Ring
