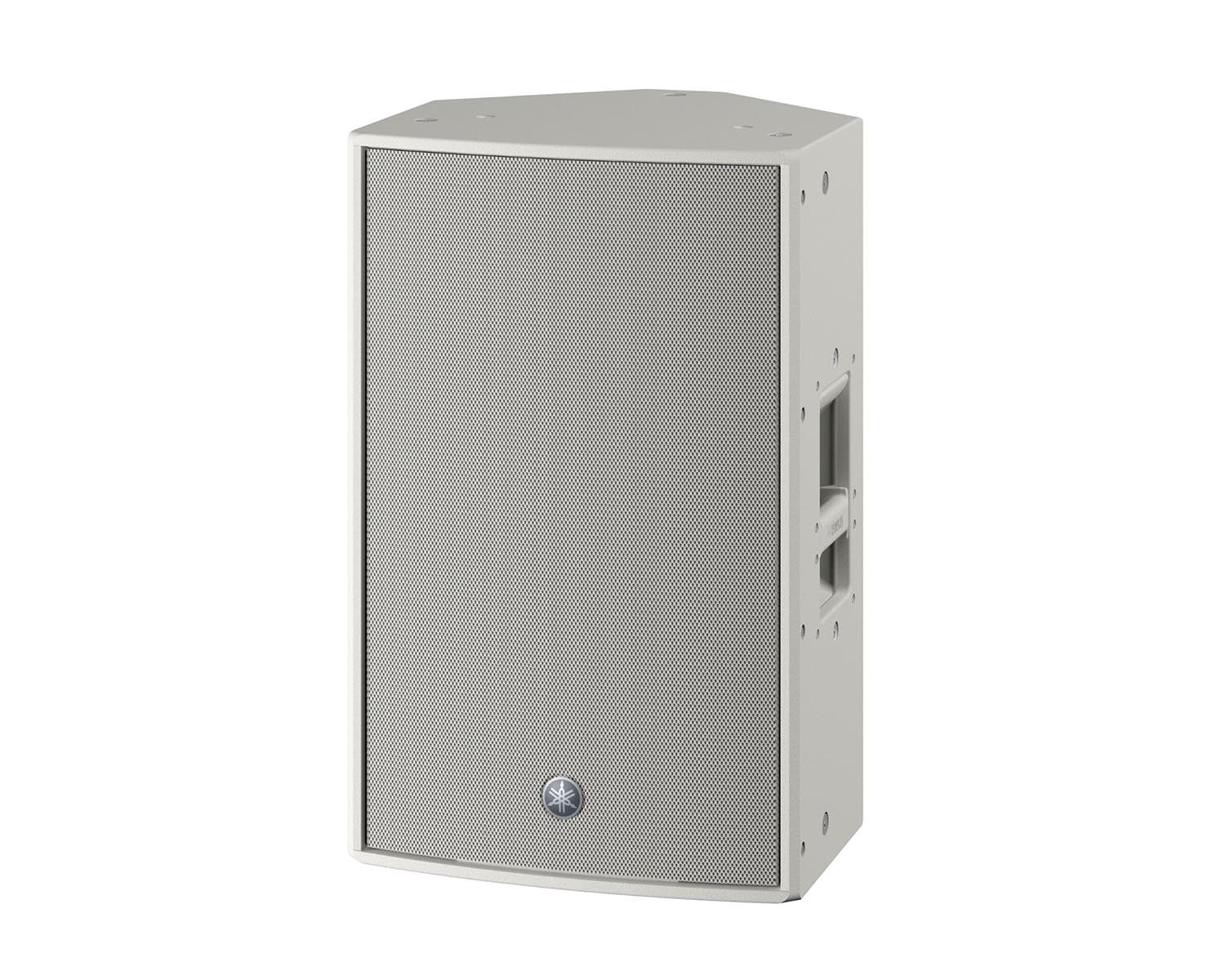

The DZR12/DZR12W is a 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12-D/DZR12-DW realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

Product Features

• 2-way powered loudspeaker with a 2" HF and a 12" LF
• Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s professional audio demands
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits
• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR12)
• Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement
• Durable black or white finish

Product Specifications

General

• Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency Range (-10dB): 39Hz - 20kHz
• Coverage Area: H90° x V60° (Rotatable)
• Components
  • LF 12" Cone, 3" Voice Coil, Neodymium magnet
  • HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 1.8kHz (FIR-X)
• Sampling Frequency Rate: Internal: 96kHz and FIR Filter
• A/D D/A Converters: 96kHz AD/DA
• Maximum Output Level (1m; on axis): 139dB SPL *1
• Power Rating
  • Dynamic: 2000W (LF: 1000W, MF/HF: 1000W) *2
  • Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
  • Continuous: 950W (LF: 850W, MF/HF: 100W)

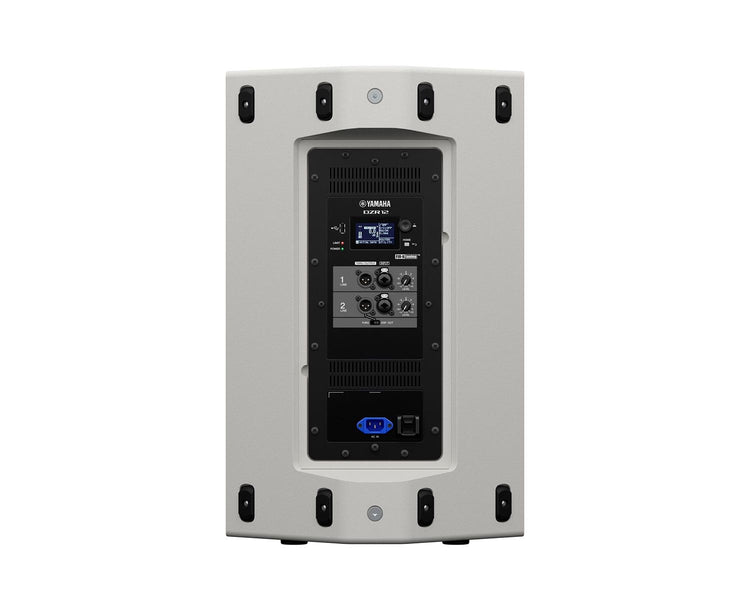

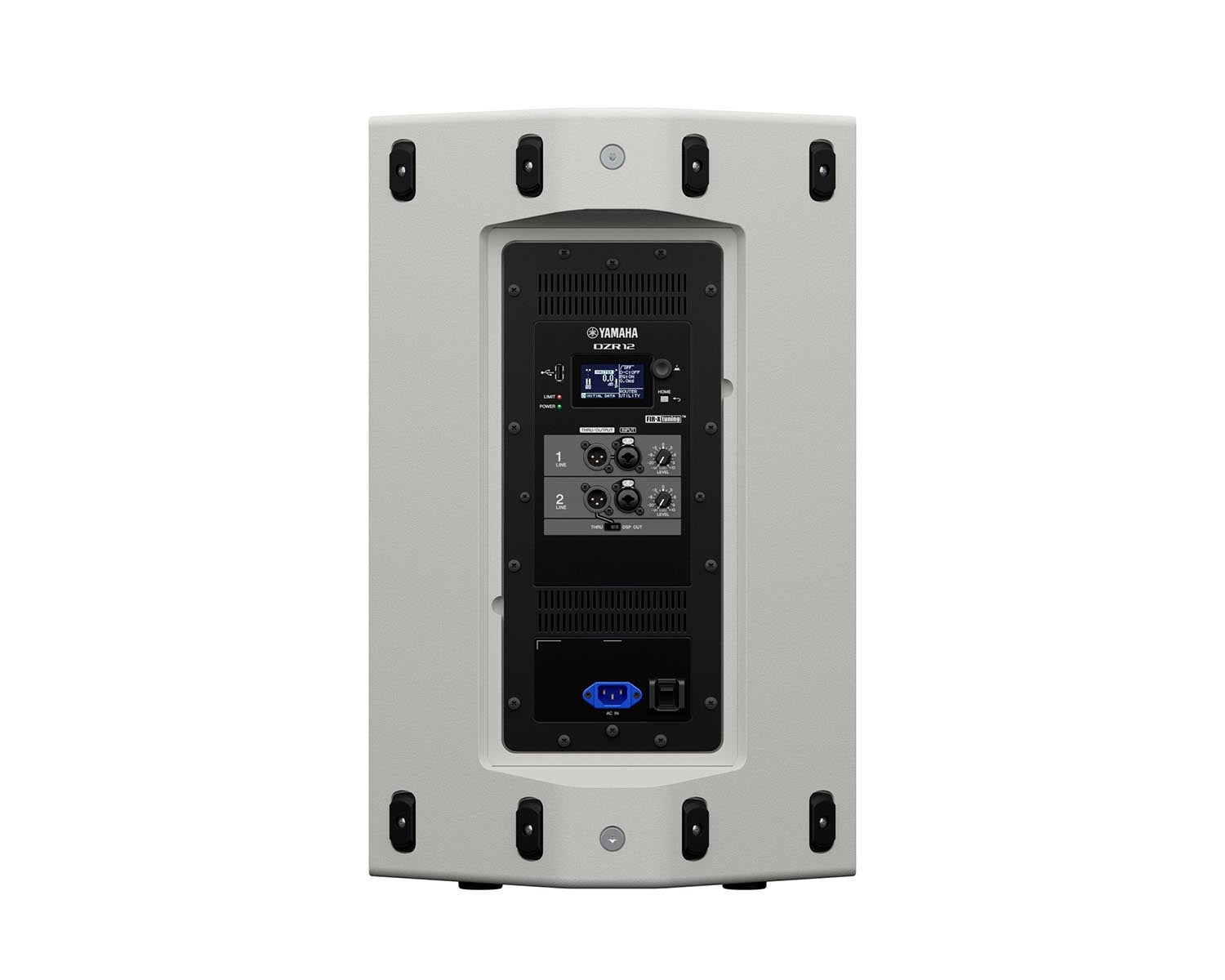

• I/O Connectors
  • Analog I/O
    • Analog IN: Combo x 2, Line level (Maximum +24dBu), Input impedance 20kΩ,
    • Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC: IEC AC inlet x 1 (V-Lock)
• Amplifier Class: Class-D
• Cooling: Fan cooling, Variable speeds
• Power Consumption: 45W (Idle), 150W (1/8)

Physical

• Handle: Aluminium die-cast, Side x 2
• Rigging: M10 x 12
• Dimensions (W x H x D): 410mm x 646mm (with rubber feet) x 394mm (16.1" x 25.4" x 15.5")
• Net Weight: 21.4kg (47.2lbs)
• Options: U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
• Others: Enclosure Material, Finish, Colour: Plywood, Durable Polyurea Painting, Black/White
• Floor Monitor Angle: 50° Symmetrical
• Pole Socket: Ø35mm x 2 (0° or -7°)

*1 Measured peak SPL with pink noise @1m.

*2 Total peak power of individual outputs (AC 120V, 25°C). This value was measured at minimum load impedance, with protection released.
